DIY Trailer Plan - 3224 - Livestock Trailer
DIY Trailer Plan - 3224 - Livestock Trailer

3224 - 24'x6' Livestock Trailer- 26 How-to Steps w/ Blueprint

3224 - 24'x6' Livestock Trailer- 26 How-to Steps w/ Blueprint

Regular price $50
Regular price $49.99 Sale price $50
Regular price $50
$50
Regular price
$49.99
Sale price
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

  • Box Size: 24'x6'
  • Gross Capacity: 16,000 lbs
  • Empty Weight: 5900 lbs
  • Empty Tongue Weight: 1400 lbs
  • Frame: Pipe
  • Deck: Wood
  • 270 Degree Swing Gate
  • Interior Gate
  • Side Emergency Gate
  • Instructions for Tarp or Steel Cover

Features:

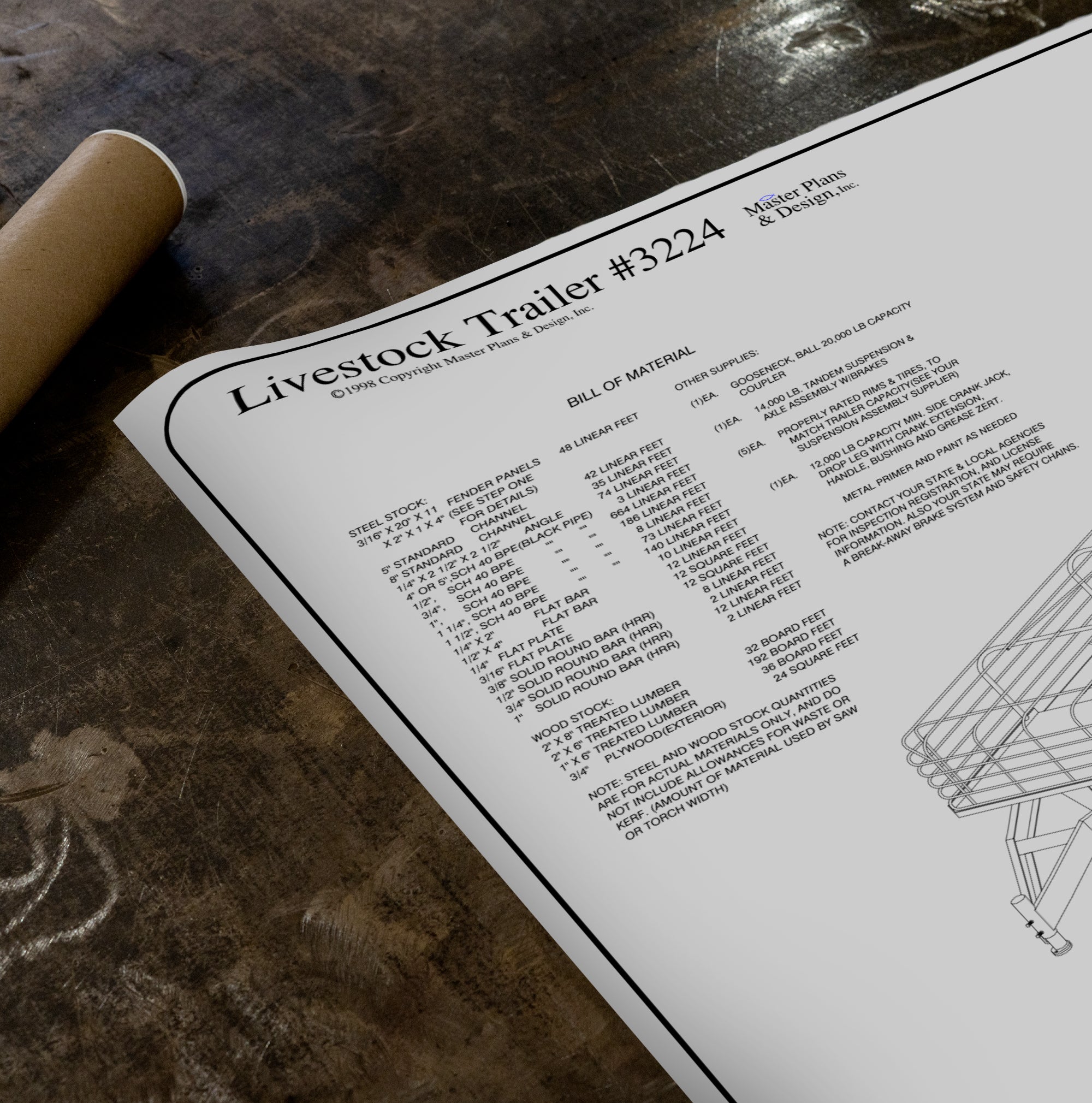

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.
Ā Trailer parts kit specifically made for this plan is available in the option above.

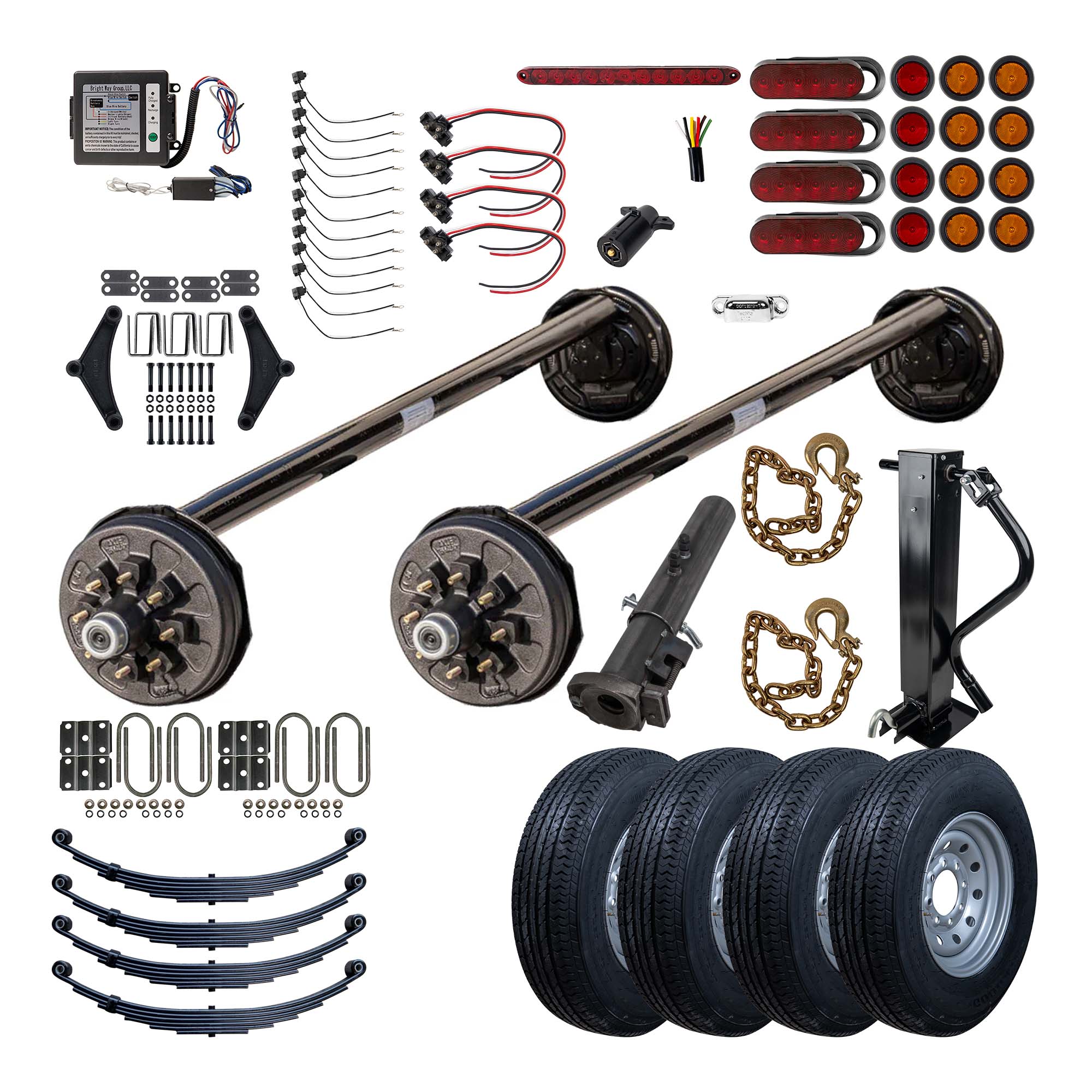

What's Included with Trailer Kit:

  • 2 - 7k Dexter Trailer Axle - 7000 lb Electric Brake 4" Drop 8 lug (Custom) 86 HF 70 SC (4 to 6 weeks build-time)
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 6 Leaf Trailer Double Eye Spring for 7000 lb Axles
  • 1 - 25k Gooseneck Coupler - 25000 lb Adjustable Round 2 5/16
  • 1 - 12k Drop Leg Side Pin Spring Loaded Jack w/Handle
  • 2 - Silver Safety Chain-3/8 x 36" w/1 Clevis Hook (16.2k Capacity) g43
  • 3.6 - 6 way cable 14 gauge (per 10 foot)
  • 1 - 7 Way Plug
  • 4 - Red 6in Oval LED S/T/T Light
  • 4 - Flush Mount Grommet For 6in Oval Lights
  • 4 - Pigtail for Led Lights -3 Prong 10"
  • 4 - Clearance Light Round Red 2.5" LED
  • 12 - Flush Mount Grommet for 2.5" Round Lights
  • 12 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 8 - Clearance Light Round Amber 2.5" LED
  • 1 - License Plate Light-Rectangular
  • 4 - 16" 10 ply Radial TWA - ST 235/80R16 8 lug (SM) TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 -12 Volt Trailer Breakaway Kit
  • 1 - 3224 Livestock Trailer Master Plan Blueprint
