This TK Service Kit is compatible with - 6k TK Trailer Axle - 6000 lb Idler 6 lug

Idler Hub Only Specs:

• 1 - 6k Hub Only - 6x5.5 Bolt Pattern

• 1 - 15245 Outer Race 2.441" OD (Pre-Pressed In Hub)

• 1 - 25520 Inner Race 3.265" OD (Pre-Pressed In Hub)

• Uses 25580 (1.75" ID) and 15123 (1.25" OD) bearings (sold separately)

Idler Hub Assembly Specs:

• 1 - 6k Hub Only - 6x5.5 Bolt Pattern
• 1 - 6k (6000 lb Capacity) Bearing Kit
  • 1 - 10-36 Double Lip Grease Seal 3.376" OD 2.250" ID
  • 1 - 15245 Outer Race 2.441" OD (Pre-Pressed In Hub)

  • 1 - 25520 Inner Race 3.265" OD (Pre-Pressed In Hub)

  • 1 - 25580 Inner Bearing 1.750" ID
  • 1 - 15123 Outer Bearing 1.250" ID
  • 1 - 6,000 lb Grease Cap with Plug

  • 1 - Cotter Pin
  • 1 - Spindle Nut Retainer
• 1 - Grease Tub (1 lb)

• 6 - Cone Wheel Lug Nuts

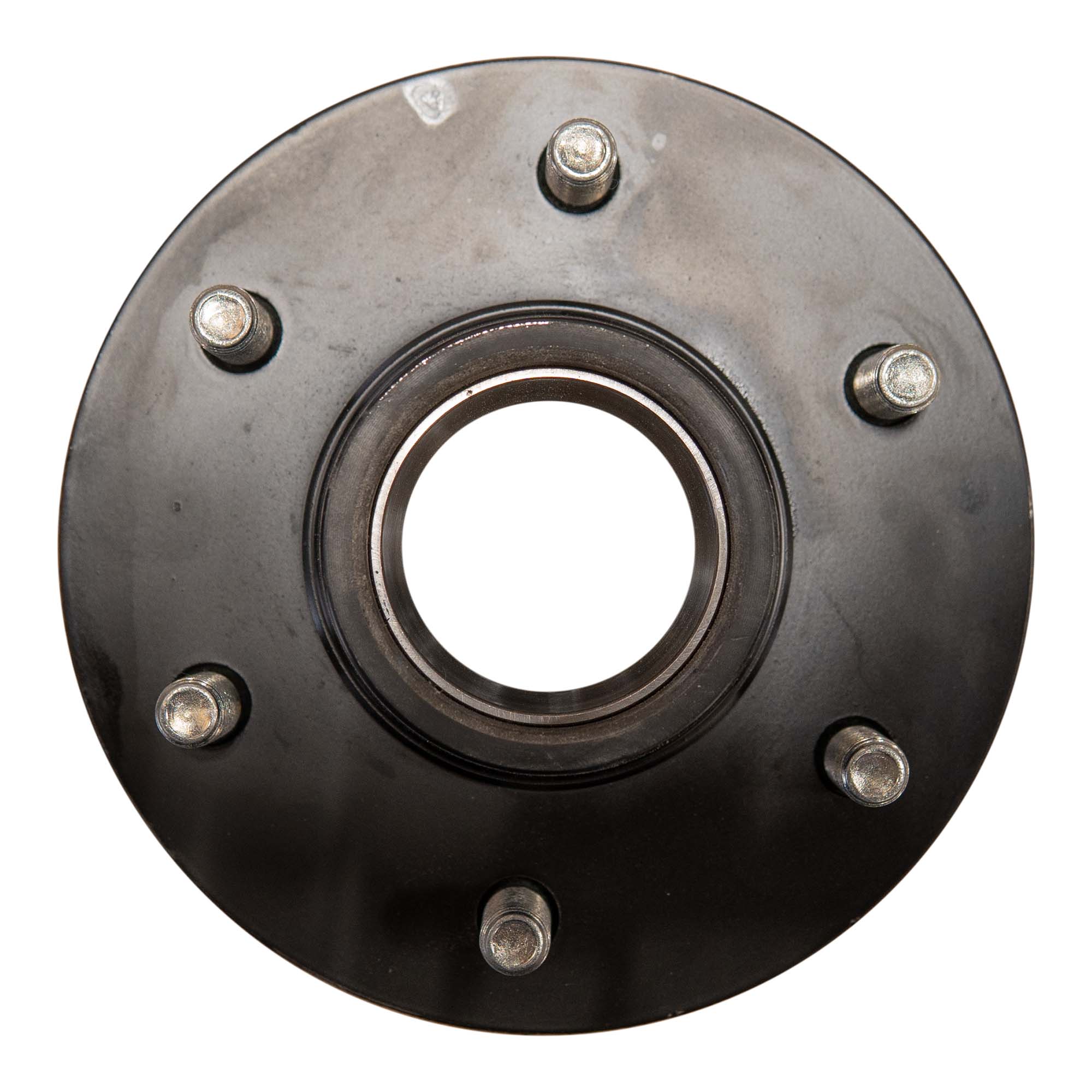

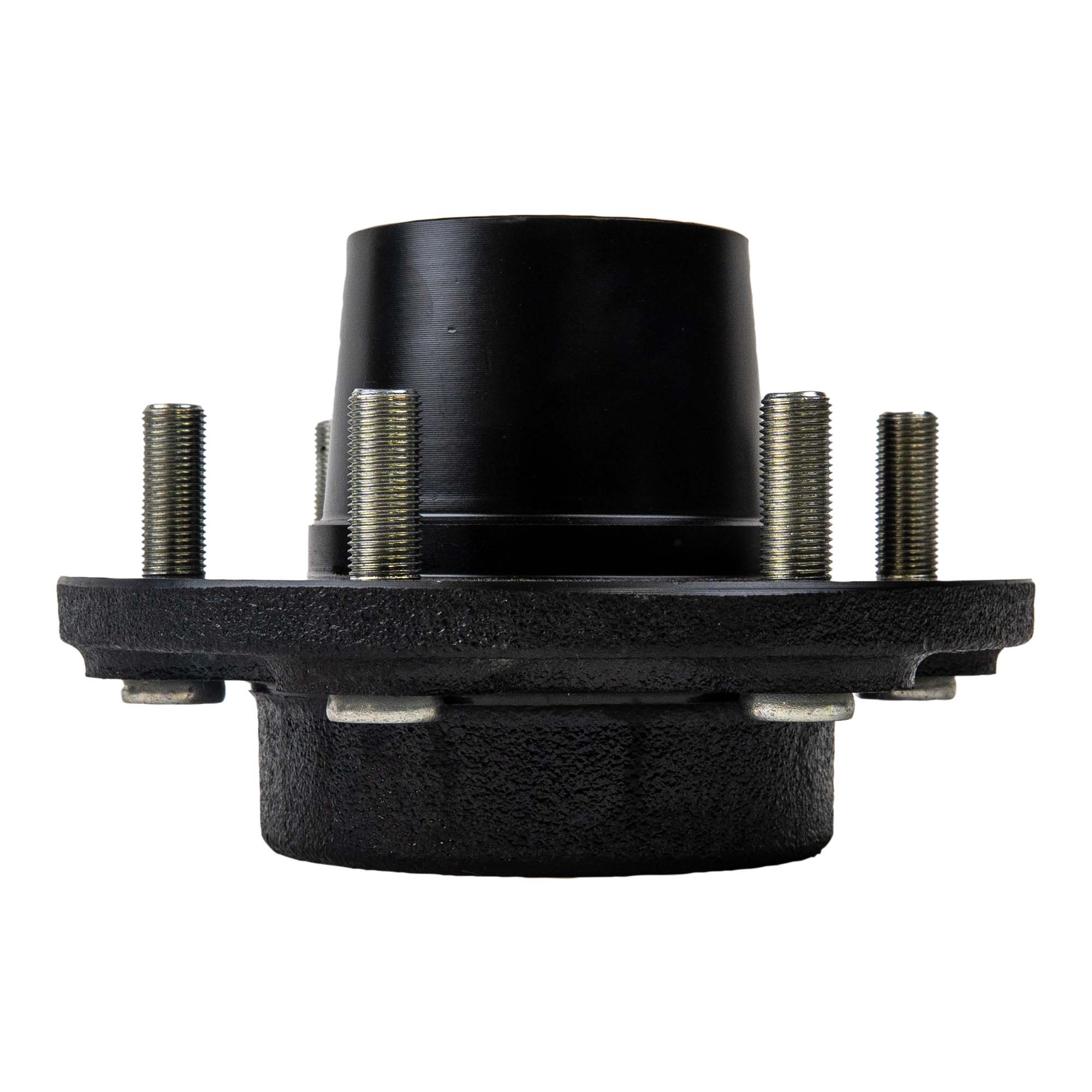

This 6K trailer axle hub features a 6 on 5.5' bolt pattern, and it's a quality option for a number of trailer types. If you have an old hub that's starting to wear out, or you want to build a brand new trailer that will serve you for years to come, then let The Trailer Parts Outlet provide you with quality products at affordable prices. The hub comes with the inner and outer races already pressed in, and we can supply the bearings, seals, caps, and nuts for your trailer. Order from our online catalog today to receive your parts quickly!

Features:

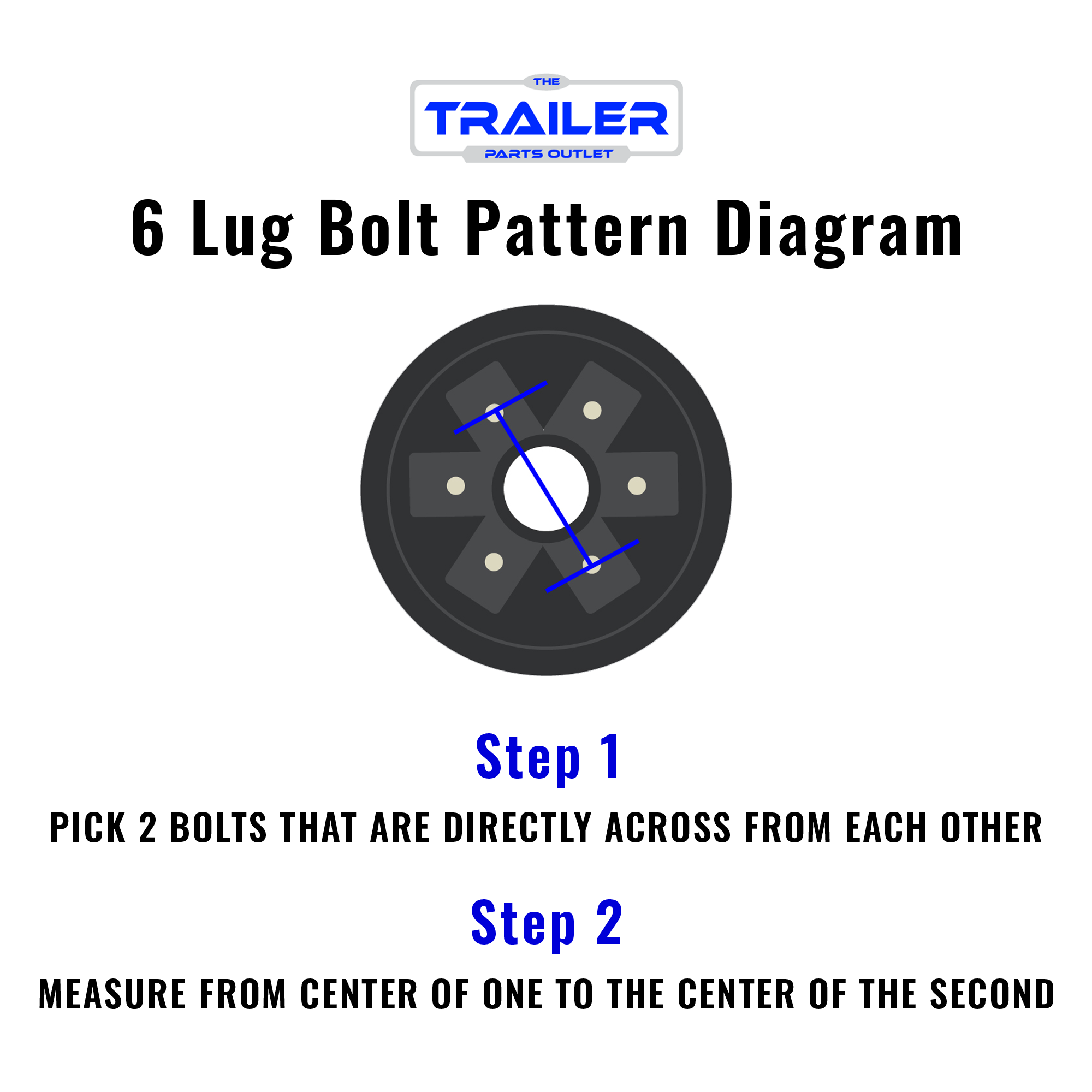

• Our Hub has 6 on 5.5" Bolt Pattern for 6,000 lb Axles
• Races are pre-pressed into the hub for your convenience
• This hub is designed for use with a #42 spindle
• Each hub has a capacity of 3,000 lbs
• The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer sold separately
• Kit with hardware is available
