10AL Aluminum Bolt-Together Trailer Plans – 10' x 5' Utility Trailer

Want to build your own lightweight, durable trailer? The 10AL Aluminum Bolt-Together Trailer Plans provide a step-by-step guide to constructing a versatile 10' x 5' utility trailer. These professional blueprints make the DIY process easy, allowing you to save money and take pride in building your own rig.

What’s Included:

  • Step-by-Step Instructions: 12 easy-to-follow steps for assembly.

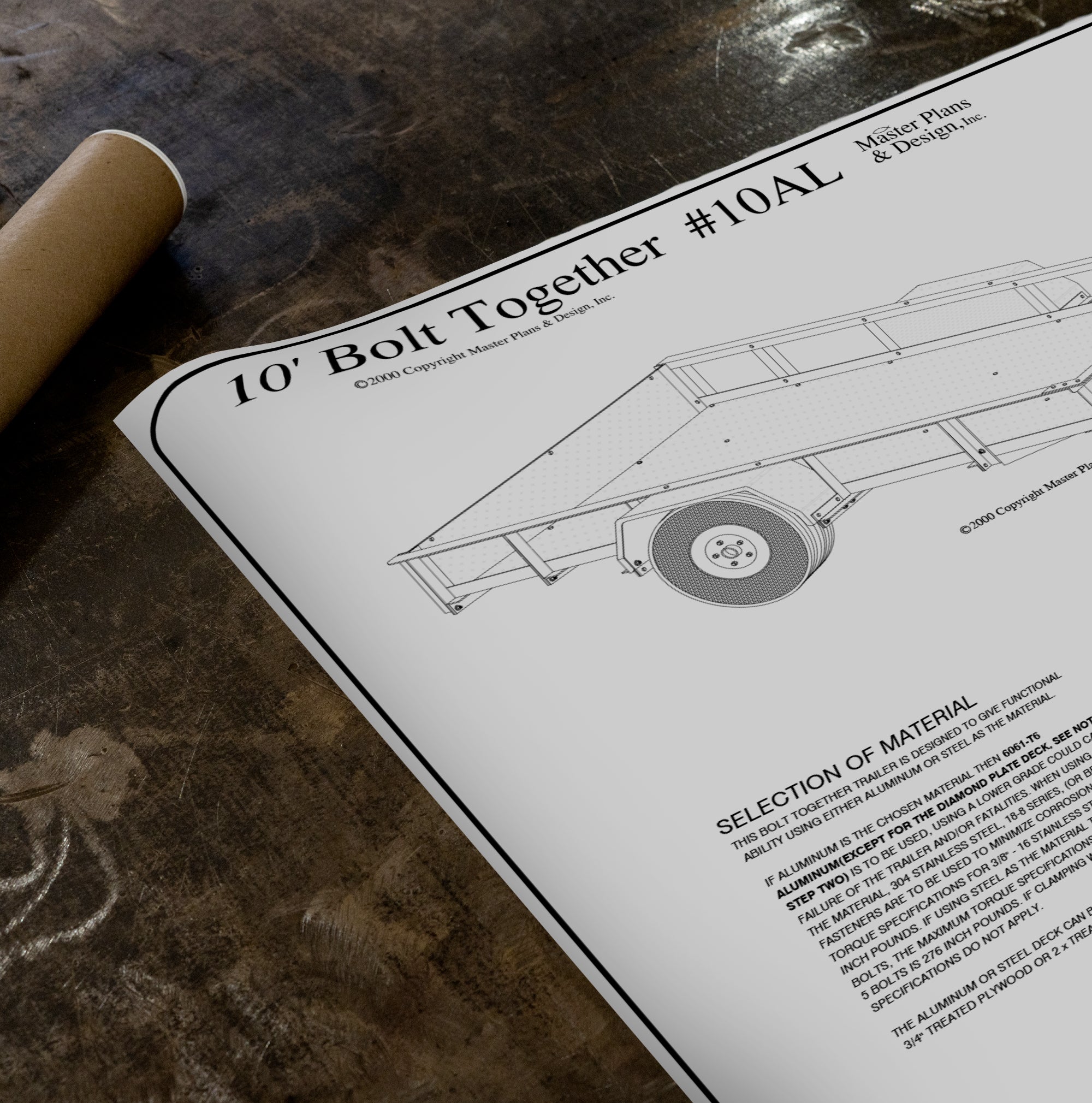

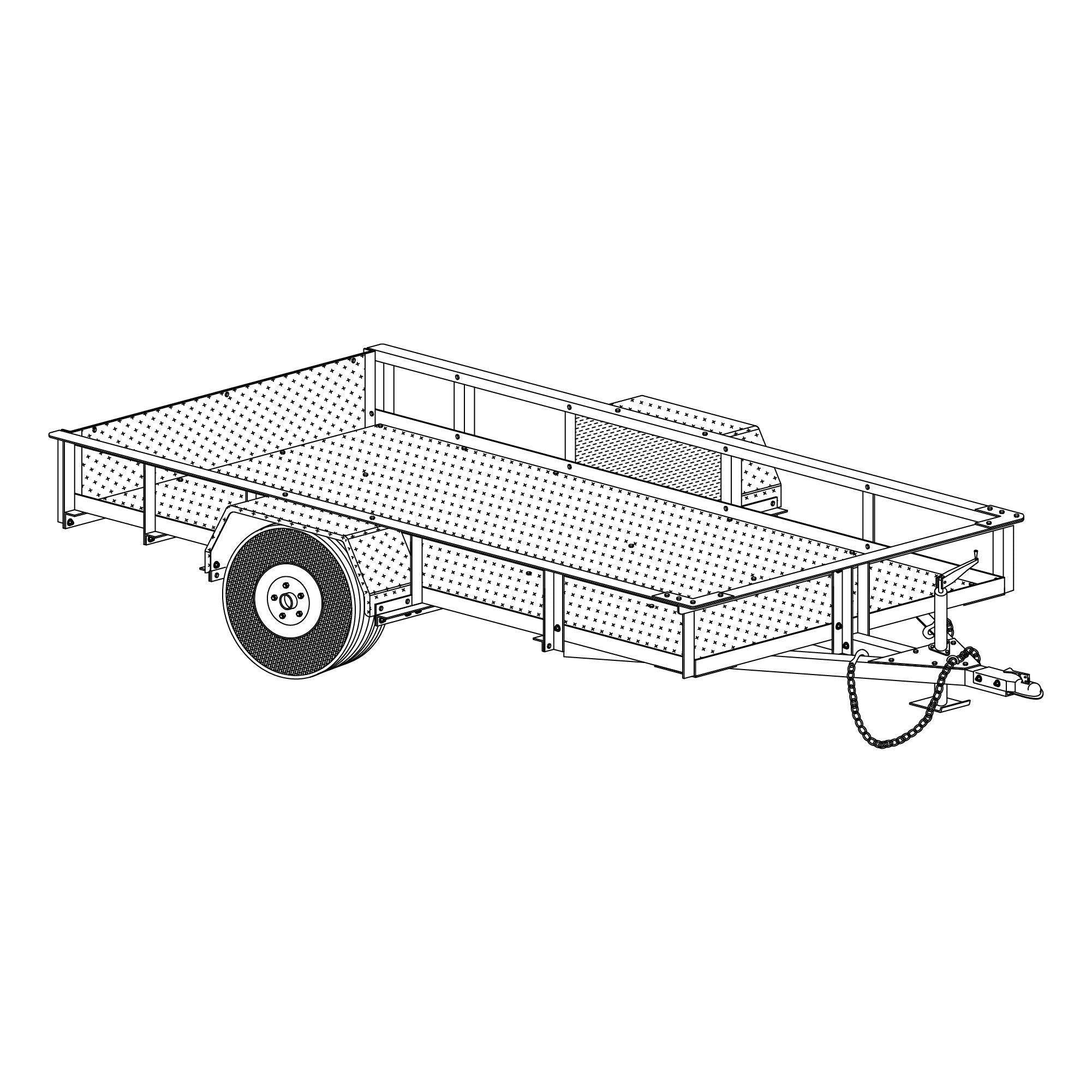

  • Blueprints: Detailed engineering drawings for accurate fabrication/assembly.
  • Parts List: Know exactly what materials and components you need.

Trailer Specifications (As Built)

  • Deck Size: 10' Long x 5' Wide
  • Construction: Aluminum (Bolt-Together design, no welding required if kit is used, but plans usually cover the build).
  • Type: Utility Trailer

Key Benefits

  • DIY Friendly: Bolt-together design eliminates the need for complex welding.
  • Lightweight:Aluminum construction resists rust and is lighter to tow.
  • Customizable: Adapt the build to your specific needs.

Ideal For

  • DIY enthusiasts
  • School shop projects
  • Building a custom garden or ATV trailer

Why Buy from The Trailer Parts Outlet?

We don't just sell parts; we help you build. These plans are precise and easy to read. Get started on your project today!
