9000 lb Electric Brake Trailer Axle 8 lug - 9k TK Grease Bath Trailer Axle

Skip to product information
1 of 7

9000 lb Electric Brake Trailer Axle 8 lug - 9k TK Grease Bath Trailer Axle

9000 lb Electric Brake Trailer Axle 8 lug - 9k TK Grease Bath Trailer Axle

SKU : 09EBTK9578865
Regular price $1,399
Regular price $1,899.99 Sale price $1,399
Regular price $1,399
$1,399
SAVE 26%
Regular price
$1,899.99
Sale price
Axle Options:
Hubface/Spring Center (Frame Width):
View full details
9000 lb Electric Brake Trailer Axle 8 lug - 9k TK Grease Bath Trailer Axle - The Trailer Parts Outlet
9000 lb Electric Brake Trailer Axle 8 lug - 9k TK Grease Bath Trailer Axle - The Trailer Parts Outlet

9000 lb Electric Brake Trailer Axle 8 lug - 9k TK Grease Bath ...

9000 lb Electric Brake Trailer Axle 8 lug - 9k TK Grease Bath Trailer Axle

Regular price $1,399
Regular price $1,899.99 Sale price $1,399
Regular price $1,399
$1,399
SAVE 26%
Regular price
$1,899.99
Sale price
  • Product Information
  • How To
  • Reviews

Check out our 9,000 lb Electric Brake Grease Bath Trailer Axle. The Trailer Parts Outlet offers Superior Service and Faster Solutions. We strive to get you back on the Road FAST with fast and free shipping and easy online ordering.

Trailer Axle Specs:

  • 9,000 lb TK Trailer Axle (9K Capacity)
  • 8 Lug
  • Tube: 4"
  • Weight: 383 lbs
  • Grease Bath
  • This axle is not ABS compatible

Trailer Axle Internal Components:

  • 9k-10k (9000-10,000 lb Capacity) Bearing Kit (2 sets) - each set includes:
    • Outer Bearing
    • Inner Bearing
    • Outer Race
    • Inner Race
    • Unitized Grease Seal
    • Screw on Grease CapĀ
  • 9k Trailer Axle Drum - 8 lug Brake
  • 9k Trailer Axle Studs - 5/8"
  • 9k Trailer Axle Brake - 12 1/4" x 3 3/8" Electric

Trailer Axle Features:

  • Axles come fully assembled with high temp greaseĀ
  • Underslung - Axle is welded with spring seats on the bottom
    • Allows for lower ride height
  • Designed for replacement of Flatbed Trailer Axles, Car Hauler Trailer Axles, Gooseneck Trailer Axles, Lawn & Landscape Trailer Axles, Dump Trailer Axles & More
  • High Strength Straight Steel 4" Axle Tube Construction

What's Included in the 9,000 lb Axle Kit Option:

  • 1 - TK 9,000 lb Electric Brake Trailer Axles Grease Bath
  • 2 - 6 Leaf 30 1/2" x 2" Wide Trailer Axle Slipper Spring for 9,000 lb Trailer Axles
  • 1- 9,000 lb Capacity U-Bolt Kit

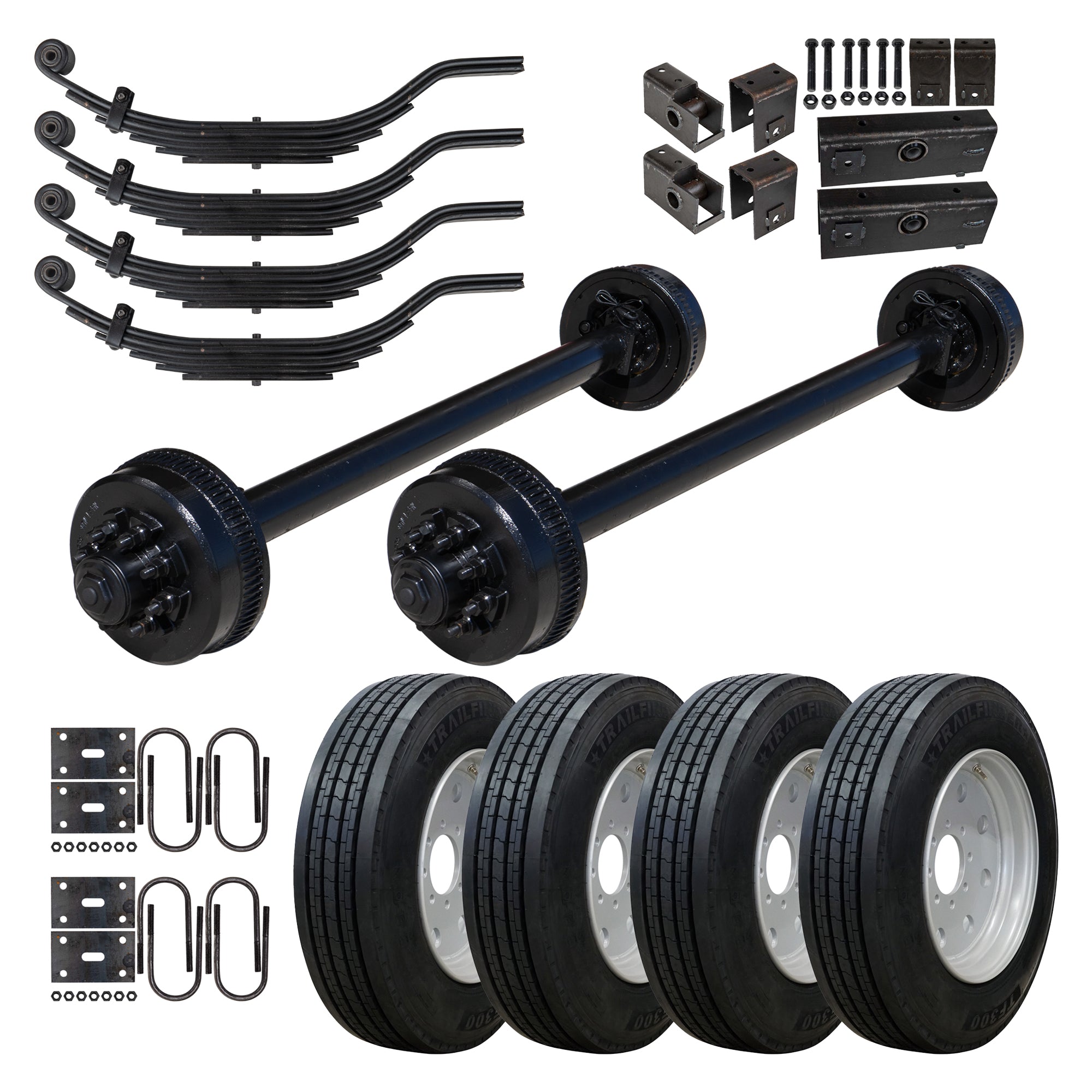

What's Included in the 9,000 lb Trailer Kit Option:

  • 2 - TK 9,000 lb Electric Brake Trailer Axles Grease Bath
  • 4 - 6 Leaf 30 1/2" x 2" Wide Trailer Axle Slipper Spring for 9,000 lb Trailer Axles
  • 2- 9,000 lb Capacity U-Bolt Kit
  • 1 - Slipper Tandem Hanger Kit
  • 4 - 17.5" 215/75 R17.5 16 ply Radial TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish

Benefits of a Grease Bath Trailer Axle

  1. Simplicity: Grease bath axles are simpler in design compared to oil bath axles, which can result in easier maintenance and repair.
  2. Cost-Effective: Grease is generally less expensive than oil, making grease bath axles more cost-effective in terms of lubrication.
  3. Durability: Grease can provide adequate lubrication and protection against wear and tear, contributing to the durability of the axle components.
  4. Sealed System: The sealed housing of a grease bath axle helps prevent contaminants from entering, reducing the risk of damage to the bearings and other components.
  5. Suitable for Lighter Loads: Grease bath axles are often used in lighter-duty applications where the loads and operating conditions are less demanding.
  6. Low Maintenance: Grease bath axles typically require less frequent maintenance compared to oil bath axles, reducing downtime and maintenance costs.
  7. Environmental Friendliness: Grease is less likely to leak and can be disposed of more easily and safely than oil, making it a more environmentally friendly option.

If you have any questions, please call (936) 289-3191Ā and our trailer parts experts will be more than happy to assist you.


how to measure your trailer axle - how to measure bolt patter on a trailer Axle. - how to find your hub face and spring center
