DIY Trailer Plan - 16CC - Covered Cargo Trailer
DIY Trailer Plan - 16CC - Covered Cargo Trailer

16CC - 16'x8' Covered Cargo Trailer DIY Master Plan

16CC - 16'x8' Covered Cargo Trailer DIY Master Plan

Regular price $50
Regular price $49.99 Sale price $50
Regular price $50
$50
Regular price
$49.99
Sale price
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

  • Box Size: 16'x8x6'6"ht.
  • Gross Capacity: 10,400 lbs or 7,000 lbs
  • Empty Weight: 2990 lbs
  • Empty Tongue Weight: 308 lbs
  • Frame: 2"x6" 11 ga Rectangular Tubing
  • Deck: 3/4" Plywood

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

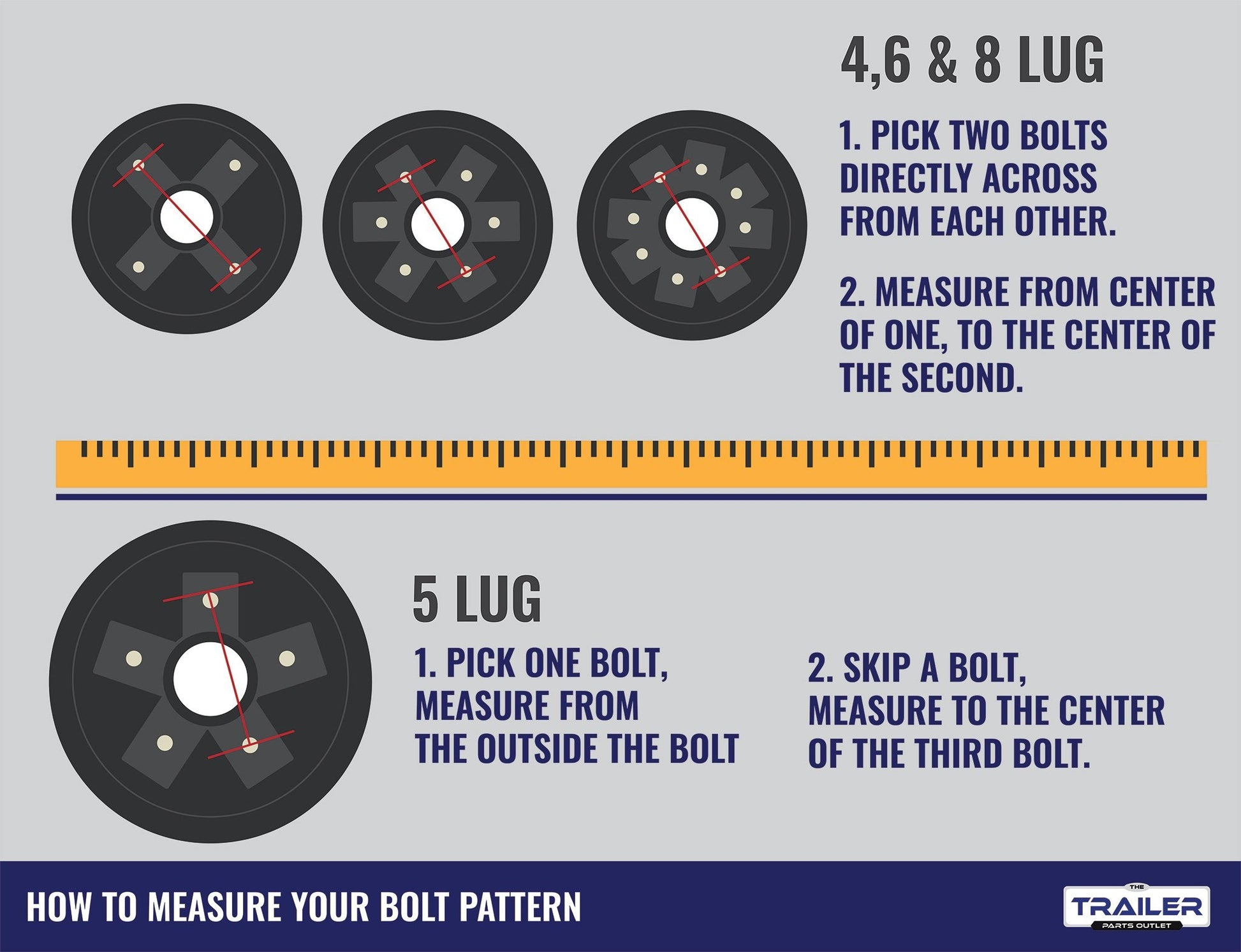

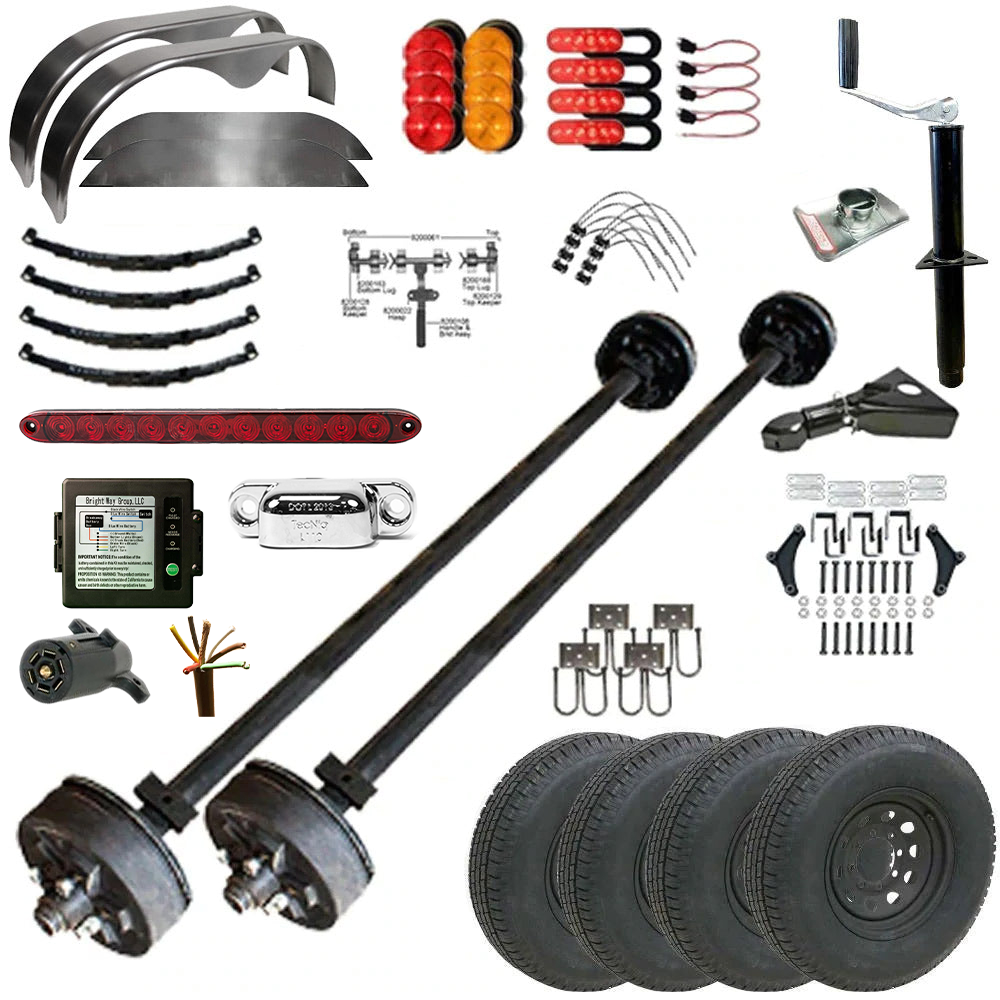

What's Included with 7K Trailer Kit:

  • 2 - Axles: 3.5k Trailer Axle - Electric Brake 5x4.5 lug 89/74
  • 2 - Trailer U-bolt kit for 3500 lb Axles

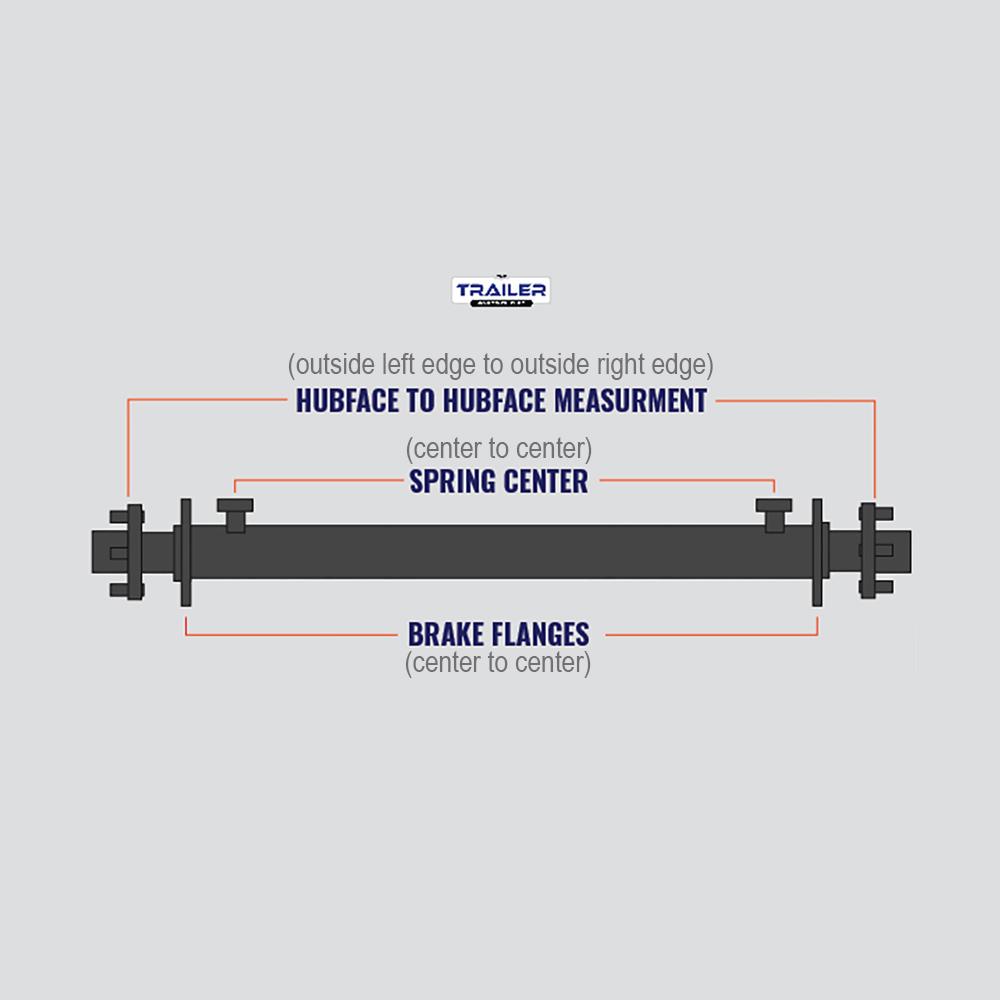

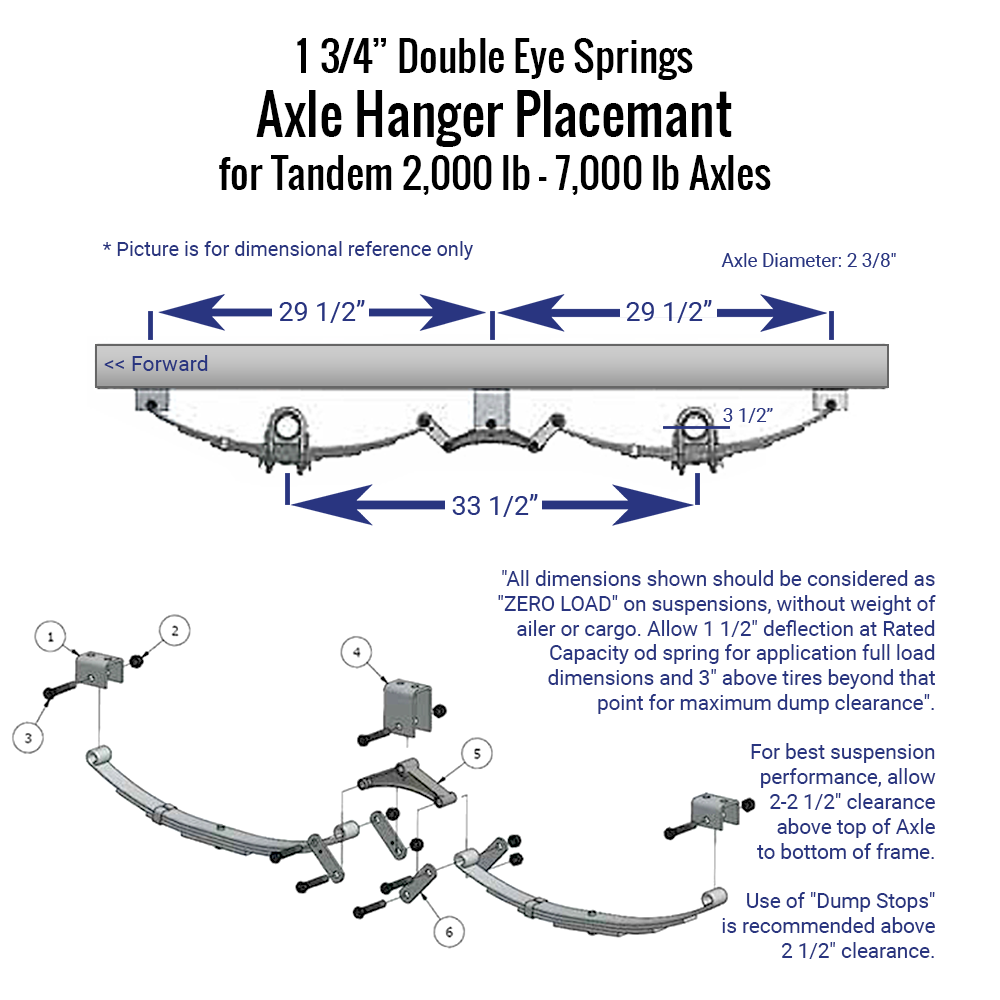

  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 2 - Tandem Axle 10.75x72 Smooth Steel Teardrop Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
  • 4 - 15" 6 ply Bias TWA - ST 205/75 D15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 2 - Two Point Cam Lock Door Kit
  • 1 - 7 Way Plug
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 4 - Red 6in Oval LED S/T/T Light
  • 4 - Flush Mount Grommet For 6in Oval Lights
  • 4 - Pigtail for Led Lights -3 Prong 10"
  • 1 - License Plate Light-Rectangular
  • 4 - Clearance Light Round Red 2.5" LED
  • 4 - Clearance Light Round Amber 2.5" LED
  • 8 - Flush Mount Grommet for 2.5" Round Lights
  • 8 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 1 - 12 Volt Trailer Breakaway Kit
  • 2.6 - 6 way cable 14 gauge (per 10 foot)
  • 1 - 7K A-Frame Cast Trailer Coupler-7000 lb 2" Bulldog Style
  • 1 - A-Frame 5K Trailer Jack 5000 lb Top Wind
  • 1 - Trailer Jack Footplate
  • 1 - 16CC Covered Cargo Master Plan Blueprint

What's Included with 10.4K Trailer Kit:

  • 2 - 5.2k Trailer Axle - Electric Brake 6x5.5 lug 89/74
  • 2 - Trailer U-bolt kit for 5200-7000 lb Axles
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
  • 2 - Tandem Axle 10.75x72 Smooth Steel Teardrop Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
  • 4 - 15" 10 plyĀ Radial TWA - ST 225/75R15 6x5.5 (Silver Mod)
  • 2 - Silver Trailer Safety Chain - 5/16x30" (7.6k Capacity)
  • 2 - Two Point Cam Lock Door Kit
  • 1 - 7 Way Plug
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 4 - Red 6in Oval LED S/T/T Light
  • 4 - Flush Mount Grommet For 6in Oval Lights
  • 4 - Pigtail for Led Lights -3 Prong 10"
  • 1 - License Plate Light-Rectangular
  • 4 - Clearance Light Round Red 2.5" LED
  • 4 - Clearance Light Round Amber 2.5" LED
  • 8 - Flush Mount Grommet for 2.5" Round Lights
  • 8 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 1 - 12 Volt Trailer Breakaway Kit
  • 2.6 - 6 way cable 14 gauge (per 10 foot)
  • 1 - 12.5K A-Frame Cast Trailer Coupler-12,500 lb 2 5/16" Bulldog Style
  • 1 - Pipe Mount 5K Trailer Jack - 5000 lb Side Wind
  • 1 - Trailer Jack Footplate
  • 1 - 16CC Covered Cargo Master Plan Blueprint
