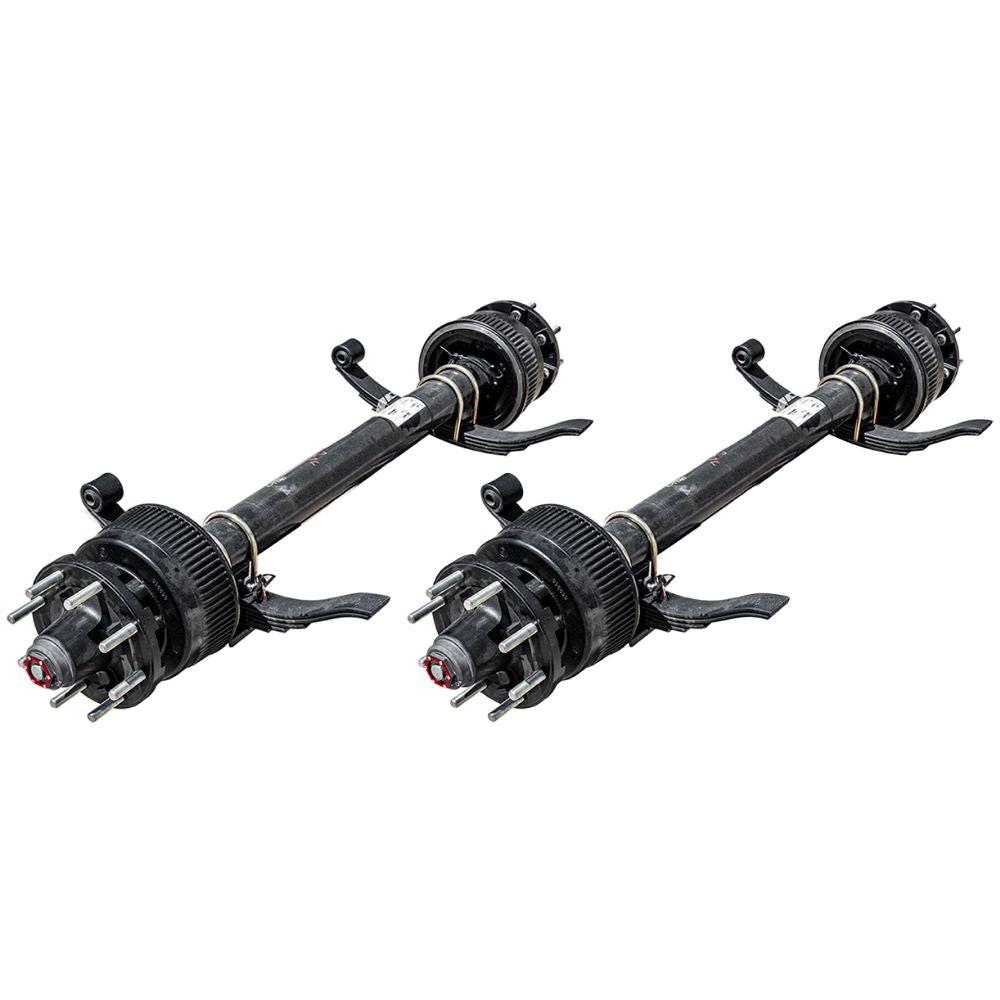

  • 16k Lippert Trailer Axle - Sprung - 16000 lb Electric Brake 8 lug- Set (2)
1 9

16k Lippert Trailer Axle - Sprung - 16000 lb Electric Brake 8 lug

16k Lippert Trailer Axle - Sprung - 16000 lb Electric Brake 8 lug

SKU : 16DHDEBSDKTLP74428275

Online price only

$9,466.99

Online price only

SAVE 0% (833) 910-3416
Shipping: Calculated at Checkout | Product Wt. 2360.0 lb
Axle Options:
Hubface/Spring Center:
Bolt Pattern:
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • How To
  • Reviews

16K Electric Brake Tandem Axle TK Trailer Kit — Dual — 32K capacity | Axles, Suspension, Tires & Wheels

Complete tandem running gear in one package: two 16,000 lb electric brake axles, matched slipper suspension, and eight 17.5 inch dual radial tire and wheel assemblies. 32,000 lb combined capacity.

Axle Specifications:

  • Load rating: 16,000 lbs (16K)
  • Axle type: Electric Brake (Oil Bath)
  • Brake size: 12¼″ × 5″ electric drum
  • Tube diameter: 5″ straight steel axle tube
  • Hubface/Spring Center: 74/42
  • Bolt pattern: 8 on 275mm (8x275mm)
  • Stud size: 22mm
  • Spring mount: Underslung (lower ride height)
  • Lubrication: Oil Bath
  • Compatibility: Fits 15K–16K Dexter, TK, and Texas Pride axles (not compatible with Rockwell)
  • ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

  • (2) Fully Assembled 16k Lippert Electric Brake Oil Bath Axles — 74/42 — 8x275mm
  • (4) 8k 30″ x 3″ 6-Leaf HD Slipper Springs
  • (2) 16k U-Bolt Kits (3/4″, 5″ tube)
  • (1) Slipper Tandem Suspension / Hanger Kit (16k)
  • (8) 17.5" 215/75R17.5 18 Ply 8x275mm Dual Radial TWA (Tire Wheel Assemblies) — Silver/Gray Finish

Key Benefits:

  • Matched tandem running gear — no cross-referencing parts
  • 5″ steel tubes — 32,000 lb combined capacity

Ideal For:

  • Gooseneck & lowboy trailers
  • Flatbed & car hauler trailers
  • Dump & equipment haulers
  • Commercial & fleet builds
