7k Trailer Axle Hub and Drum - 8 lug

7k Trailer Axle Hub and Drum - 8 lug

SKU : 07HUBDRUM865-916BARETK
Regular price $129.99 Sale price $100
SAVE 23% (833) 910-3416
Drum Options:
Stud Size:
OR
View full details
7k Trailer Axle Hub and Drum - 8 lug - The Trailer Parts Outlet
7k Trailer Axle Hub and Drum - 8 lug - The Trailer Parts Outlet

7k Trailer Axle Hub and Drum - 8 lug

7k Trailer Axle Hub and Drum - 8 lug

Regular price $129.99 Sale price $100
SAVE 23% (833) 910-3416
  • Product Information
  • Reviews

This hub/drum is compatible with - 7k TK Trailer Axle - 7000 lb Electric Brake 8 lug

Hub/Drum Only Specs:

  • 1 - 7k Hub/Drum Only - 8x6.5 Bolt Pattern
  • 1 - 25520 Inner Race 3.265" OD (Pre-Pressed In Hub)
  • 1 - 14276 Outer Race 2.717" OD (Pre-Pressed In Hub)
  • 1/2" Studs (Pre-Pressed In Hub)
  • Uses 25580 (1.75" ID) and 14125A (1.25" ID) bearings (sold separately)
  • Use with a 12" x 2" brake
  • 1/2" or 9/16" (Stud Option Above)

Hub/Drum Assembly Specs:

  • 1 - 7k Hub/Drum Only - 8x6.5 Bolt Pattern
  • 2 - 7K (7000 lb Capacity) Bearing Kit
    • 2 - 10-36 Double Lip Grease Seal 3.376" OD 2.250" ID
    • 2 - 14276 Outer Race 2.717" OD (Pre-Pressed In Hub)
    • 2 - 25520 Inner Race 3.265" OD (Pre-Pressed In Hub)
    • 2 - 25580 Inner Bearing 1.750" ID
    • 2 - 14125A Outer Bearing 1.25" ID
    • 2 - 7,000 lb Grease Cap with Plug
    • 2 - Cotter Pin
    • 2 - Spindle Nut Retainer
  • 1 - Grease Tub (1 lb)
  • 1/2" or 9/16" (Stud Option Above)
  • Use with a 12" x 2" brake

TK Service Kit Specs:

Bulk Hub/Drum Specs:

  • 25 - 7K Hub/Drum - 8x6.5 Bolt Pattern
  • 25 - 14276 Outer Race 2.717" OD (Pre-Pressed In Hub)
  • 25 - 25520 Inner Race 3.265" OD (Pre-Pressed In Hub)

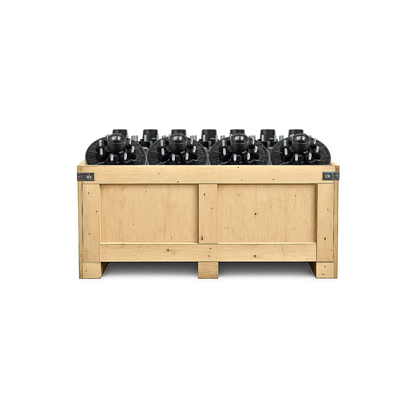

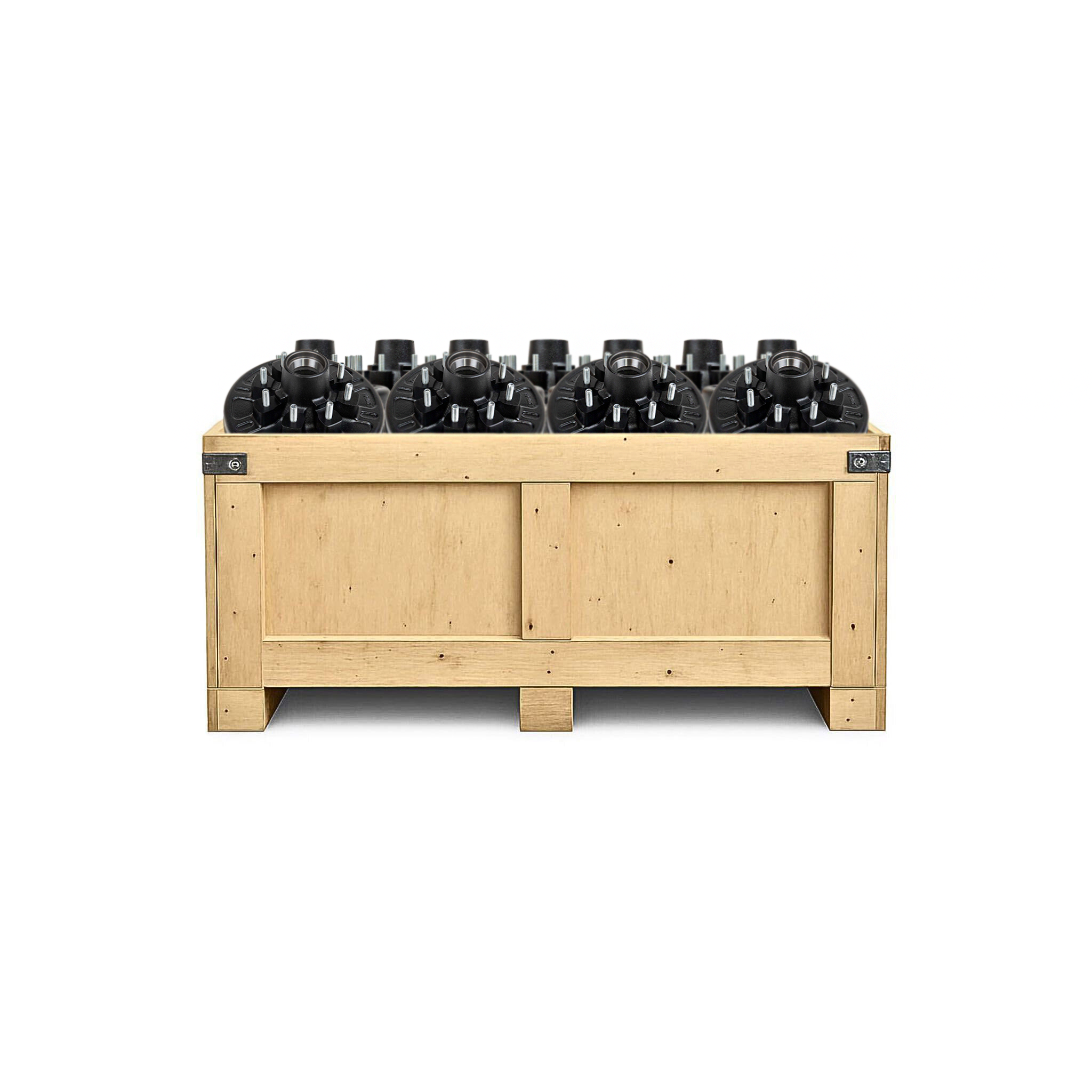

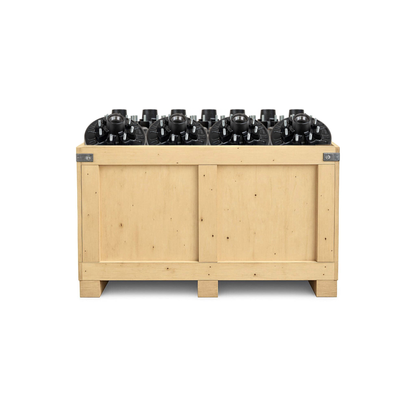

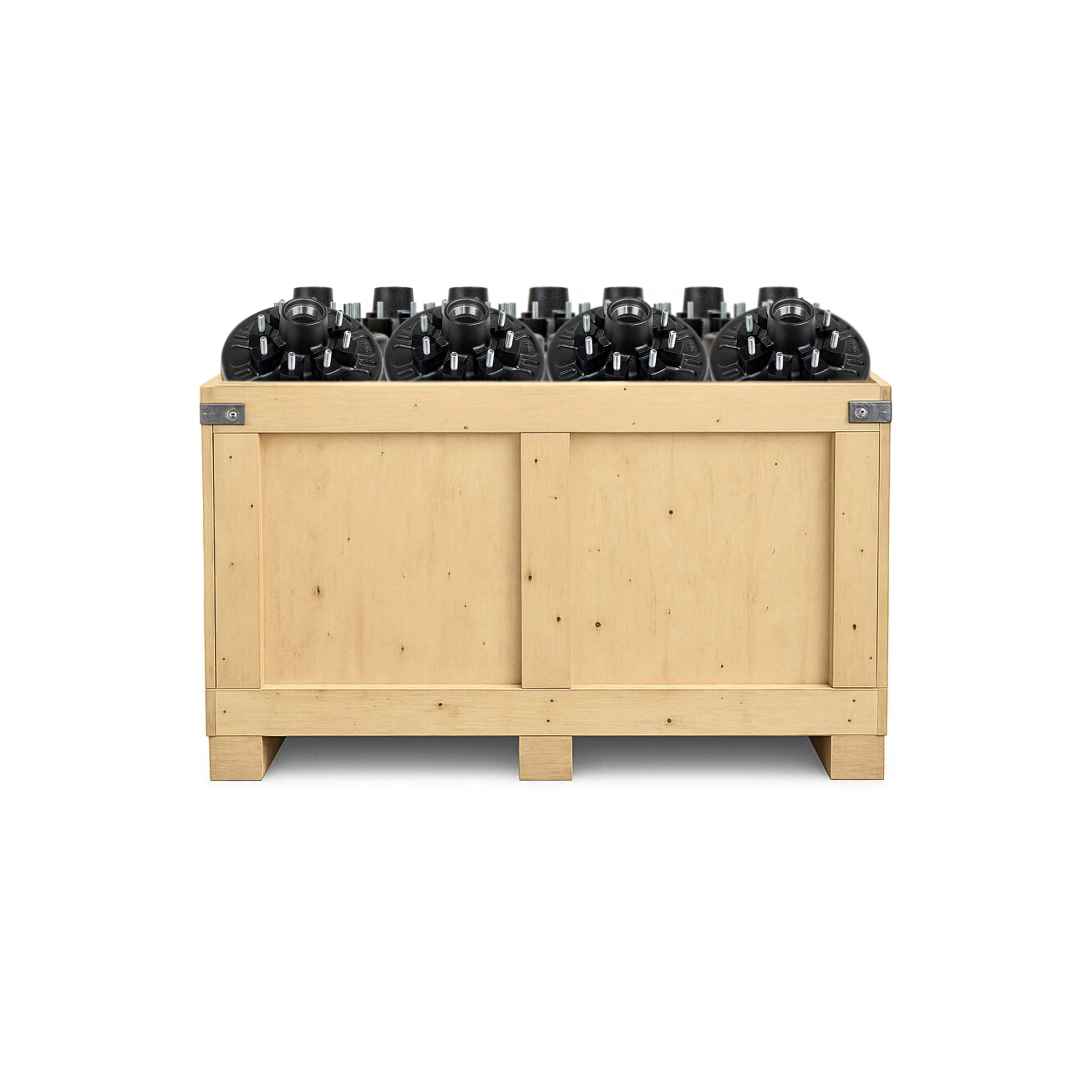

Crate Hub/Drum Specs:

  • 50 - 7K Hub/Drum - 8x6.5 Bolt Pattern
  • 50 - 14276 Outer Race 2.717" OD (Pre-Pressed In Hub)
  • 50 - 25520 Inner Race 3.265" OD (Pre-Pressed In Hub)

This 8-lug trailer axle hub and drum assembly is ideal for 7K axles, and it's compatible with a number of axle brands. If you're building a new trailer and you need parts, then we can help you select the appropriate products. If you have old parts that need to be replaced, then you can find new options at prices that fit your budget. At The Trailer Parts Outlet, our mission is to provide business owners with the products that they need. Please let us know if you have any questions, and order your 7K hub and drum assembly from our online catalog today!

Features:

  • 12" x 2" Hub & Drum with 8 on 6.5" Bolt Pattern For 5.2-7k Axles
  • Hub and drum comes with races pre-pressed for your convenience
  • This hub & drum is designed for use with a  #42  spindle
  • Each hub & drum has a capacity of 3,500 lbs
  • Hub & drum uses 25580 inner bearing and a 14125A outer bearing (sold separately)
  • The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer sold separately
  • Kit with hardware is available
