15K TK Trailer Axle Hub and Drum - 15,000 lb Capacity - 8 lug x 275mm

1 5

15K TK Trailer Axle Hub and Drum - 15,000 lb Capacity - 8 lug x 275mm

SKU : 15HUBDRUMBARETK8275

Online price only

$369.99

Online price only

SAVE 0% (833) 910-3416

4.5

Rated 4.5 out of 5 stars

116 Reviews

Shipping: Calculated at Checkout | Product Wt. 60.0 lb

Hub/Drum Options: Variant image

Hub/Drum

Hub/Drum Assembly

Upgrade to TK Service Kit

Product variants

Quantity

Tax Exempt? Enter info in cart when you're done shopping.

View full details

Product Information
Reviews

Hub/Drum Only Specs:

Hub/Drum Only
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
Uses 3984 (2.625" ID) and 28682 (2.25" OD) bearings (sold separately)
Drum uses a brake assembly that measures 12 1/4" X 5" (sold separately)
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles

Hub/Drum Assembly Specs:

Hub/Drum
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
1 - 3984 Inner Bearing 2.625" ID
1 - 28682 Outer Bearing 2.25" ID
1 - 10-56 Oil Seal 3.125" ID/4.5" OD
1 - Oil Bath Cap and Plug 21-36
8 - Swivel Flange Wheel Lug Nuts
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles

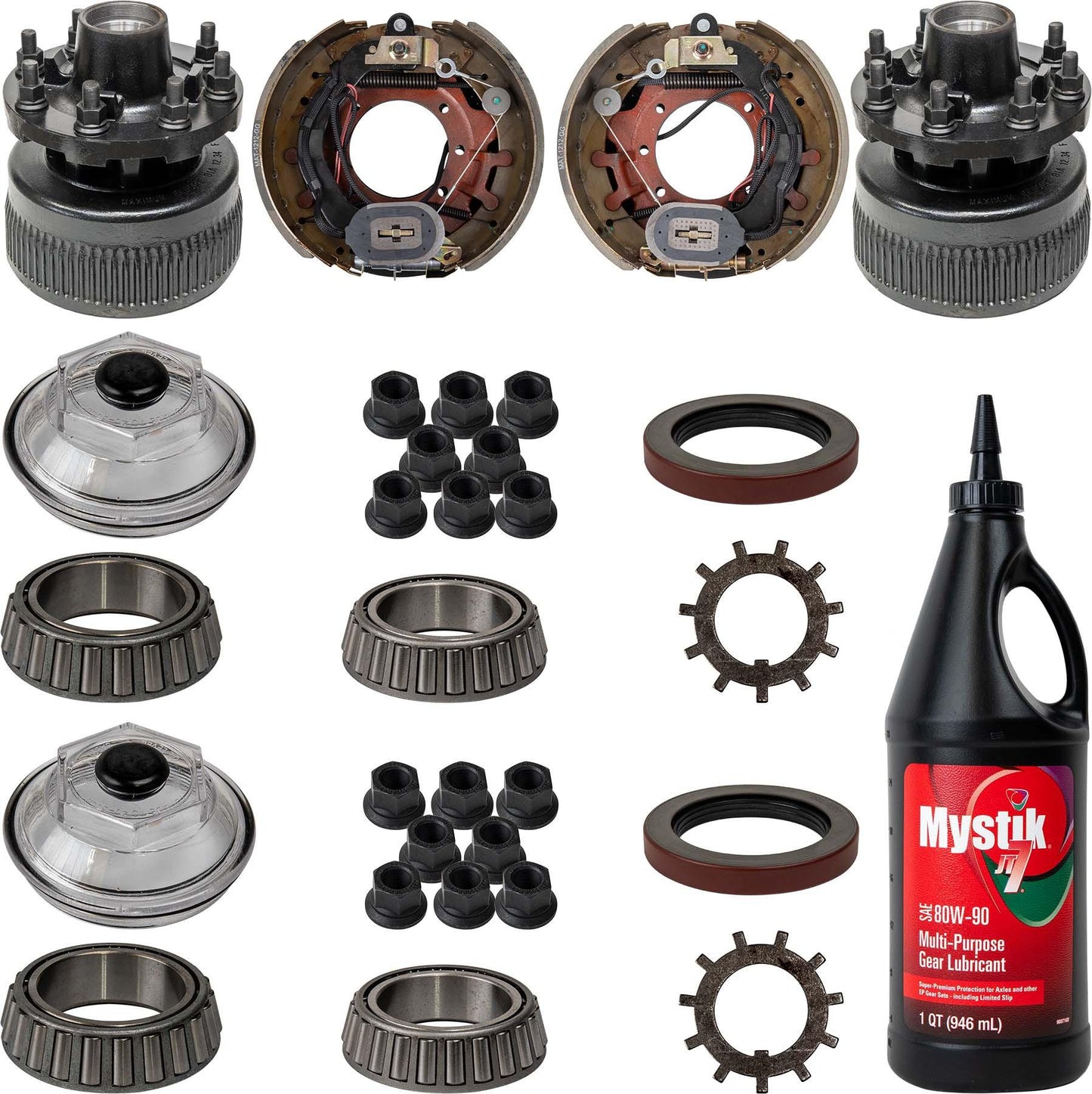

TK Service Kit Specs:

2 - 15K Trailer Axle Hub and Drum 8x275mm
2 - 15k (15,000 lb Capacity) Bearing Kit
- 2 - 3984 Inner Bearing 2.625" I.D
- 2 - 28682 Outer Bearing 2.250" I.D
- 2 - 3920 Inner Race 4.438" O.D (Pre-Pressed In Hub)
- 2 - 28622 Outer Race 3.844" O.D (Pre-Pressed In Hub)
- 2 - Unitized Oil Seal 010-056-00 4.506" O.D 3.125" I.D
16 - Swivel Flange Wheel Lug Nuts
2 - 12-15K Tang Washer - 1.75" I.D. x 0.60"
2 - Oil Bath Cap and Plug 21-36
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Driver Side)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Passenger Side)

If you're replacing the hubs and drums on your trailer axles and you need a heavy-duty option, then this 15K assembly is a great choice. It features an 8-lug hub face, and you can pair it with the tire and wheel assemblies of your choice. It works well on flatbeds, lowboys, and other large trailers, and we know you'll love how easy it is to install. Instead of your trailer being out of commission, you can get it back on the road and working for your business. Order your new 15K trailer axle hub and drum assembly from our online catalog today!

Features:

Grease Bath Lubrication
Our Hub/Drum has 8 on 275mm Bolt Pattern for 15K lb Axles
Races are pre-pressed into the hub for your convenience
Each hub has a capacity of 7,500 lbs
Drum uses a brake assembly that measures 12 1/4" X 5"
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Only Specs:

Hub/Drum Only
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
Uses 3984 (2.625" ID) and 28682 (2.25" OD) bearings (sold separately)
Drum uses a brake assembly that measures 12 1/4" X 5" (sold separately)
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles

Hub/Drum Assembly Specs:

Hub/Drum
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
1 - 3984 Inner Bearing 2.625" ID
1 - 28682 Outer Bearing 2.25" ID
1 - 10-56 Oil Seal 3.125" ID/4.5" OD
1 - Oil Bath Cap and Plug 21-36
8 - Swivel Flange Wheel Lug Nuts
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles

TK Service Kit Specs:

2 - 15K Trailer Axle Hub and Drum 8x275mm
2 - 15k (15,000 lb Capacity) Bearing Kit
- 2 - 3984 Inner Bearing 2.625" I.D
- 2 - 28682 Outer Bearing 2.250" I.D
- 2 - 3920 Inner Race 4.438" O.D (Pre-Pressed In Hub)
- 2 - 28622 Outer Race 3.844" O.D (Pre-Pressed In Hub)
- 2 - Unitized Oil Seal 010-056-00 4.506" O.D 3.125" I.D
16 - Swivel Flange Wheel Lug Nuts
2 - 12-15K Tang Washer - 1.75" I.D. x 0.60"
2 - Oil Bath Cap and Plug 21-36
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Driver Side)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Passenger Side)

Features:

Grease Bath Lubrication
Our Hub/Drum has 8 on 275mm Bolt Pattern for 15K lb Axles
Races are pre-pressed into the hub for your convenience
Each hub has a capacity of 7,500 lbs
Drum uses a brake assembly that measures 12 1/4" X 5"
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Only Specs:

Hub/Drum Only
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
Uses 3984 (2.625" ID) and 28682 (2.25" OD) bearings (sold separately)
Drum uses a brake assembly that measures 12 1/4" X 5" (sold separately)
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles

Hub/Drum Assembly Specs:

Hub/Drum
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
1 - 3984 Inner Bearing 2.625" ID
1 - 28682 Outer Bearing 2.25" ID
1 - 10-56 Oil Seal 3.125" ID/4.5" OD
1 - Oil Bath Cap and Plug 21-36
8 - Swivel Flange Wheel Lug Nuts
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles

TK Service Kit Specs:

2 - 15K Trailer Axle Hub and Drum 8x275mm
2 - 15k (15,000 lb Capacity) Bearing Kit
- 2 - 3984 Inner Bearing 2.625" I.D
- 2 - 28682 Outer Bearing 2.250" I.D
- 2 - 3920 Inner Race 4.438" O.D (Pre-Pressed In Hub)
- 2 - 28622 Outer Race 3.844" O.D (Pre-Pressed In Hub)
- 2 - Unitized Oil Seal 010-056-00 4.506" O.D 3.125" I.D
16 - Swivel Flange Wheel Lug Nuts
2 - 12-15K Tang Washer - 1.75" I.D. x 0.60"
2 - Oil Bath Cap and Plug 21-36
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Driver Side)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Passenger Side)

Features:

Grease Bath Lubrication
Our Hub/Drum has 8 on 275mm Bolt Pattern for 15K lb Axles
Races are pre-pressed into the hub for your convenience
Each hub has a capacity of 7,500 lbs
Drum uses a brake assembly that measures 12 1/4" X 5"
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles

4.5

Rated 4.5 out of 5 stars

Based on 116 reviews

Total 5 star reviews: 93 Total 4 star reviews: 6 Total 3 star reviews: 6 Total 2 star reviews: 2 Total 1 star reviews: 9

Customers Talked About

Write a Review (Opens in a new window)

116 reviews

Sort

JR
James R.
Verified Buyer
Yesterday
Rated 5 out of 5 stars
hub and drum
perfect fit
Was this helpful?
DG
Drew G.
Verified Buyer
2 weeks ago
Rated 1 out of 5 stars
The title I would suppose is correct.
The description is pretty vague. I have a 2024 PJ ultimate dump with Dexter 12k axles under it. The description says it should work on Dexter axles as well as other big name brands. However I’m not sure which Dexter model it’s suitable for because it was nowhere near what’s on my Dexter axles. Unfortunately to double check measurements would require dissasembly. Which is hard to do when the trailer is still in service. My unit didn’t have wheel studs installed either like the picture in the catalogue showed either.
Was this helpful?
The Trailer Parts Outlet
4 days ago
I apologize for the inconvenience, if you will give us a call we will be happy to assist you.
KS
kenny s.
Verified Buyer
2 weeks ago
Rated 3 out of 5 stars
kenny smmons
i still have not got my lug nut's back yet . the hub are fine.
where are they gonna be sent out . please advised
kenny
Was this helpful?
JJ
Jeremy J. M.
Verified Buyer
3 weeks ago
Rated 5 out of 5 stars
Utility trailer
Worked perfectly.. came with extra washer for a variety of trailers which was good looking out for the customer. Absolutely love the pre-greased option .
Was this helpful?
JW
John W.
Verified Buyer
1 month ago
Rated 5 out of 5 stars
8K Axles
The axles are an upgrade over the customer's 7K. Fit and finish are excellent, as well as the value
Was this helpful?
