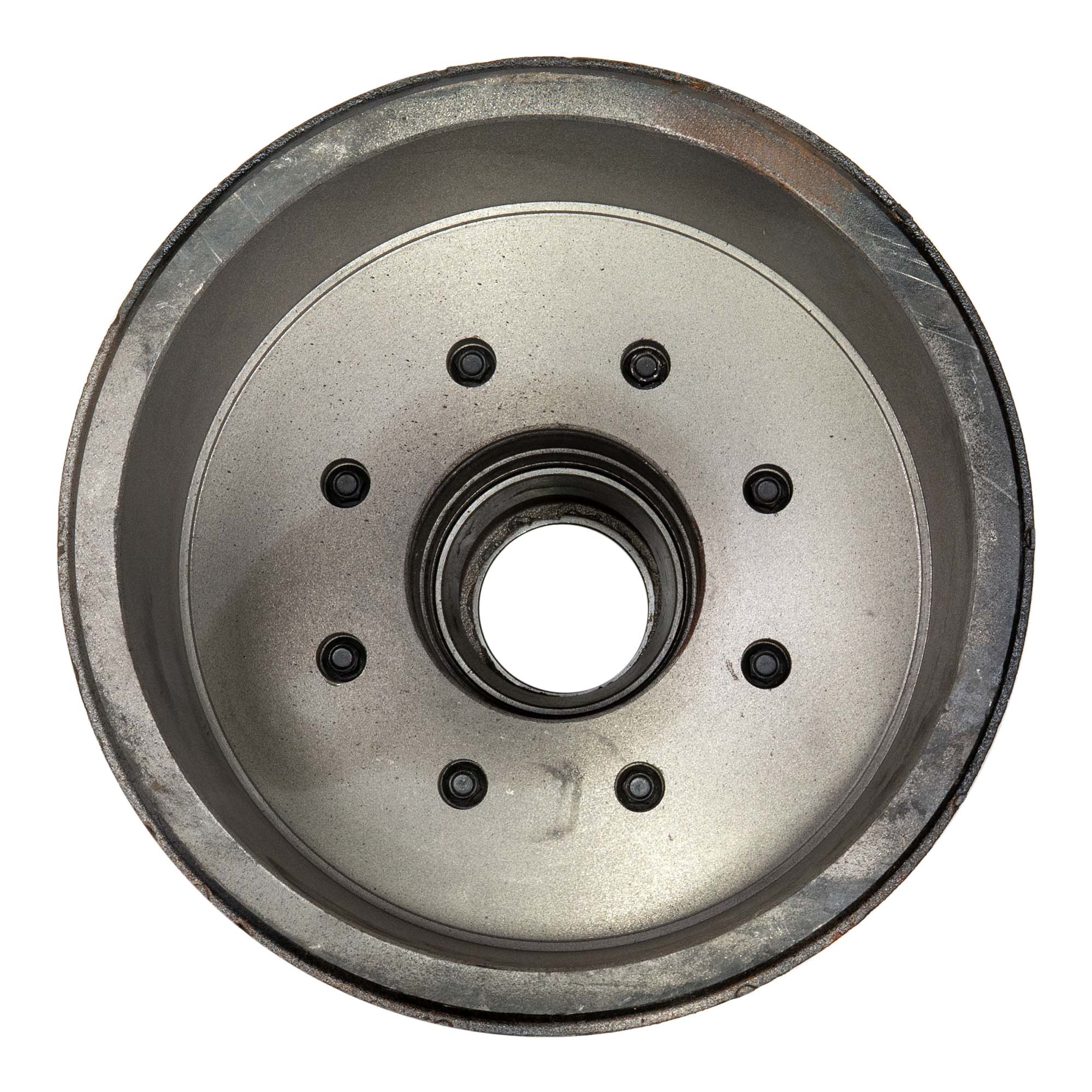

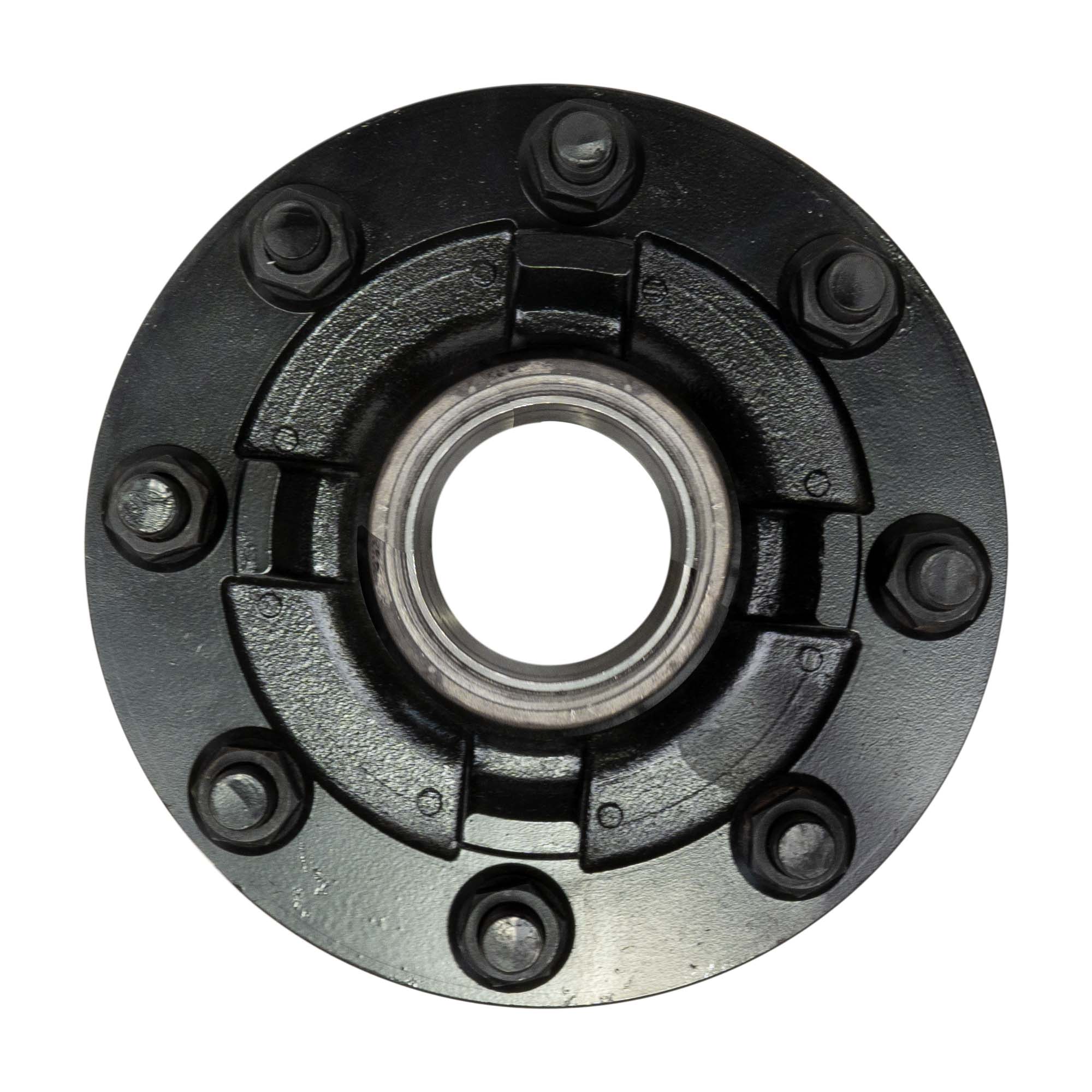

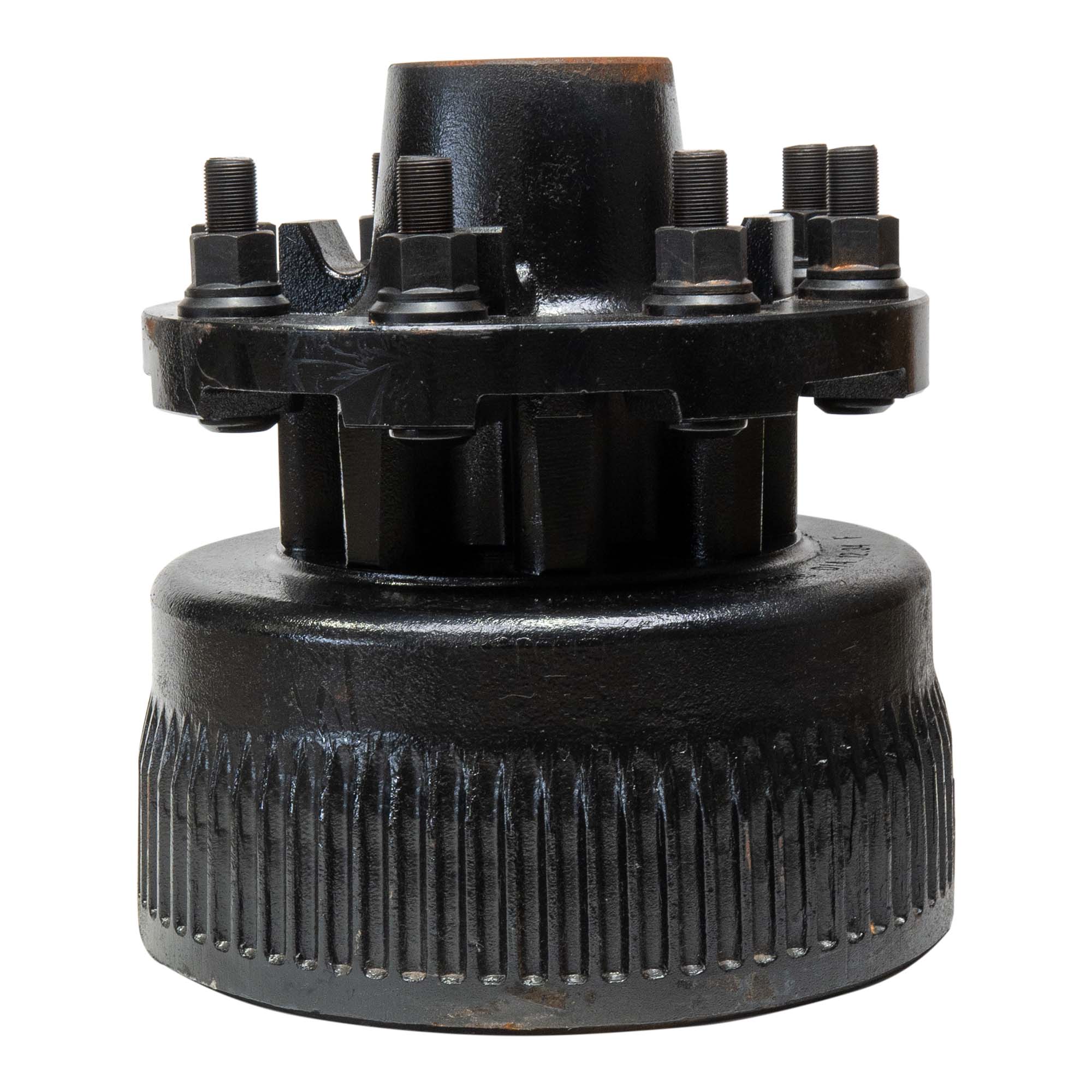

15K TK Trailer Axle Hub and Drum - 15,000 lb Capacity - 8 lug x 275mm

Name: 15K TK Trailer Axle Hub and Drum - 15,000 lb Capacity - 8 lug x 275mm
Brand: The Trailer Parts Outlet
Price: 369.99 USD
Availability: InStock
Rating: 4.5 (109 reviews)

1 5

15K TK Trailer Axle Hub and Drum - 15,000 lb Capacity - 8 lug x 275mm

SKU : 15HUBDRUMBARETK8275

Online price only

$369.99

Online price only

SAVE 0% (833) 910-3416

4.5

Rated 4.5 out of 5 stars

109 Reviews

Shipping: Calculated at Checkout

Hub/Drum Options: Variant image

Hub/Drum

Hub/Drum Assembly

Upgrade to TK Service Kit

Product variants

Quantity

Tax Exempt? Enter info in cart when you're done shopping.

View full details

Product Information
Reviews

Hub/Drum Only Specs:

Hub/Drum Only
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
Uses 3984 (2.625" ID) and 28682 (2.25" OD) bearings (sold separately)
Drum uses a brake assembly that measures 12 1/4" X 5" (sold separately)
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles

Hub/Drum Assembly Specs:

Hub/Drum
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
1 - 3984 Inner Bearing 2.625" ID
1 - 28682 Outer Bearing 2.25" ID
1 - 10-56 Oil Seal 3.125" ID/4.5" OD
1 - Oil Bath Cap and Plug 21-36
8 - Swivel Flange Wheel Lug Nuts
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles

TK Service Kit Specs:

2 - 15K Trailer Axle Hub and Drum 8x275mm
2 - 15k (15,000 lb Capacity) Bearing Kit
- 2 - 3984 Inner Bearing 2.625" I.D
- 2 - 28682 Outer Bearing 2.250" I.D
- 2 - 3920 Inner Race 4.438" O.D (Pre-Pressed In Hub)
- 2 - 28622 Outer Race 3.844" O.D (Pre-Pressed In Hub)
- 2 - Unitized Oil Seal 010-056-00 4.506" O.D 3.125" I.D
16 - Swivel Flange Wheel Lug Nuts
2 - 12-15K Tang Washer - 1.75" I.D. x 0.60"
2 - Oil Bath Cap and Plug 21-36
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Driver Side)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Passenger Side)

If you're replacing the hubs and drums on your trailer axles and you need a heavy-duty option, then this 15K assembly is a great choice. It features an 8-lug hub face, and you can pair it with the tire and wheel assemblies of your choice. It works well on flatbeds, lowboys, and other large trailers, and we know you'll love how easy it is to install. Instead of your trailer being out of commission, you can get it back on the road and working for your business. Order your new 15K trailer axle hub and drum assembly from our online catalog today!

Features:

Grease Bath Lubrication
Our Hub/Drum has 8 on 275mm Bolt Pattern for 15K lb Axles
Races are pre-pressed into the hub for your convenience
Each hub has a capacity of 7,500 lbs
Drum uses a brake assembly that measures 12 1/4" X 5"
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Only Specs:

Hub/Drum Only
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
Uses 3984 (2.625" ID) and 28682 (2.25" OD) bearings (sold separately)
Drum uses a brake assembly that measures 12 1/4" X 5" (sold separately)
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles

Hub/Drum Assembly Specs:

Hub/Drum
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
1 - 3984 Inner Bearing 2.625" ID
1 - 28682 Outer Bearing 2.25" ID
1 - 10-56 Oil Seal 3.125" ID/4.5" OD
1 - Oil Bath Cap and Plug 21-36
8 - Swivel Flange Wheel Lug Nuts
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles

TK Service Kit Specs:

2 - 15K Trailer Axle Hub and Drum 8x275mm
2 - 15k (15,000 lb Capacity) Bearing Kit
- 2 - 3984 Inner Bearing 2.625" I.D
- 2 - 28682 Outer Bearing 2.250" I.D
- 2 - 3920 Inner Race 4.438" O.D (Pre-Pressed In Hub)
- 2 - 28622 Outer Race 3.844" O.D (Pre-Pressed In Hub)
- 2 - Unitized Oil Seal 010-056-00 4.506" O.D 3.125" I.D
16 - Swivel Flange Wheel Lug Nuts
2 - 12-15K Tang Washer - 1.75" I.D. x 0.60"
2 - Oil Bath Cap and Plug 21-36
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Driver Side)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Passenger Side)

Features:

Grease Bath Lubrication
Our Hub/Drum has 8 on 275mm Bolt Pattern for 15K lb Axles
Races are pre-pressed into the hub for your convenience
Each hub has a capacity of 7,500 lbs
Drum uses a brake assembly that measures 12 1/4" X 5"
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles

Hub/Drum Only Specs:

Hub/Drum Only
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
Uses 3984 (2.625" ID) and 28682 (2.25" OD) bearings (sold separately)
Drum uses a brake assembly that measures 12 1/4" X 5" (sold separately)
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles

Hub/Drum Assembly Specs:

Hub/Drum
8 on 275mm Bolt Pattern
1 - 28622 Outer Race (Pre-Pressed In Hub)
1 - 3920 Inner Race (Pre-Pressed In Hub)
1 - 3984 Inner Bearing 2.625" ID
1 - 28682 Outer Bearing 2.25" ID
1 - 10-56 Oil Seal 3.125" ID/4.5" OD
1 - Oil Bath Cap and Plug 21-36
8 - Swivel Flange Wheel Lug Nuts
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles

TK Service Kit Specs:

2 - 15K Trailer Axle Hub and Drum 8x275mm
2 - 15k (15,000 lb Capacity) Bearing Kit
- 2 - 3984 Inner Bearing 2.625" I.D
- 2 - 28682 Outer Bearing 2.250" I.D
- 2 - 3920 Inner Race 4.438" O.D (Pre-Pressed In Hub)
- 2 - 28622 Outer Race 3.844" O.D (Pre-Pressed In Hub)
- 2 - Unitized Oil Seal 010-056-00 4.506" O.D 3.125" I.D
16 - Swivel Flange Wheel Lug Nuts
2 - 12-15K Tang Washer - 1.75" I.D. x 0.60"
2 - Oil Bath Cap and Plug 21-36
1 - 1 Quart Jug of Axle Oil (Oil Brand May Vary)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Driver Side)
1 - 15k Trailer Brake Assembly - 12.25"x5" (Passenger Side)

Features:

Grease Bath Lubrication
Our Hub/Drum has 8 on 275mm Bolt Pattern for 15K lb Axles
Races are pre-pressed into the hub for your convenience
Each hub has a capacity of 7,500 lbs
Drum uses a brake assembly that measures 12 1/4" X 5"
22mm Wheel Studs
This hub & drum can be used with 15,000 lb Dexter, TK, & Texas Pride Axles
This hub/drum is NOT COMPATIBLE with Rockwell Axles
