12HR - 6' x 12' 2 Horse Tandem Trailer DIY Master Plan - 22 How-to Steps

  • DIY Trailer Plan - 12HR - 2 Horse Tandem Trailer
  • 6' x 12' 2 Horse Tandem Trailer Blueprints
1 2

12HR - 6' x 12' 2 Horse Tandem Trailer DIY Master Plan - 22 How-to Steps

12HR - 6' x 12' 2 Horse Tandem Trailer DIY Master Plan - 22 How-to Steps

SKU : MP12HRPAPER
$99.99
SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
50 Reviews
Shipping: Calculated at Checkout
Plan Type:
Kit Option:
OR
View full details
DIY Trailer Plan - 12HR - 2 Horse Tandem Trailer
DIY Trailer Plan - 12HR - 2 Horse Tandem Trailer

12HR - 6' x 12' 2 Horse Tandem Trailer DIY Master Plan - 22 How-to Steps

12HR - 6' x 12' 2 Horse Tandem Trailer DIY Master Plan - 22 How-to Steps

$99.99
SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
50 Reviews
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

  • Box Size: 12'x6'x86"ht.
  • Gross Capacity: 7000 lbs
  • Empty Weight: 2420 lbs
  • Empty Tongue Weight: 283 lbs
  • Frame: 2"x4" 11ga Rectangular Tubing
  • Deck: 3/4" Plywood
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

  • 2" ball coupler, top wind jack
  • Tandem 3500lb axles w/ leaf spring or torsion suspension
  • 3' tack and hay compartment with lockable doors
  • Two rear doors with removable center divider
  • Cowboy walk-through doors (22") on each front, and steel or aluminum skin

Trailer parts kit specifically made for this plan is available in the option above.

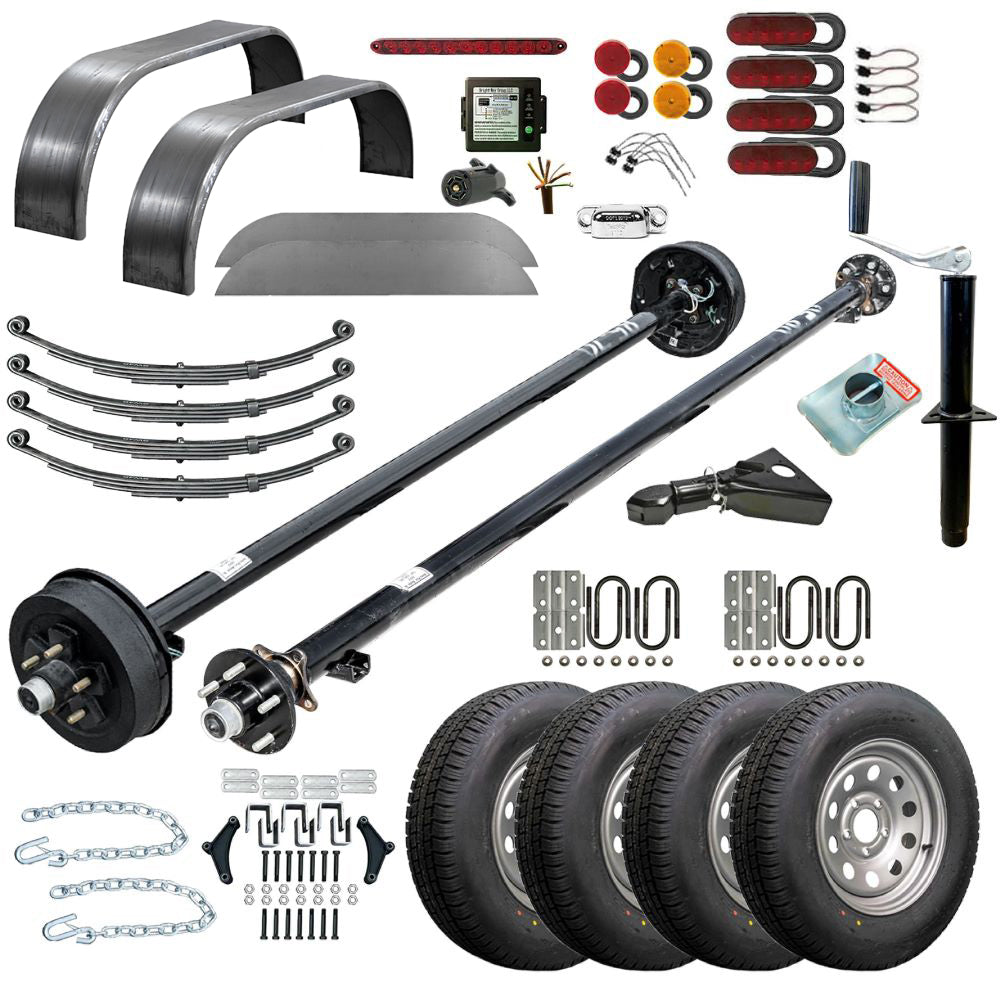

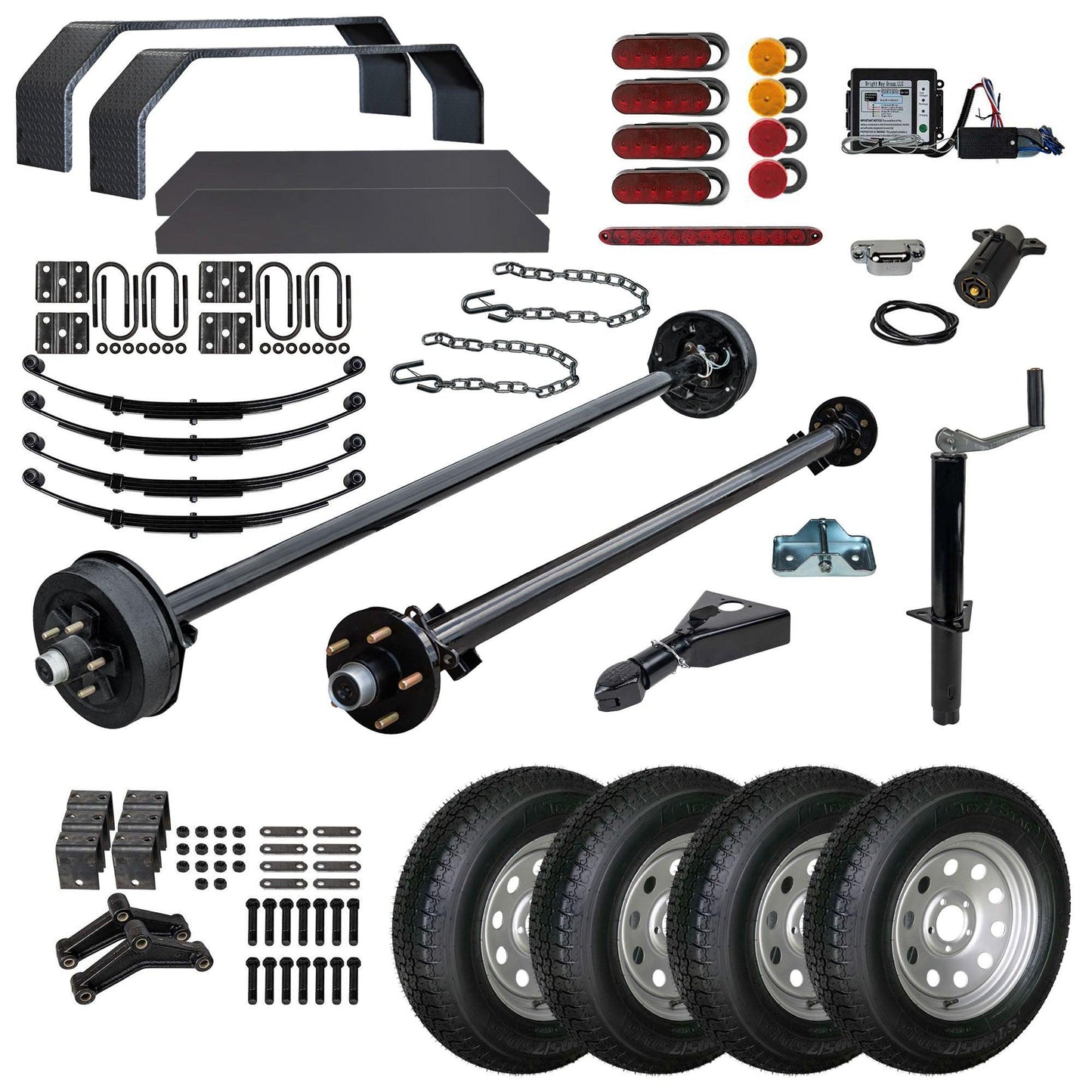

What's Included with Trailer Kit:

  • 1 - 3.5k Trailer Axle - 3500 lb Electric Brake 5x4.5 lug (85/70)
  • 1 - 3.5k Trailer Axle - 3500 lb Idler 5x4.5 lug (85/70)
  • 4 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 2 - Trailer U-bolt kit for 3500 lb Axles
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 15" 6 ply Bias TWA - ST 205/75 D15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Tandem Axle 10x72 Smooth Steel Teardrop Fender
  • 2 - Tandem Axle 9x72 Fender Back
  • 1 - A-Frame 5k Trailer Jack 5000 lb Top Wind
  • 1 - Trailer Jack Footplate
  • 1 - 7K A-Frame Cast Trailer Coupler-7000 lb 2" Bulldog Style
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 2 - Clearance Light Round Red 2.5" LED
  • 2 - Clearance Light Round Amber 2.5" LED
  • 4 - Flush Mount Grommet for 2.5" Round Lights
  • 4 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 4 - Red 6in Oval LED S/T/T Light
  • 4 - Flush Mount Grommet For 6in Oval Lights
  • 4 - Pigtail for Led Lights -3 Prong 10"
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - 7 Way Plug
  • 2 - 6 way cable 14 gauge (per 10 foot)
  • 1 - 12 Volt Trailer Breakaway Kit

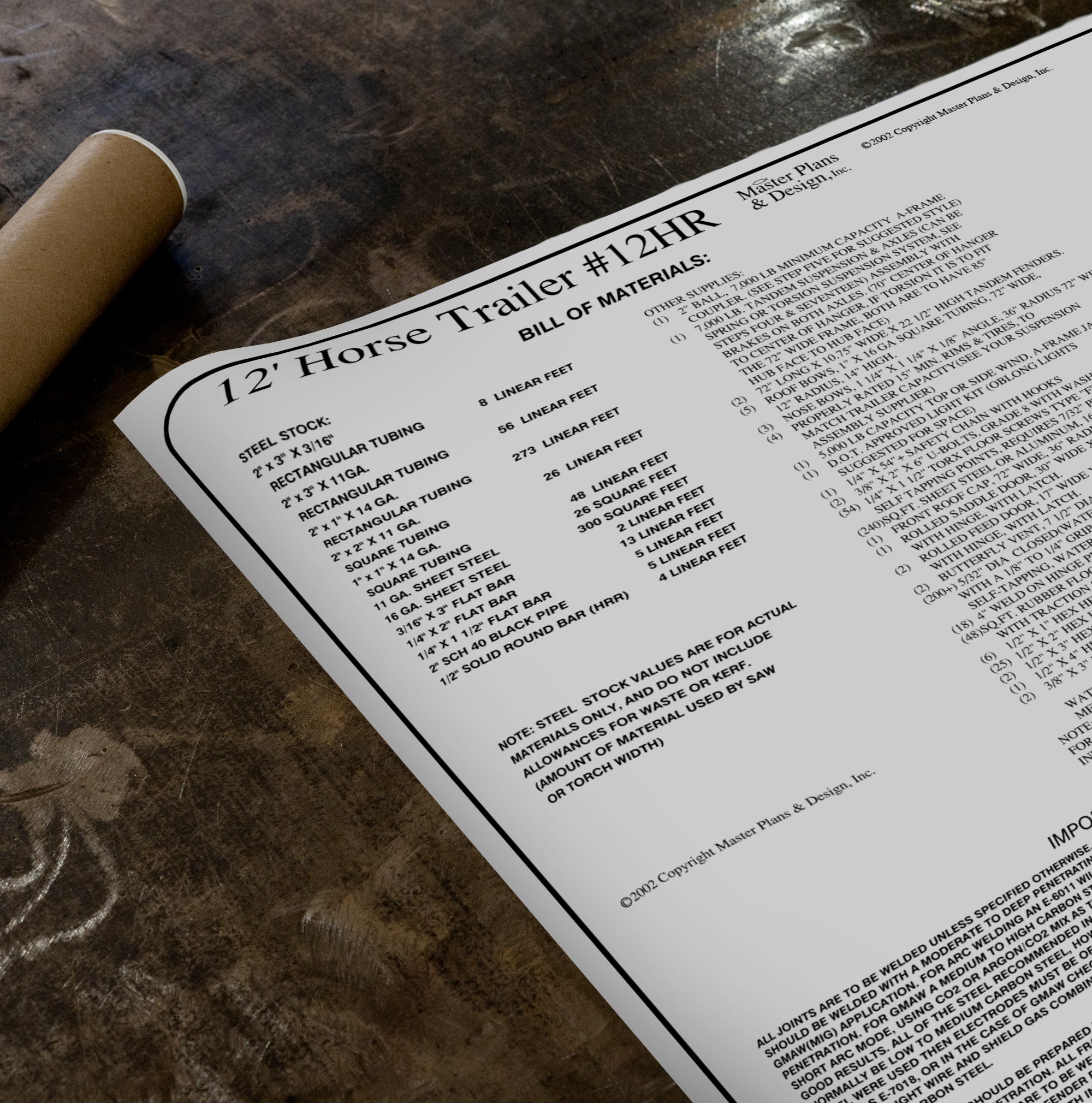

  • 1 - 12HR Horse Trailer Master Plan Blueprint
4.2
Rated 4.2 out of 5 stars
Based on 50 reviews
Total 5 star reviews: 33 Total 4 star reviews: 4 Total 3 star reviews: 7 Total 2 star reviews: 1 Total 1 star reviews: 5
74%would recommend these products
Write a Review (Opens in a new window)
50 reviews
  • RC
    Rene C.
    Verified Buyer
    2 weeks ago
    Rated 3 out of 5 stars
    Physical Drawing

    A few years back they used to send it nicely rolled in a Mailing tube… now they half A- fold it & shove it in an envelope.

    For $100 i want to be able to frame the drawing with no crease. Other then that, good company to buy from.

    Was this helpful?
    The Trailer Parts Outlet
    1 week ago

    I apologize for the inconvenience of the shipping method. Please let us know if there is anything we can do to help with this.

  • AS
    Austin S.
    Verified Buyer
    1 month ago
    Rated 4 out of 5 stars
    Good Plans

    Solid set of plans to work from. Pretty straightforward and user friendly

    Was this helpful?
  • DD
    Dannie D.
    Flag of United States
    Verified Buyer
    2 months ago
    Rated 5 out of 5 stars
    Trialer Parts

    Fast shipping great place to order from.Quality trailer parts

    Was this helpful?
    The Trailer Parts Outlet
    2 months ago
    Thank you for the review!!
  • SM
    Steve M.
    Flag of United States
    Verified Buyer
    3 months ago
    Rated 5 out of 5 stars
    Great set of plans

    Nicely laid out plans. Came in on time. Nicely detailed instructions. Ad on one of favorite sites

    Was this helpful?
    The Trailer Parts Outlet
    3 months ago

    Thank you for the review!!

  • DT
    DeAntorre T.
    Flag of United States
    Verified Buyer
    4 months ago
    Rated 5 out of 5 stars
    2 horse trailer

    I didn’t receive my paper copy

    Was this helpful?
    The Trailer Parts Outlet
    4 months ago

    Sorry for any inconvenience that this may have caused. I have taken care of this for you.

Show More
Reviews LoadedReviews Added
