Specs:

  • Box Size: 12'x6'x86"ht.
  • Gross Capacity: 7000 lbs
  • Empty Weight: 2420 lbs
  • Empty Tongue Weight: 283 lbs
  • Frame: 2"x4" 11ga Rectangular Tubing
  • Deck: 3/4" Plywood
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

  • 2" ball coupler, top wind jack
  • Tandem 3500lb axles w/ leaf spring or torsion suspension
  • 3' tack and hay compartment with lockable doors
  • Two rear doors with removable center divider
  • Cowboy walk-through doors (22") on each front, and steel or aluminum skin

Trailer parts kit specifically made for this plan is available in the option above.

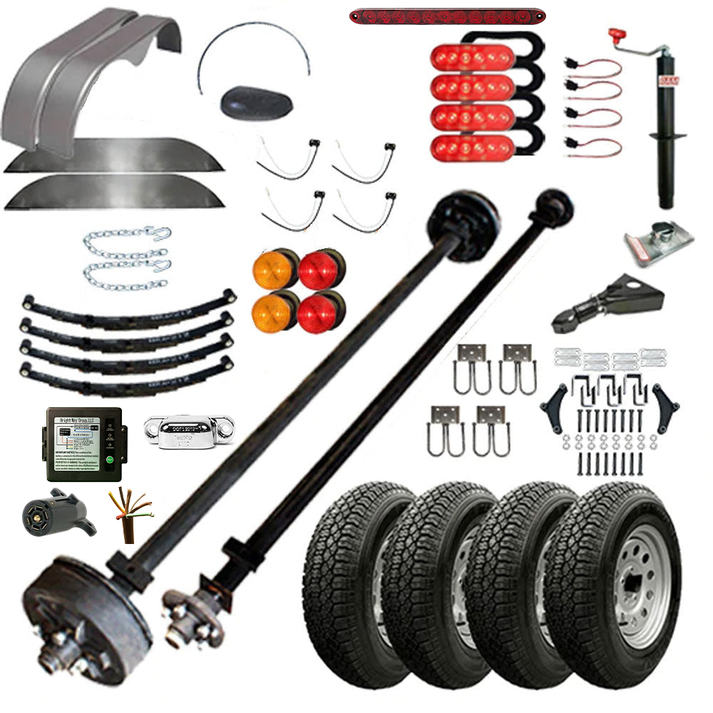

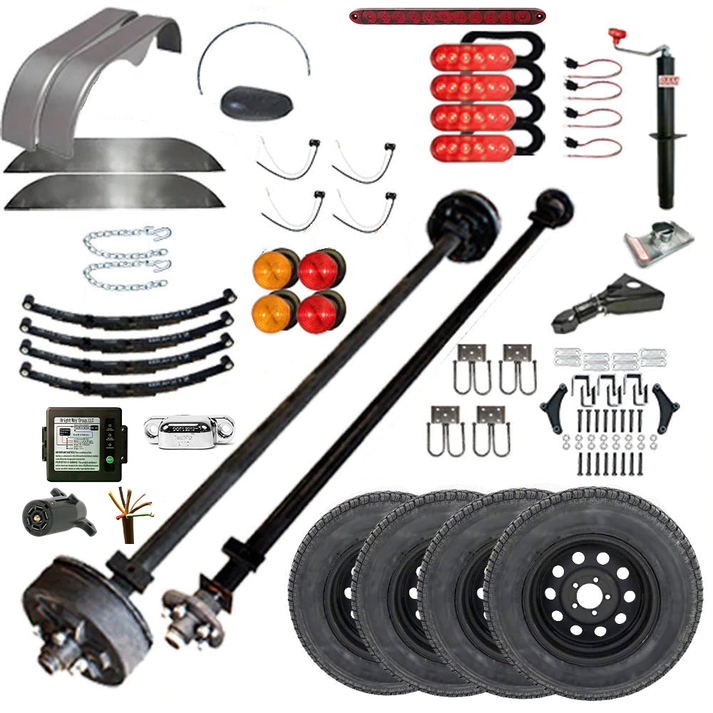

What's Included with Trailer Kit:

  • 1 - 3.5k Trailer Axle - 3500 lb Electric Brake 5x4.5 lug (85/70)
  • 1 - 3.5k Trailer Axle - 3500 lb Idler 5x4.5 lug (85/70)
  • 4 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 2 - Trailer U-bolt kit for 3500 lb Axles
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 15" 6 ply Bias TWA - ST 205/75 D15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Tandem Axle 10x72 Smooth Steel Rolled Fender
  • 2 - Tandem Axle 9x72 Fender Back
  • 1 - A-Frame 5k Trailer Jack 5000 lb Top Wind
  • 1 - Trailer Jack Footplate
  • 1 - 7K A-Frame Cast Trailer Coupler-7000 lb 2" Bulldog Style
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 2 - Clearance Light Round Red 2.5" LED
  • 2 - Clearance Light Round Amber 2.5" LED
  • 4 - Flush Mount Grommet for 2.5" Round Lights
  • 4 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 4 - Red 6in Oval LED S/T/T Light
  • 4 - Flush Mount Grommet For 6in Oval Lights
  • 4 - Pigtail for Led Lights -3 Prong 10"
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - 7 Way Plug
  • 2 - 6 way cable 14 gauge (per 10 foot)
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - 12HR Horse Trailer Master Plan Blueprint
