Especificaciones:

  • Tamaño de la caja: 5'x10'
  • Capacidad bruta: 7000 libras
  • Peso vacío: 1830 libras
  • Peso de la lengua vacía: 375 libras
  • Marco: ángulo de acero.
  • Cubierta: Madera
  • **NO INCLUYE MARCO/TUBOS DE ACERO, MADERA CONTRACHAPADA NI PISO**

Características:

  • Planos de tamaño completo aprobados y estampados por ingenieros, 24" x 36"
  • Adecuado para clases de agricultura y talleres de secundaria, industria y aficionados al bricolaje
  • Lista de cortes detallada con lista completa de materiales y consejos de soldadura
  • Kit de remolque TK personalizado para garantizar que todas las piezas correctas para el plan estén empaquetadas para su conveniencia.

El kit de piezas de remolque diseñado específicamente para este plan está disponible en la opción anterior.

Qué se incluye con el kit de remolque:

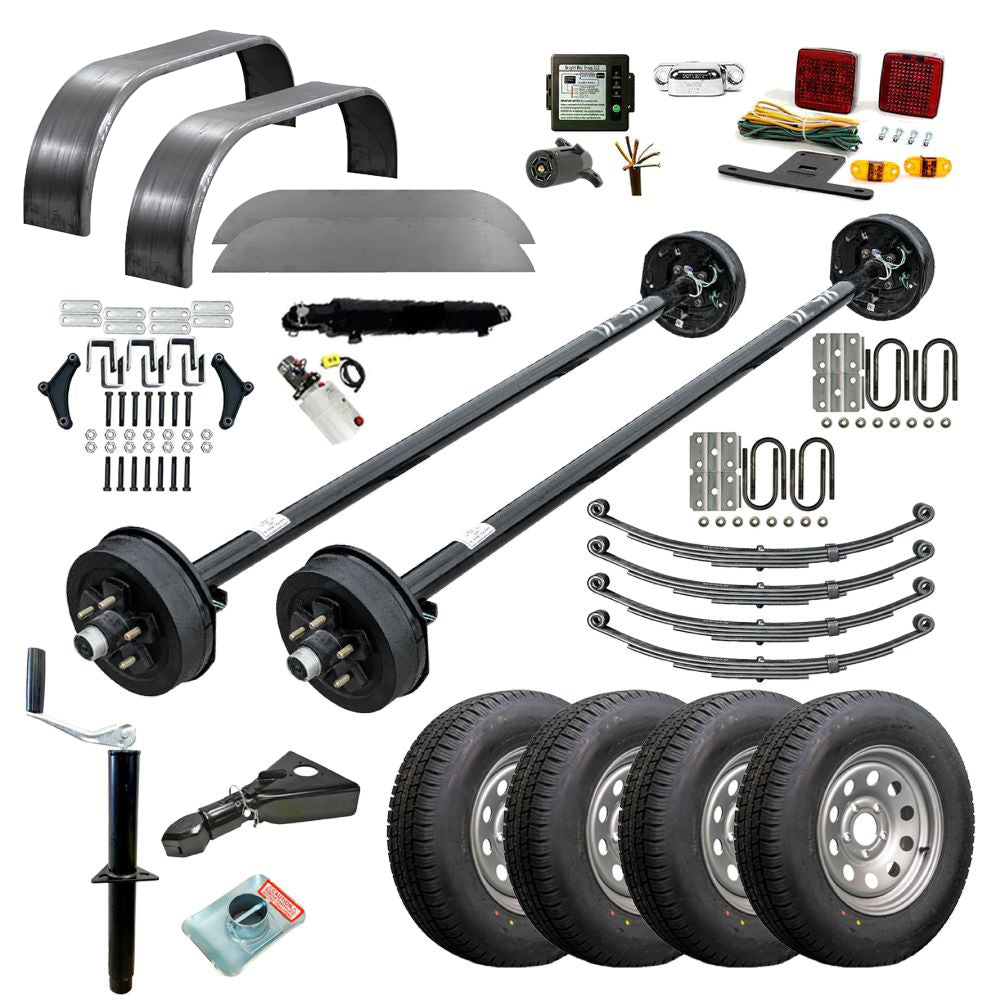

  • 2 - Eje de remolque de 3,5 k - Freno eléctrico de 3500 lb con orejetas de 5x4,5 (73/58)
  • 2 - Kit de pernos en U para remolque para ejes de 3500 lb
  • 1 - Kit de suspensión en tándem de doble ojo para ejes de 3500 a 7000 lb
  • Resorte de ojo doble para remolque de 4 - 4 hojas para ejes de 3500 lb
  • 4 - 15" 6 capas Bias TWA - ST 205/75 D15 5x4.5 TWA (conjuntos de ruedas de neumáticos) - Color de las ruedas: Acabado plateado/gris
  • 1 - Acoplador de remolque fundido con estructura en A 7K, estilo Bulldog de 7000 lb y 2"
  • 1 - Gato para remolque con estructura en A de 5k y viento superior de 5000 lb
  • 1 - Plataforma para pies del gato de remolque
  • 2 - Guardabarros en forma de lágrima de acero liso de 10 x 72 con eje tándem
  • 2 - Eje tándem 9x72 Respaldo de guardabarros liso
  • 1 - Kit de separación para remolque de 12 voltios
  • 2 - Cadena de seguridad plateada para remolque - 1/4x31" (capacidad de 5k)
  • 1 - Juego de luces LED
  • 1 - Luz de matrícula rectangular
  • 1 - Soporte de matrícula
  • Cable de 1,6 - 6 vías calibre 14 (por 10 pies)
  • Enchufe de 1 a 7 vías
  • 1 - Control remoto de bomba de 15' (encendido, apagado)
  • 1 - Bomba hidráulica de doble efecto de 12 V
  • 1 - Cilindro hidráulico de 4" de diámetro x 30" de carrera, 40 1/4 de longitud retraída

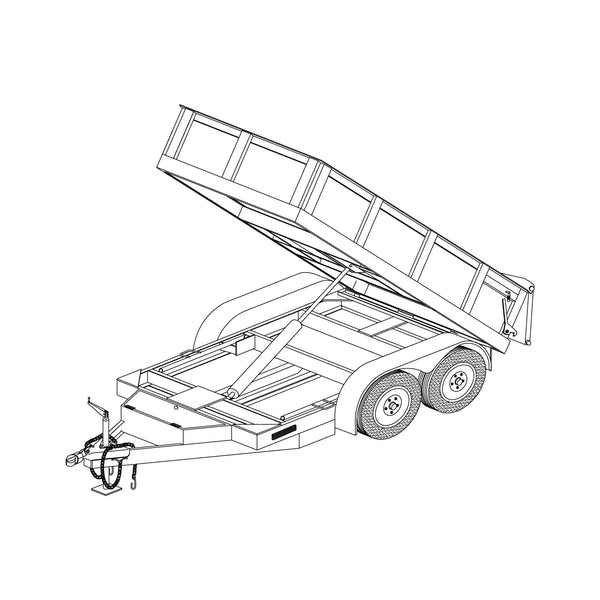

  • 1 - Plano del plan maestro del remolque volcador 10HD
