DIY Trailer Plan - 26XT - Tandem Axle Gooseneck Trailer

26XT - 26'x102" Tándem Axle Gooseneck Trailer DIY Master Plan - 20 pasos prácticos

26XT - 26'x102" Tándem Axle Gooseneck Trailer DIY Master Plan - 20 pasos prácticos

SKU : MP26XTPAPER

Online price only

$124.99

Online price only

SAVE 0% Agotado
4.2
Rated 4.2 out of 5 stars
53 Reviews
4.2
Rated 4.2 out of 5 stars
53 Reviews
Shipping: Calculated at Checkout
Tax Exempt? Enter info in cart when you're done shopping.
Tipo de plan:
Opción de equipo:
DISCLAIMER: *
OR
Ver todos los detalles
  • Product Information
  • Reviews

DESCARGO DE RESPONSABILIDAD DE DERECHOS DE AUTOR:

Ninguna parte de esta publicación puede reproducirse, distribuirse o transmitirse de ninguna forma ni por ningún medio, incluidas fotocopias, grabaciones u otros métodos electrónicos o mecánicos, sin el permiso previo por escrito del editor, excepto en el caso de citas breves incorporadas en reseñas y otros usos no comerciales permitidos por la ley de derechos de autor. Al comprar este producto, el comprador acepta cumplir con este descargo de responsabilidad.

Especificaciones:

  • Tamaño de la cama: 26'x102"
  • Capacidad bruta: 14,000 libras
  • Peso vacío: 4150 libras
  • Peso de la lengua vacía: 1730 lbs
  • Marco: Tubo y canal rectangulares
  • Cubierta: Placa de diamante o madera
  • Espacio libre de 82" entre los guardabarros.
  • Plataforma a 102" delante y detrás de los guardabarros
  • Guardabarros resistentes
  • acoplador ajustable
  • Gatos de viento laterales dobles.
  • Rampas con bolsillos de almacenamiento traseros
  • Bolsillos de cadena con rieles pesados ​​a cada lado
  • **NO INCLUYE MARCO/TUBOS DE ACERO, MADERA CONTRACHAPADA NI PISO**

Características:

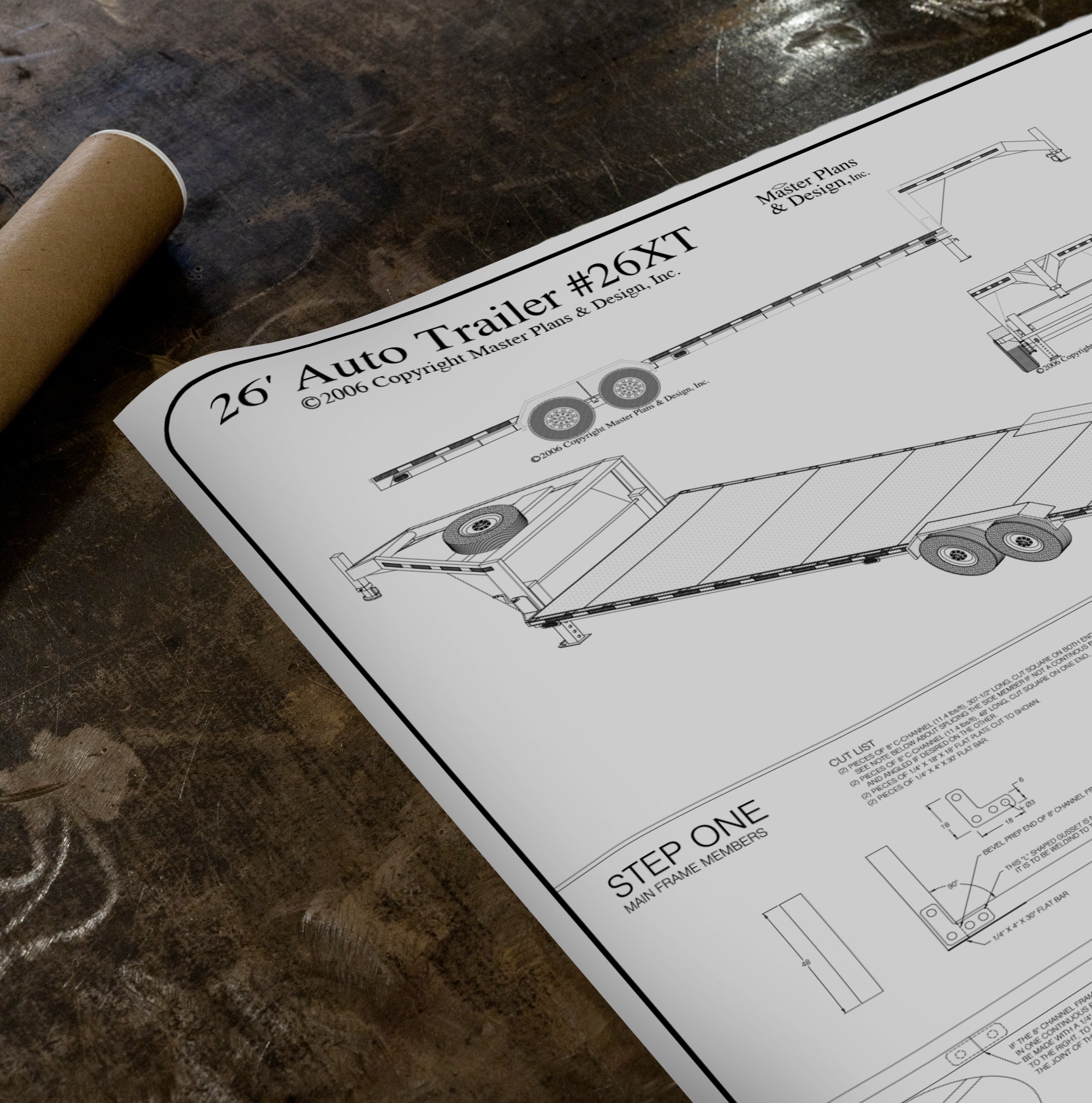

  • Planos de tamaño completo aprobados y estampados por ingenieros, 24" x 36"
  • Adecuado para tiendas de secundaria y clases de agricultura, industria y aficionados al bricolaje.
  • Lista de cortes detallada con lista completa de materiales y consejos de soldadura
  • Kit de remolque TK personalizado para garantizar que todas las piezas correctas para el plan estén empaquetadas para su conveniencia.

El kit de piezas de remolque diseñado específicamente para este plan está disponible en la opción anterior.

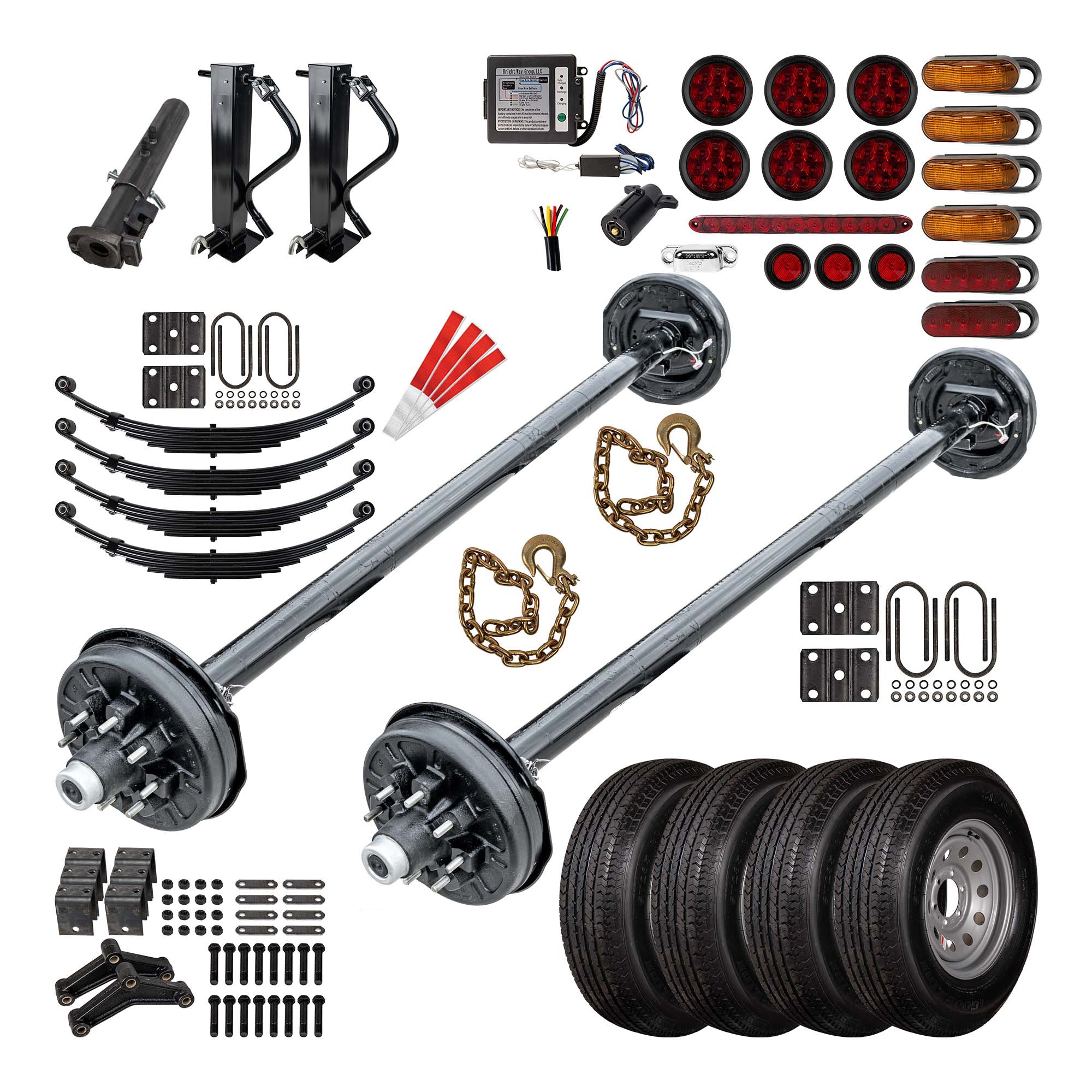

Qué se incluye con el kit de remolque:

  • 2 - Eje de remolque de 7k - Freno eléctrico de 7000lb 8x6.5 1/2 (95/80)
  • 2 - Kit de pernos en U para remolque para ejes de 5200 - 7000 lb (1/2" de diámetro)
  • 1 - Kit de suspensión en tándem de doble ojo para ejes de 3500 a 7000 lb
  • Resorte de ojo doble para remolque de 4 - 6 hojas para ejes de 7000 lb
  • 4 - TWA radial de 16" y 10 capas - ST 235/80R16 - TWA (conjuntos de llantas) de 8 lengüetas (SM) - Color de la rueda: Acabado plateado/gris
  • 2 - Defensa de doble rotura con placa de diamante de acero de eje tándem 9x72
  • 2 - Eje tándem 9x72 Respaldo de guardabarros liso con doble rotura
  • 1 - Acoplador de cuello de cisne de 25 k - Redondo ajustable de 25000 lb 2 5/16
  • 2 - Gato con resorte y pasador lateral de pata abatible de 12 k con manija
  • Luz LED S/T/T redonda sellada de 6 - 4"-Rojo-7 diodos-STL13RKB
  • 6 - Ojal de montaje empotrado para luces redondas de 4 pulgadas
  • 6 - Pigtail para luces LED -3 clavijas de 10" en ángulo recto
  • 2 - Luz LED S/T/T ovalada roja de 6 pulgadas
  • 4 - Luz LED S/T/T ovalada ámbar de 6"
  • 6 - Ojal de montaje empotrado para luces ovaladas de 6 pulgadas
  • 6 - Pigtail para luces LED -3 clavijas 10"
  • 1 - Luz de matrícula rectangular
  • 3 - Luces de posición/espacio de liquidación LED redondas selladas de 2" - Rojas
  • 3 - Ojal de montaje empotrado para luces redondas de 2 pulgadas
  • 3 - Pigtail para luces Rnd de 2-2,5" - 2 pines 6"
  • Enchufe de 1 a 7 vías
  • 40' (pies) - Cable de 6 vías calibre 14
  • 2 - Cadena de seguridad: 3/8 x 39" con 1 gancho de horquilla (capacidad de 27,4 k)
  • 16 - Cinta reflectante DOT - Tiras de 18"
  • 1 - Kit de separación para remolque de 12 voltios
  • 1 - Plano maestro del remolque de cuello de cisne 26XT
