How to Measure Axles Hub Face and Spring Center for my Trailer?
There are a few measurements that you need to be aware of regarding any trailer. To get the measurement, it's easiest if you remove your tires and wheels, or measure center of tire to center of tire. It can also be helpful to have a friend hold one side of the tape measure, but it’s not absolutely necessary.
Hub Face Measurement:
To obtain the hub face measurement, first hook your tape measure to the outside of the hub, (the part of the hub facing the wheel). Measure across the axle to the exact same spot on the opposite side. Be careful not to measure to the inside of the hub, only the outside. This is the primary measurement that is needed. The rest of the measurements below are alternative measurements that can be used to arrive at this measurement.
Spring Center Measurement:
This measurement is critical. If the springs are misplaced due to bad measurement, you can end up bending the axles. This one is difficult to do alone. Have a friend hold the end of the tape measure right in the middle of one of the springs, while you extend to the center of the opposite spring. If taking the measurements on your own, then you can cheat by first hooking the tape measure on the outside of one spring and then extending it to the inside of the opposite spring.
What is the difference between Under slung and Over slung?
The axle position in relation to the spring needs to be considered before building. The options are "overslung". where the spring is mounted over the axle, or "underslung" where the spring is mounted under the axle.
There is no advantage to either system in regards to trailer strength or ride, but does affect the height of the chassis/tongue above the road and depending on the load can aid or hinder trailer stability.
How do I purchase the correct trailer hub/drum?
Purchasing the correct hub or drum is an important step in repairing your trailer axle.
There is simple and easy to follow steps to make sure you are getting the correct hub.
Step 1: Remove your hub or drum from your trailer axle.
Step 2: Measure your bolt pattern to identify what capacity your axle is, if it is unknown. Please see the following diagram to determine your bolt pattern.
Step 3: Now, you can also remove the front and rear bearings and seal. Once you remove the bearings, you will be able to read the number off the back of the bearings that correspond with a correct spindle size. If this number is not readable, you will be able to measure the inside dimensions of the bearing and seal in order to determine which one you need. Please see the attached pictures on how to do so.
Step 4: Pick the best hub or drum for your needs. If you are unsure, we would be happy to assist you in making the correct decision.

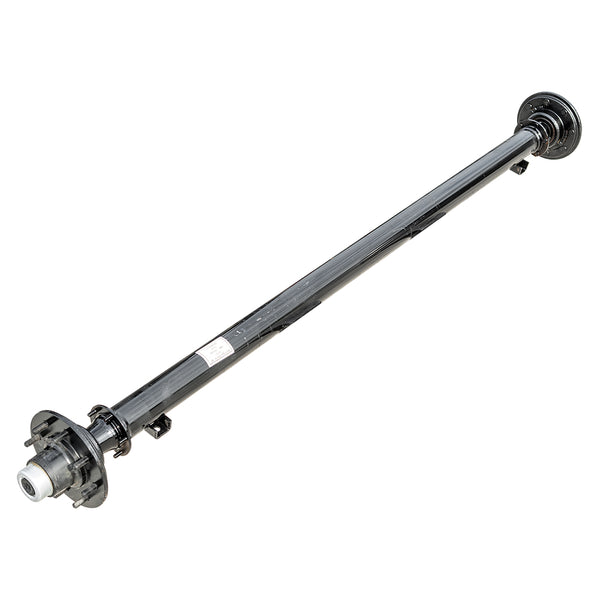

Eje tensor de remolque TK de 7000 lb (capacidad de 7000 lb)
Patrón de pernos: 8x6,5
Tubo: 3"
Peso: 70-80 libras
Este eje de remolque de rueda libre 7K TK tiene una configuración de 8 espárragos, lo que lo hace ideal para remolques de servicio mediano, como remolques para jardinería, remolques de carga pequeños y muchos otros. El eje viene completamente ensamblado, por lo que no tiene que preocuparse por colocar la cara del cubo. Todo lo que tiene que hacer es instalarlo en su remolque, agregar la suspensión y los neumáticos y las ruedas, y todo estará listo para funcionar. Si no está seguro de si este eje es el adecuado para su flota, no dude en contactarnos. ¡Siempre estamos felices de ayudar a nuestros clientes a elegir las mejores opciones!
Componentes internos: (Haga clic para ir al producto)
Suspendido: el eje está soldado con asientos de resorte en la parte inferior
Permite una altura de conducción más baja
Para un uso óptimo, utilice con resortes de doble ojo.
Diseño de lubricación fácil
Tapón de goma extraíble en la tapa del cubo con fácil acceso a un accesorio engrasable
Engrase su eje sin sacar todo el cubo
Construcción de tubo de eje de acero de alta resistencia para garantizar
Desgaste uniforme de los neumáticos
Una mejor experiencia en la carretera
Eje de remolque diseñado para usarse en remolques de servicio mediano
Eje de remolque utilitario, eje de remolque para transporte de automóviles, eje de remolque para jardinería y jardinería, eje de remolque de plataforma, eje de remolque para ganado, eje de remolque de carga, eje de remolque cerrado, eje de remolque para vehículos recreativos, eje de remolque volquete, eje de remolque de plataforma baja y más
Reemplaza los ejes Rockwell American, Lippert, Hayes y AL-KO
Para realizar un pedido de eje personalizado, llame al (936) 289-3191 y nuestros expertos en piezas de remolque estarán encantados de ayudarlo.
Upgraded my trailer to twice the GVW so I didn’t have to worry about how heavy of loads I haul. Unbelievable reasonably priced axle, bolted right in , quality was awesome. Absolutely will call them for my next trailer needs.
The Trailer Parts Outlet
13 seconds ago
Thank you for the review, we look forward to continuing business with you.
MA
Mike A.
Verified Buyer
4 weeks ago
Rated 3 out of 5 stars
Nice axle
Shipped pretty quick and looked good. Came with 10 of 16 lug nuts and two extra grease caps.
Upgraded my trailer to twice the GVW so I didn’t have to worry about how heavy of loads I haul. Unbelievable reasonably priced axle, bolted right in , quality was awesome. Absolutely will call them for my next trailer needs.
The Trailer Parts Outlet
2 weeks ago
Thank you for the review, we look forward to continuing business with you.
MA
Mike A.
Verified Buyer
1 month ago
Rated 3 out of 5 stars
Nice axle
Shipped pretty quick and looked good. Came with 10 of 16 lug nuts and two extra grease caps.
