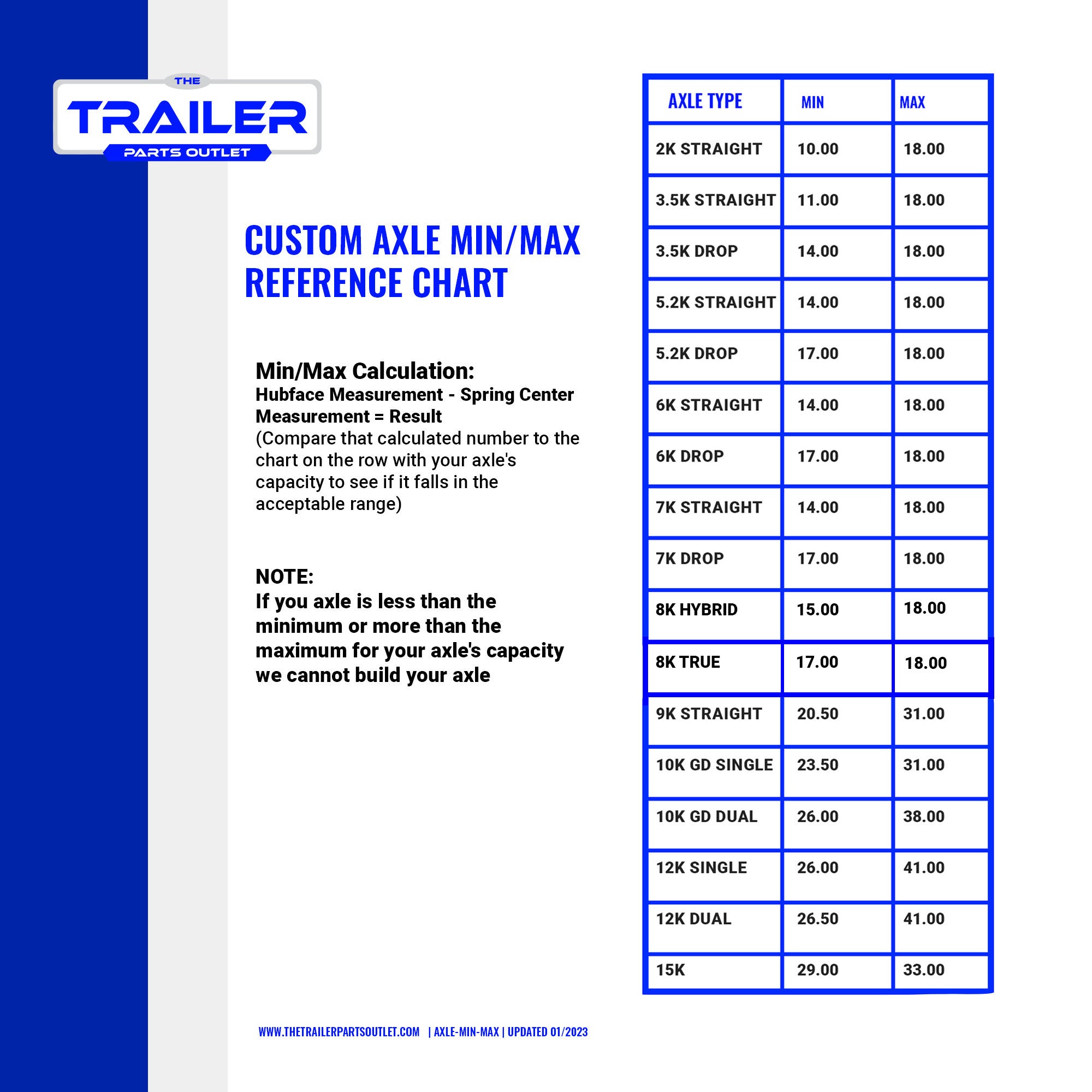

  • Custom axle min/max reference chart
  • 12K-16K Trailer Axle Hydraulic Drum Brake Assembly - 12.25"x5" - 12000-16000 lb Capacity - Right Hand (Passenger Side).
  • What's Included: 1 - 3.5k Electric Drum Brake Axle (5x4.5) - 4" Drop 2 - 1.75k 25.25" 4 leaf Double Eye Springs 1 - 3.5K U-Bolt Kits 1 - Double Eye Hanger Kit This 3.5k TK Heavy Duty
  • 10,000 lb Lippert Triple Axle Kit - 30K Capacity (Axle Series) - Measurement Guide
1 6

10,000 lb Lippert Triple Axle Kit - 30K Capacity (Axle Series)

10,000 lb Lippert Triple Axle Kit - 30K Capacity (Axle Series)

SKU : 10THDAKTLP7446865

Online price only

$6,276.99

Online price only

SAVE 0% (833) 910-3416
Shipping: Calculated at Checkout | Product Wt. 2200.0 lb
Kit Options:
Hubface/Spring Center (Frame Width):
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • How To
  • Reviews

10K Triple Axle Kit — Oil Bath — 30K capacity | Axles with Suspension

Complete triple running gear without tires: three 10,000 lb electric brake axles, matched slipper suspension. 30,000 lb combined capacity.

Axle Specifications:

  • Load rating: 10,000 lbs (10K)
  • Axle type: Electric Brake (Oil Bath)
  • Brake size: 12¼″ × 3⅜″ electric drum
  • Tube diameter: 5″ round straight axle tube (1/4″ wall)
  • Hubface/Spring Center: 74/46
  • Bolt pattern: 8x6.5
  • Stud size: 5/8″
  • Spring mount: Underslung (lower ride height)
  • Lubrication: Oil Bath
  • Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
  • ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

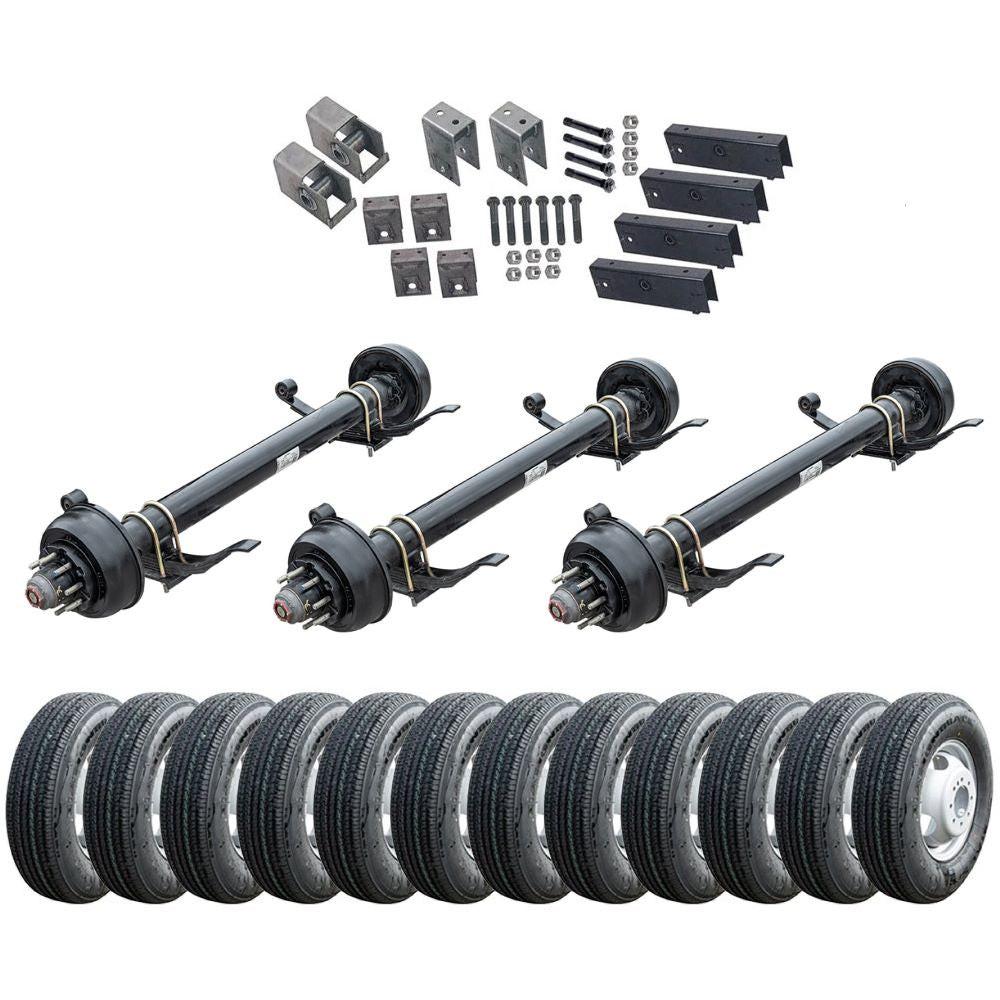

What’s Included:

  • (3) Fully Assembled 10k TK Electric Brake Oil Bath Axles — 74/46 — 8x6.5
  • (6) 5k 30 1/2" x 2.5" 5-Leaf HD Slipper Springs
  • (3) 10k U-Bolt Kits (5/8″, 5″ tube)
  • (1) Slipper Triple Suspension / Hanger Kit (10k)

Key Benefits:

  • Matched triple running gear — no cross-referencing parts
  • 5″ high-strength steel tubes — 30,000 lb combined capacity

Ideal For:

  • Flatbed & car hauler trailers
  • Gooseneck & dump trailers
  • Equipment & lowboy haulers
  • Commercial & fleet builds
