10K Triple Axle TK Trailer Kit — Oil Bath — 30K capacity | Axles, Suspension, Tires & Wheels

Complete triple running gear in one package: three 10,000 lb electric brake axles, matched slipper suspension, and twelve 16 inch dual radial tire and wheel assemblies. 30,000 lb combined capacity.

Axle Specifications:

• Load rating: 10,000 lbs (10K)
• Axle type: Electric Brake (Oil Bath)
• Brake size: 12¼″ × 3⅜″ electric drum
• Tube diameter: 5″ round straight axle tube (1/4″ wall)
• Hubface/Spring Center: 74/46
• Bolt pattern: 8x6.5
• Stud size: 5/8″
• Spring mount: Underslung (lower ride height)
• Lubrication: Oil Bath
• Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

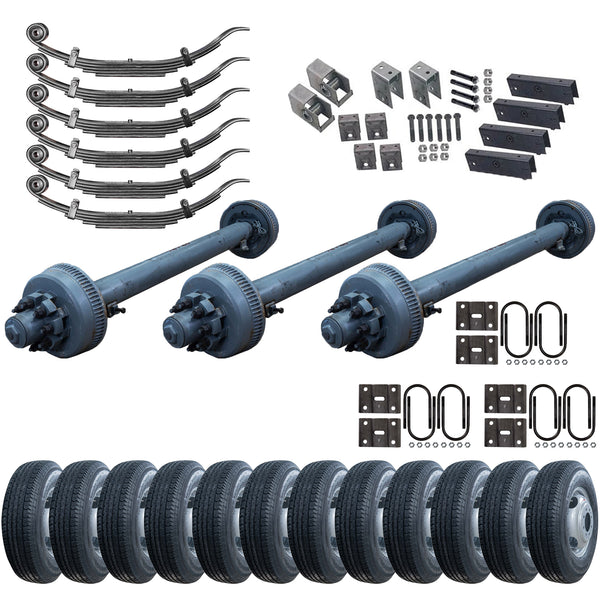

What’s Included:

• (3) Fully Assembled 10k TK Electric Brake Oil Bath Axles — 74/46 — 8x6.5
• (6) 5k 30 1/2" x 2.5" 5-Leaf HD Slipper Springs
• (3) 10k U-Bolt Kits (5/8″, 5″ tube)
• (1) Slipper Triple Suspension / Hanger Kit (10k)
• (12) 16" 235/80 R16 10 Ply 8 Lug Dual Radial TWA (Tire Wheel Assemblies) — Silver/Gray Finish

Key Benefits:

• Matched triple running gear — no cross-referencing parts
• 5″ high-strength steel tubes — 30,000 lb combined capacity

Ideal For:

• Flatbed & car hauler trailers
• Gooseneck & dump trailers
• Equipment & lowboy haulers
• Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 10K Triple Axle TK Trailer Kit today and get back on the road with confidence!
