Difficulty Level: Intermediate
Specs:
- Swivel Pan: 72" O.D - 40" I.D.
- Gross Capacity: 3500 lbs
- Empty Weight: 1050 lbs
- Empty Tongue Weight: 90 lbs
- Frame: Square Tubing
- **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**
Features:
- Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
- Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
- Detailed Cut List w/ Full Bill of Materials & Welding Tips
- Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.
Trailer parts kit specifically made for this plan is available in the option above.

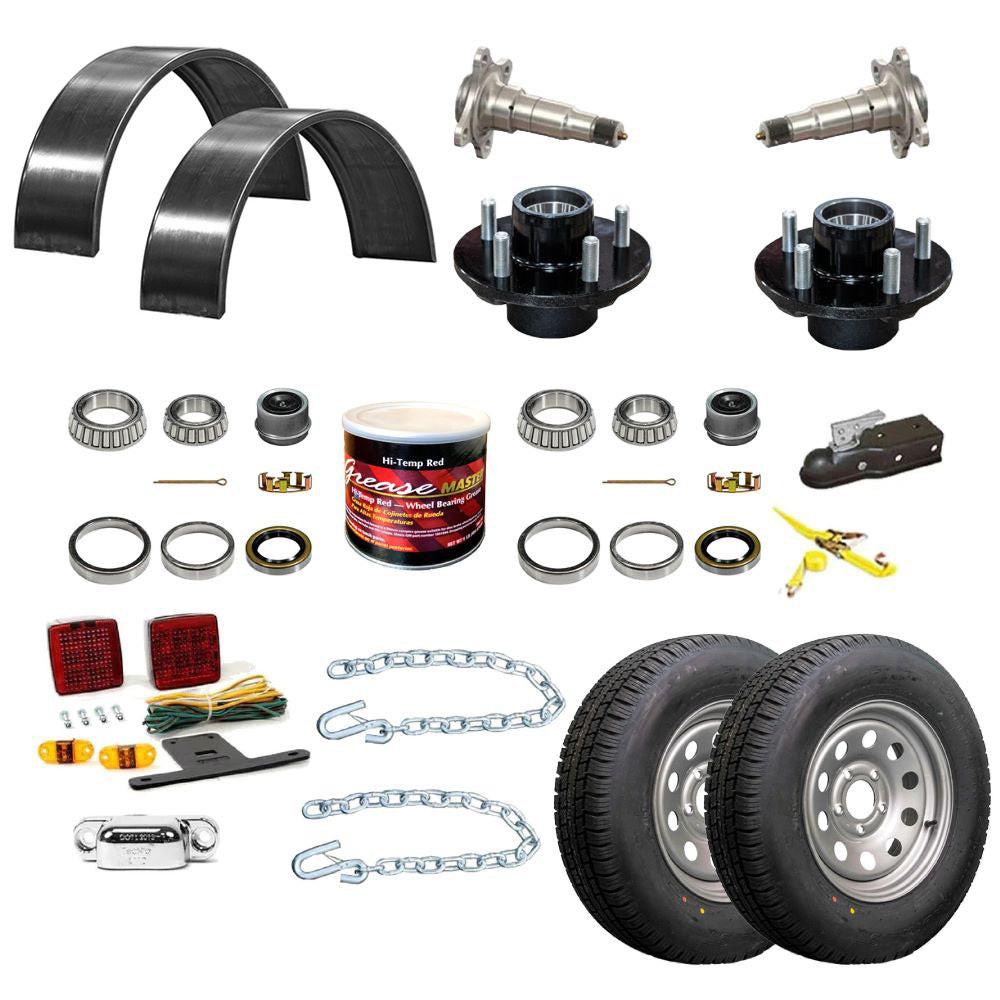

What's Included with Trailer Kit:
- 1 - 5K Straight Tongue Trailer Coupler - 5000 lb 2" x 3"
- 2 - Single Axle 9x32 Smooth Steel Rolled Fender
-
2 - 15" 6 ply Bias TWA - ST 205/75 D15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
- 1 - LED Light Kit
- 1 - License Plate Light-Rectangular
- 2 - Tire Wheel Net for 13-16" Tires
- 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
- 2 - #84 Spindle with Flange
- 2 - 3.5k Hub
- 2 - 3.5k (3500 lb Capacity) Bearing Kit
- Inner bearing-L68149 1.378 I.D
- Outer bearing-L44649 1.063 I.D
- Spindle Retainer
- Grease Cap 1.99"
- Cotter pin
- Inner race-L68111 2.362 O.D
- Outer race-L44610 1.980 O.D
- Double lip grease seal-010-019-00 2.565 O.D 1.719 I.D
- 1 - Tube of High Temp Axle Grease (Grease brand may vary)
- 1 - 1000 Car Dolly Master Plan Blueprint
