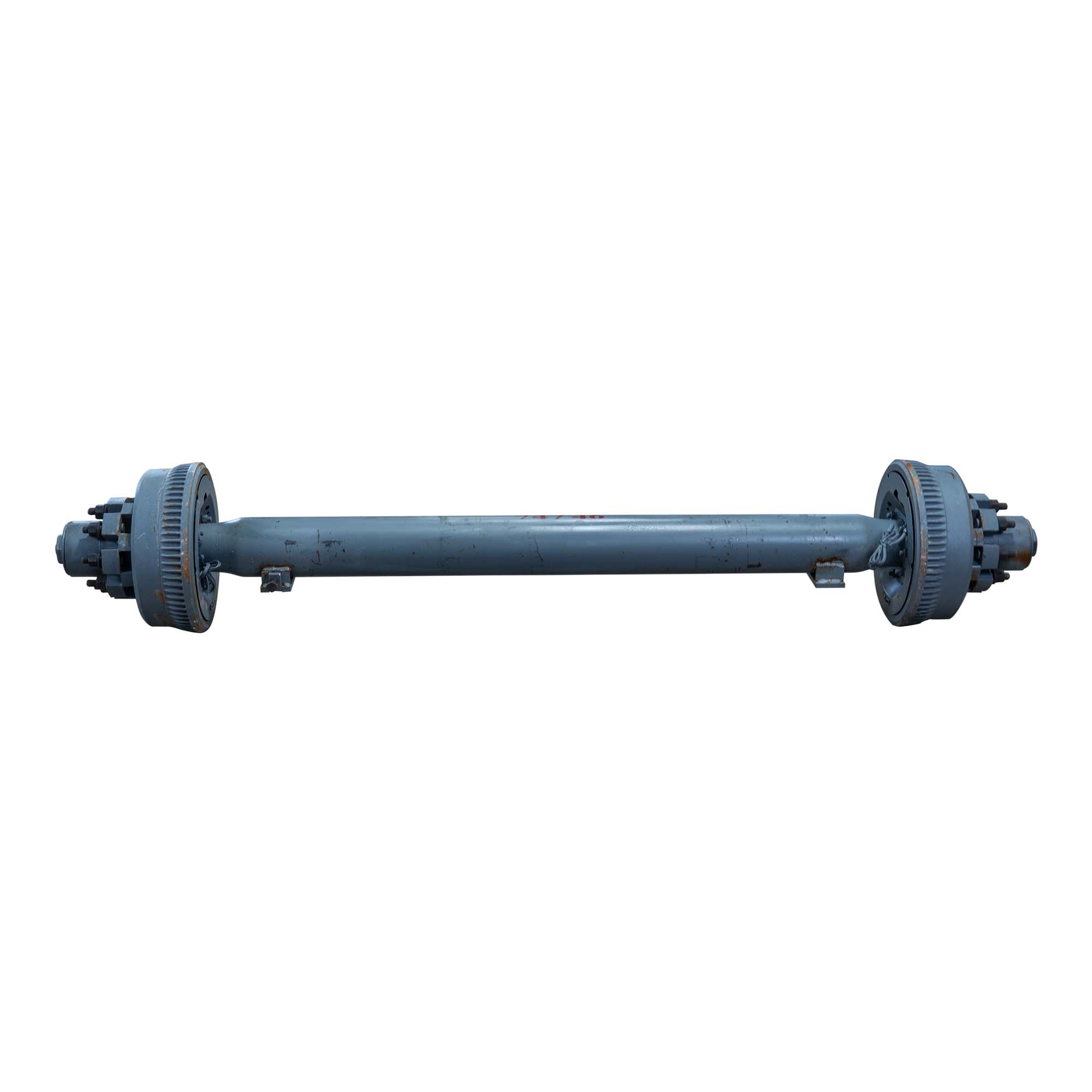

  • 10000 lb Electric Brake Trailer Axle 8 lug - 10k TK Grease Bath Trailer Axle - Side View
  • 10000 lb Electric Brake Trailer Axle 8 lug - 10k TK Grease Bath Trailer Axle - Detail 8
  • 10000 lb Electric Brake Trailer Axle 8 lug - 10k TK Grease Bath Trailer Axle - Detail 9
1 7

10000 lb Electric Brake Trailer Axle 8 lug - 10k TK Grease Bath Trailer Axle

10000 lb Electric Brake Trailer Axle 8 lug - 10k TK Grease Bath Trailer Axle

SKU : 10EBTK7446865

Online price only

$1,028.99

Online price only

SAVE 0% (833) 910-3416
4.5
Rated 4.5 out of 5 stars
2 Reviews
Shipping: Calculated at Checkout | Product Wt. 380.0 lb
Axle Options:
Hubface/Spring Center:
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • How To
  • Reviews

10K Electric Brake Trailer Axle — Grease Bath — 10,000 lb capacity | 8x6.5 bolt pattern | Fully assembled

Upgrade your trailer with this 10,000 lb electric brake grease-bath trailer axle. Built for heavy commercial duty: a 5" round steel tube, 5/8" studs, and 12¼" x 3⅜" electric drum brakes.

Axle Specifications:

  • Load rating: 10,000 lbs (10K)
  • Axle type: Electric Brake (Grease Bath)
  • Brake size: 12¼″ × 3⅜″ electric drum
  • Tube diameter: 5″ round straight axle tube (1/4″ wall)
  • Hubface/Spring Center: 74/46
  • Bolt pattern: 8x6.5
  • Stud size: 5/8″
  • Spring mount: Underslung (lower ride height)
  • Product weight: 235 lbs
  • Lubrication: Grease Bath
  • Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
  • ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included (Pre-Assembled Internal Components):

Key Benefits:

  • Fully assembled & packed with high-temp grease — ready for fast installation
  • 5″ high-strength steel tube — heavy-duty weight handling
  • Grease-bath design — sealed system, simpler and lower maintenance than oil bath

Ideal For:

  • Flatbed & car hauler trailers
  • Gooseneck & dump trailers
  • Equipment & lowboy haulers
  • Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

  • Fast shipping — order today, ships tomorrow
  • Bulk & wholesale options available
  • Financing options
  • Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 10K Electric Brake Grease Bath Axle today and get back on the road with confidence!
