1076ATVTG - 10' x 6'4" Double Gate ATV Trailer DIY Master Plan - 16 How-to Steps w/ Blueprint
1076ATVTG - 10' x 6'4" Double Gate ATV Trailer DIY Master Plan - 16 How-to Steps w/ Blueprint

1076ATVTG - 10' x 6'4" Double Gate ATV Trailer DIY Master Plan...

1076ATVTG - 10' x 6'4" Double Gate ATV Trailer DIY Master Plan - 16 How-to Steps w/ Blueprint

Regular price $25
Regular price $39.99 Sale price $25
Regular price $25
$25
SAVE 37%
Regular price
$39.99
Sale price
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

  • Size: 10' x 6'4"
  • Gross Capacity: 3500 lbs
  • Empty Weight: 1085 lbs
  • Empty Tongue Weight: 105 lbs
  • Double gate to allow for easy loading and unloading in the truck bed as well as the trailer

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips

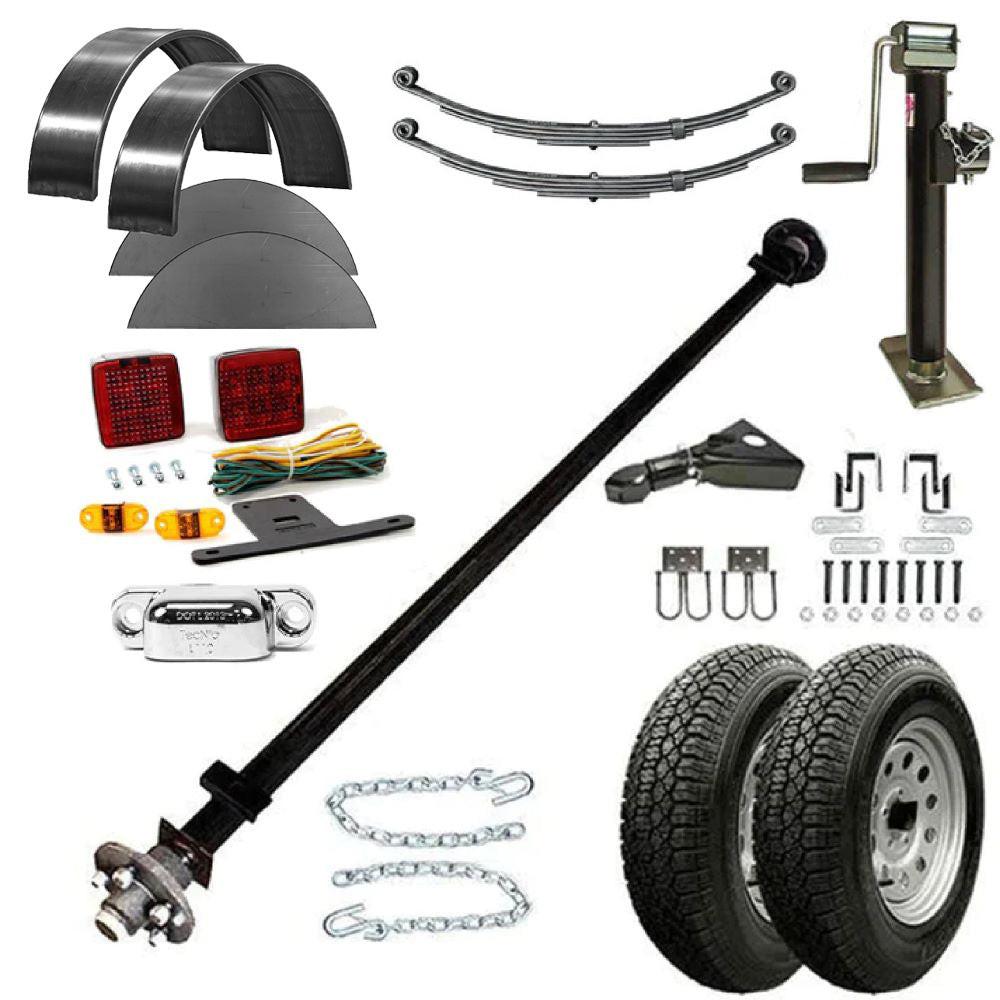

  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

 What's Included with Trailer Kit:

  • 1 - 3.5k Trailer Axle - 3500 lb Idler 5x4.5 lug (89/74)
  • 2 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 1 - Trailer U-bolt kit for 3500 lb Axles
  • 1 - Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
  • 2 - 15" 8 ply Radial TWA 205/75 R15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Single Axle 9x32 Tread Plate Steel Rolled Fender
  • 2 - Single Axle 9x32 Tread Plate Fender Backs
  • 1 - 7K A-Frame Cast Trailer Coupler-7000 lb 2" Bulldog Style
  • 1 - 2k Pipe Mount Jack - 2000 lb Trailer Jack Side Wind
  • 1 - LED Light Kit
  • 1 - License Plate Light-Rectangular
  • 1 - License Plate Bracket
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - 1076ATVTG How to Steps w/Blueprint
