10CY - 10'x6' Motorcycle/Utility Trailer- 17 How-to Steps

Skip to product information
1 of 2

Need shopping help?

Talk To Krystal or another Trailer Parts Expert now!

10CY - 10'x6' Motorcycle/Utility Trailer- 17 How-to Steps

10CY - 10'x6' Motorcycle/Utility Trailer- 17 How-to Steps

SKU : MP10CYPAPER
Regular price $25
Regular price $64.99 Sale price $25
Sale (833) 910-3416
Plan Type:
Kit Option:
View full details
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

  • Box Size: 10'x6'
  • Gross Capacity: 3500 lbs
  • Empty Weight: 1305 lbs
  • Empty Tongue Weight: 100 lbs
  • Frame: Angle Steel
  • Deck: Diamond Plate
  • Designed for 2-3 bike capacity
  • Great for lawn equipment or 4-wheelers

Features:

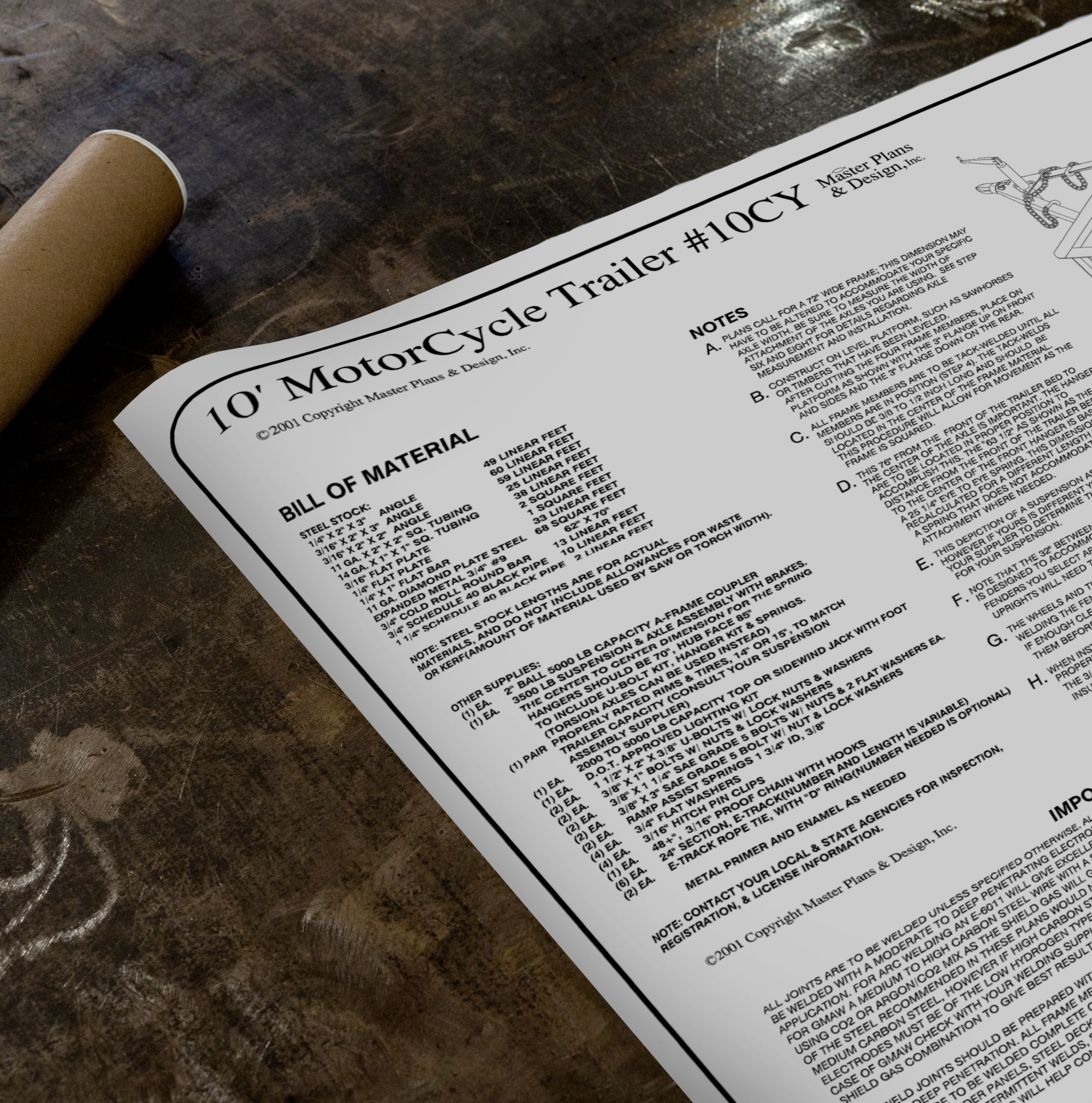

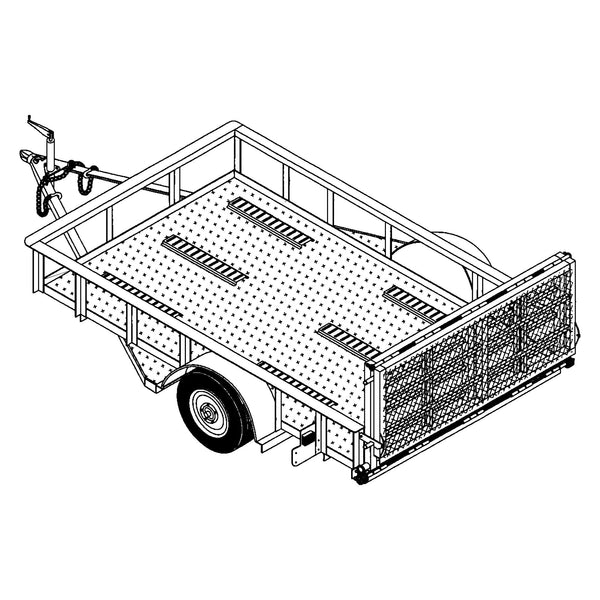

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

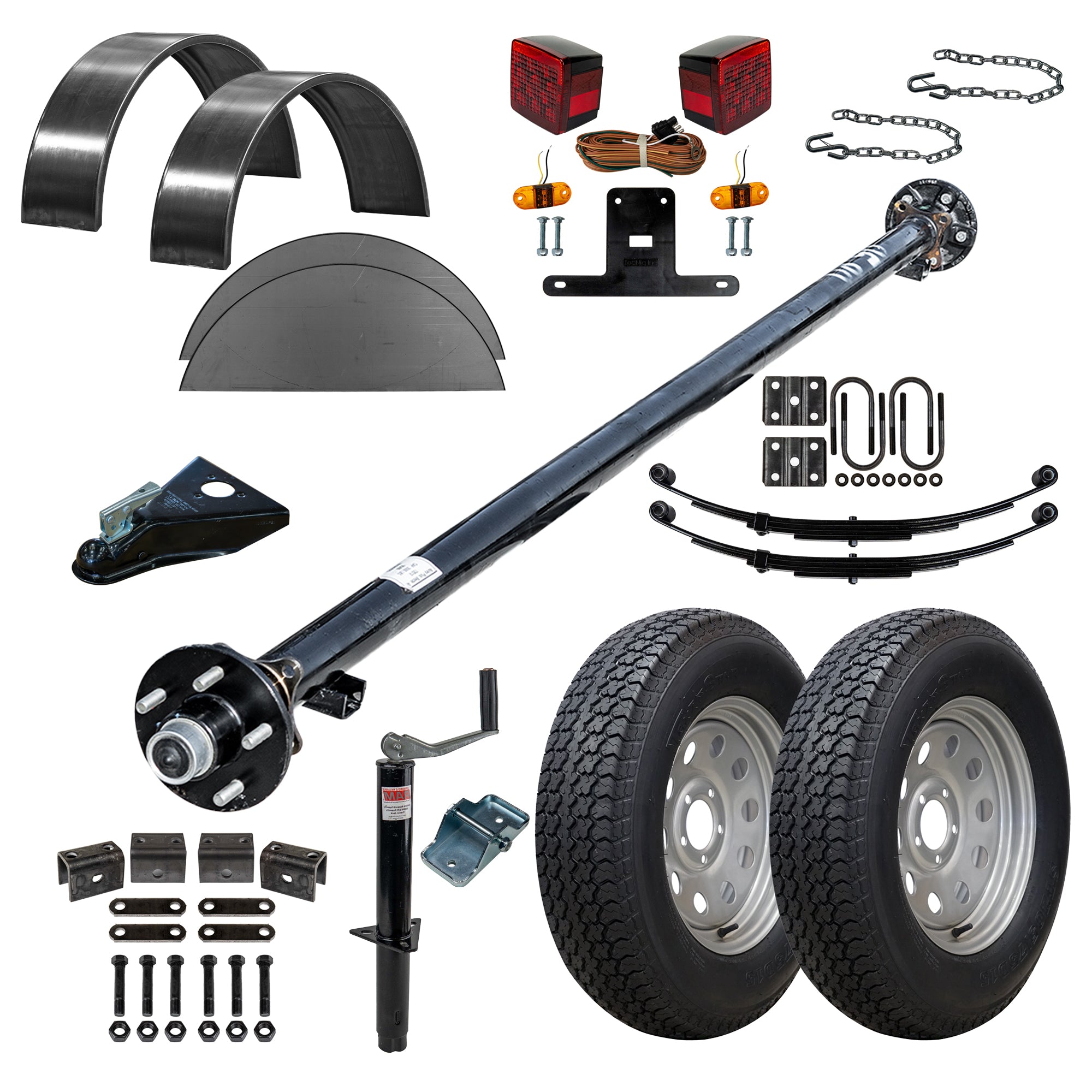

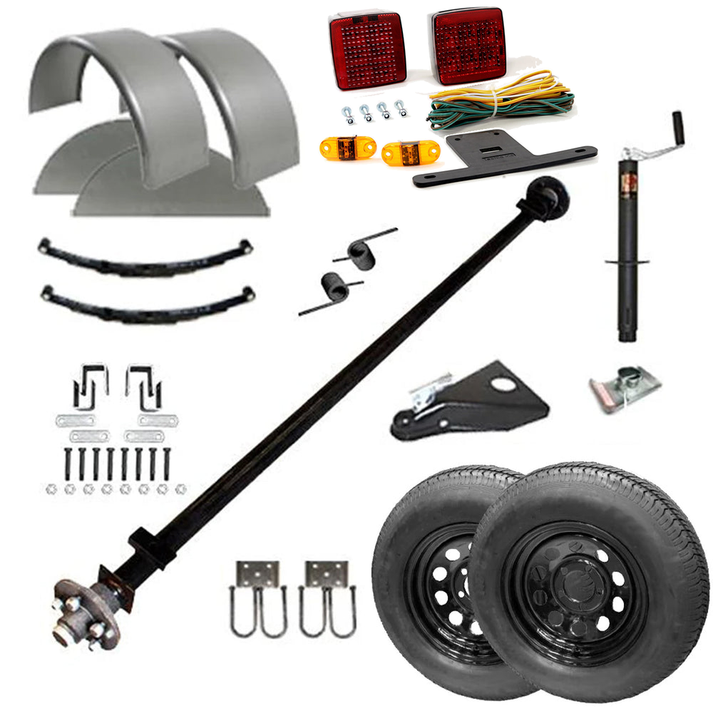

What's Included with Trailer Kit:

  • 1 - 3.5k Trailer Axle - 3500 lb Idler 5x4.5 lug (85/70)
  • 1 - Trailer U-bolt kit for 3500 lb Axles
  • 1 - Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
  • 2 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 2 - Single Axle 9x32 Tread Plate Steel Rolled Fender
  • 2 - Single Axle 9x32 Fender Back
  • 1 - 5K A-Frame Trailer Coupler - 5000 lb 2" Atwood Style
  • 1 - LED Light Kit
  • 2 -Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - A-frame 2k Trailer Jack - 2000 lb Top Wind
  • 1 - Trailer Jack Footplate
  • 1 - Ramp Spring LH W/2k Torque For 1 1/2in Shaft
  • 1 - Ramp Spring RH W/2k Torque For 1 1/2in Shaft
  • 2 - 15" 8 ply Radial TWA - ST 205/75 R15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 1 - 10CY Motorcycle/Utility Master Plan Blueprint
