DIY Trailer Plan - 10HD - Tandem Axle Dump

10HD - 5' x 10' Tandem Axle 7K Dump Trailer DIY Master Plan - 28 How-to Steps w/ Blueprint

SKU: MP10HDPDF

FREE SHIPPING | Call (855) 231-3005 for Wholesale

Regular price $59.99 Sale

This plan is specifically made for: TK Trailer Kit - Master Plan 10HD - 5' x 10' - 7K Dump Trailer (Original Series)

Specs:

  • Box Size: 5'x10'
  • Gross Capacity: 7000 lbs
  • Empty Weight: 1830 lbs
  • Empty Tongue Weight: 375 Lbs
  • Frame: Angle Steel
  • Deck: Wood

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

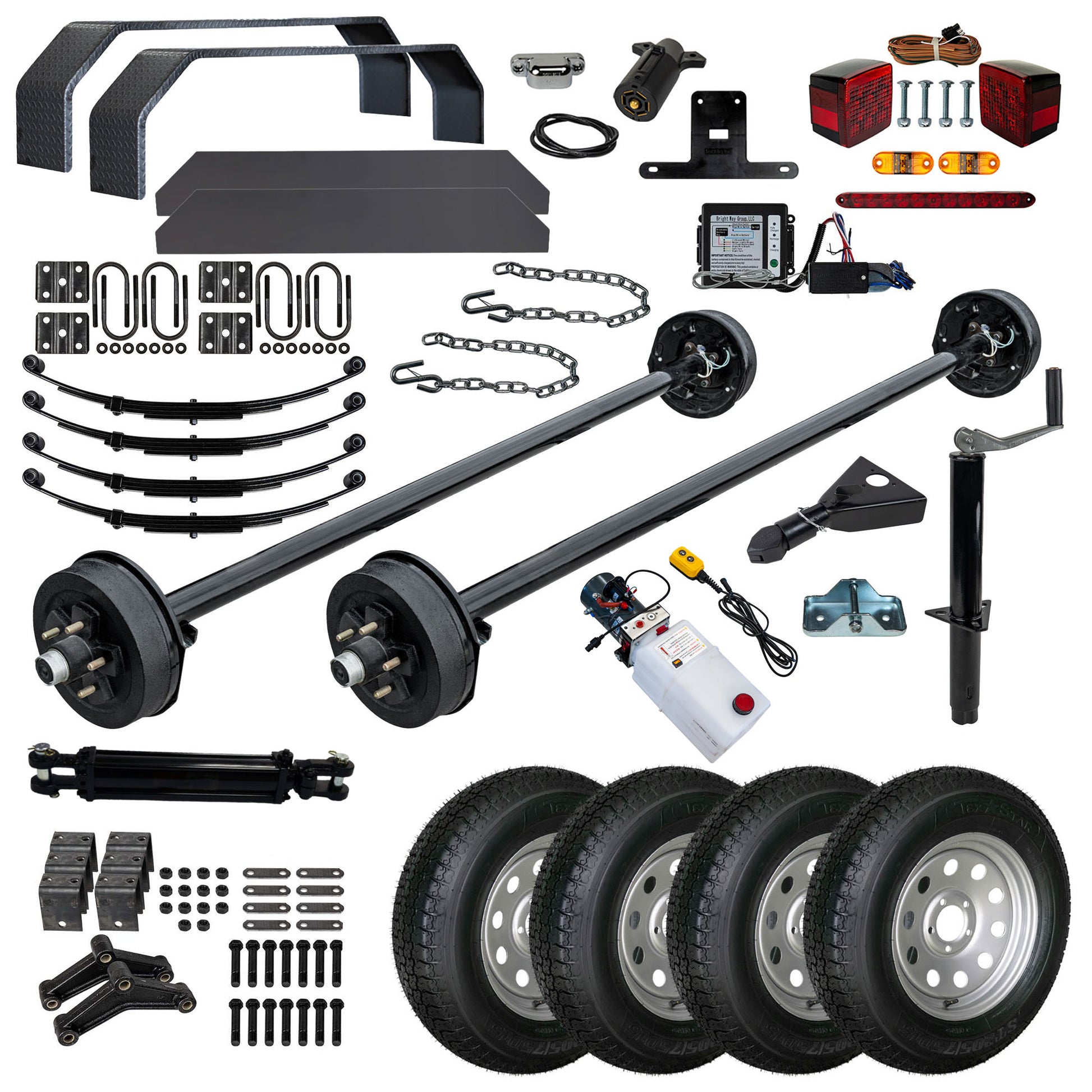

TK Trailer Kit - Master Plan 10HD - 5' x 10' - 7K Dump Trailer (Original Series)

What's Included in the Trailer Kit:

  • 2 - 3.5k Trailer Axle - 3500 lb Electric Brake 5x4.5 lug(73/58)
  • 2 - Trailer U-bolt kit for 3500 lb Axles
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 4 - 15" 6 ply Bias TWA - ST 205/75D15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • - 7K A-Frame Cast Trailer Coupler-7000 lb 2" Bulldog Style
  • - A-Frame 5k Trailer Jack 5000 lb Top Wind
  • - Trailer Jack Footplate
  • 2 - Tandem Axle 10.75x72 Smooth Steel Teardrop Fender
  • 2 -Tandem Axle 9x72 Smooth Fender Back
  • 1 -12 Volt Trailer Breakaway Kit
  • 2 -Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 -Incandescent Light Kit
  • 1 -License Plate Light-Rectangular
  • 1.6 -6 way cable 14 gauge (per 10 foot)
  • 1 -7 Way Plug
  • 1 - 15' Pump Remote (Power Up Power Down)
  • 1 - 12v Double Acting Hydraulic Pump
  • Clevis Ends 1" Pin Cylinder 4" Bore x 30" Stroke 40 1/4 retracted length.
