10k Dexter Trailer Axle - 10000 lb Electric Brake 8 lug (With Springs and Ubolts)

1 9

10k Dexter Trailer Axle - 10000 lb Electric Brake 8 lug (With Springs and Ubolts)

SKU : 10EBDXSPRUNG7446865

Online price only

$1,852.99

Online price only

SAVE 0% (833) 910-3416

4.5

Rated 4.5 out of 5 stars

14 Reviews

Shipping: Calculated at Checkout | Product Wt. 380.0 lb

Axle Options: Variant image

Single Axle

Tandem Axle

Upgrade to TK Trailer Kit

Hubface/Spring Center (Frame Width): 74/46 74/47 Custom (6 Week Processing)

Product variants

Quantity

Tax Exempt? Enter info in cart when you're done shopping.

View full details

Product Information
How To
Reviews

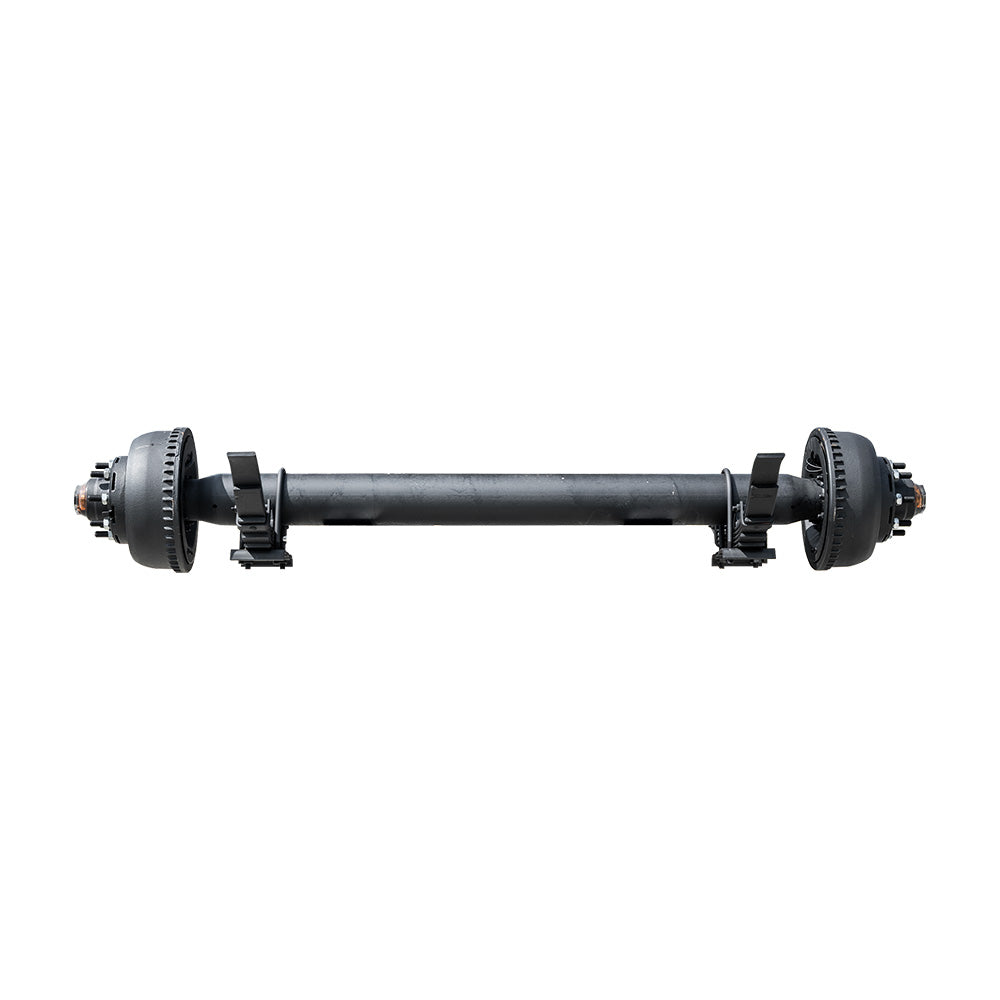

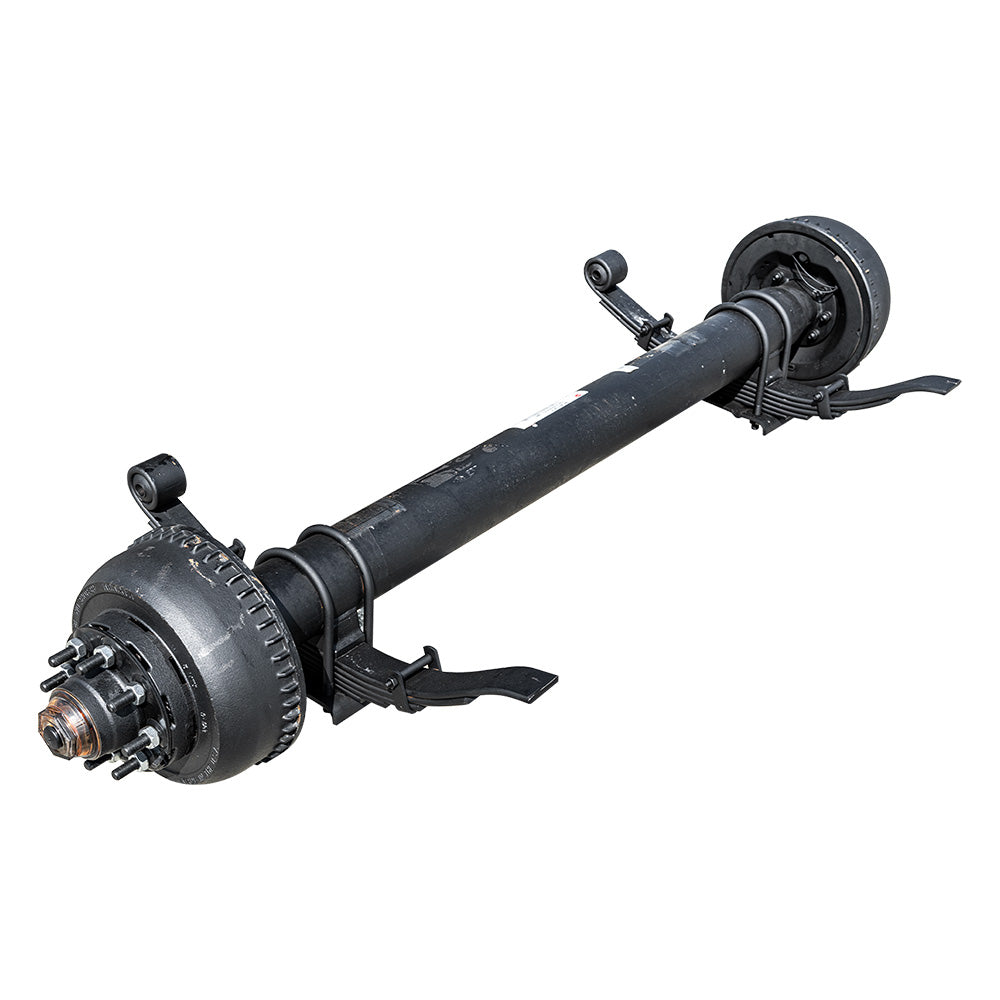

10K Dexter Electric Brake Trailer Axle — Oil Bath — 10,000 lb capacity | 8x6.5 | Fully assembled with springs & u-bolts

The Dexter D100GD 10,000 lb electric brake axle, fully assembled with 2.5" slipper springs and u-bolts already mounted. Oil-bath lubrication, 5" round steel tube, 5/8" studs, and 12¼" x 3⅜" electric brakes.

Axle Specifications:

Load rating: 10,000 lbs (10K)
Axle type: Electric Brake (Oil Bath)
Brake size: 12¼″ × 3⅜″ electric drum
Tube diameter: 5″ round straight axle tube (1/4″ wall)
Hubface/Spring Center: 74/46
Bolt pattern: 8x6.5
Stud size: 5/8″
Spring mount: Underslung (lower ride height)
Product weight: 375 lbs
Lubrication: Oil Bath
Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
ABS: Not compatible with ABS systems

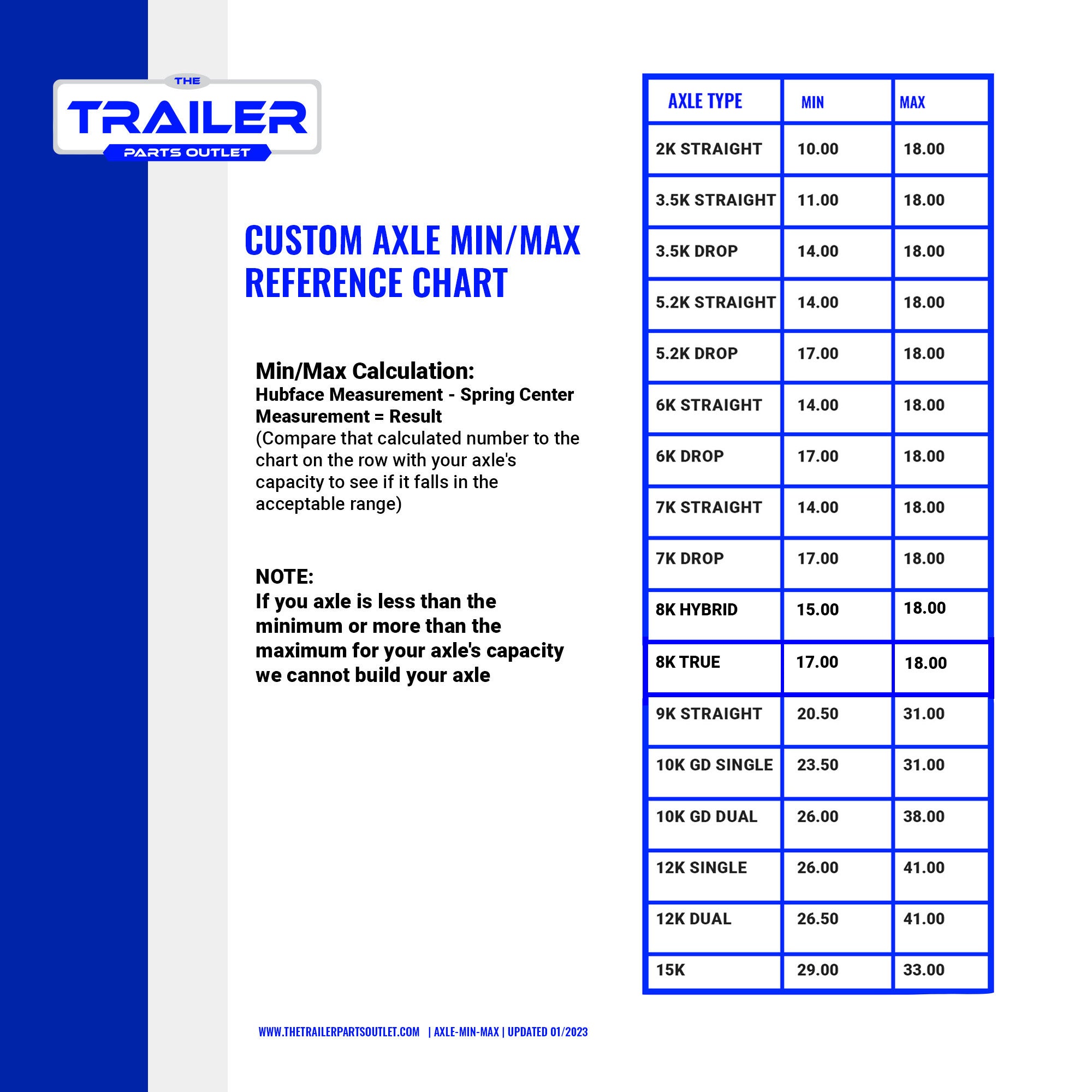

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included (Fully Assembled):

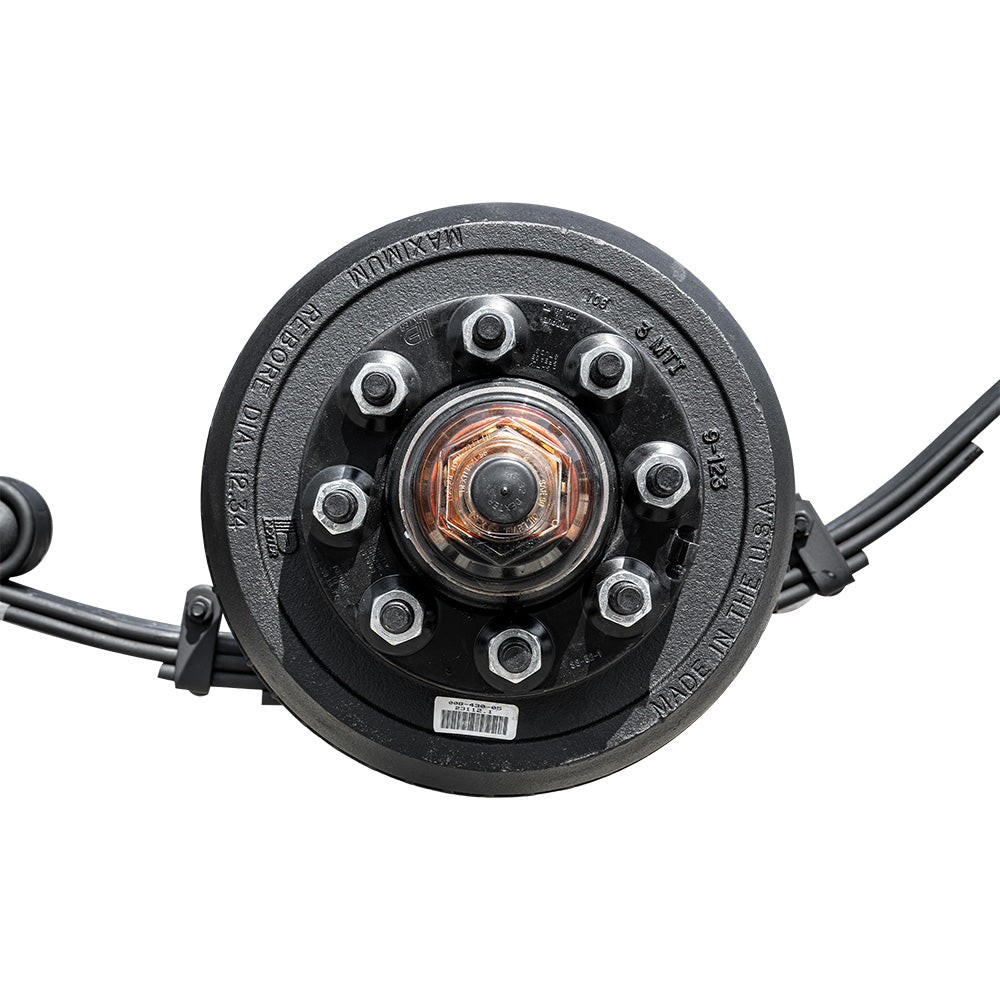

10K GD Trailer Axle Hub & Drum — 8x6.5
9K-10K (9000–10,000 lb Capacity) Bearing Kit (2 sets, unitized oil seal)
10K TK axle studs — 5/8″
10K Electric Brake Assemblies — 12¼″ × 3⅜″ (driver & passenger)

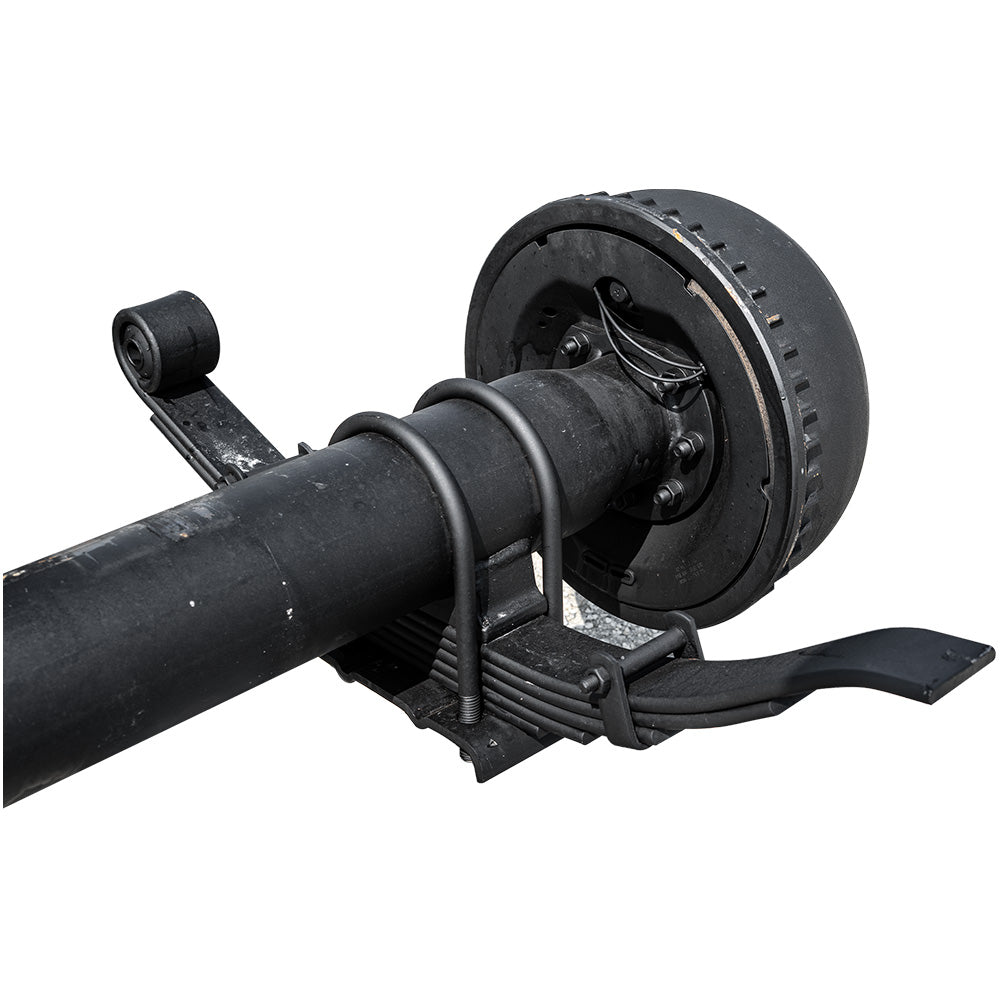

(2) 5k 30 1/2" x 2.5" 5-Leaf HD Slipper Springs — installed
(1) 10k U-Bolt Kit (5/8″, 5″ tube) — installed

Key Benefits:

Fully assembled with springs & u-bolts — ready to bolt on
Dexter D100GD General Duty — 5-year warranty, nationwide parts availability
Oil-bath lubrication — cooler-running bearings for sustained highway duty
5″ high-strength steel tube — heavy-duty weight handling

Ideal For:

Flatbed & car hauler trailers
Gooseneck & dump trailers
Equipment & lowboy haulers
Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

Fast shipping — order today, ships tomorrow
Bulk & wholesale options available
Financing options
Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 10K Dexter Oil Bath Axle today and get back on the road with confidence!

10K Dexter Electric Brake Trailer Axle — Oil Bath — 10,000 lb capacity | 8x6.5 | Fully assembled with springs & u-bolts

Axle Specifications:

Load rating: 10,000 lbs (10K)
Axle type: Electric Brake (Oil Bath)
Brake size: 12¼″ × 3⅜″ electric drum
Tube diameter: 5″ round straight axle tube (1/4″ wall)
Hubface/Spring Center: 74/47
Bolt pattern: 8x6.5
Stud size: 5/8″
Spring mount: Underslung (lower ride height)
Product weight: 375 lbs
Lubrication: Oil Bath
Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
ABS: Not compatible with ABS systems

What’s Included (Fully Assembled):

10K GD Trailer Axle Hub & Drum — 8x6.5
9K-10K (9000–10,000 lb Capacity) Bearing Kit (2 sets, unitized oil seal)
10K TK axle studs — 5/8″
10K Electric Brake Assemblies — 12¼″ × 3⅜″ (driver & passenger)
(2) 5k 30 1/2" x 2.5" 5-Leaf HD Slipper Springs — installed
(1) 10k U-Bolt Kit (5/8″, 5″ tube) — installed

Key Benefits:

Fully assembled with springs & u-bolts — ready to bolt on
Dexter D100GD General Duty — 5-year warranty, nationwide parts availability
Oil-bath lubrication — cooler-running bearings for sustained highway duty
5″ high-strength steel tube — heavy-duty weight handling

Ideal For:

Flatbed & car hauler trailers
Gooseneck & dump trailers
Equipment & lowboy haulers
Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

Fast shipping — order today, ships tomorrow
Bulk & wholesale options available
Financing options
Dedicated expert support

10K Dexter Electric Brake Trailer Axle — Oil Bath — 10,000 lb capacity | 8x6.5 | Fully assembled with springs & u-bolts

Axle Specifications:

Load rating: 10,000 lbs (10K)
Axle type: Electric Brake (Oil Bath)
Brake size: 12¼″ × 3⅜″ electric drum
Tube diameter: 5″ round straight axle tube (1/4″ wall)
Hubface/Spring Center: Custom, enter your measurements
Bolt pattern: 8x6.5
Stud size: 5/8″
Spring mount:Underslung or Overslung, choose your configuration
Product weight: 375 lbs
Lubrication: Oil Bath
Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
ABS: Not compatible with ABS systems

What’s Included (Fully Assembled):

10K GD Trailer Axle Hub & Drum — 8x6.5
9K-10K (9000–10,000 lb Capacity) Bearing Kit (2 sets, unitized oil seal)
10K TK axle studs — 5/8″
10K Electric Brake Assemblies — 12¼″ × 3⅜″ (driver & passenger)
(2) 5k 30 1/2" x 2.5" 5-Leaf HD Slipper Springs — installed
(1) 10k U-Bolt Kit (5/8″, 5″ tube) — installed

Key Benefits:

Fully assembled with springs & u-bolts — ready to bolt on
Dexter D100GD General Duty — 5-year warranty, nationwide parts availability
Oil-bath lubrication — cooler-running bearings for sustained highway duty
5″ high-strength steel tube — heavy-duty weight handling

Ideal For:

Flatbed & car hauler trailers
Gooseneck & dump trailers
Equipment & lowboy haulers
Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

Fast shipping — order today, ships tomorrow
Bulk & wholesale options available
Financing options
Dedicated expert support

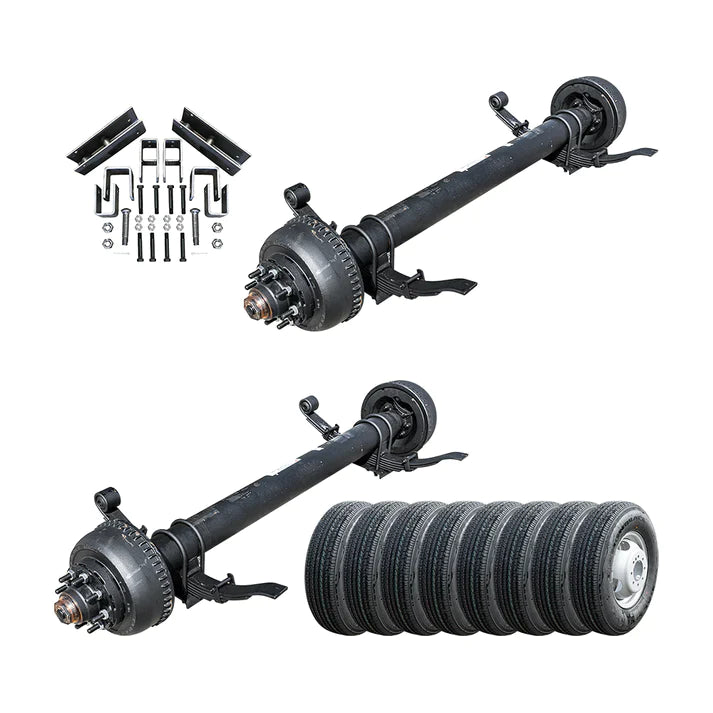

10K Tandem Axle TK Trailer Kit — Oil Bath — 20K capacity | Axles, Suspension, Tires & Wheels

Complete tandem running gear in one package: two 10,000 lb electric brake axles, matched slipper suspension, and eight 16 inch dual radial tire and wheel assemblies. 20,000 lb combined capacity.

Axle Specifications:

Load rating: 10,000 lbs (10K)
Axle type: Electric Brake (Oil Bath)
Brake size: 12¼″ × 3⅜″ electric drum
Tube diameter: 5″ round straight axle tube (1/4″ wall)
Hubface/Spring Center: Custom, enter your measurements
Bolt pattern: 8x6.5
Stud size: 5/8″
Spring mount:Underslung or Overslung, choose your configuration
Lubrication: Oil Bath
Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
ABS: Not compatible with ABS systems

What’s Included:

(2) Fully Assembled 10k TK Electric Brake Oil Bath Axles — Custom, enter your measurements — 8x6.5
(4) 5k 30 1/2" x 2.5" 5-Leaf HD Slipper Springs
(2) 10k U-Bolt Kits (5/8″, 5″ tube)

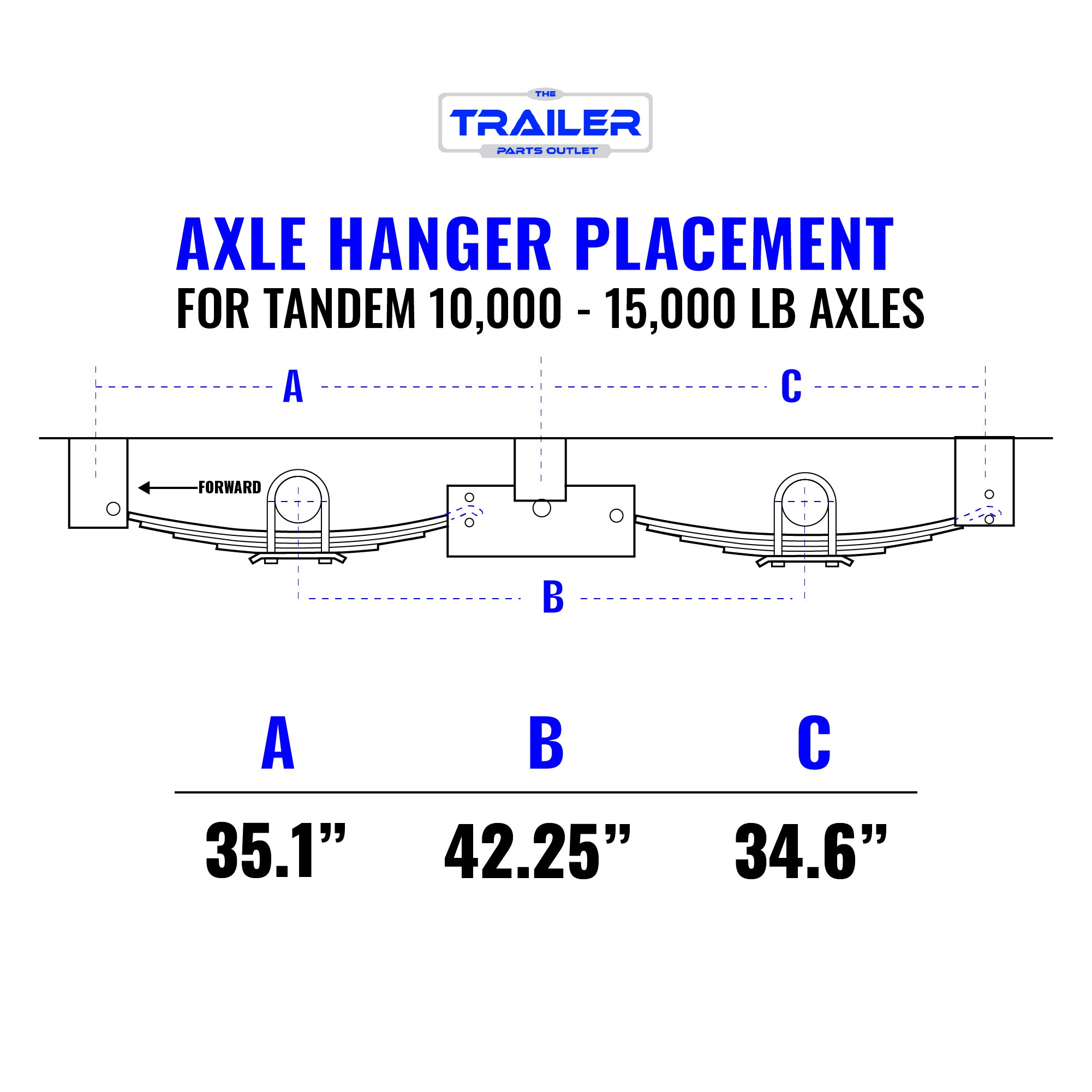

(1) Slipper Tandem Suspension / Hanger Kit (10k)
(8) 16" 235/80 R16 10 Ply 8 Lug Dual Radial TWA (Tire Wheel Assemblies) — Silver/Gray Finish

Key Benefits:

Matched tandem running gear — no cross-referencing parts
5″ high-strength steel tubes — 20,000 lb combined capacity

Ideal For:

Flatbed & car hauler trailers
Gooseneck & dump trailers
Equipment & lowboy haulers
Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

Fast shipping — order today, ships tomorrow
Bulk & wholesale options available
Financing options
Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 10K Tandem Axle TK Trailer Kit today and get back on the road with confidence!
