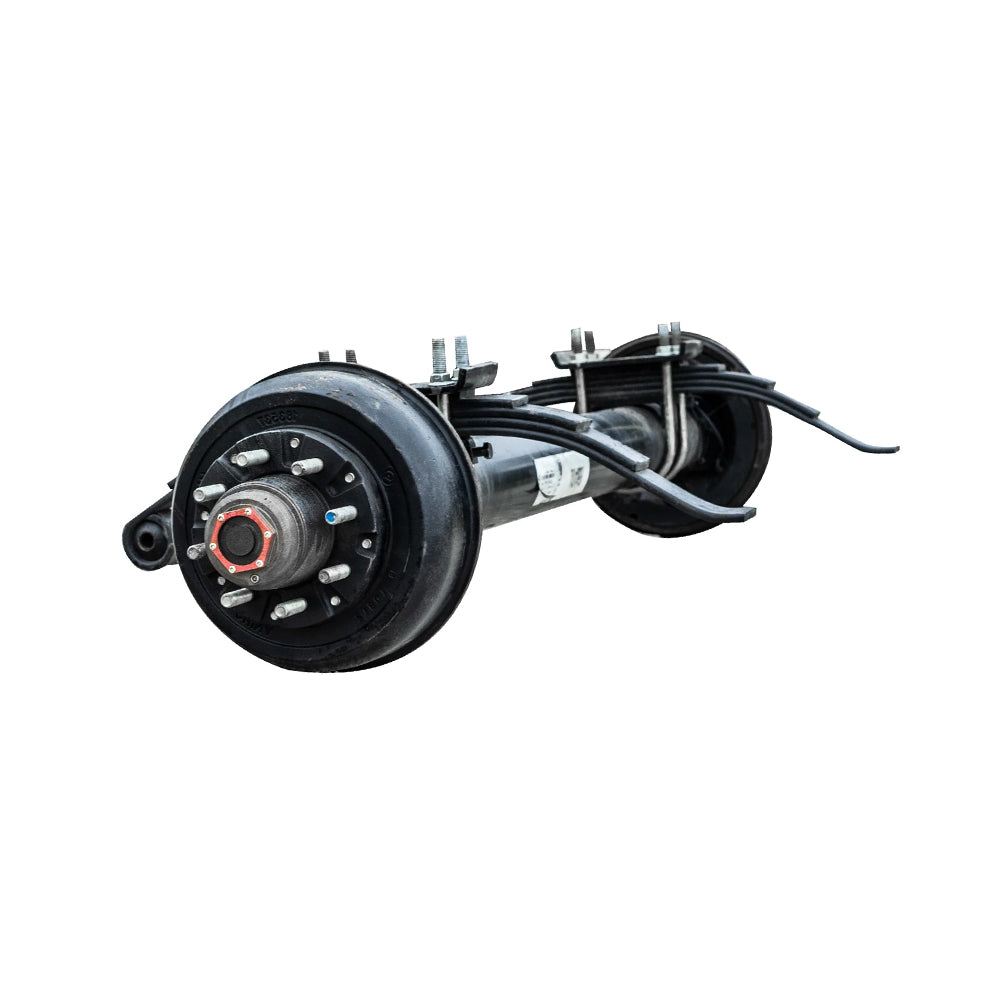

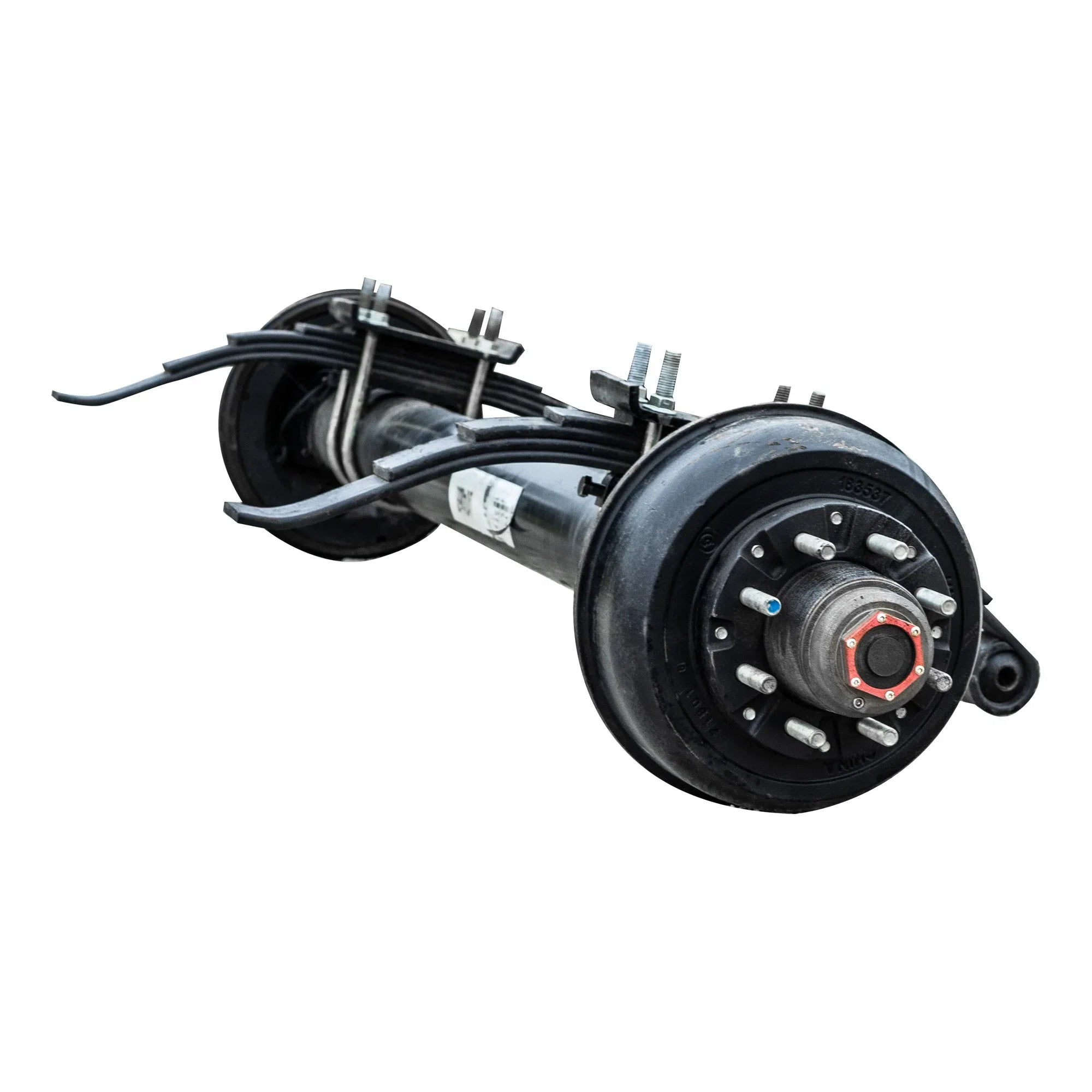

10K Lippert Electric Brake Trailer Axle — Sprung — 10,000 lb capacity | 8x6.5 | Fully assembled with springs & u-bolts

The 10,000 lb Lippert electric brake axle, fully assembled with slipper springs and u-bolts already mounted. Oil-bath lubrication, 5″ steel tube, and 5/8″ studs on an 8x6.5 pattern.

Axle Specifications:

• Load rating: 10,000 lbs (10K)
• Axle type: Electric Brake (Oil Bath)
• Brake size: 12¼″ × 3⅜″ electric drum
• Tube diameter: 5″ straight steel axle tube
• Hubface/Spring Center: 74/46
• Bolt pattern: 8x6.5
• Stud size: 5/8″
• Spring mount: Sprung — springs & u-bolts pre-mounted
• Product weight: 435 lbs
• Lubrication: Oil Bath
• Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
• ABS: Not compatible with ABS systems

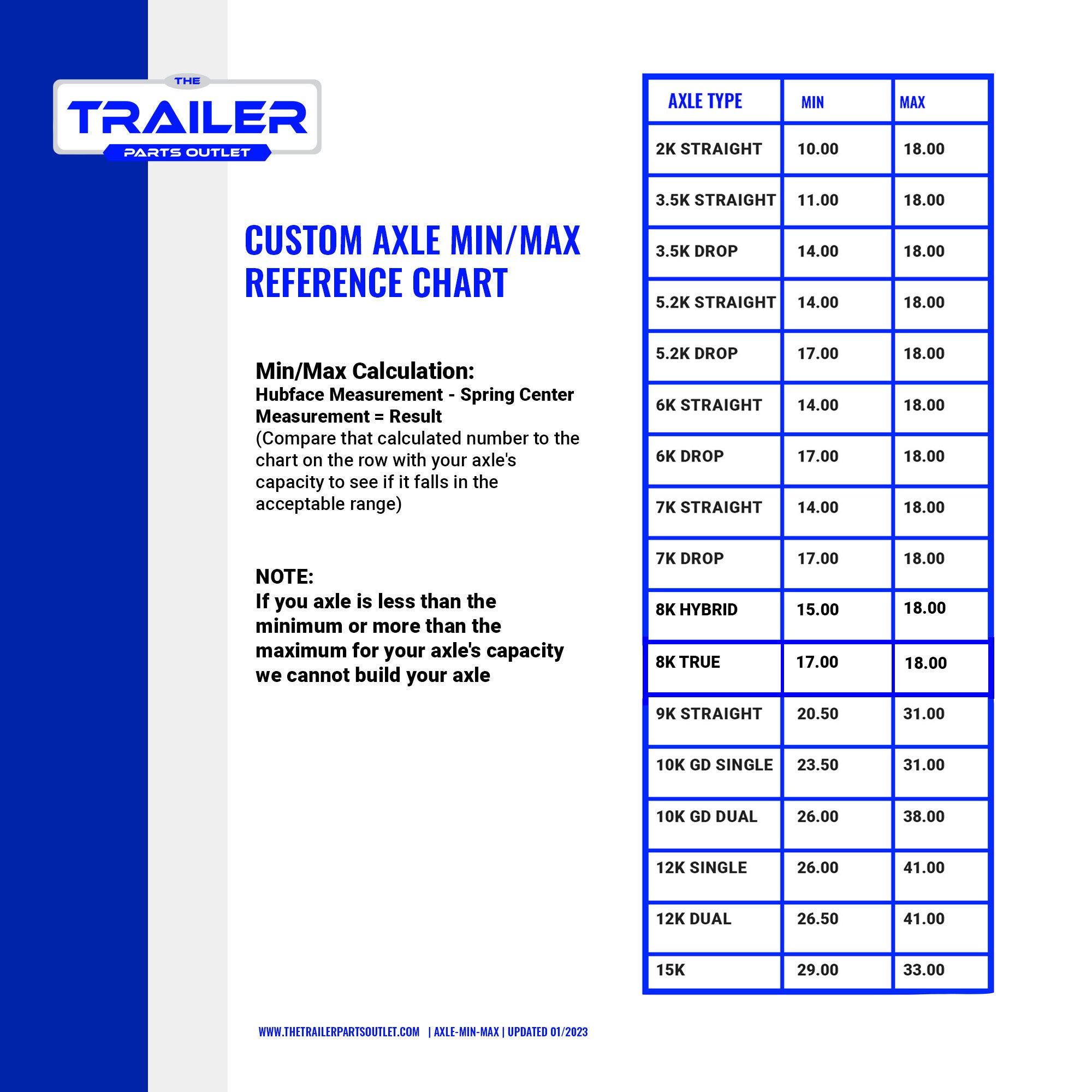

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included (Fully Assembled):

• (1) Fully Assembled 10k Lippert Electric Brake Oil Bath Axle — 74/46 — 8x6.5
• (2) 5k 30 1/2″ x 2.5″ 5-Leaf HD Slipper Springs — installed
• (1) 10k U-Bolt Kit (5/8″, 5″ tube) — installed

Key Benefits:

• Sprung — springs & u-bolts pre-mounted — ready to bolt on
• Oil-bath lubrication — cooler-running bearings for sustained highway duty
• 5″ high-strength steel tube — heavy-duty weight handling

Ideal For:

• Gooseneck & lowboy trailers
• Flatbed & car hauler trailers
• Dump & equipment haulers
• Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 10K Lippert Sprung Axle today and get back on the road with confidence!

10K Lippert Tandem Axle Kit — 20,000 lb | 74/46

Tandem axle running gear in one package: two 10K Lippert electric brake axles.

Specifications:

• Capacity: 20,000 lb (2 x 10,000 lb axles)
• Axles: 10K Lippert, electric brake, sprung
• Hubface/Spring Center: 74/46
• Bolt pattern: 8x6.5
• Lubrication: Oil bath
• ABS: Not ABS compatible

What’s Included:

• (2) 10k Lippert Electric Brake Trailer Axle (Sprung) - 74/46 - 8x6.5

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled
• Underslung: spring seats welded on the bottom for a lower ride height
• High strength straight steel axle tube construction
• Oil bath lubrication

Ideal For:

• Car hauler, lawn & landscape, and flatbed trailers
• Gooseneck and dump trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

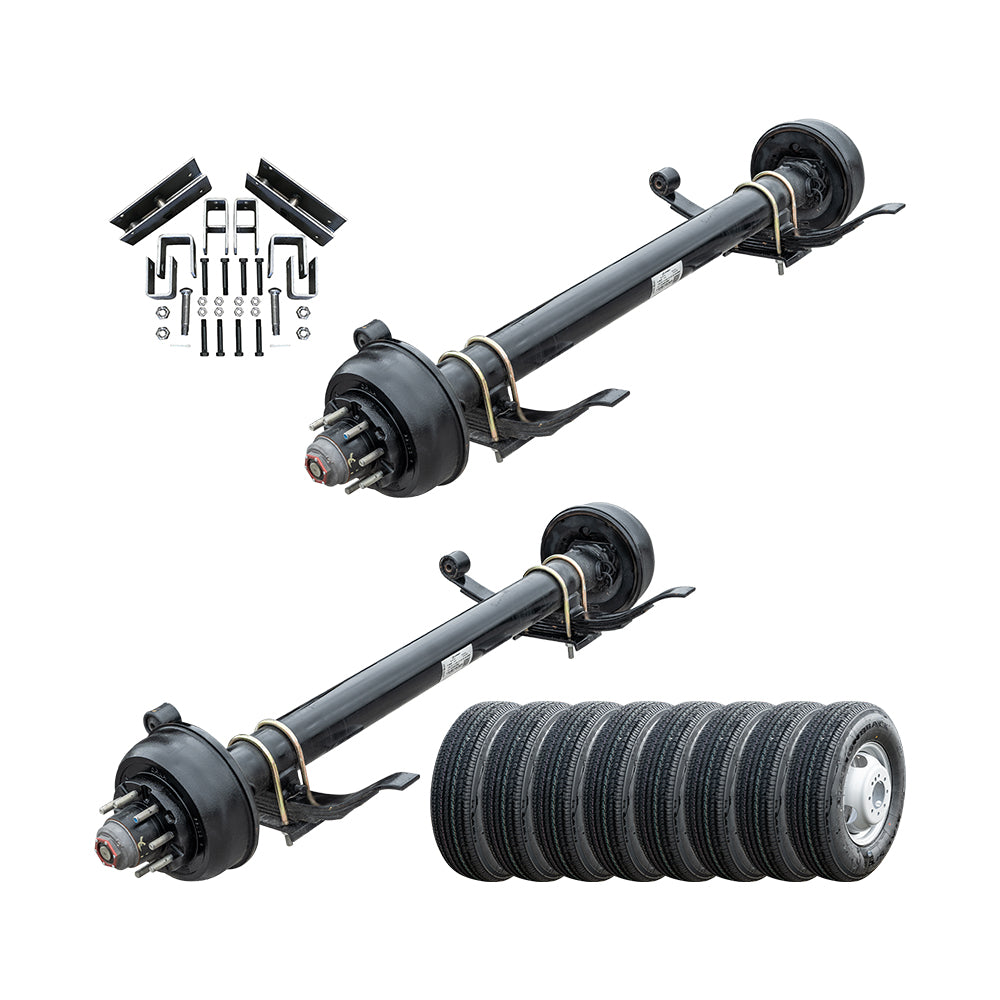

10K Lippert Tandem Axle Dual TK Trailer Kit — 20,000 lb | 74/46

Tandem axle running gear in one package: two 10K Lippert electric brake axles, two hanger kits, plus eight tire & wheel assemblies.

Specifications:

• Capacity: 20,000 lb (2 x 10,000 lb axles)
• Axles: 10K Lippert, electric brake, sprung
• Hubface/Spring Center: 74/46
• Bolt pattern: 8x6.5
• Lubrication: Oil bath
• Tires & wheels: (8) 16" 10 ply radial, ST 235/80 R16, dual
• ABS: Not ABS compatible

What’s Included:

• (2) 10k Lippert Electric Brake Trailer Axle (Sprung) - 74/46 - 8x6.5

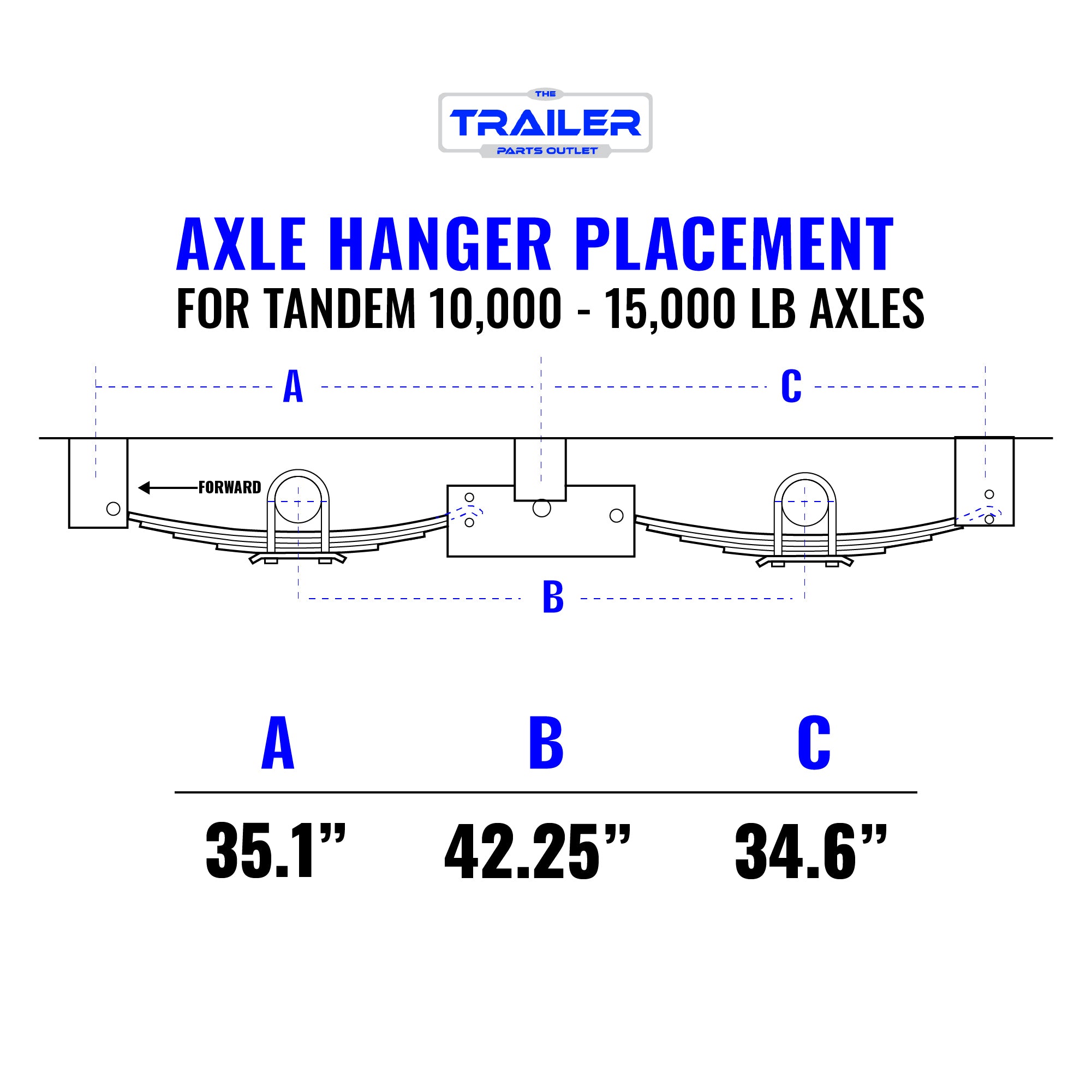

• (1) Slipper Tandem Suspension / Hanger Kit for 10000 lb axles
• (1) Slipper Single Axle Suspension/Hanger Kit for 10000lb axles
• (8) 16" 10 ply Radial Trailer Tire & Wheel - ST 235/80 R16 (Dual) - 8x6.5

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Pre-packaged kit to ensure proper fitment of running gear
• OEM grade trailer axles and suspension
• Axles come fully assembled
• Underslung: spring seats welded on the bottom for a lower ride height
• High strength straight steel axle tube construction
• Oil bath lubrication
• OEM grade tires designed for highway use

Ideal For:

• RV, gooseneck, and dump trailers
• Equipment trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.
