10K Dexter Triple Axle Dual TK Trailer Kit — 30,000 lb | 74/46

Triple axle running gear in one package: three 10K Dexter electric brake axles, three hanger kits, plus twelve tire & wheel assemblies.

Specifications:

• Capacity: 30,000 lb (3 x 10,000 lb axles)
• Axles: 10K Dexter, electric brake, sprung
• Hubface/Spring Center: 74/46
• Bolt pattern: 8x6.5
• Lubrication: Oil bath
• Tires & wheels: (12) 16" 10 ply radial, ST 235/80 R16, dual
• ABS: Not ABS compatible

What’s Included:

• (3) 10k Dexter Electric Brake Trailer Axle (Sprung) - 74/46 - 8x6.5
• (1) Slipper Single Axle Suspension/Hanger Kit for 10000lb axles
• (2) Slipper Tandem Suspension / Hanger Kit for 10000 lb axles
• (12) 16" 10 ply Radial Trailer Tire & Wheel - ST 235/80 R16 (Dual) - 8x6.5

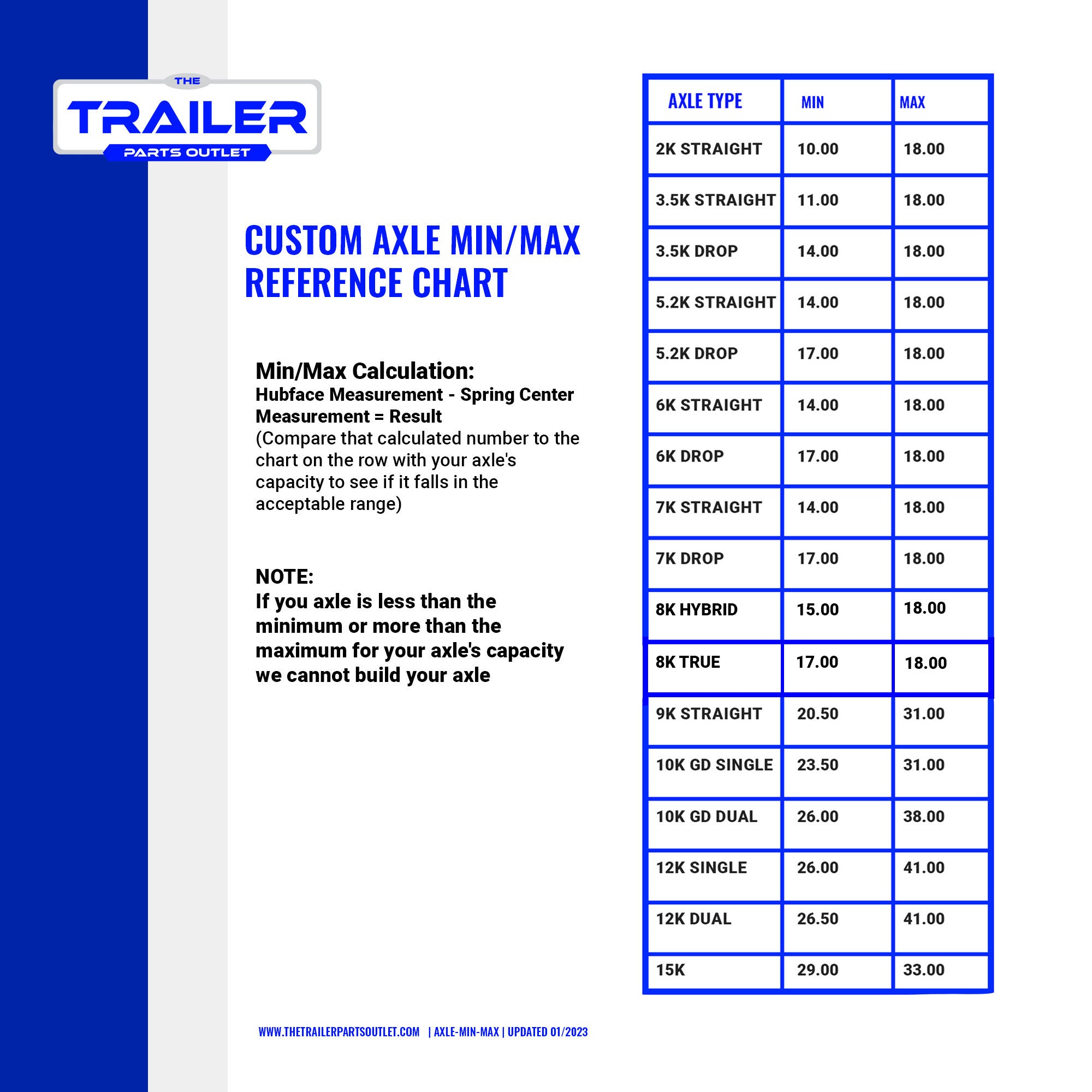

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Pre-packaged kit to ensure proper fitment of running gear
• OEM grade trailer axles and suspension
• Axles come fully assembled
• Underslung: spring seats welded on the bottom for a lower ride height
• High strength straight steel axle tube construction
• Oil bath lubrication
• OEM grade tires designed for highway use

Ideal For:

• Car hauler, lawn & landscape, and flatbed trailers
• Lowboy, gooseneck, and dump trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

10K Dexter Triple Axle Dual TK Trailer Kit — 30,000 lb | 74/47

Triple axle running gear in one package: three 10K Dexter electric brake axles, three hanger kits, plus twelve tire & wheel assemblies.

Specifications:

• Capacity: 30,000 lb (3 x 10,000 lb axles)
• Axles: 10K Dexter, electric brake, sprung
• Hubface/Spring Center: 74/47
• Bolt pattern: 8x6.5
• Lubrication: Oil bath
• Tires & wheels: (12) 16" 10 ply radial, ST 235/80 R16, dual
• ABS: Not ABS compatible

What’s Included:

• (3) 10k Dexter Electric Brake Trailer Axle (Sprung) - 74/47 - 8x6.5
• (1) Slipper Single Axle Suspension/Hanger Kit for 10000lb axles
• (2) Slipper Tandem Suspension / Hanger Kit for 10000 lb axles
• (12) 16" 10 ply Radial Trailer Tire & Wheel - ST 235/80 R16 (Dual) - 8x6.5

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Pre-packaged kit to ensure proper fitment of running gear
• OEM grade trailer axles and suspension
• Axles come fully assembled
• Underslung: spring seats welded on the bottom for a lower ride height
• High strength straight steel axle tube construction
• Oil bath lubrication
• OEM grade tires designed for highway use

Ideal For:

• Car hauler, lawn & landscape, and flatbed trailers
• Lowboy, gooseneck, and dump trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

10K Triple Axle TK Trailer Kit — Oil Bath — 30K capacity | Axles, Suspension, Tires & Wheels

Complete triple running gear in one package: three 10,000 lb electric brake axles, matched slipper suspension, and twelve 16 inch dual radial tire and wheel assemblies. 30,000 lb combined capacity.

Axle Specifications:

• Load rating: 10,000 lbs (10K)
• Axle type: Electric Brake (Oil Bath)
• Brake size: 12¼″ × 3⅜″ electric drum
• Tube diameter: 5″ round straight axle tube (1/4″ wall)
• Hubface/Spring Center: Custom, enter your measurements
• Bolt pattern: 8x6.5
• Stud size: 5/8″
• Spring mount:Underslung or Overslung, choose your configuration
• Lubrication: Oil Bath
• Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (3) Fully Assembled 10k TK Electric Brake Oil Bath Axles — Custom, enter your measurements — 8x6.5
• (6) 5k 30 1/2" x 2.5" 5-Leaf HD Slipper Springs
• (3) 10k U-Bolt Kits (5/8″, 5″ tube)
• (1) Slipper Triple Suspension / Hanger Kit (10k)
• (12) 16" 235/80 R16 10 Ply 8 Lug Dual Radial TWA (Tire Wheel Assemblies) — Silver/Gray Finish

Key Benefits:

• Matched triple running gear — no cross-referencing parts
• 5″ high-strength steel tubes — 30,000 lb combined capacity

Ideal For:

• Flatbed & car hauler trailers
• Gooseneck & dump trailers
• Equipment & lowboy haulers
• Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Custom builds to your exact measurements
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 10K Triple Axle TK Trailer Kit today and get back on the road with confidence!
