DIY Trailer Plan - 1112 - Single Axle Utility Trailer
DIY Trailer Plan - 1112 - Single Axle Utility Trailer

1112 - 6'6" x 12' Single Axle 3.5k or 5.2k Utility Trailer DIY Master Plan - 16 How-to Steps w/ Blueprint

1112 - 6'6" x 12' Single Axle 3.5k or 5.2k Utility Trailer DIY Master Plan - 16 How-to Steps w/ Blueprint

  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Difficulty Level: Beginner (14 Easy How-to Steps)

Specs:

  • Box Size: 6'6"x12'
  • Gross Capacity: 3500 lbs or 5200 lbs
  • Empty Weight: 1525 lbs
  • Empty Tongue Weight: 175 Lbs
  • Frame: Angle Steel
  • Deck: Wood
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

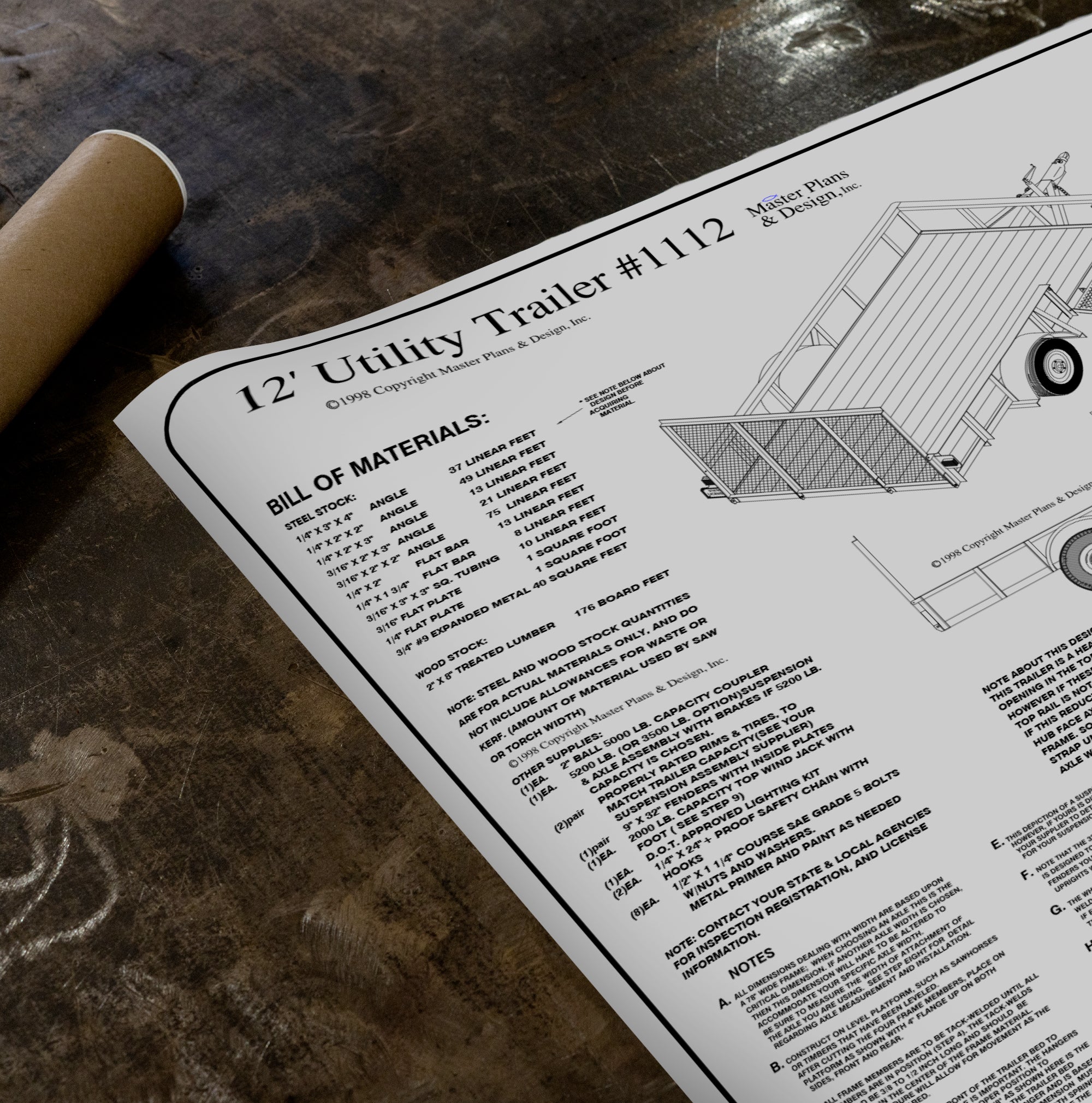

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

 Trailer parts kit specifically made for this plan is available in the option above.

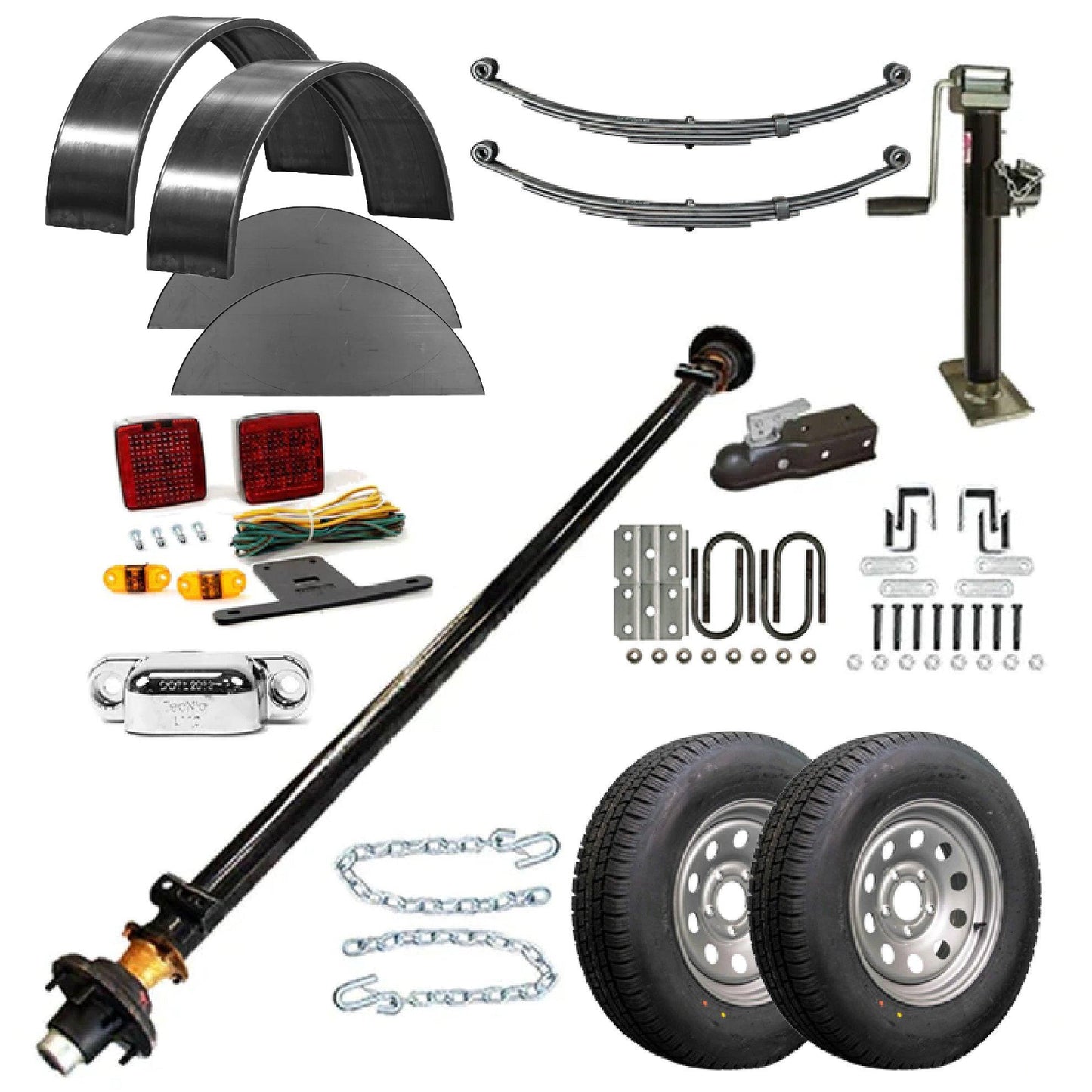

What's Included with 3.5K Trailer Kit:
  • 1 - 3.5k Trailer Axle - 3500 lb Idler 5x4.5 lug (89/74)
  • 2 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 1 - Trailer U-bolt kit for 3500 lb Axles
  • 2 - 15" 6 ply Bias TWA - ST 205/75 D15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 1 - Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
  • 2 - Single Axle 9x32 Smooth Steel Rolled Fender
  • 2 - Single Axle 9x32 Smooth Steel Fender Back
  • 1 - 3.5k Straight Tongue Trailer Coupler - 3500 lb 2" x 3"
  • 1 - Pipe Mount Jack - 2k Trailer Jack 2000 lb Side Wind
  • 1 - LED Light Kit
  • 1 - License Plate Light-Rectangular
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - 1112 Utility Trailer Master Plan Blueprint
What's Included with 5.2K Trailer Kit:
  • 1 - Axle: 5k 5.2k Trailer Axle - 5000 5200 lb Idler 6 lug (89/74)
  • 2 - 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
  • 1 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 2 - 15" 10 ply Radial - ST 225/75R15 6x5.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 1 - Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
  • 2 - Single Axle 9x32 Smooth Steel Rolled Fender
  • 2 - Single Axle 9x32 Smooth Steel Fender Back
  • 1 - 5k Straight Tongue Trailer Coupler - 5000 lb 2" x 3"
  • 1 - Pipe Mount Jack - 2k Trailer Jack 2000 lb Side Wind
  • 1 - LED Light Kit
  • 1 - License Plate Light-Rectangular
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - 1112 Utility Trailer Master Plan Blueprint
4.2
Rated 4.2 out of 5 stars
Based on 48 reviews
Total 5 star reviews: 33 Total 4 star reviews: 3 Total 3 star reviews: 6 Total 2 star reviews: 1 Total 1 star reviews: 5
75%would recommend these products
48 reviews
