DIY Trailer Plan - 1214 - Tandem Axle Utility Trailer
DIY Trailer Plan - 1214 - Tandem Axle Utility Trailer
Regular price $64.99 Sale price $25
SAVE 62% (833) 910-3416
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Difficulty Level: Beginner

Specs:

  • Box Size: 14'x6'
  • Gross Capacity: 7000 lbs
  • Empty Weight: 1500 lbs
  • Empty Tongue Weight: 100 lbs
  • Frame: Angle Steel w/14" Rails
  • Deck: Wood
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

 Trailer parts kit specifically made for this plan is available in the option above.

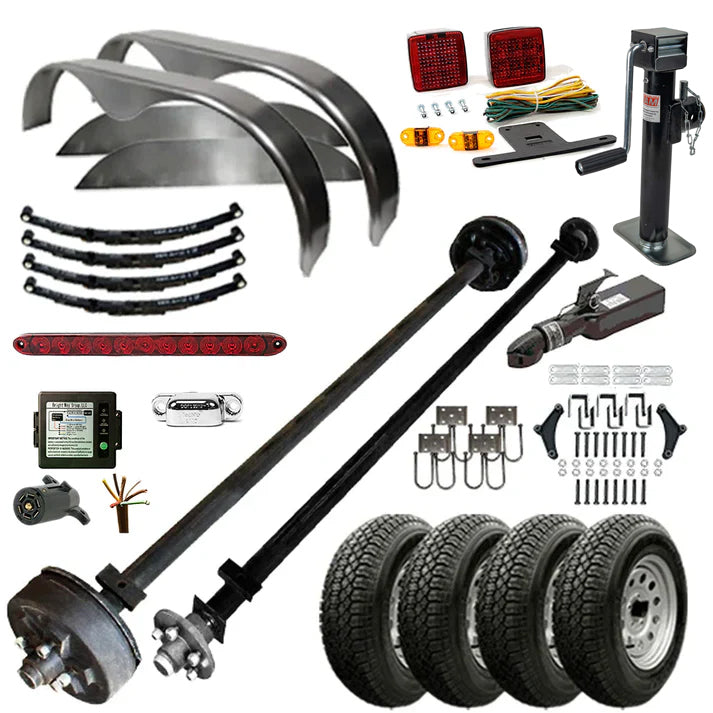

What's Included with Trailer Kit:

  • 1 - 3.5k Trailer Axle - 3500 lb Idler 5x4.5 lug(85/70)
  • 1 - 3.5k Trailer Axle - 3500 lb Electric Brake 5x4.5 lug(85/70)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 2 - Trailer U-bolt kit for 3500 lb Axles
  • 4 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 4 - 15" 6 ply Bias TWA - ST 205/75 D15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Tandem Axle 9x72 Smooth Steel Teardrop Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
  • 1 - 7K Straight Tongue Trailer Coupler 7000lb 2"x3"
  • 1 - Pipe Mount 5k Trailer Jack - 5000 lb Side Wind
  • 1 - LED Light Kit
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - 7 Way Plug
  • 2.4 - 6 way cable 14 gauge (per 10 foot)
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - License Plate Light-Rectangular

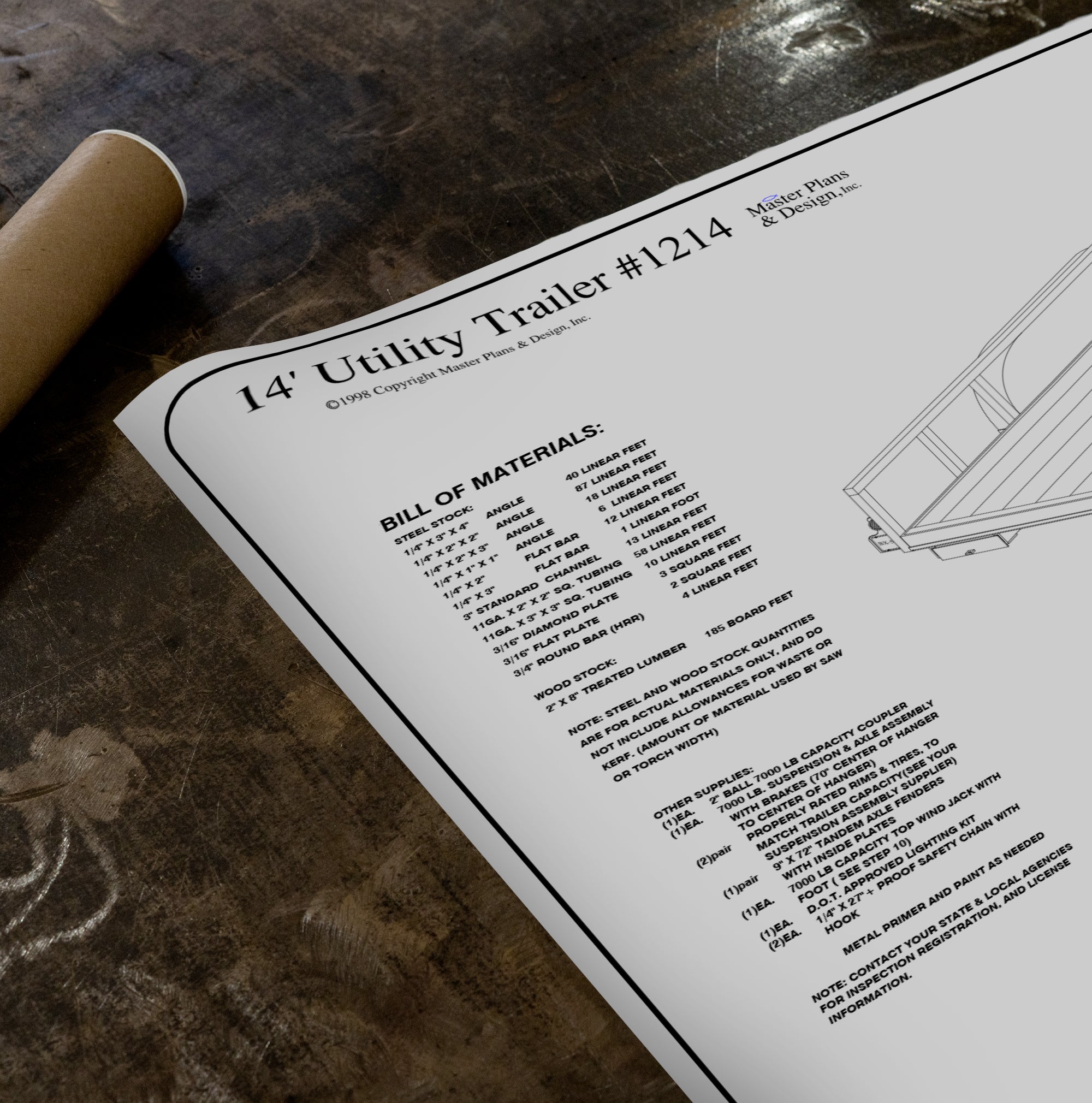

  • 1 - 1214 Utility Lowboy Master Plan Blueprint
