1218 - 8' x 18' Tandem Axle 7k or 10.4K Utility Car Hauler HD Trailer DIY Master Plan - 19 How-to Steps w/ Blueprint

1218 - 8' x 18' Tandem Axle 7k or 10.4K Utility Car Hauler HD Trailer DIY Master Plan - 19 How-to Steps w/ Blueprint

SKU : MP1218-82PAPER
$99.99
SAVE -54% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
49 Reviews
Plan Type:
Kit Option:
OR
View full details
DIY Trailer Plan - 1218 - Tandem Axle Utility Car Hauler HD Trailer
DIY Trailer Plan - 1218 - Tandem Axle Utility Car Hauler HD Trailer

1218 - 8' x 18' Tandem Axle 7k or 10.4K Utility Car Hauler HD Trailer DIY Master Plan - 19 How-to Steps w/ Blueprint

1218 - 8' x 18' Tandem Axle 7k or 10.4K Utility Car Hauler HD Trailer DIY Master Plan - 19 How-to Steps w/ Blueprint

$99.99
SAVE -54% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
49 Reviews
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Difficulty Level: Beginner

Specs:

  • Bed Size: 8'x18'
  • Gross Capacity: 7000 lbs or 10,400 lbs
  • Empty Weight: 2400 lbs
  • Empty Tongue Weight: 328 lbs
  • Frame: 5" Channel Steel
  • Deck: Diamond Plate
  • Blueprint specs modified and updated August 2024
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

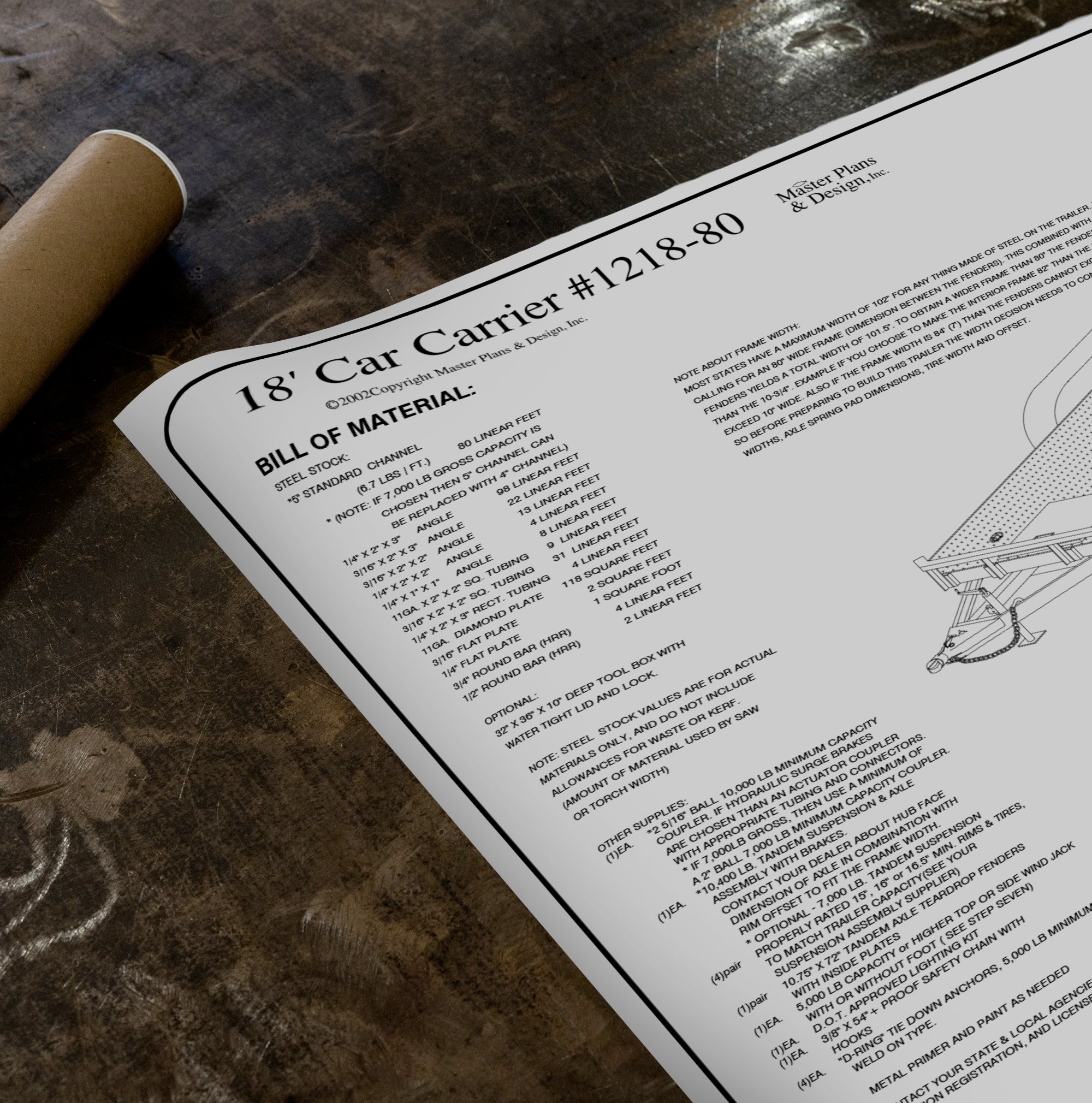

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips

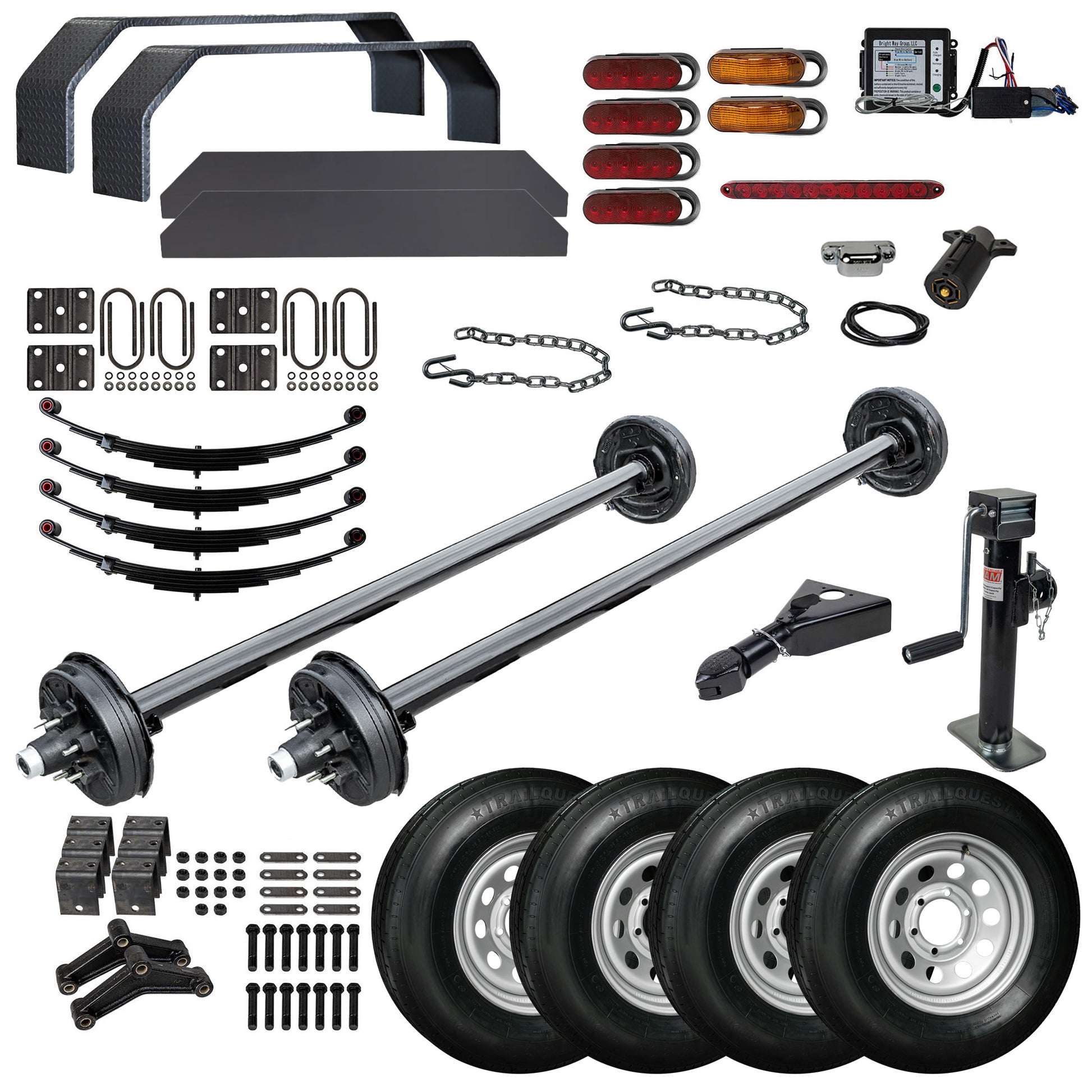

  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

 Trailer parts kit specifically made for this plan is available in the option above.

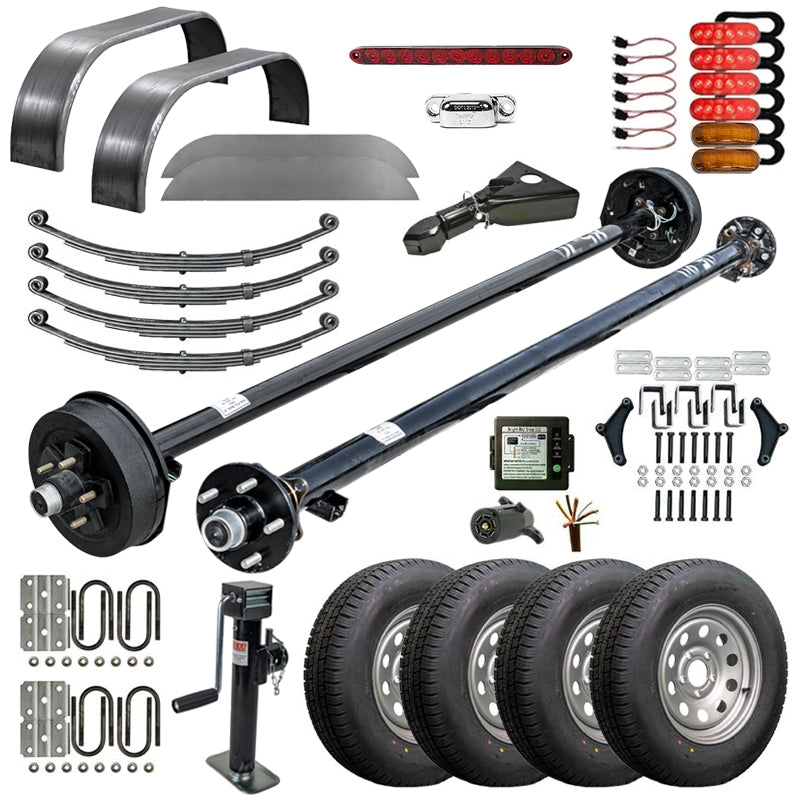

What's Included with 7K Trailer Kit:

  • 1 - 3.5k Trailer Axle - 3500 lb Idler 5x4.5 lug (95/80)
  • 1 - 3.5k Trailer Axle - 3500 lb Electric Brake 5x4.5 lug (95/80)
  • 2 - Trailer U-bolt kit for 3500 lb Axles
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 -  4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 4 - 15" 6 ply Bias TWA - ST 205/75 D15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Tandem Axle 10x72 Smooth Steel Teardrop Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
  • 1 - 7K A-Frame Cast Trailer Coupler-7000 lb 2" Bulldog Style
  • 1 - Pipe Mount 5k Trailer Jack - 5000 lb Side Wind
  • 4 - Red 6in Oval LED S/T/T Light
  • 2 - Amber 6" Oval LED S/T/T Light
  • 6 - Flush Mount Grommet For 6in Oval Lights
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 6 - Pigtail for Led Lights -3 Prong 10"
  • 1 - 7 Way Plug
  • 2.6 - 6 way cable 14 gauge (per 10 foot)
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - 1218 Utility Car Hauler Master Plan Blueprint

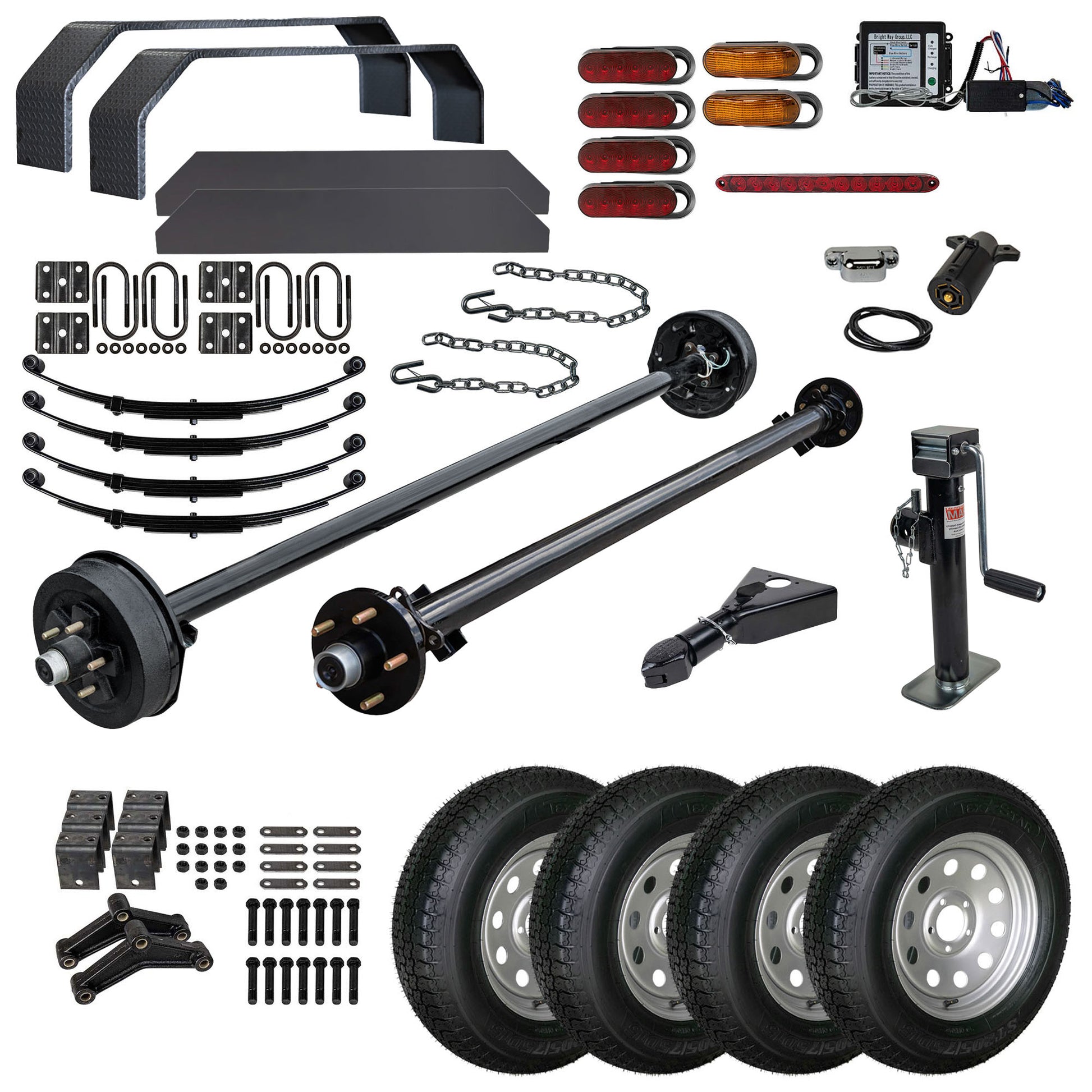

What's Included with 10.4K Trailer Kit:

  • 2 - 5.2k Trailer Axle - 5200 lb Brake 6x5.5 lug (95/80)
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
  • 4 - 15" 10 ply Radial - ST 225/75R15 6x5.5 (Silver/Gray Finish)
  • 2 - Tandem Axle 10x72 Smooth Steel Teardrop Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
  • 1 - 12.5K A-Frame Cast Coupler-12.5k 2 5/16" Bulldog Style
  • 1 - Pipe Mount 5k Trailer Jack - 5000 lb Side Wind
  • 4 - Red 6in Oval LED S/T/T Light
  • 2 - Amber 6" Oval LED S/T/T Light
  • 6 - Flush Mount Grommet For 6in Oval Lights
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 6 - Pigtail for Led Lights -3 Prong 10"
  • 1 - 7 Way Plug
  • 2.6 - 6 way cable 14 gauge (per 10 foot)
  • 2 - Silver Trailer Safety Chain - 5/16 x 30" (7.6k Capacity)
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - 1218 Utility Car Hauler Master Plan Blueprint
