DIY Trailer Plan - 12CC - Covered Cargo Trailer
DIY Trailer Plan - 12CC - Covered Cargo Trailer

12CC - 12'x6' Covered Cargo Trailer DIY Master Plans

12CC - 12'x6' Covered Cargo Trailer DIY Master Plans

$124.99
SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
53 Reviews
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

  • Box Size: 12'x6'x6'4"ht.
  • Gross Capacity: 7000 lbs
  • Empty Weight: 1330 lbs
  • Empty Tongue Weight: 100 lbs
  • Frame: 2"x4" 11ga Rectangular Tubing
  • Deck: 3/4" Plywood
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

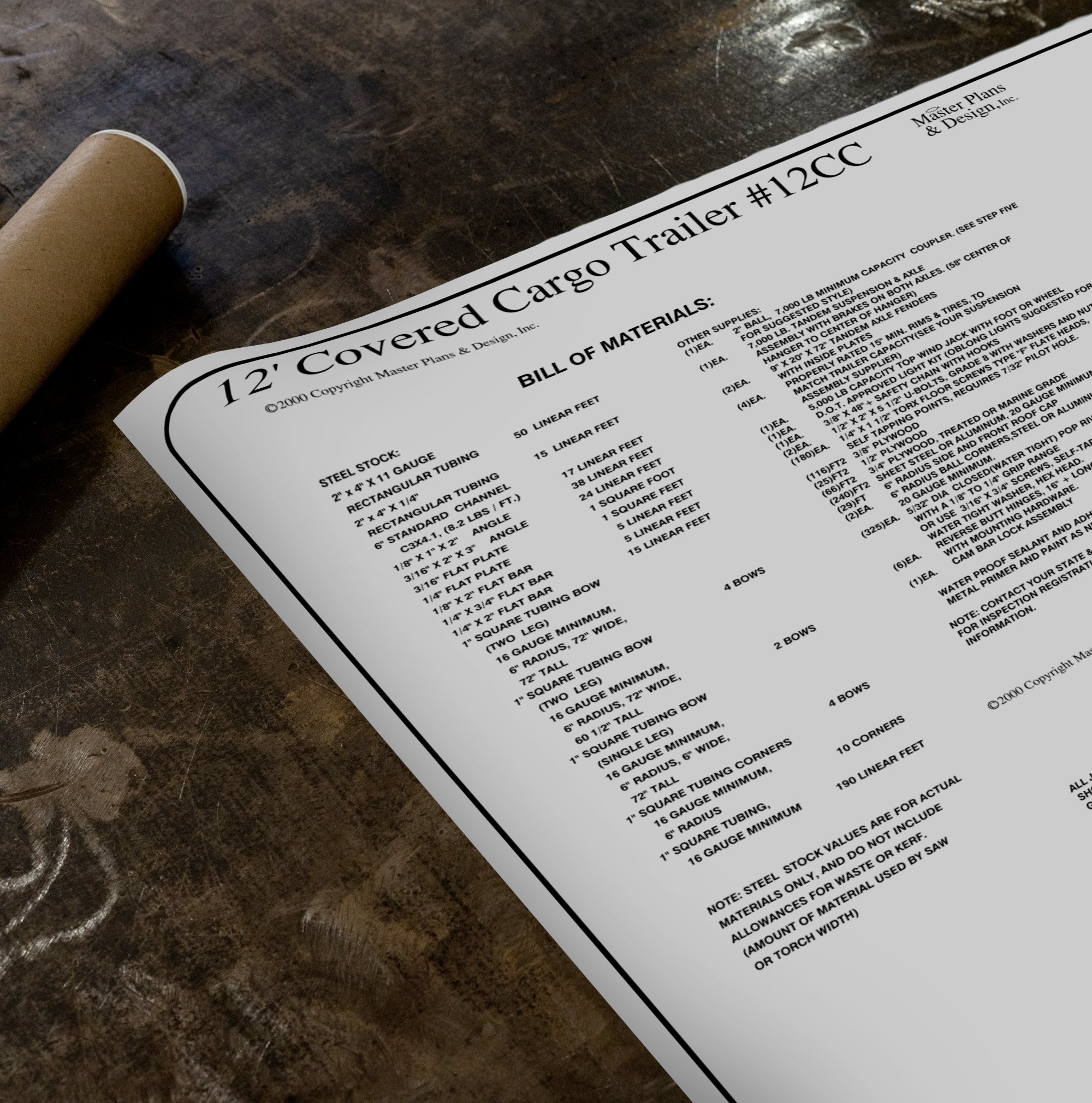

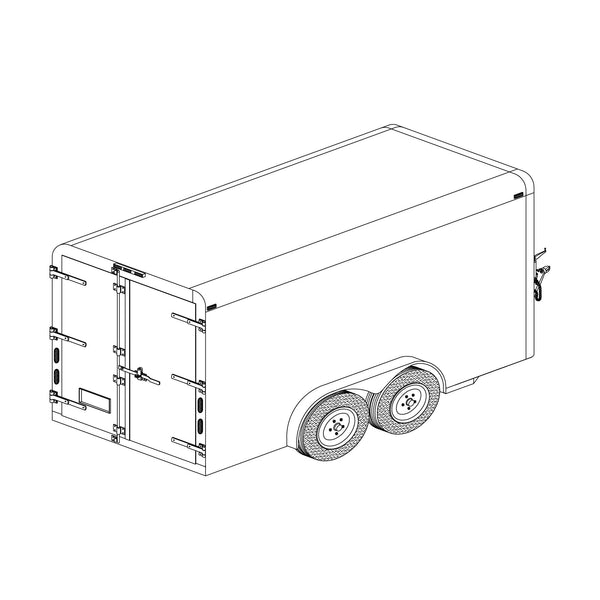

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

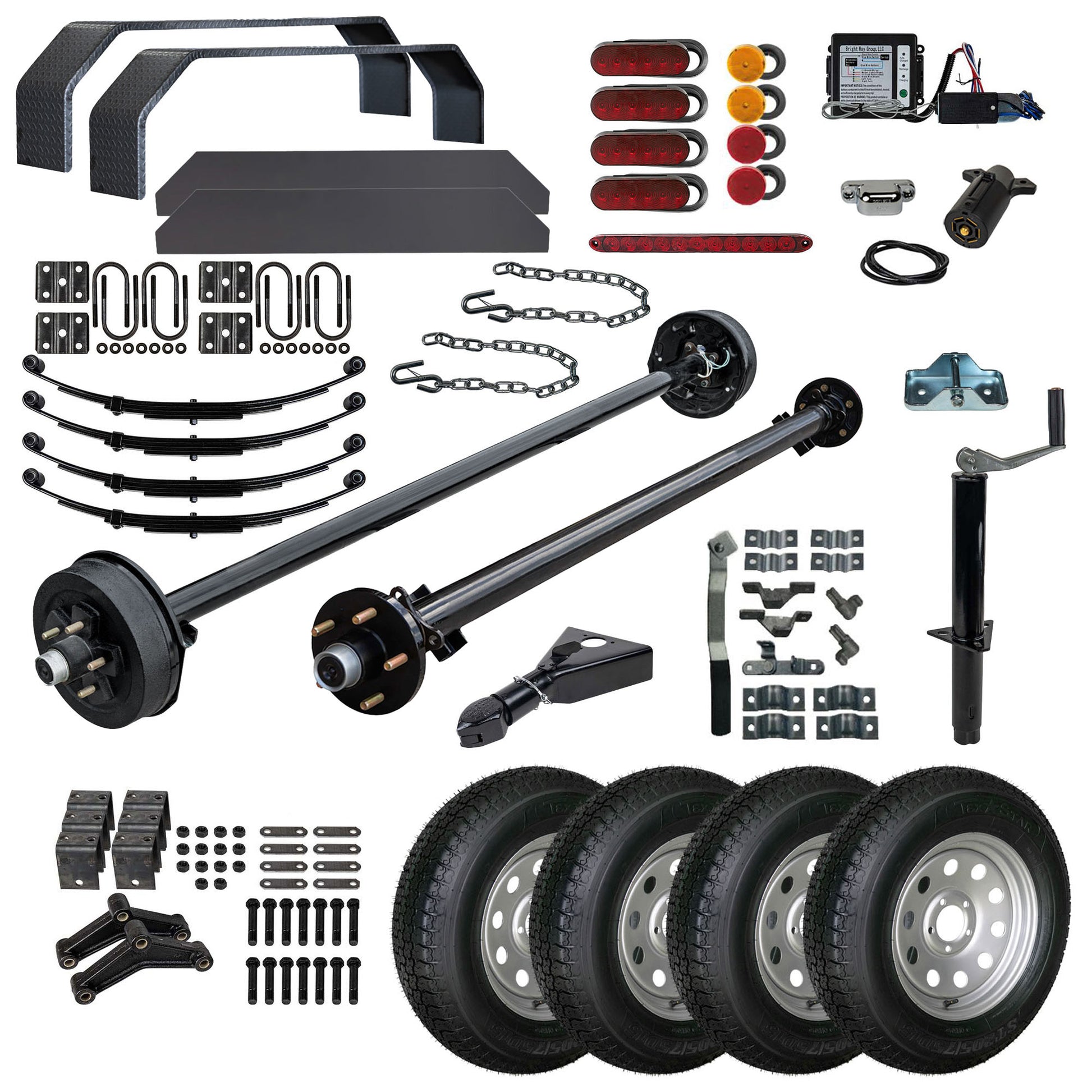

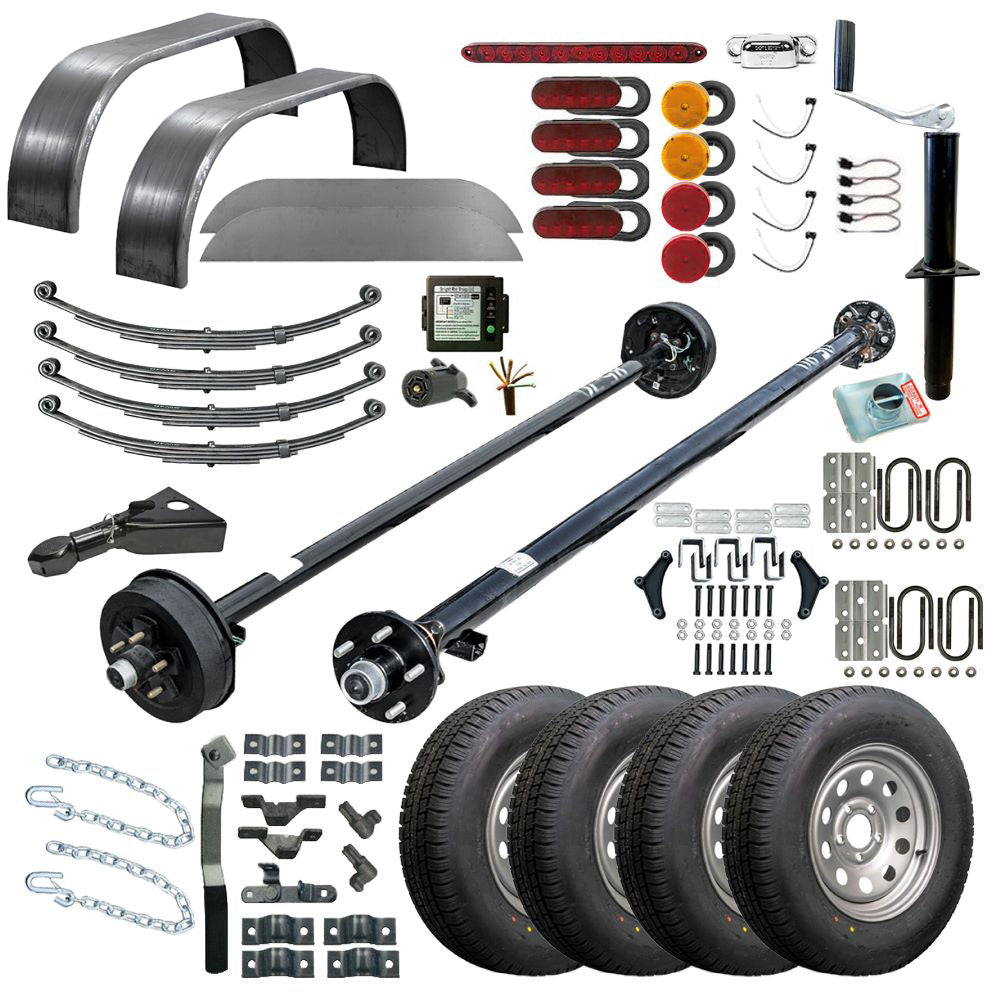

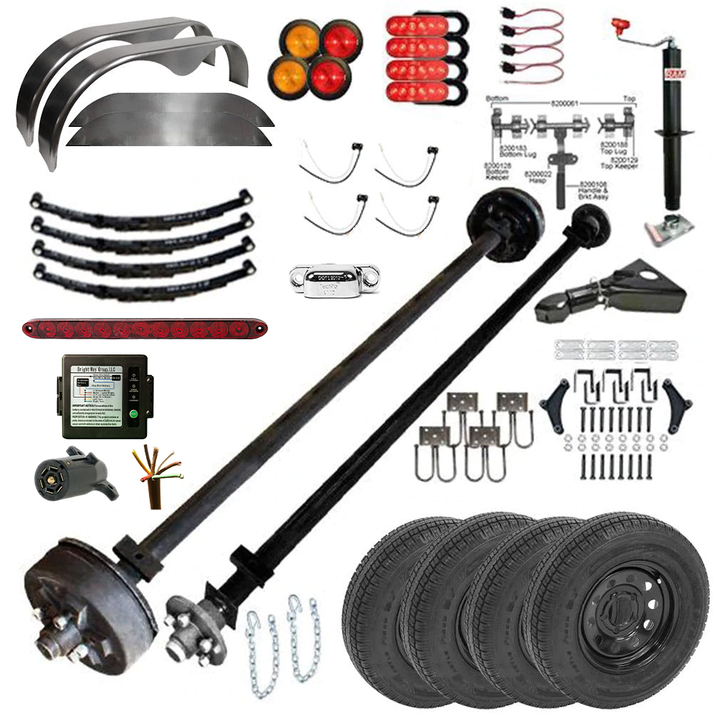

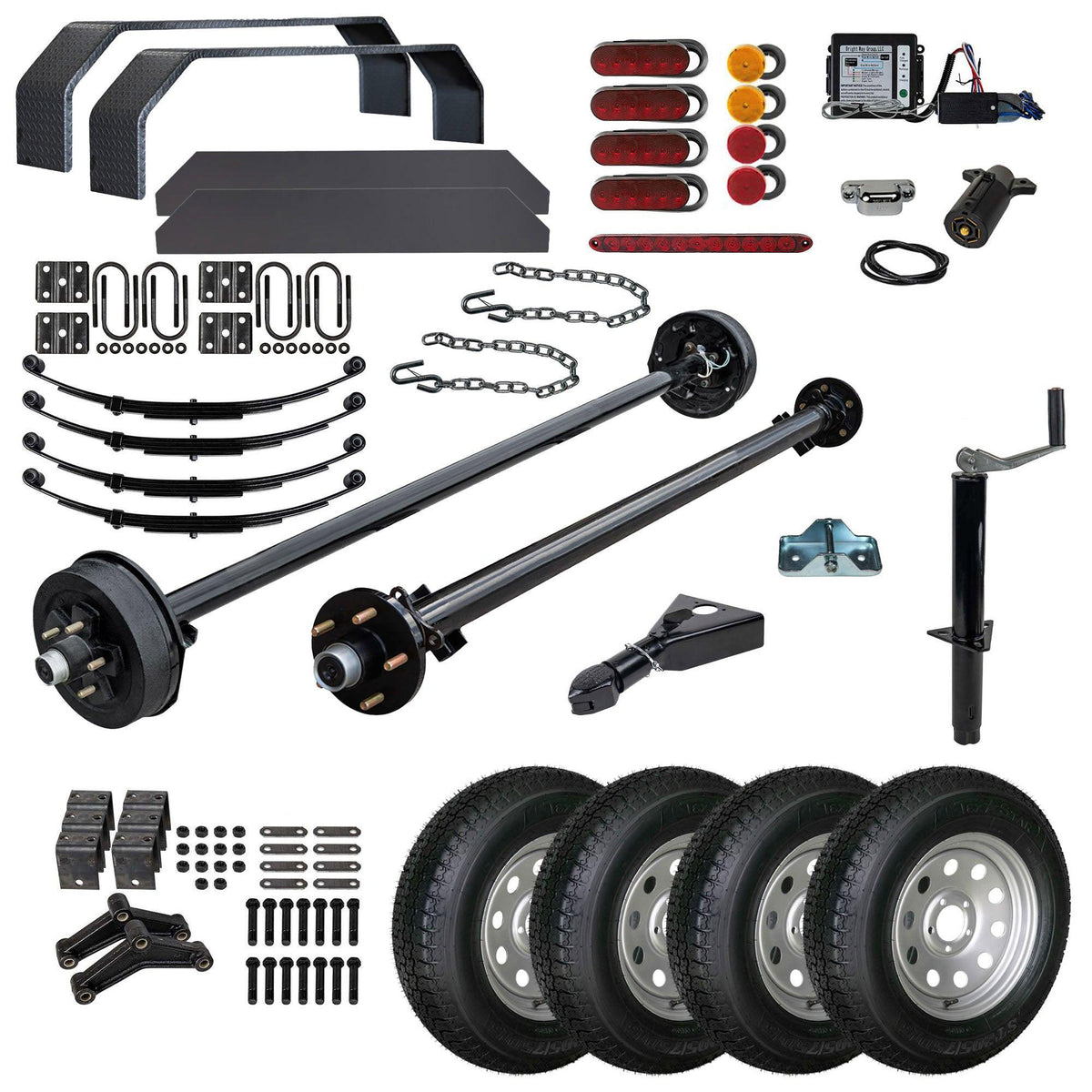

What's Included with Trailer Kit:

  • 1 - 3.5k Trailer Axle - 3500 lb Idler 5x4.5 lug 73/58
  • 1 - 3.5k Trailer Axle - 3500 lb Electric Brake 5x4.5 lug 73/58
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 2 - Trailer U-bolt kit for 3500 lb Axles
  • 4 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 2 - Tandem Axle 10x72 Smooth Steel Rolled Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
  • 1 - 7K A-Frame Cast Trailer Coupler-7000 lb 2" Bulldog Style
  • 1 - A-Frame 5k Trailer Jack 5000 lb Top Wind
  • 1 - Trailer Jack Footplate
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - Two Point Cam Lock Door Kit
  • 4 - 15" 6 ply Bias TWA - ST 205/75 D15 5x4.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 1 - 7 Way Plug
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 4 - Red 6in Oval LED S/T/T Light
  • 4 - Flush Mount Grommet For 6in Oval Lights
  • 4 - Pigtail for Led Lights -3 Prong 10"
  • 1 - License Plate Light-Rectangular
  • 2 - Clearance Light Round Red 2.5" LED
  • 2 - Clearance Light Round Amber 2.5" LED
  • 4 - Flush Mount Grommet for 2.5" Round Lights
  • 4 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 2 - 6 way cable 14 gauge (per 10 foot)
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - 12CC Cargo Trailer Master Plan Blueprint
