12HD - 6'4" x 12' - 12K Dump Trailer DIY Master Plan - 25 How-to Steps w/ Blueprint

  • DIY Trailer Plan - 12HD - Dump Trailer
  • 6'4" x 12' - 12K Dump Trailer Blueprint
1 2

12HD - 6'4" x 12' - 12K Dump Trailer DIY Master Plan - 25 How-to Steps w/ Blueprint

12HD - 6'4" x 12' - 12K Dump Trailer DIY Master Plan - 25 How-to Steps w/ Blueprint

SKU : MP12HDPAPER

Online price only

$124.99

Online price only

SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
53 Reviews
Shipping: Calculated at Checkout
Tax Exempt? Enter info in cart when you're done shopping.
Plan Type:
Kit Option:
OR
View full details
DIY Trailer Plan - 12HD - Dump Trailer
DIY Trailer Plan - 12HD - Dump Trailer

12HD - 6'4" x 12' - 12K Dump Trailer DIY Master Plan - 25 How-to Steps w/ Blueprint

12HD - 6'4" x 12' - 12K Dump Trailer DIY Master Plan - 25 How-to Steps w/ Blueprint

$124.99
SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
53 Reviews
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Difficulty Level: Intermediate

Specs:

  • Box Size: 12'x6'4" w/3 sides
  • Bed Capacity: 8+ cubic yards
  • Gross Capacity: 12,000 lbs
  • Empty Weight: 3450 lbs
  • Empty Tongue Weight: 300 lbs
  • Frame: 2"x6" Rectangular Tubing
  • Upper Rim: Angle Steel, 11ga
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

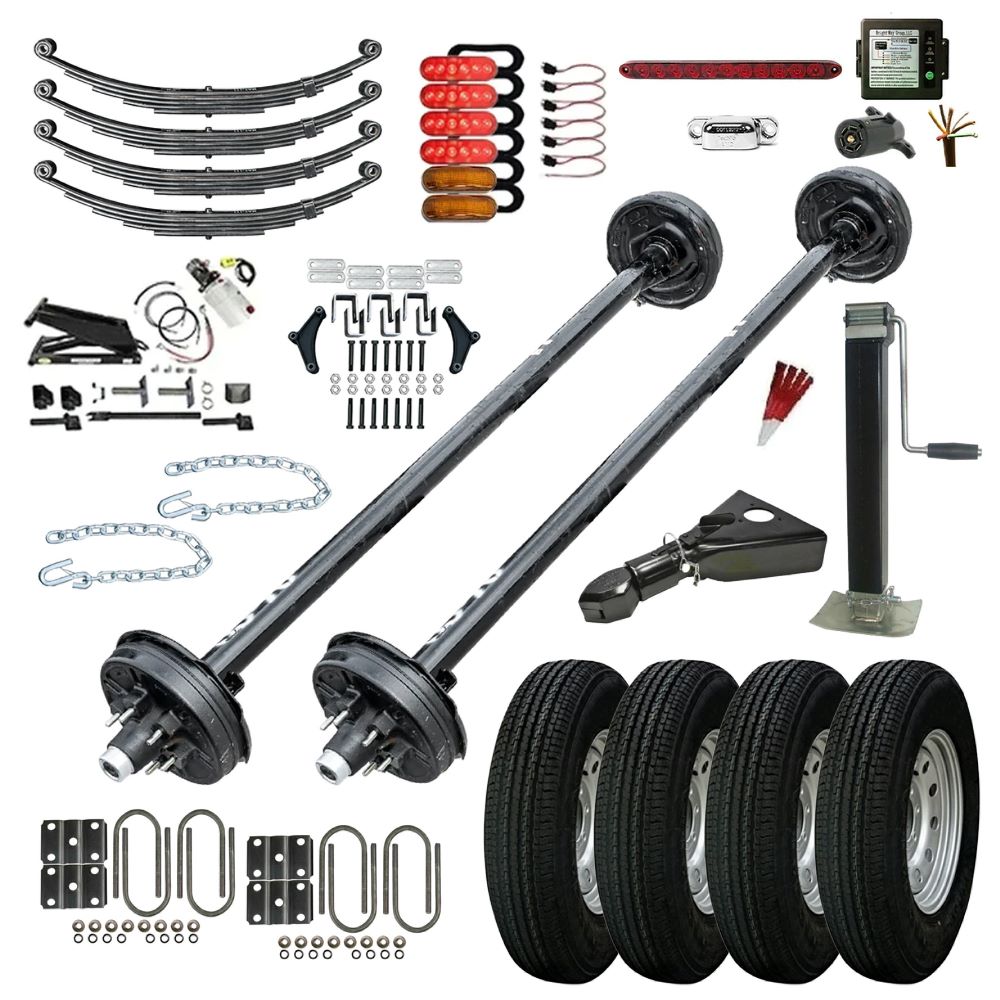

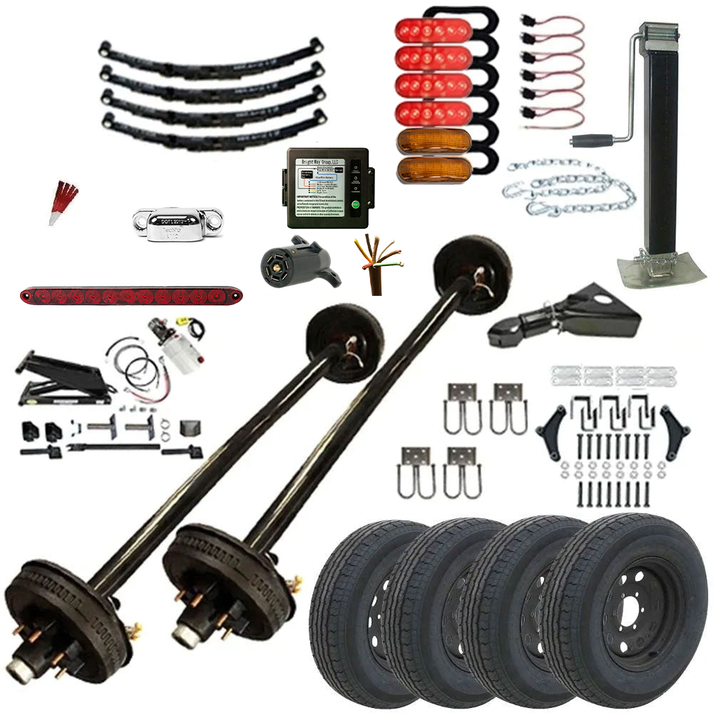

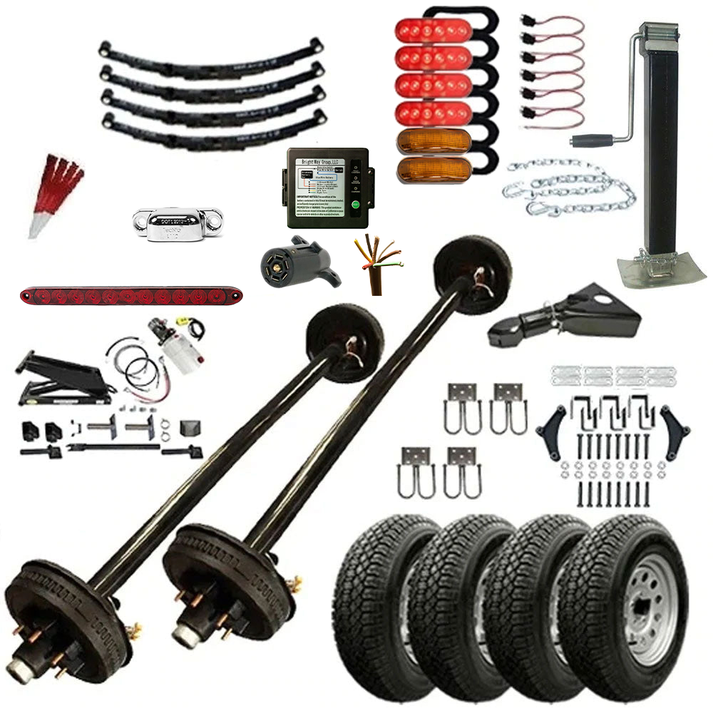

What's Included with Trailer Kit:

  • 2 - 6k Trailer Axle-6000lb Electric Brake 6x5.5 (89/74)
  • 4 - 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 16" 10 ply Radial TWA - ST 235/80R016 - 6 lug (SM) TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 4 - Red 6in Oval LED S/T/T Light
  • 2 - Amber 6in Oval LED S/T/T Light
  • 6 - Flush Mount Grommet for 6in Oval Lights
  • 6 - Pigtail for LED Lights - 3 Prong 10"
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - 7 Way Plug
  • 2.6 - 6 Way Cable 14 Gauge (per 10 Foot)
  • 1 - License Plate Light - Rectangular
  • 1 - 12 Volt Trailer Breakaway Kit
  • 2 - Silver Safety Chain - 5/16x30" - Forged (7.6K Capacity)
  • 14 - 18" Reflective DOT TapeĀ  Strips
  • 1 - PH516 Hoist Kit
    • PH516 Hydraulic Cylinder Scissor Lift/Hoist Assembly
    • Mounting Brackets
    • Dump Hinges
    • Hoses and Fittings
    • Safety Arms
    • 12v Double Acting Hydraulic Pump
    • 15' Pump Remote (Power Up Power Down)
    • Safety Labels
    • Owner's Manual
  • 1 - 12.5K A-Frame Cast Coupler - 12.5k 2 5/16" Bulldog Style
  • 1 - Drop Leg 8K 7K Trailer Jack - 8000 7000 lb Side Wind

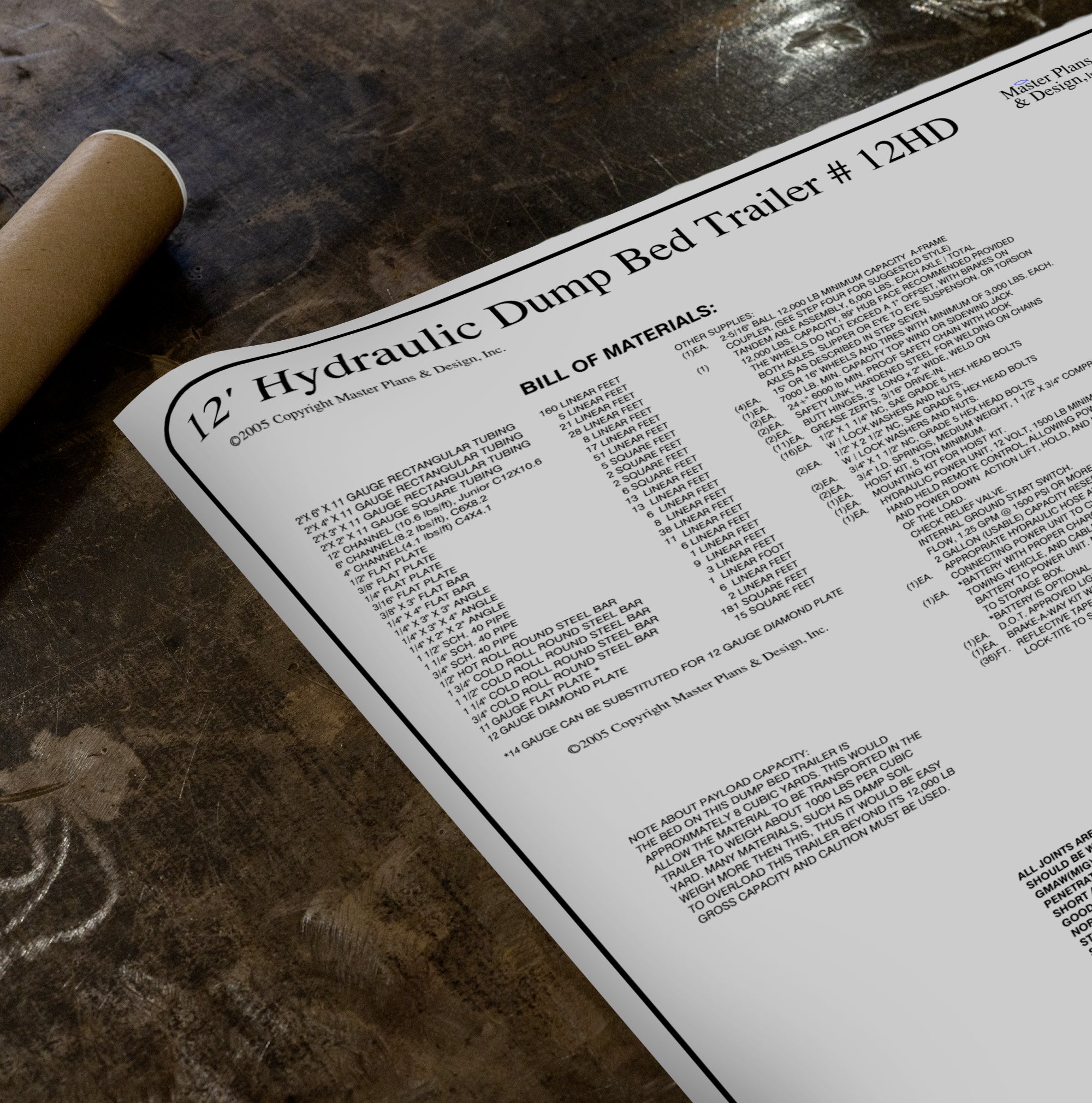

  • 1 - 12HD Dump Trailer Master Plan Blueprint
4.2
Rated 4.2 out of 5 stars
Based on 53 reviews
Total 5 star reviews: 35 Total 4 star reviews: 5 Total 3 star reviews: 7 Total 2 star reviews: 1 Total 1 star reviews: 5
Write a Review (Opens in a new window)
53 reviews
  • NE
    Nathan E.
    Verified Buyer
    2 months ago
    Rated 4 out of 5 stars
    Prints

    The prints are not that great.

    Was this helpful?
    The Trailer Parts Outlet
    2 months ago

    We are happy to fix the issue if the prints are smudged or damaged in any way. Please let us know at customerservice@thetrailerpartsoutlet.com and we can get you taken care of :)

  • FS
    Filiberto S.
    Verified Buyer
    5 months ago
    Rated 5 out of 5 stars
    Product purchased

    The plans are very well prepares with the industria training necesario for its application

    Thank you very much.

    Was this helpful?
  • MM
    Michael M.
    Verified Buyer
    6 months ago
    Rated 5 out of 5 stars
    25ft 20K gooseneck prints

    I got the drawings for the 20 +5, 20K gooseneck trailer, I haven't started the build yet, but by looking at the prints, if you can read a tape measure, and are fairly competent at simple layout this should be a pretty straight forward build. Nothing is really too complicated. I personally got it the prints because I was a bit apprehensive about doing the tongue of the trailer, but the prints are very clear. If you can read a tape, weld, and think ahead a littls bit, this should be an easy project!

    Was this helpful?
  • RC
    Rene C.
    Verified Buyer
    7 months ago
    Rated 3 out of 5 stars
    Physical Drawing

    A few years back they used to send it nicely rolled in a Mailing tubeā€¦ now they half A- fold it & shove it in an envelope.

    For $100 i want to be able to frame the drawing with no crease. Other then that, good company to buy from.

    Was this helpful?
    The Trailer Parts Outlet
    7 months ago

    I apologize for the inconvenience of the shipping method. Please let us know if there is anything we can do to help with this.

  • AS
    Austin S.
    Verified Buyer
    8 months ago
    Rated 4 out of 5 stars
    Good Plans

    Solid set of plans to work from. Pretty straightforward and user friendly

    Was this helpful?
