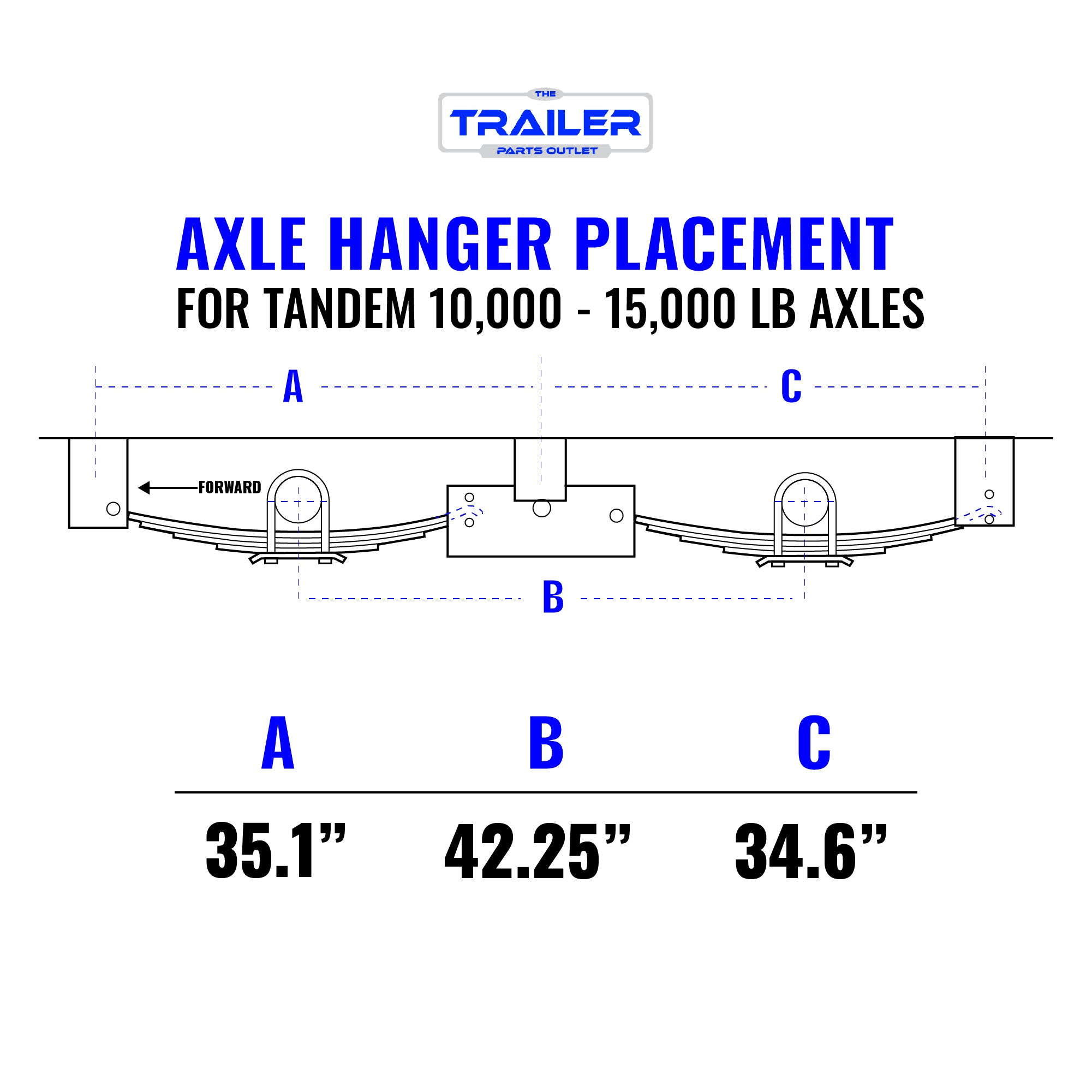

  • Axle Hanger Placement Guide for Axles
  • What's Included: 1 - 3.5k Electric Drum Brake Axle (5x4.5) - 4" Drop 2 - 1.75k 25.25" 4 leaf Double Eye Springs 1 - 3.5K U-Bolt Kits 1 - Double Eye Hanger Kit This 3.5k TK Heavy Duty
  • 12k Lippert Trailer Axle Sprung - 12000 lb Electric Brake 8 lug (With Springs and Ubolts)
  • 12k Lippert Trailer Axle Sprung - 12000 lb Electric Brake 8 lug (With Springs and Ubolts)
  • 12k Lippert Trailer Axle Sprung - 12000 lb Electric Brake 8 lug (With Springs and Ubolts) - Detail 9
1 7

12k Lippert Trailer Axle Sprung - 12000 lb Electric Brake 8 lug (With Springs and Ubolts)

12k Lippert Trailer Axle Sprung - 12000 lb Electric Brake 8 lug (With Springs and Ubolts)

SKU : 12EBLPSPRUNG7446865

Online price only

$3,138.99

Online price only

SAVE 0% (833) 910-3416
Shipping: Calculated at Checkout | Product Wt. 460.0 lb
Axle Options:
Hubface/Spring Center:
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • How To
  • Reviews

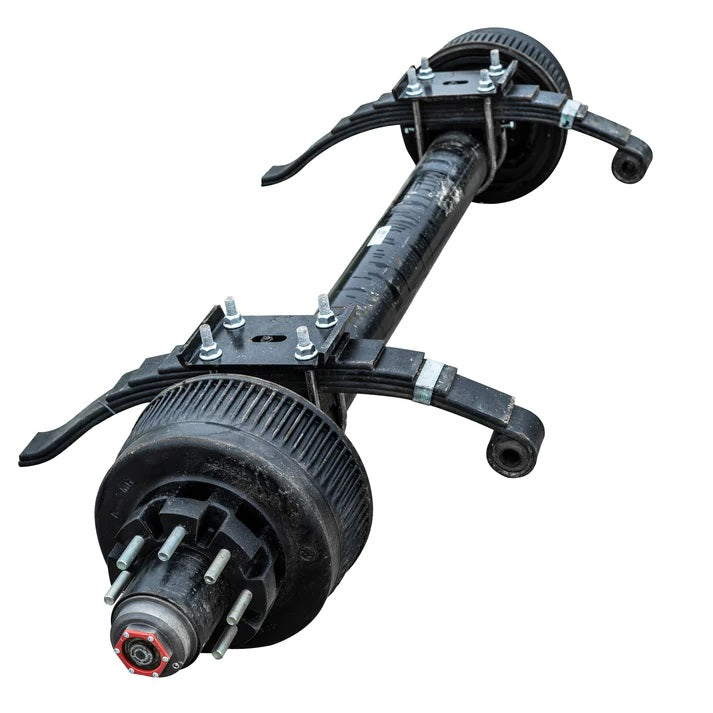

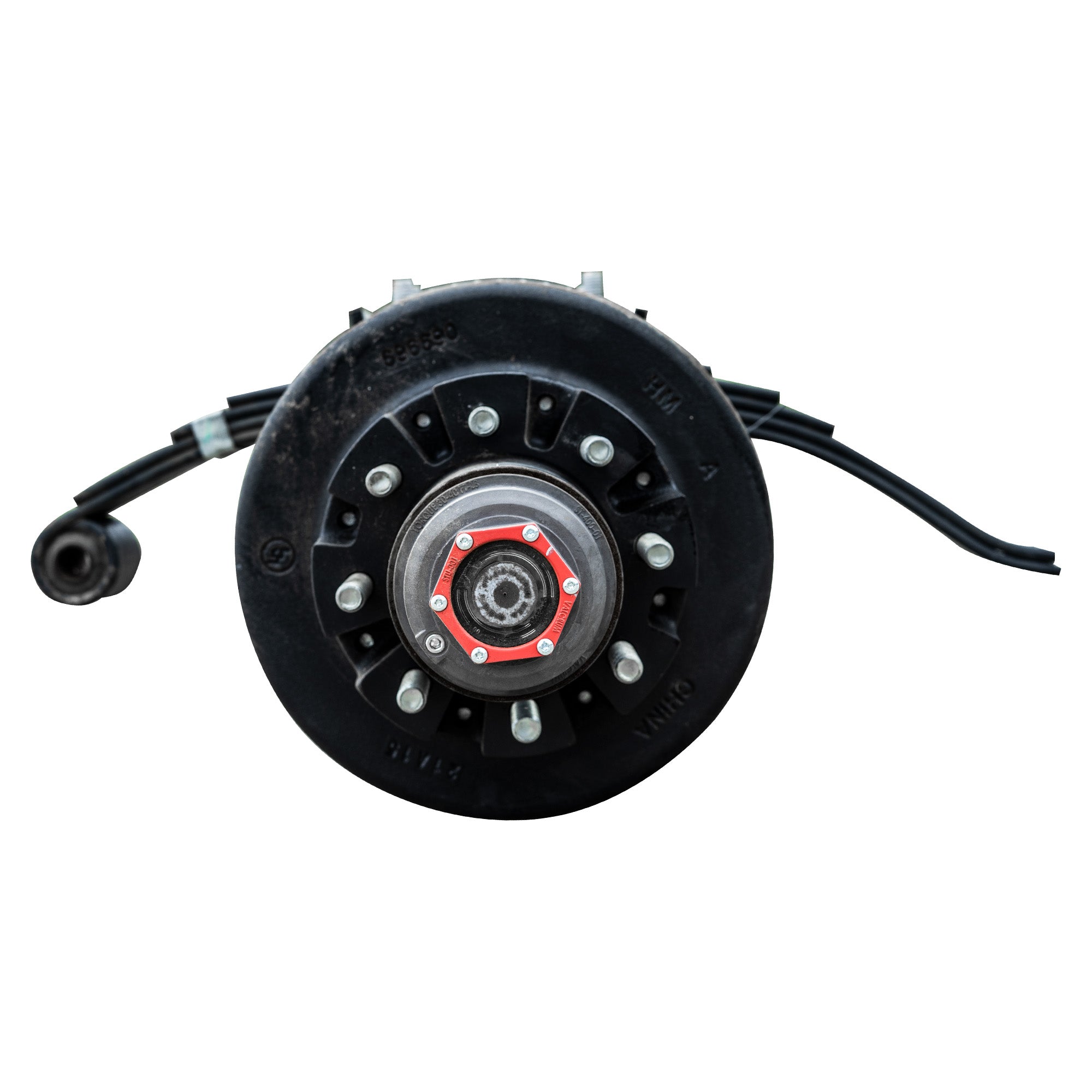

12K Lippert Electric Brake Trailer Axle — Sprung — 12,000 lb capacity | 8x6.5 | Fully assembled with springs & u-bolts

The 12,000 lb Lippert electric brake axle, fully assembled with slipper springs and u-bolts already mounted. Oil-bath lubrication, 5″ steel tube, and 5/8″ studs on an 8x6.5 pattern.

Axle Specifications:

  • Load rating: 12,000 lbs (12K)
  • Axle type: Electric Brake (Oil Bath)
  • Brake size: 12¼″ × 5″ electric drum
  • Tube diameter: 5″ straight steel axle tube
  • Hubface/Spring Center: 74/46
  • Bolt pattern: 8x6.5
  • Stud size: 5/8″
  • Spring mount: Sprung — springs & u-bolts pre-mounted
  • Lubrication: Oil Bath
  • Compatibility: Direct replacement for Dexter, Lippert, Hayes, and AL-KO axles
  • ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included (Fully Assembled):

  • (1) Fully Assembled 12k Lippert Electric Brake Oil Bath Axle — 74/46 — 8x6.5
  • (2) 6k 30 1/2″ x 3″ 6-Leaf HD Slipper Springs — installed
  • (1) 12k U-Bolt Kit (3/4″, 5″ tube) — installed

Key Benefits:

  • Sprung — springs & u-bolts pre-mounted — ready to bolt on
  • Oil-bath lubrication — cooler-running bearings for sustained highway duty
  • 5″ high-strength steel tube — heavy-duty weight handling

Ideal For:

  • Gooseneck & lowboy trailers
  • Flatbed & car hauler trailers
  • Dump & equipment haulers
  • Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

  • This Axle is proudly manufactured in the U.S.A.
  • Fast shipping — order today, ships tomorrow
  • Bulk & wholesale options available
  • Financing options
  • Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 12K Lippert Sprung Axle today and get back on the road with confidence!
