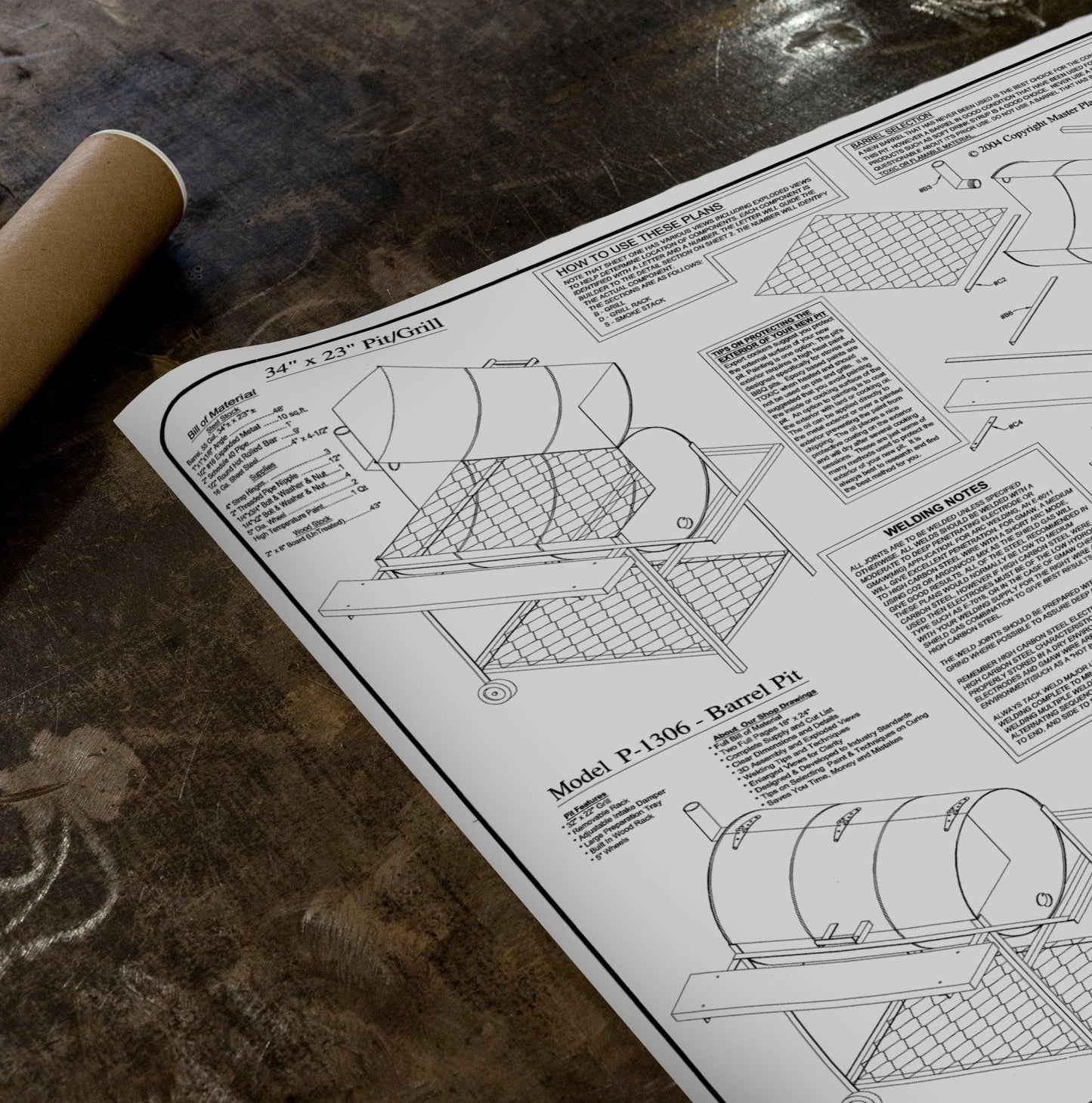

  • Pit & Grill Blueprints
1 2

1306 - Pit & Grill Plan- How-to Steps

1306 - Pit & Grill Plan- How-to Steps

SKU : MP1306PAPER

Online price only

$129.99

Online price only

SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
59 Reviews
Shipping: Calculated at Checkout
Plan Type:
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • Reviews

BBQ Smoker Trailer Plans — 24" × 36" Blueprints | Grill Build Kit | DIY Ready

Build your own professional-grade BBQ smoker trailer with these detailed, engineer-approved plans. Designed for fabricators, shop classes, and DIY builders, this blueprint package provides everything you need to confidently cut, weld, and assemble your smoker. Paired with a tailored TK trailer kit, it ensures you have the right parts to bring your build to life.

Plan Specifications

  • Blueprint size: 24" × 36" full-size prints
  • Grill size: 32" × 22"
  • Smoker features: Adjustable damper, wood rack, removable racks
  • Application: DIY smoker trailer build
  • Usage: Suitable for shop classes, industry, and personal builds

What’s Included

  • Engineer approved and stamped full-size blueprints
  • Detailed cut list for fabrication
  • Complete bill of materials
  • Welding tips and build guidance
  • Tailored TK trailer kit compatibility for required parts

Key Benefits

  • Step-by-step guidance makes fabrication easier and more accurate
  • Full bill of materials ensures you source the right components
  • Designed for both beginners and experienced fabricators
  • Compatible with TK trailer kits for a complete build solution
  • Ideal for educational and professional use

Ideal For

  • DIY trailer builders
  • BBQ enthusiasts building custom smokers
  • High school shop and agricultural classes
  • Fabricators and welding professionals
  • Custom trailer and pit builders

Important Note

No part of these plans may be reproduced, distributed, or transmitted without prior written permission, except where permitted by copyright law. Purchase confirms acceptance of this disclaimer.

Why Buy from The Trailer Parts Outlet?

  • High-quality, engineer-approved trailer plans
  • Complete solutions with compatible trailer kits
  • Fast shipping
  • Expert support to guide your build

Order your BBQ smoker trailer plans today and start building a custom smoker with confidence.
