  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Difficulty Level: Intermediate

Specs:

  • Box Size: 14'6'4" w/3' side
  • Bed Capacity: 9+ cubic yards
  • Gross Capacity: 14,000 lbs
  • Empty Weight: 4008 lbs
  • Empty Tongue Weight: 450 lbs
  • Frame: 2"x6" Rectangular
  • Upper Rim: Angle Steel, 11g

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

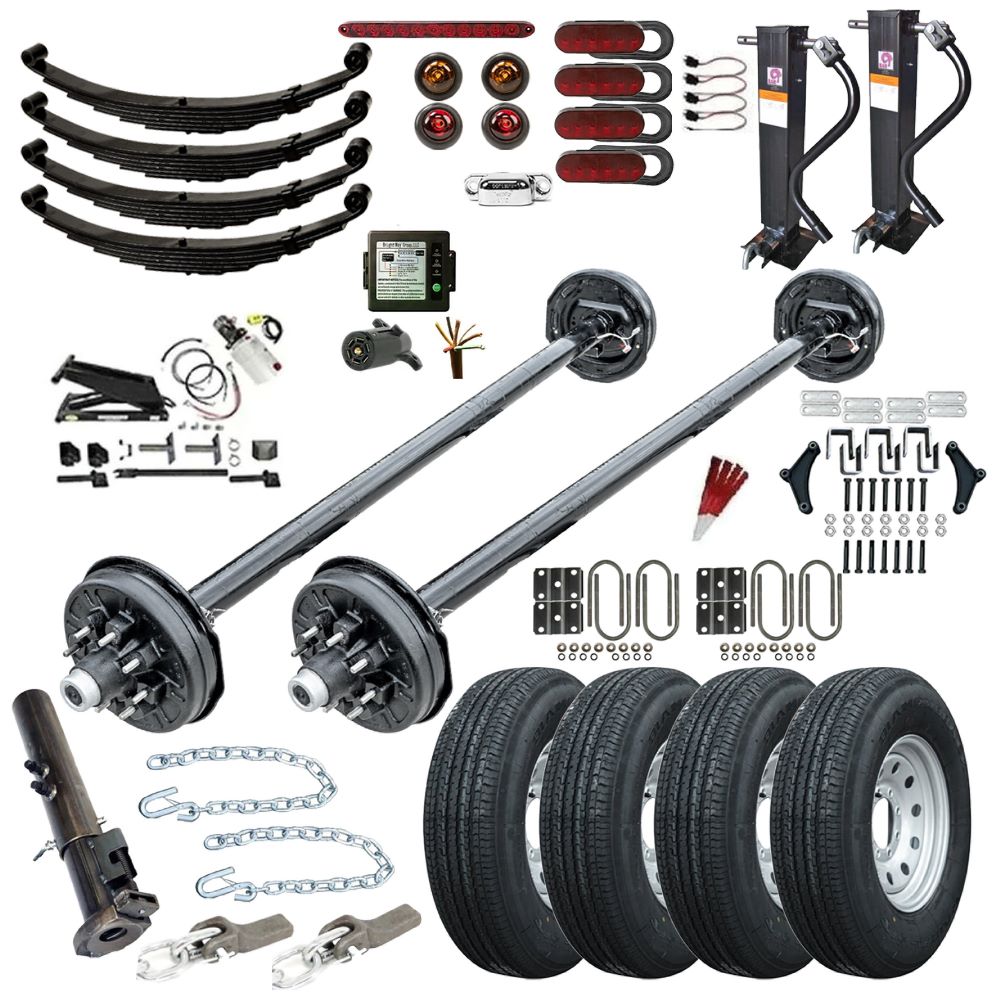

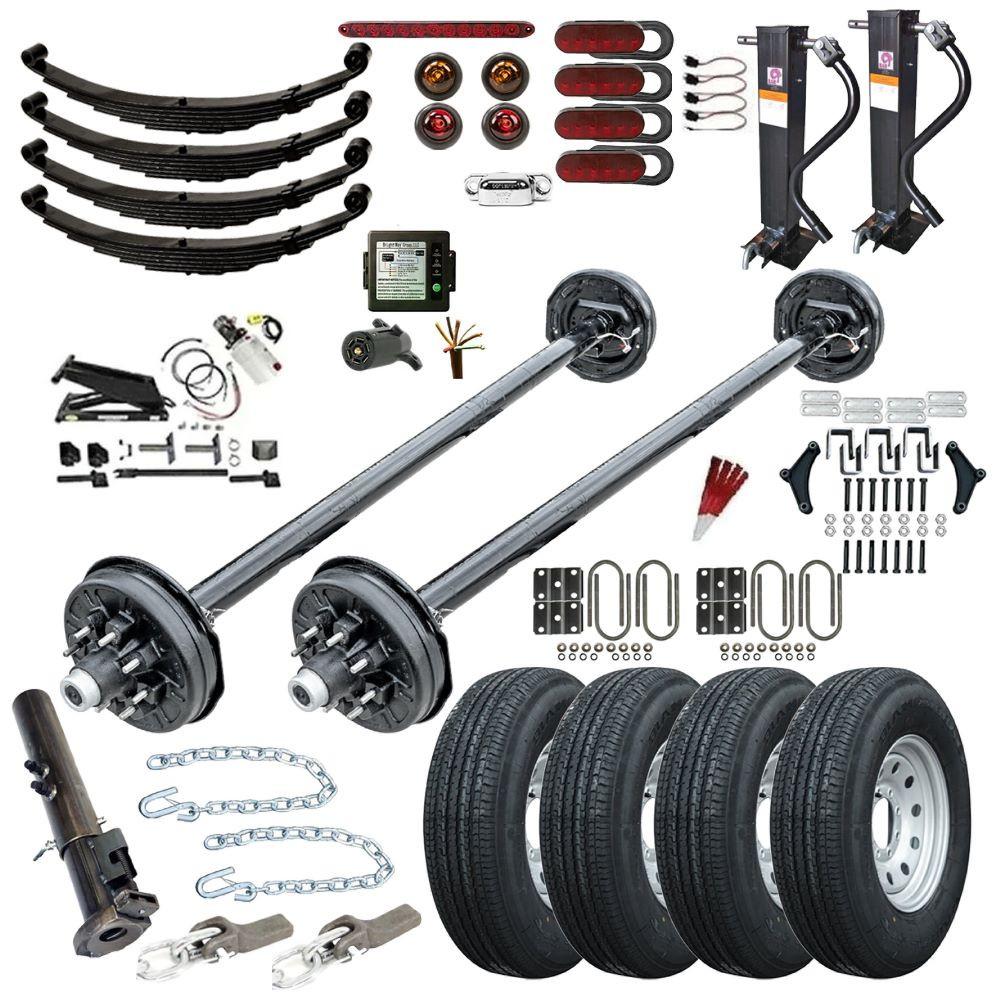

What's Included with Trailer Kit:

  • 2 - 7k Trailer Axle-7000lb Electric Brake 8x6.5 1/2 (89/74)
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 6 Leaf Trailer Double Eye Spring for 7000 lb Axles
  • 4 - 16" 10 ply Radial TWA - ST 235/80R16 - 8 lug TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 1 - 25k Gooseneck Coupler - 25000 lb Adjustable Round 2 5/16
  • 2 - Drop Leg 12k Trailer Jack - 12000 lb Front Pin Side Wind
  • 4 - Red 6in Oval LED S/T/T Light
  • 2 - Amber clearance 3/4 lights
  • 2 - Red clearance 3/4 lights
  • 4 - Flush Mount Grommet For 6in Oval Lights
  • 4 - Pigtail for Led Lights -3 Prong 10"
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - 7 Way Plug
  • 2.6 - 6 way cable 14 gauge (per 10 foot)
  • 1 - License Plate Light-Rectangular
  • 1 - 12 Volt Trailer Breakaway Kit
  • 2 - Silver Safety Chain-5/16 x 30"-Forged (7.6k Capacity)
  • 2 - Safety Links
  • 14 - 18" Reflective DOT Tape Strips
  • 1 - PH516 Hoist Kit
    • Hydraulic Cylinder Scissor Lift/Hoist Assembly (16,000 lb Capacity)
    • Mounting Brackets
    • Dump Hinges
    • Hoses & Fittings
    • Safety Arms
    • 12v Double Acting Hydraulic Pump
    • 15' Pump Remote (Power Up Power Down)

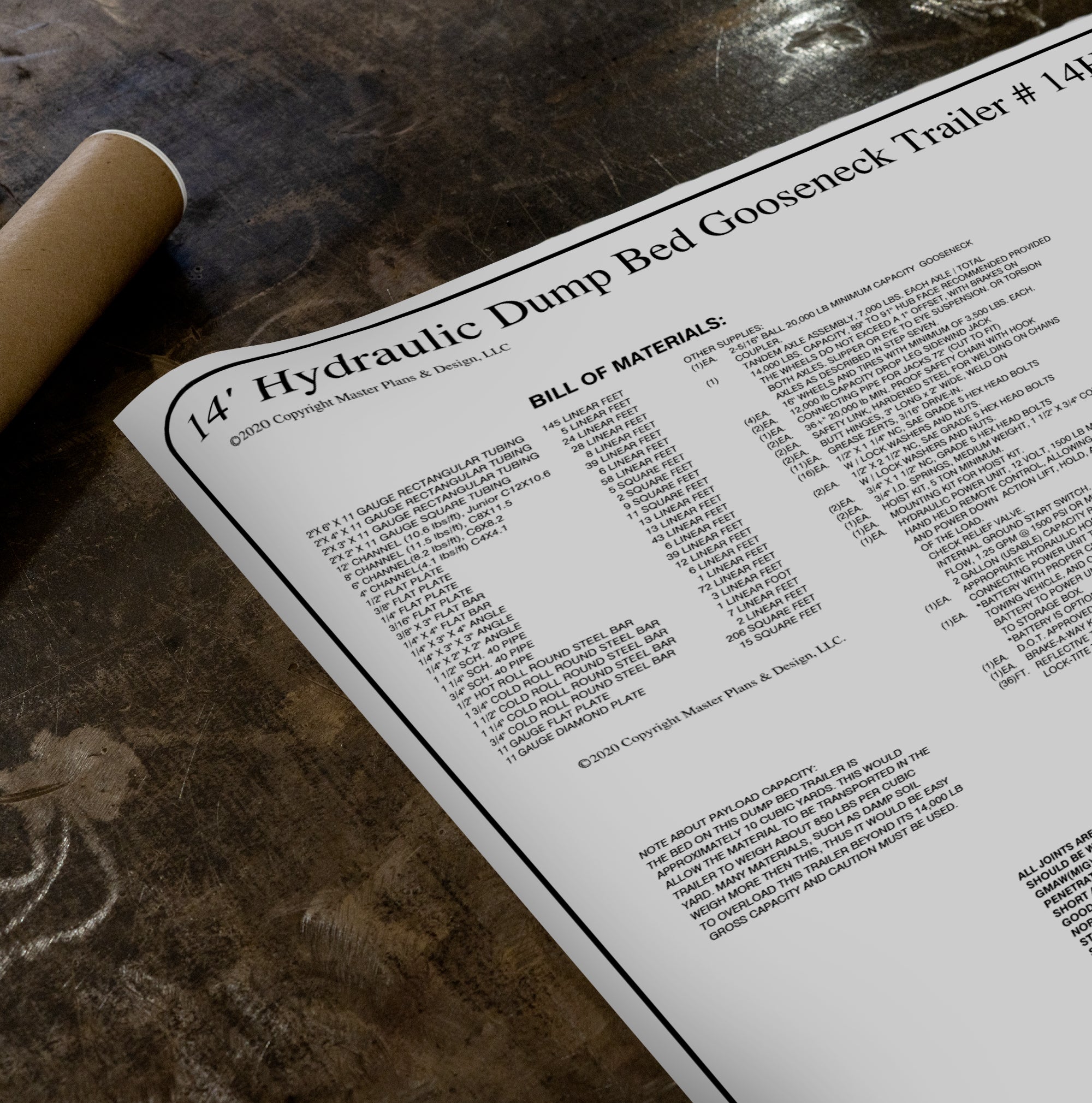

  • 1 - 14HDGN Gooseneck Dump Trailer Master Plan Blueprint
