Check out our 15,000 lb Tandem Hydraulic Disc Brake Trailer Axle Kit (30k Capacity). The Trailer Parts Outlet offers Superior Service and Faster Solutions. We strive to get you back on the Road FAST with fast and free shipping and easy online ordering.

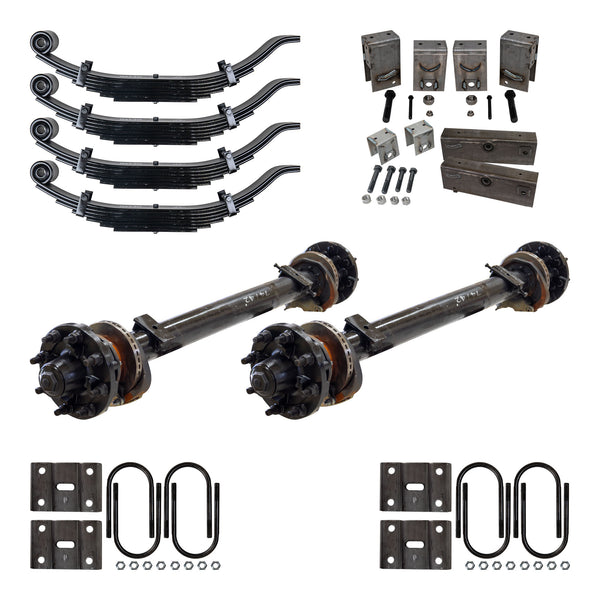

What's Included in the 15,000 lb Axle Kit Option:

  • 2 - 15,000 lb TK Trailer Hydraulic Disc Brake Axle (15K Capacity) - Grease Bath
  • 4 - 7 Leaf 30" x 3" Wide Trailer Axle Slipper Spring for 15,000 - 16,000 lb Trailer Axles
  • 2 - 12,000 - 16,000 lb U-Bolt Kits
  • 1 - Slipper Tandem Hanger Kit
  • This axle is not ABS compatible

What's Included in the 15,000 lb Trailer Kit Option:

  • 2 - 15,000 lb TK Trailer Hydraulic Disc Brake Axle (15K Capacity) - Grease Bath
  • 4 - 7 Leaf 30" x 3" Wide Trailer Axle Slipper Spring for 15,000 - 16,000 lb Trailer Axles
  • 2 - 12,000 - 16,000 lb U-Bolt Kits
  • 1 - Slipper Tandem Hanger Kit
  • 8 - 17.5" 215/75 R17.5 16 ply Radial Dual TWA (Tire Wheel Assemblies) - Wheel Color: Silver Finish
  • Bolt Pattern - 8x275mm

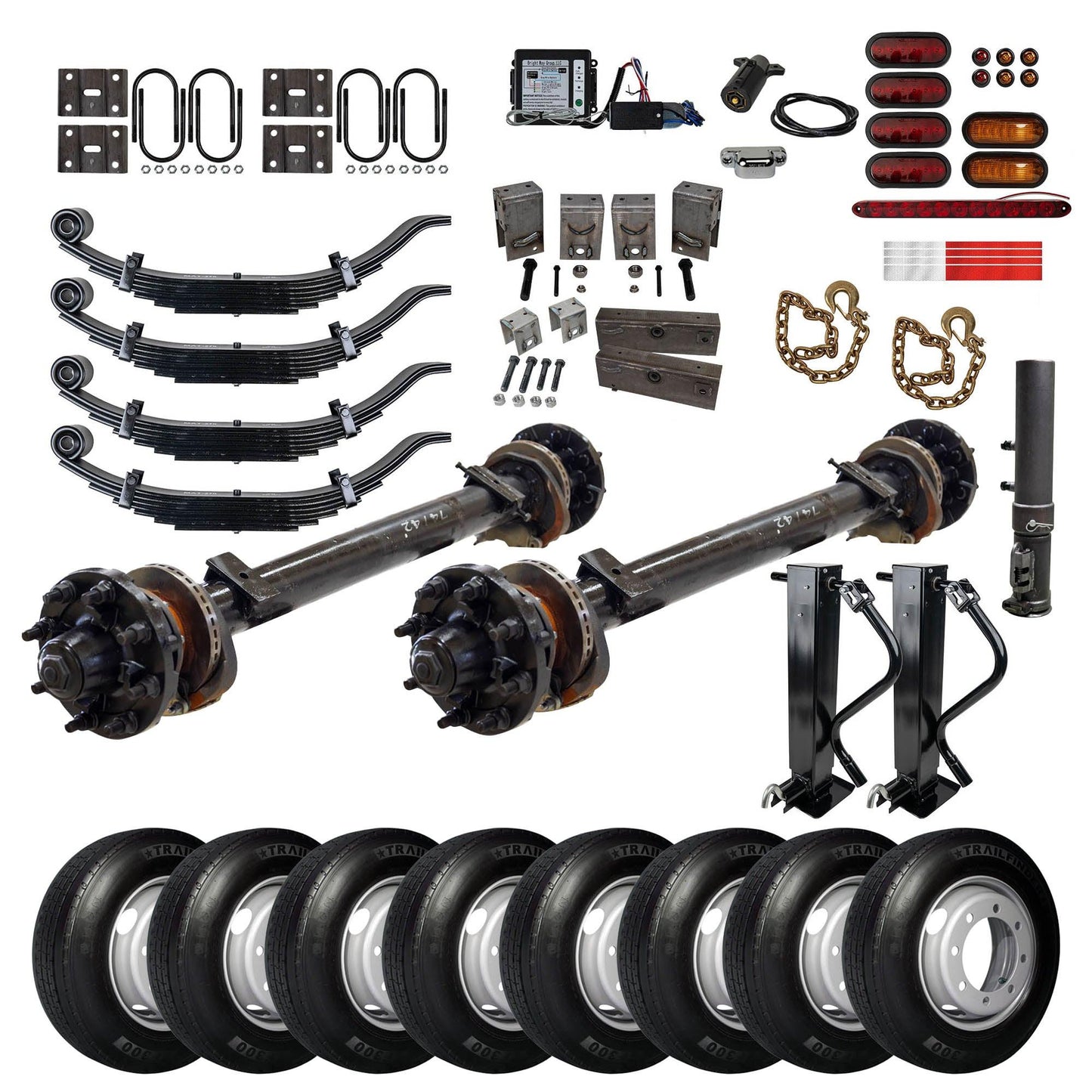

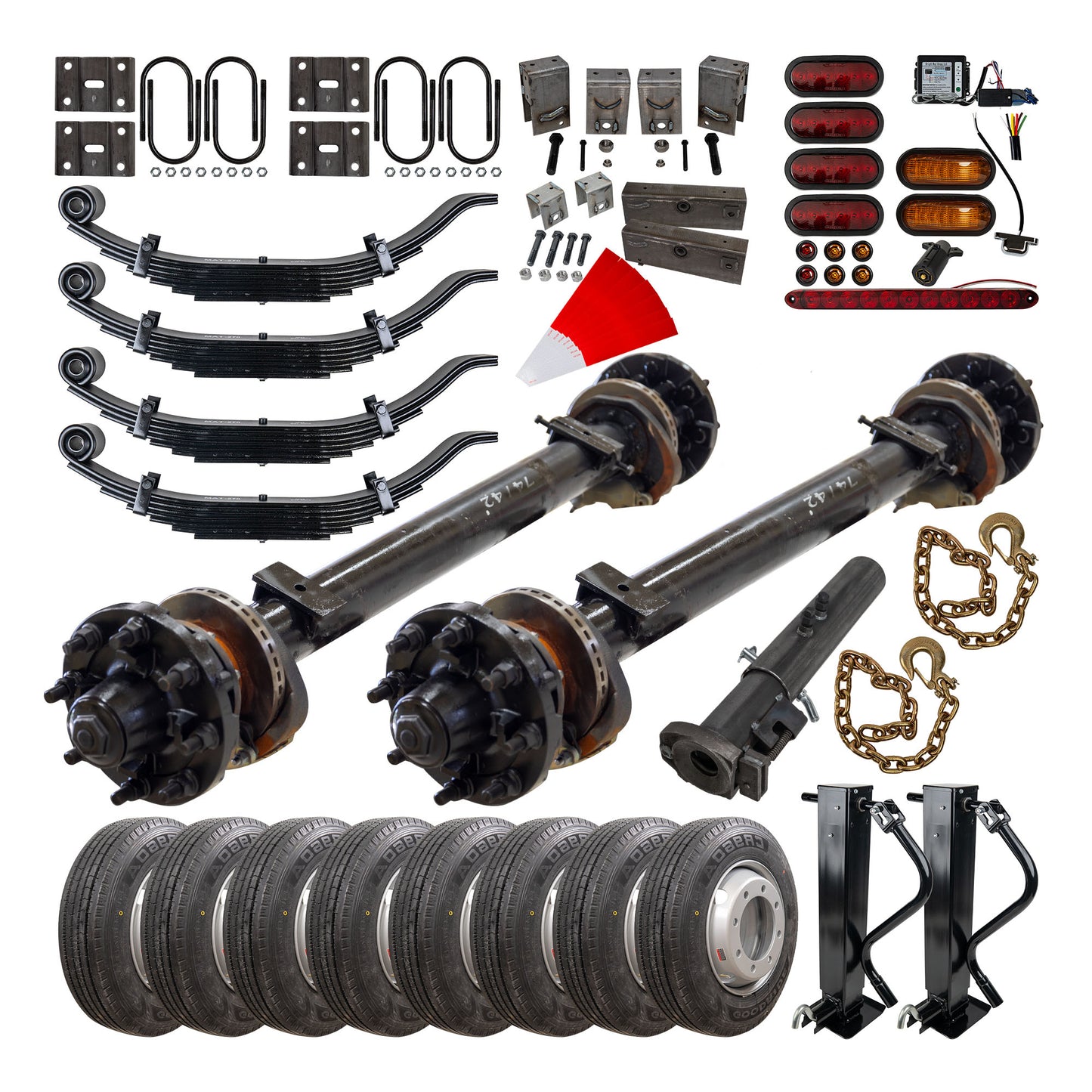

What's Included in the 15,000 lb Complete TK Trailer Kit Option:

  • 2 - 15,000 lb TK Trailer Hydraulic Disc Brake Axle (15K Capacity) - Grease Bath
  • 4 - 7 Leaf 30" x 3" Wide Trailer Axle Slipper Spring for 15,000 - 16,000 lb Trailer Axles
  • 2 - Trailer U-bolt kit for 12000 - 16000 lb Axles
  • 1 - Slipper Tandem Suspension / Hanger Kit for 10k- 16k axles
  • 1 - Slipper Single Axle Suspension/Hanger Kit for 10k-16k axles
  • 8 - 17.5" 16 ply Radial TWA - ST 215/75 R17.5 - 8x275mm lug Dual TWA (Tire Wheel Assemblies) - Wheel Color: Silver Finish
  • 1 - 30k Gooseneck Coupler - 30,000 lb Adjustable Round 2 5/16
  • 2 - Drop Leg 12k Trailer Jack - 12000 lb Front Pin Side Wind
  • 2 - Ram 12k Trailer Jack handle
  • 2 - Ramp Spring LH W/2k Torque For 1 1/2in Shaft
  • 2 - Ramp Spring RH W/2k Torque For 1 1/2in Shaft
  • 4 - Red 6in Oval LED S/T/T Light
  • 2 - Amber 6" Oval LED S/T/T Midship Light
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 6 - Flush Mount Grommet For 6in Oval Lights
  • 6 - Pigtail for Led Lights -3 Prong 10"
  • 1 - License Plate Light-Rectangular
  • 46' (feet) - 6 way cable 14 gauge
  • 1 - 7 Way Plug
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - Breakaway Switch
  • 50 - Reflective DOT Tape - 18" Strips
  • 2 - Gold Safety Chain-3/8 x 39" w/1 Clevis Hook (27.4k Capacity) g70

Trailer Axle Features:

  • Grease Bath
  • 8x275mm
  • Axles come fully assembled with high temp grease
  • Underslung - Axle is welded with spring seats on the bottom
    • Allows for lower ride height
  • Designed for replacement of Flatbed Trailer Axles, Car Hauler Trailer Axles, Gooseneck Trailer Axles, Lawn & Landscape Trailer Axles, Dump Trailer Axles & More
  • High Strength Straight Steel 5" Axle Tube Construction
