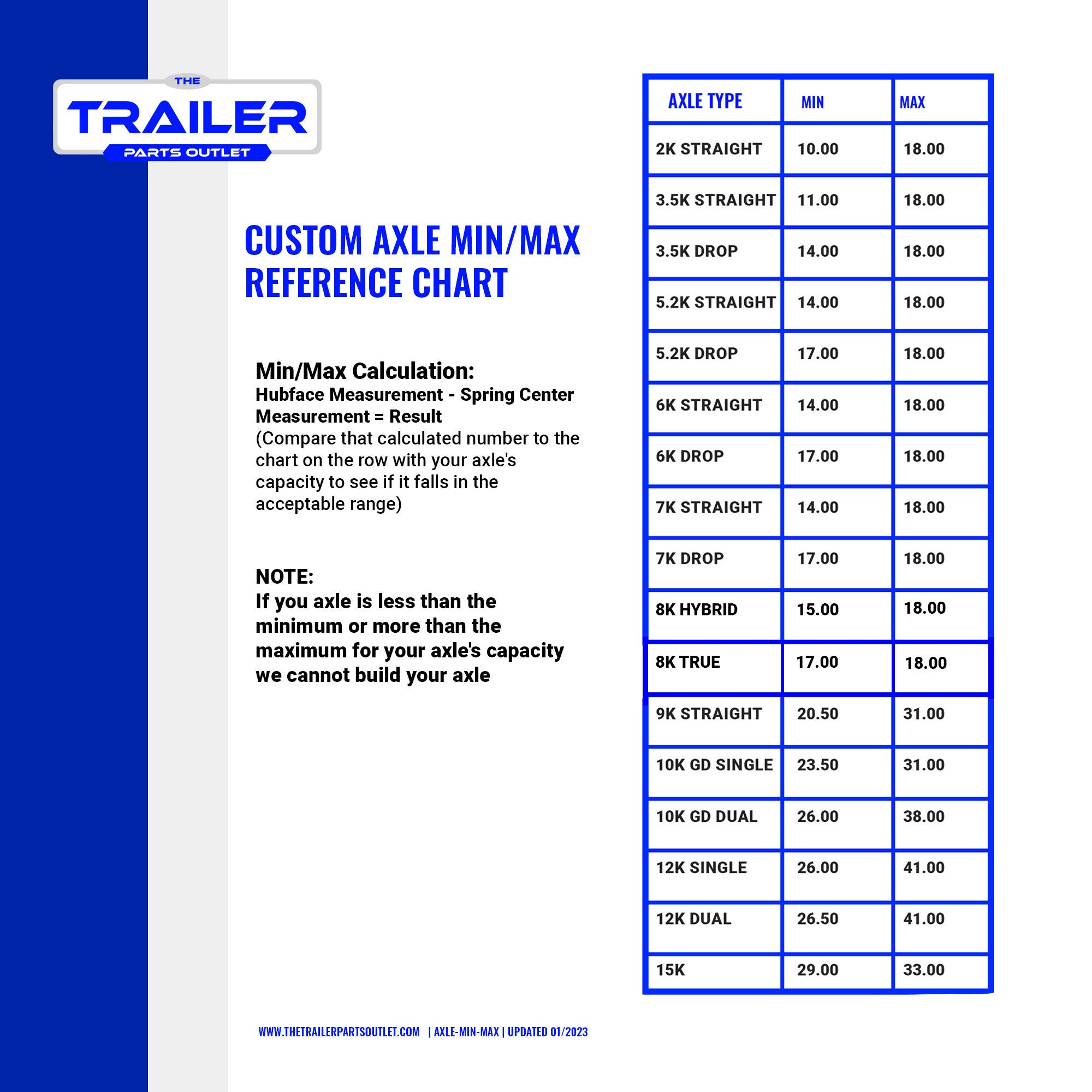

  • Custom axle min/max reference chart
  • Axle Warranties
  • 16,000 lb Lippert Triple TK Axle Hydraulic TK Trailer kit - 48K Capacity (Original Series)
1 5

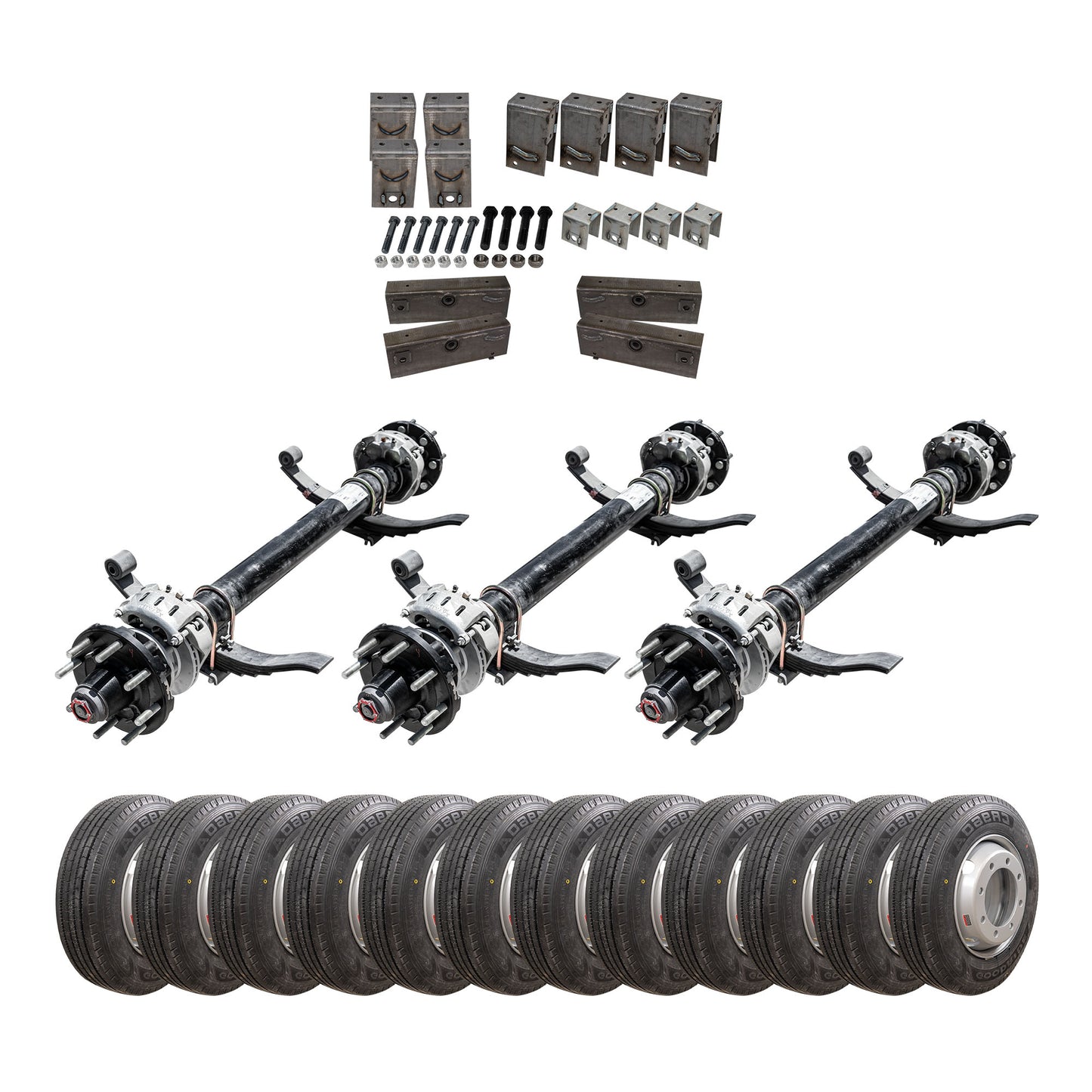

16,000 lb Lippert Triple TK Axle Hydraulic Kit - 45K Capacity (Axle Series)

16,000 lb Lippert Triple TK Axle Hydraulic Kit - 45K Capacity (Axle Series)

SKU : 16THDHBAKTLP74428275

Online price only

$13,479.99

Online price only

SAVE 0% (833) 910-3416
Shipping: Calculated at Checkout | Product Wt. 2110.0 lb
Kit Options:
Hubface/Spring Center:
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • How To
  • Reviews

16K Hydraulic Disc Brake Triple Axle Kit — 48K capacity | Axles with Suspension

Complete triple running gear without tires: three 16,000 lb hydraulic disc brake axles, matched slipper suspension. 48,000 lb combined capacity.

Axle Specifications:

  • Load rating: 16,000 lbs (16K)
  • Axle type: Hydraulic Disc Brake (Oil Bath)
  • Brake size: Hydraulic disc
  • Tube diameter: 5″ straight steel axle tube
  • Hubface/Spring Center: 74/42
  • Bolt pattern: 8 on 275mm (8x275mm)
  • Stud size: 22mm
  • Spring mount: Underslung (lower ride height)
  • Lubrication: Oil Bath
  • Compatibility: Fits 15K–16K Dexter, TK, and Texas Pride axles (not compatible with Rockwell)
  • ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

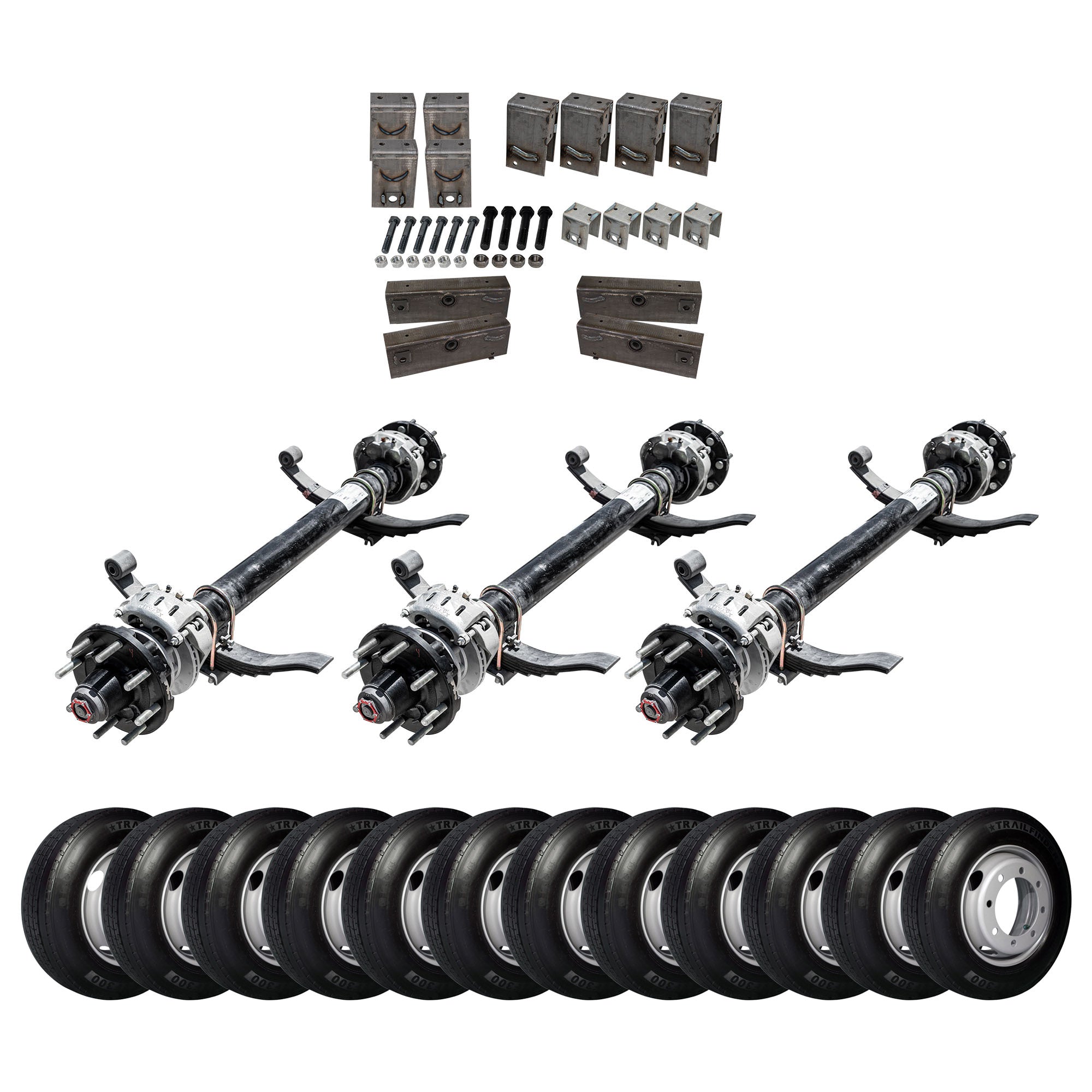

What’s Included:

  • (3) Fully Assembled 16k Lippert Hydraulic Disc Brake Oil Bath Axles — 74/42 — 8x275mm
  • (6) 8k 30″ x 3″ 6-Leaf HD Slipper Springs
  • (3) 16k U-Bolt Kits (3/4″, 5″ tube)
  • (1) Slipper Triple Hanger Kit (16k)

Key Benefits:

  • Matched triple running gear — no cross-referencing parts
  • 5″ steel tubes — 48,000 lb combined capacity

Ideal For:

  • Gooseneck & lowboy trailers
  • Flatbed & car hauler trailers
  • Dump & equipment haulers
  • Commercial & fleet builds
