DIY Trailer Plan - 1682BLB - Tandem Axle Utility Trailer

1682BLB - 16' x 82" Tandem Axle 14K Utility Lowboy Trailer DIY Master Plan - 15 How-To Steps

SKU: MP1682BLBPDF

FREE SHIPPING | Call (855) 231-3005 for Wholesale

Regular price $64.99 Sale

This plan is specifically made for: TK Trailer Kit - Master Plan 1682BLB 16'x82" Tandem Axle 14K Utility Lowboy Trailer (Original Series)

Specs:

  • Box Size: 16'x82"
  • Gross Capacity: 14,000 lbs
  • Empty Weight: 2,030 lbs
  • Empty Tongue Weight: 260 lbs
  • Frame: Angle Steel
  • Deck: Wood
  • Ramps with Rear Pockets

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.
  • 16" Wheel and Tire Setup
  • A-Frame Coupler and Jack

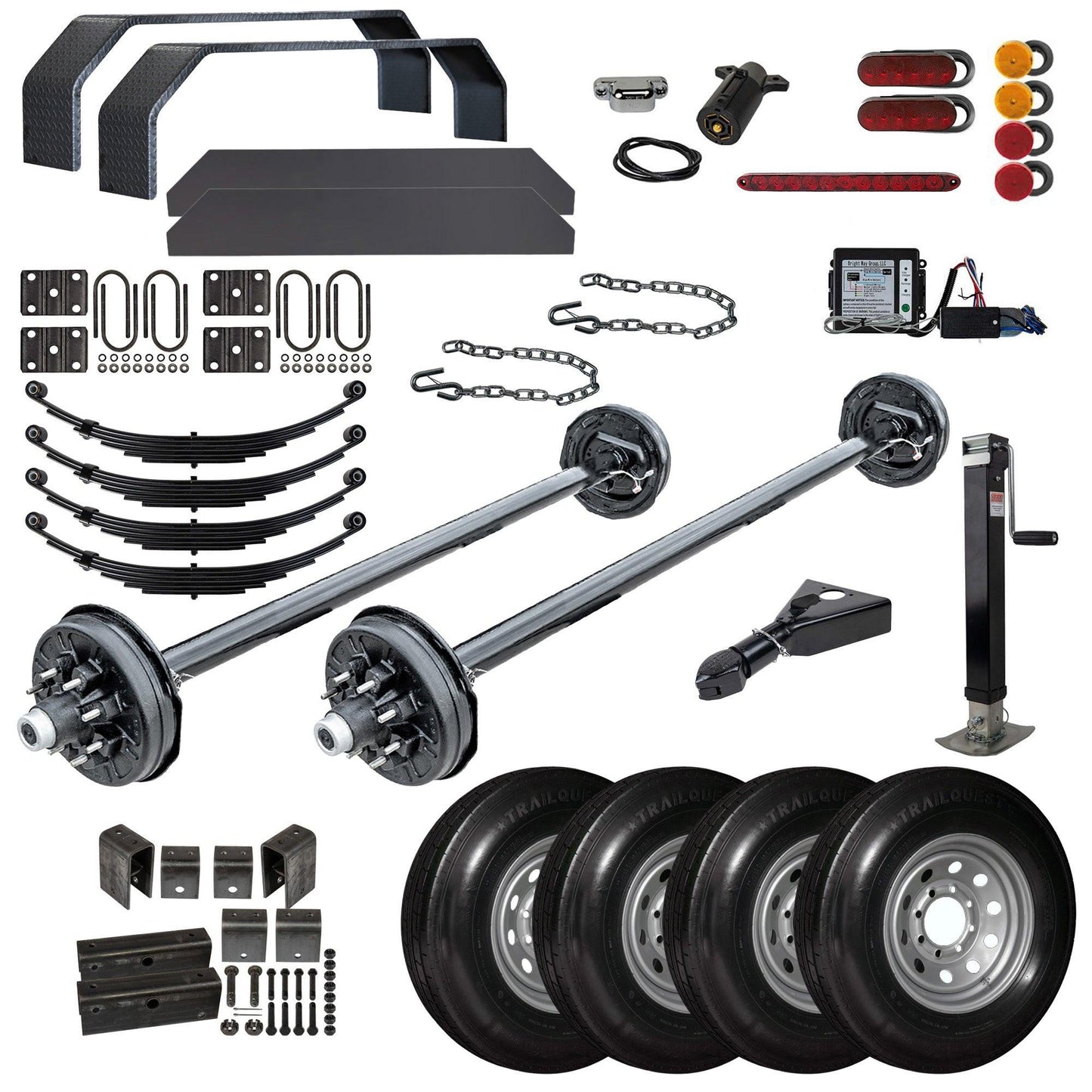

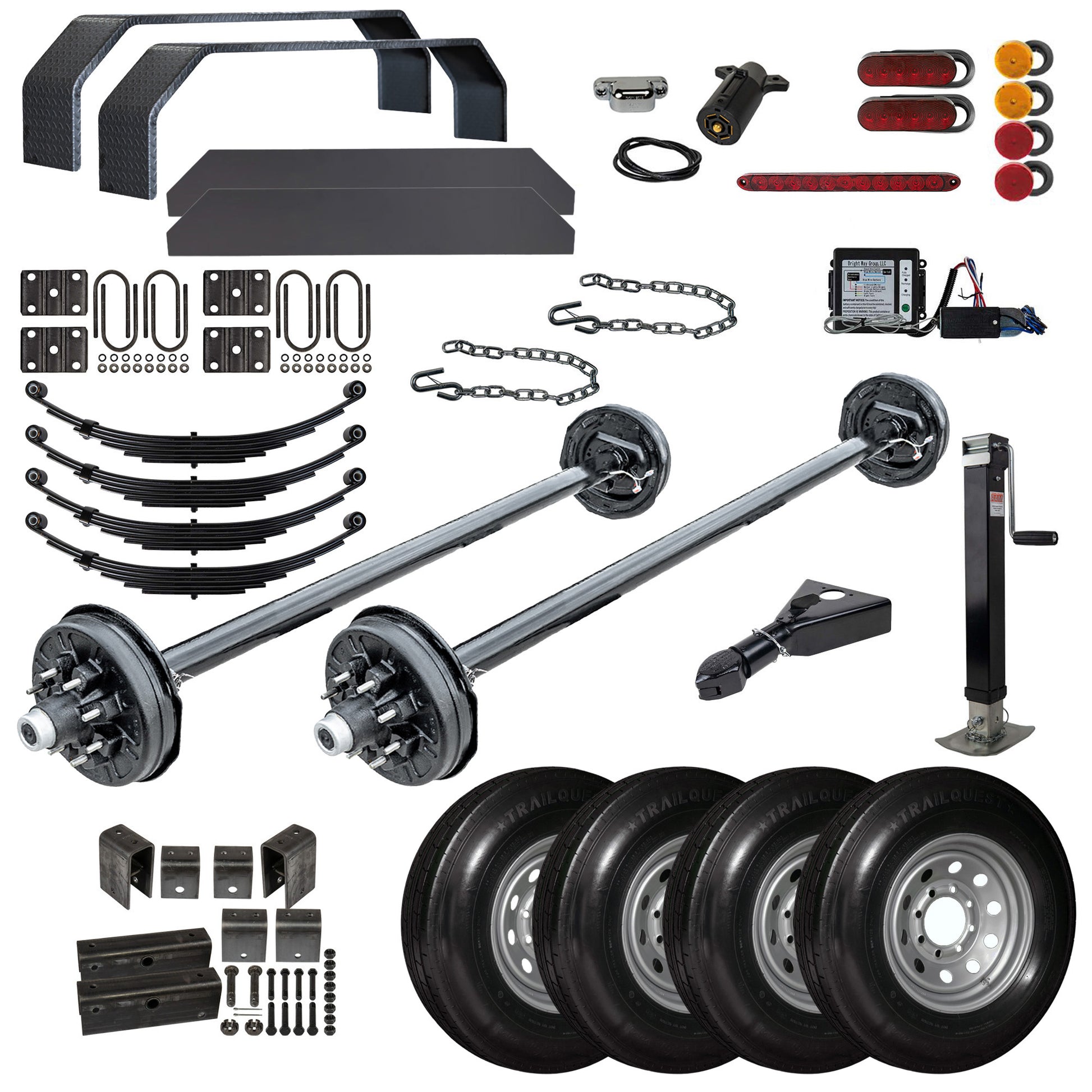

TK Trailer Kit - Master Plan 1682BLB 16'x82" Tandem Axle 14K Utility Lowboy Trailer (Original Series)

What's Included in the Trailer Kit:

  • 2 - 7k Trailer Axle-7000lb Electric Brake8x6.5 1/2(95/80)
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 6 Leaf Trailer Double Eye Spring for 7000 lb Axles
  • 4 - 16" 10 ply Radial TWA - ST 235/80R16 - 8 lug (SM)
  • 1 - 12.5K A-Frame Cast Coupler-12.5k 2 5/16" Bulldog Style
  • 1 - Pipe Mount 7k Trailer Jack - 7000 lb Side Wind
  • 2 - Red 6in Oval LED S/T/T Light
  • 2 - Flush Mount Grommet For 6in Oval Lights
  • 2 - Pigtail for Led Lights -3 Prong 10"
  • 2 - 2" Round Sealed LED Marker/Clearance Lights - Amber
  • 2 - 2" Round Sealed LED Marker/Clearance Lights - Red
  • 4 - Flush Mount Grommet For 2in Round Lights
  • 2 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - 7 Way Plug
  • 2.4 - 6 way cable 14 gauge (per 10 foot)
  • 2 - Silver Safety Chain-5/16 x 30"-Forged (7.6k Capacity)
  • 1 - 12 Volt Trailer Breakaway Kit
  • 2 - Tandem Axle 10.75x72 Smooth Steel Teardrop Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
