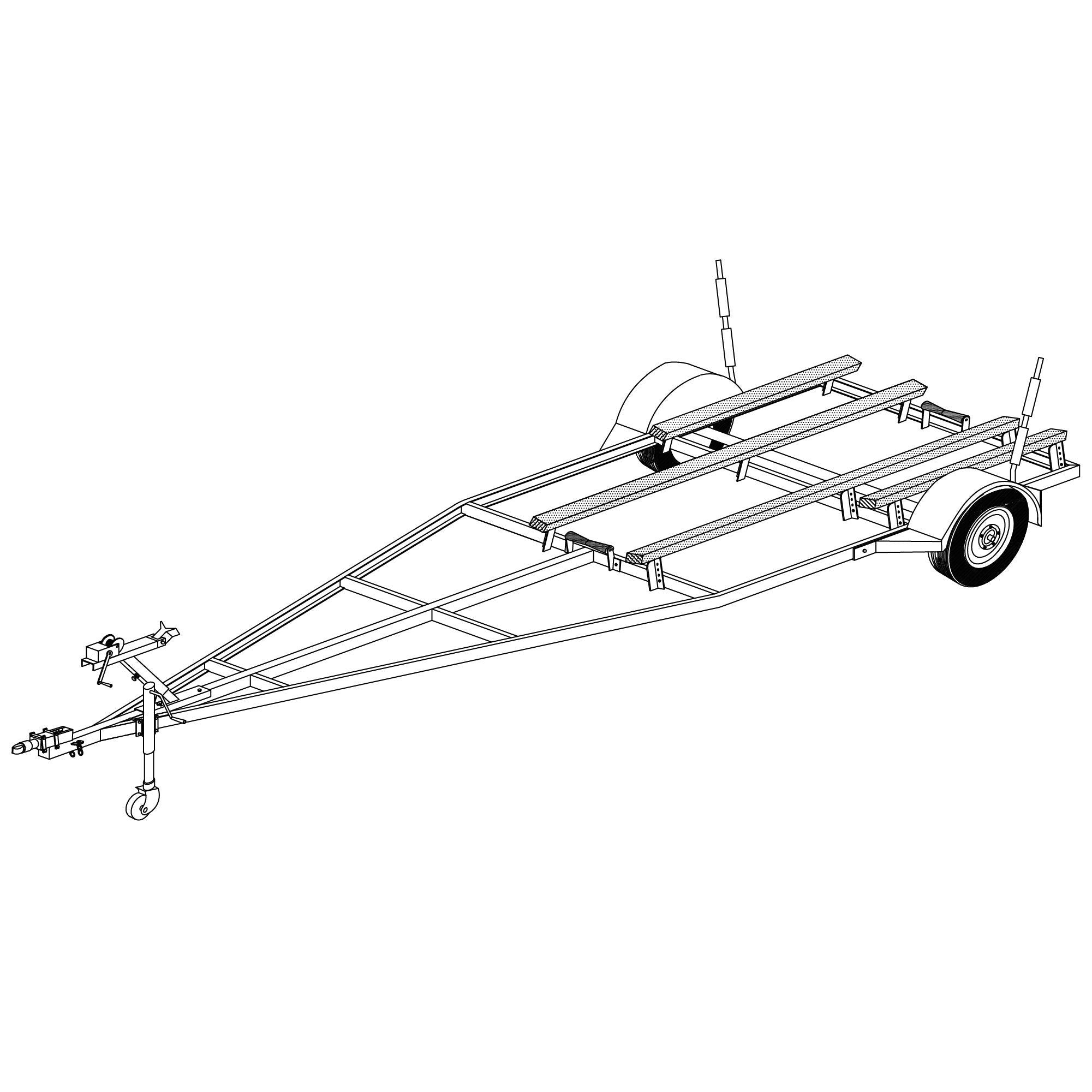

DIY Trailer Plan - 16FB - Variable Width and Length Trailer
16FB - 16'x6' Variable Width & Length Boat Trailer- 11 How-to Steps
16FB - 16'x6' Variable Width & Length Boat Trailer- 11 How-to Steps
16FB - 16'x6' Variable Width & Length Boat Trailer- 11 How-to Steps

16FB - 16'x6' Variable Width & Length Boat Trailer- 11 How-to Steps

SKU: MP16FBPDF

FREE SHIPPING | Call (855) 231-3005 for Wholesale

Regular price $49.99 Sale

This plan is specifically made for: TK Trailer Kit - Master Plan 16FB - Boat Trailer (Original Series)

Specs:

  • Box Size: 16'x6' (Variable up to 21')
  • Gross Capacity: 2000 lbs
  • Empty Weight: 714 lbs
  • Empty Tongue Weight: variable
  • Frame: Channel
  • 12"-15" Wheels
  • Rugged Design

Features:

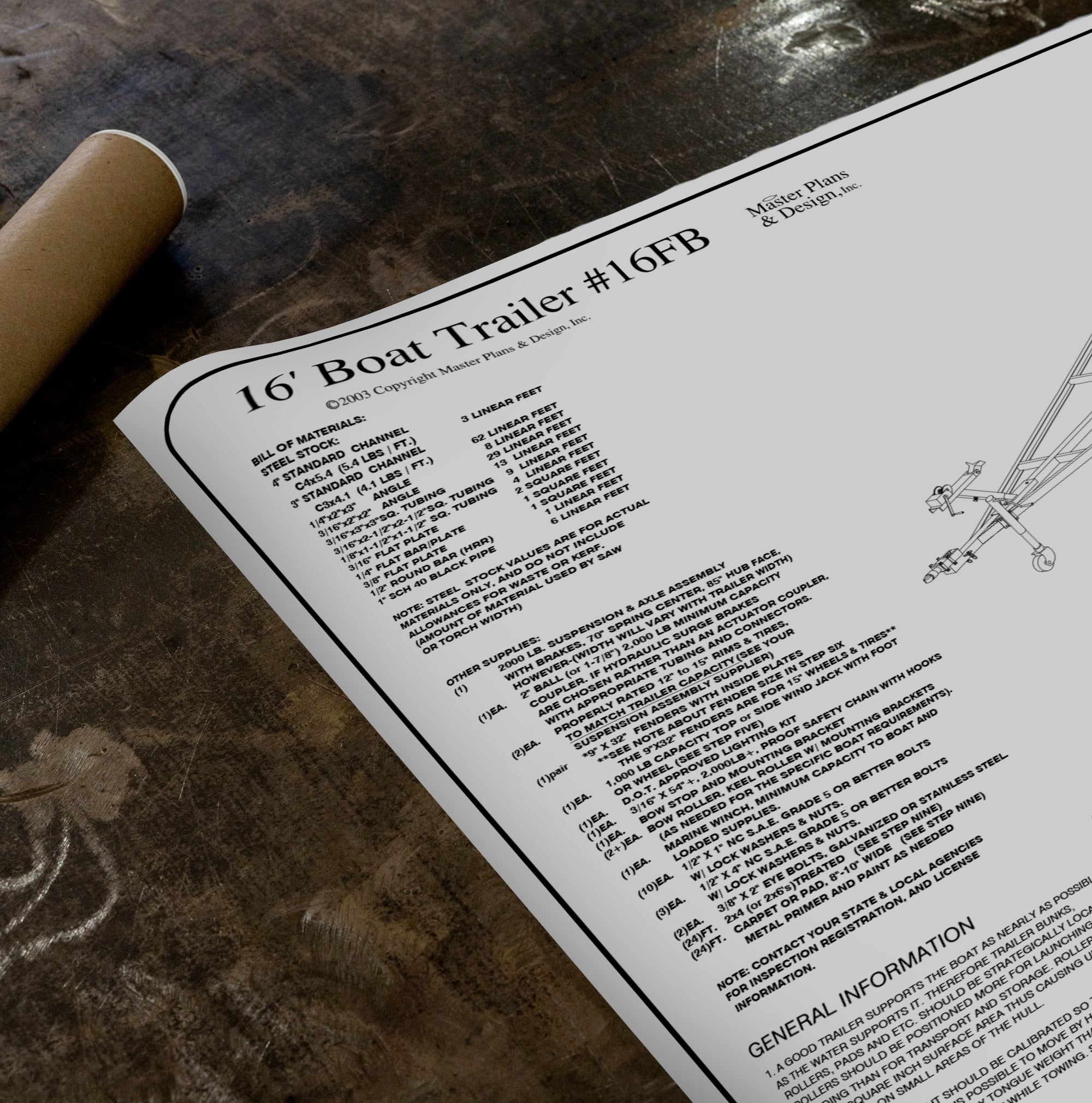

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

TK Trailer Kit - Master Plan 16FB - Boat Trailer (Original Series)

What's Included in the Trailer Kit:

  • 1 - 2k Trailer Axle - 2000 lb Idler 5 lug(85/70)
  • 2 - 3 Leaf Trailer Double Eye Spring for 2000 lb Axles
  • 1 - Trailer U-bolt kit for 2000 lb Axles
  • 1 - Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
  • 2 - Single Axle 8x28 Smooth Steel Rolled Fender
  • 2 - Single Axle 8x28 Fender Back
  • 1 - Swivel 12k Trailer Jack - 1200 lb Side Wind
  • 1 - 3.5K Straight Tongue Trailer Coupler - 3500 lb 2" x 3"
  • 1 - Incandescent Light Kit
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 2 - 13" 6 ply Radial TWA - ST 175/80R13 - 5x4.5 (SM)
  • 1 - License Plate Light-Rectangular
