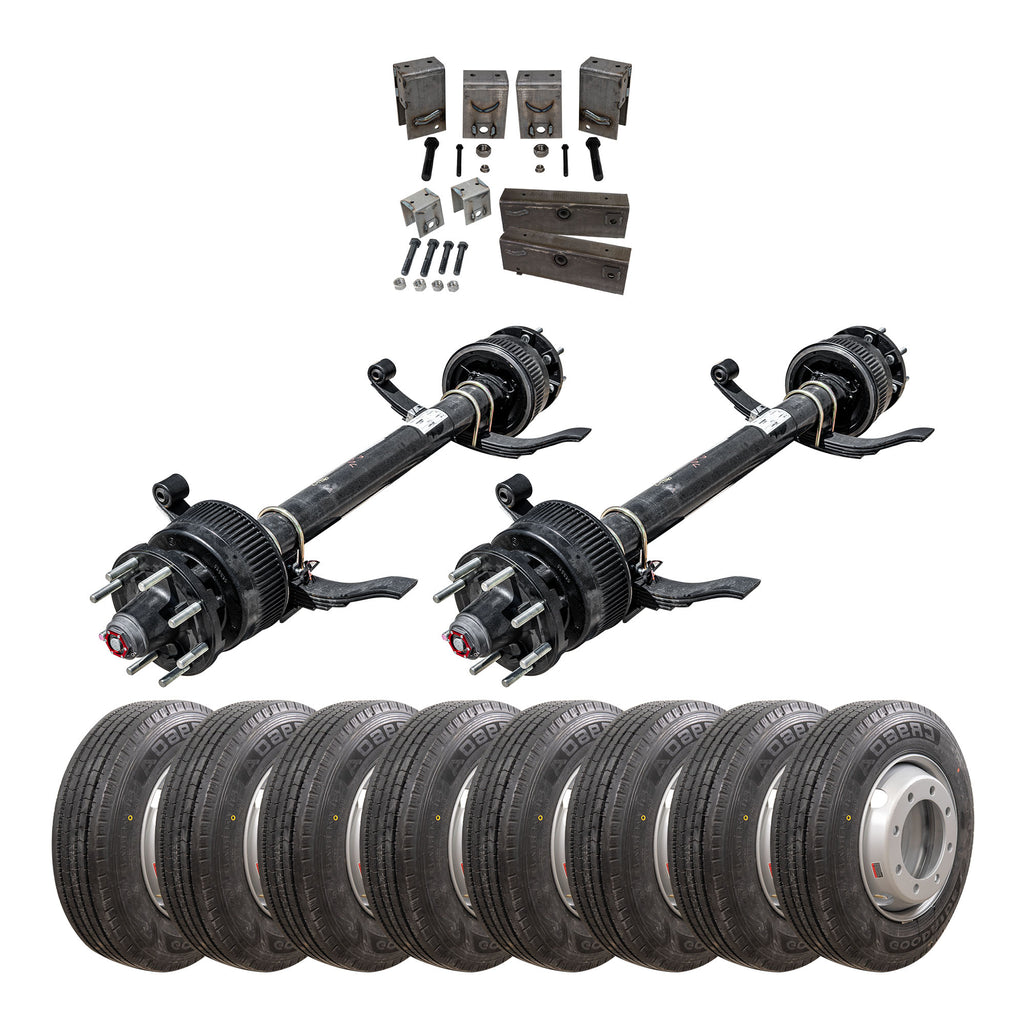

16K Lippert Electric Brake Tandem Axle TK Trailer Kit — 32,000 lb | 74/42 (3-4 Week Processing)

Tandem running gear in one package: two 16K Lippert sprung electric brake axles plus slipper hanger and tandem equalizer kits, and eight 17.5" dual radial tire & wheel assemblies.

Specifications:

• Capacity: 32,000 lb (2 x 16,000 lb axles)
• Axles: 16K Lippert, electric brake, sprung
• Hubface/Spring Center: 74/42 (3-4 Week Processing)
• Bolt pattern: 8x275mm
• Tires & wheels: (8) 17.5" 18 ply radial, ST 215/75R17.5, silver dual
• ABS: Not ABS compatible

What’s Included:

• (2) 16k Lippert Electric Brake Trailer Axle (Sprung) - 74/42 - 8x275mm
• (1) Slipper Single Axle Suspension/Hanger Kit for 10k-15k axles
• (1) Slipper Tandem Suspension Equalizer Kit for 10k- 15k axles
• (8) 17.5" 18 ply Radial Trailer Tire & Wheel - ST 215/75R17.5 (Silver Dual) - 8x275mm

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Pre-packaged for tandem axle trailers
• Built for demanding commercial and industrial trailer use
• High-strength steel and OEM-grade components
• Saves time and eliminates compatibility issues during installation

Ideal For:

• Flatbed and lowboy trailers
• Car haulers
• Gooseneck trailers
• Dump trailers
• Heavy equipment trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

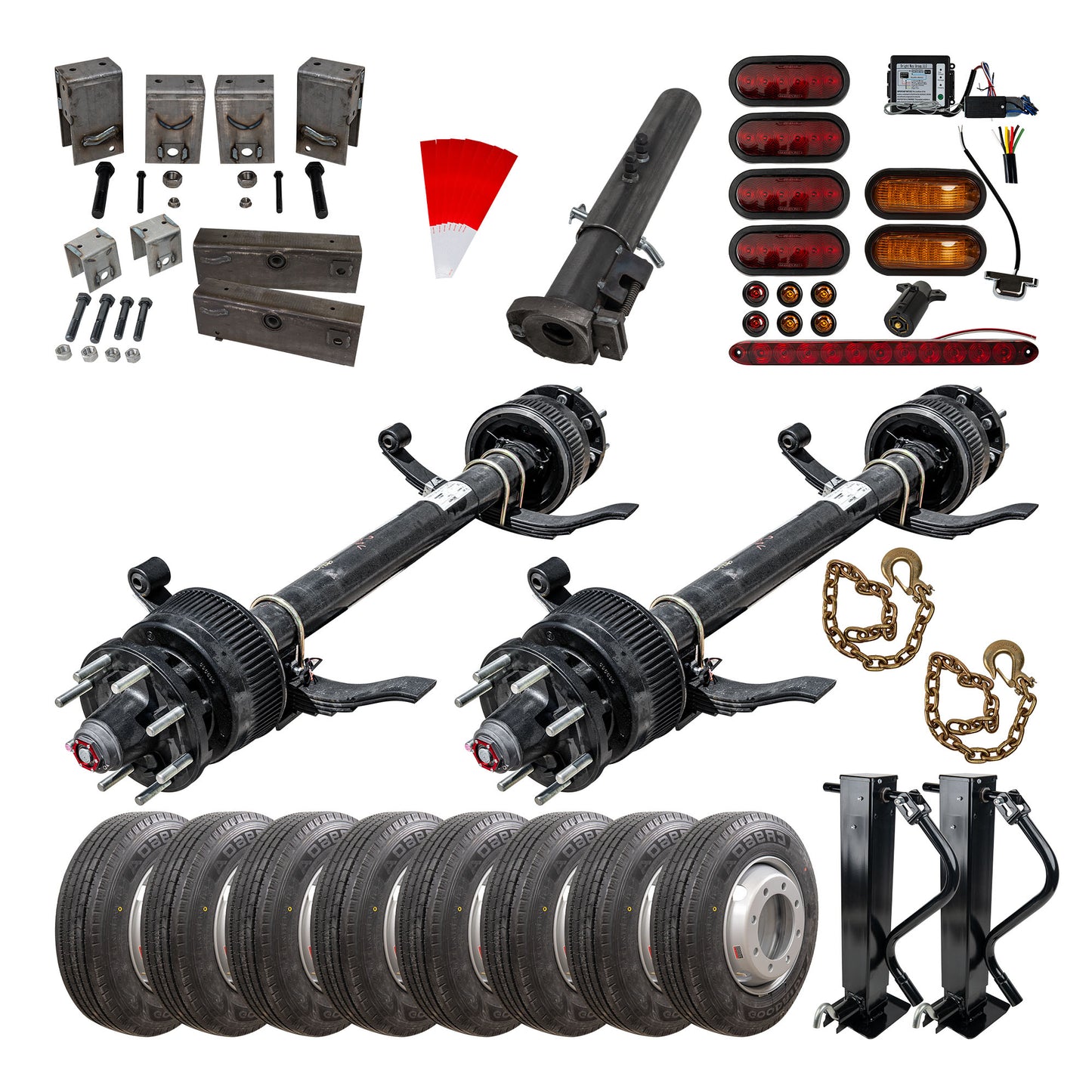

16K Complete Gooseneck Tandem Trailer Kit — 32K capacity | Axles, Suspension, Wheels, Coupler, Jacks & Wiring

Everything you need to build a 32,000 lb gooseneck trailer, in one package: two 16,000 lb electric brake axles, matched slipper suspension, dual wheels, a gooseneck coupler with dual drop-leg jacks, and the complete lighting, wiring, breakaway, and DOT-tape package.

Kit Specifications:

• Load rating: 32,000 lbs combined (two 16K axles)
• Axle type: Electric Brake
• Brake size:12¼″ × 5″ electric drum
• Tube diameter: 5″ straight steel axle tube
• Hubface/Spring Center: 74/42
• Bolt pattern: 8 on 275mm (8x275mm)
• Stud size: 22mm
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (2) 16k Lippert Electric Brake Trailer Axle (Sprung) - 74/42 - 8x275mm
• (1) Slipper Tandem Suspension Equalizer Kit for 10k- 15k axles
• (1) Slipper Single Axle Suspension/Hanger Kit for 10k-15k axles
• (8) 17.5" 18 ply Radial Trailer Tire & Wheel - ST 215/75R17.5 (Silver Dual) - 8x275mm
• (1) RAM 30k Gooseneck Trailer Coupler - 30000 lb Adjustable Round 2 5/16
• (2) RAM Drop Leg 12k Trailer Jack - 12000 lb Front Pin Side Wind - without handle
• (2) 12k Trailer Jack handle
• (4) Red 6in Oval LED S/T/T Light 6" Oval 6 LED STT Grommet Mount Red Lens Pigtail
• (2) Midturn Amber Lens Grommet Mount Pigtail
• (4) 3/4" Round Amber Mini Side Marker Clearance Light Amber Mini Grommet Mount PC Sidemarker Amber Lens
• (2) 3/4" Round Red Mini Side Marker Clearance Light
• (6) Flush Mount Grommet For 6in Oval Lights
• (1) Heavy Duty Sealed ID Light Bar - 3 Red Lights
• (1) License Plate Light - DOT Rated (Chrome Base License Lamp Vertical Plane Mount)
• (1) 7 Way Plug
• (46 ft) 6 Way Cable 14 Gauge
• (1) 12 Volt Trailer Breakaway Kit
• (2) Gold Trailer Safety Chain - 3/8 x 39" with 1 Clevis Hook (27.4k Capacity)
• (50) Reflective DOT Tape - 18" Strips

Key Benefits:

• Complete, ready-to-build package — axles through wiring in one order
• Matched fitment — every component sized to work together
• 32,000 lb combined capacity — heavy-duty dual-wheel running gear

Ideal For:

• Gooseneck & lowboy trailers
• Equipment & dump haulers
• Flatbed & deckover builds
• Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

• Built to order (3-4 week processing)
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect kit for your trailer build. Order your 16K Complete Gooseneck Trailer Kit today and get building with confidence!

16K Lippert Electric Brake Tandem Axle TK Trailer Kit — 32,000 lb | Custom, built to your measurements (3-4 week processing)

Tandem running gear in one package: two 16K Lippert sprung electric brake axles plus slipper hanger and tandem equalizer kits, and eight 17.5" dual radial tire & wheel assemblies.

Specifications:

• Capacity: 32,000 lb (2 x 16,000 lb axles)
• Axles: 16K Lippert, electric brake, sprung
• Hubface/Spring Center: Custom, built to your measurements (3-4 week processing)
• Bolt pattern: 8x275mm
• Tires & wheels: (8) 17.5" 18 ply radial, ST 215/75R17.5, silver dual
• ABS: Not ABS compatible

What’s Included:

• (2) 16k Lippert Electric Brake Trailer Axle (Sprung) - Custom - 8x275mm
• (1) Slipper Single Axle Suspension/Hanger Kit for 10k-15k axles
• (1) Slipper Tandem Suspension Equalizer Kit for 10k- 15k axles
• (8) 17.5" 18 ply Radial Trailer Tire & Wheel - ST 215/75R17.5 (Silver Dual) - 8x275mm

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Pre-packaged for tandem axle trailers
• Built for demanding commercial and industrial trailer use
• High-strength steel and OEM-grade components
• Saves time and eliminates compatibility issues during installation

Ideal For:

• Flatbed and lowboy trailers
• Car haulers
• Gooseneck trailers
• Dump trailers
• Heavy equipment trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Custom builds to your exact measurements
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

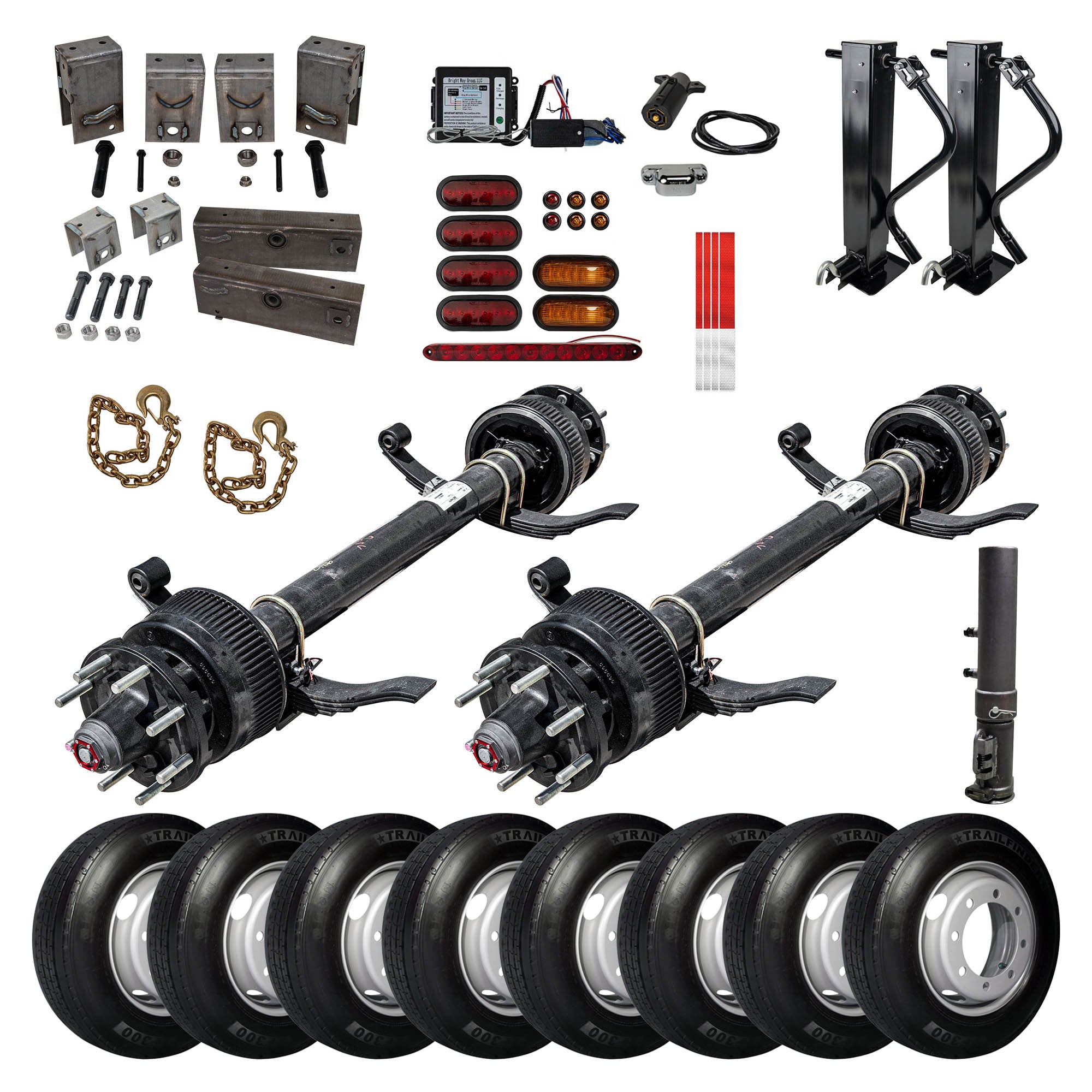

16K Complete Gooseneck Tandem Trailer Kit — 32K capacity | Axles, Suspension, Wheels, Coupler, Jacks & Wiring

Everything you need to build a 32,000 lb gooseneck trailer, in one package: two 16,000 lb electric brake axles, matched slipper suspension, dual wheels, a gooseneck coupler with dual drop-leg jacks, and the complete lighting, wiring, breakaway, and DOT-tape package.

Kit Specifications:

• Load rating: 32,000 lbs combined (two 16K axles)
• Axle type: Electric Brake
• Brake size:12¼″ × 5″ electric drum
• Tube diameter: 5″ straight steel axle tube
• Hubface/Spring Center: Custom, enter your measurements
• Bolt pattern: 8 on 275mm (8x275mm)
• Stud size: 22mm
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (2) 16K Lippert Straight Trailer Axles — 16,000 lb Electric Brake, 8 Lug (Sprung)
• (4) 6-Leaf HD Slipper Springs for 16,000 lb Axles
• (2) U-Bolt Kits for 12,000–16,000 lb Axles
• (1) Slipper Tandem Suspension / Hanger Kit for 10K–16K Axles
• (1) Slipper Single Axle Suspension / Hanger Kit for 10K–16K Axles
• (8) 17.5″ 18-Ply Radial TWA — ST215/75R17.5, 8x275mm Dual — Silver/Gray Finish
• (1) 30K Gooseneck Coupler — 30,000 lb Adjustable Round, 2 5/16″
• (2) Drop-Leg 12K Trailer Jacks — 12,000 lb Front Pin, Side Wind
• (2) RAM 12K Trailer Jack Handles
• (4) Red 6″ Oval LED S/T/T Lights
• (2) Amber 6″ Oval LED S/T/T Midship Lights
• (4) 3/4″ Amber Side Marker Lights
• (2) 3/4″ Red Side Marker Lights
• (1) Sealed ID Light Bar — 3 Red Lights
• (6) Flush-Mount Grommets for 6″ Oval Lights
• (6) 3-Prong Pigtails for LED Lights — 10″
• (1) License Plate Light — Rectangular
• (1) 7-Way Plug with 46 ft 6-Way 14-Gauge Cable
• (1) 12-Volt Trailer Breakaway Kit
• (1) Breakaway Switch
• (50) Reflective DOT Tape — 18″ Strips
• (2) Safety Chains — 3/8 x 39″ w/ 1 Clevis Hook, G70 (27.4K capacity)

Key Benefits:

• Complete, ready-to-build package — axles through wiring in one order
• Matched fitment — every component sized to work together
• 32,000 lb combined capacity — heavy-duty dual-wheel running gear

Ideal For:

• Gooseneck & lowboy trailers
• Equipment & dump haulers
• Flatbed & deckover builds
• Commercial & fleet builds

Why Buy from The Trailer Parts Outlet?

• This kit is proudly assembled in the U.S.A.
• Custom builds to your exact measurements
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect kit for your trailer build. Order your 16K Complete Gooseneck Trailer Kit today and get building with confidence!
