18HT Hydraulic Tilt Car Hauler Trailer Plan & Parts Kit – 10,400 lb Capacity
Looking for a professional trailer blueprint and matching parts kit to build a hydraulic tilt car hauler? The 18HT Car Hauler Master Plan Blueprint and TK Trailer Parts Kit from The Trailer Parts Outlet provides everything needed to build a durable and reliable trailer. Designed for builders, repair shops, schools, and DIY enthusiasts, this package includes detailed engineering plans and a tailored trailer parts kit so you can build your trailer with confidence.
Trailer Specifications
- Box Size: 19' x 82"
- Gross Capacity: 10,400 lbs
- Empty Weight: 2,563 lbs
- Empty Tongue Weight: 557 lbs
- Frame: 5" Channel Steel
- Deck: Diamond Plate
- Trailer Type: Hydraulic Tilt Car Hauler
Note: Does not include steel frame/tubing, plywood, or flooring materials.
Why Choose This Trailer Plan & Kit?
- Engineer approved and stamped 24" x 36" full-size blueprints
- Ideal for high school shop classes, agricultural programs, fabrication shops, and DIY builders
- Includes detailed cut lists, full bill of materials, and welding tips
- Optional TK Trailer Parts Kit designed specifically for this build
- Ensures you have compatible components for easier assembly

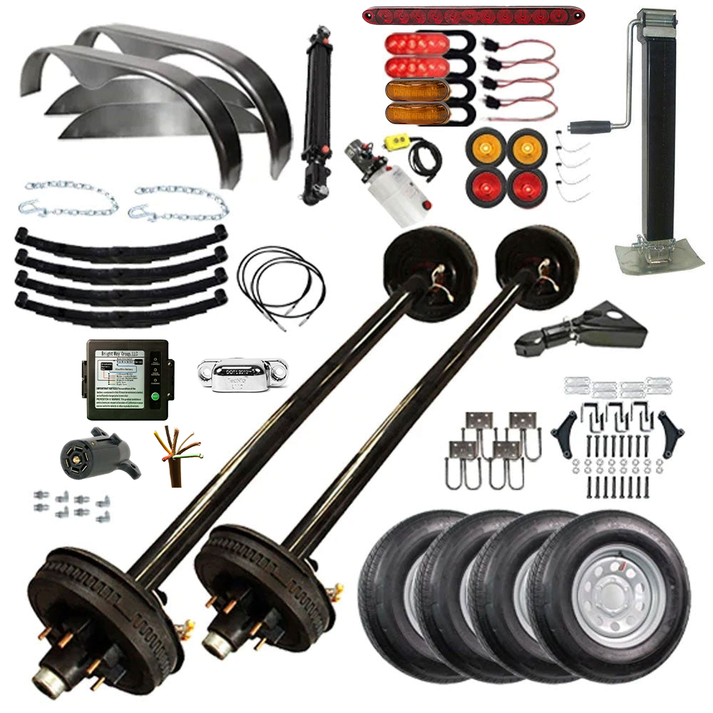

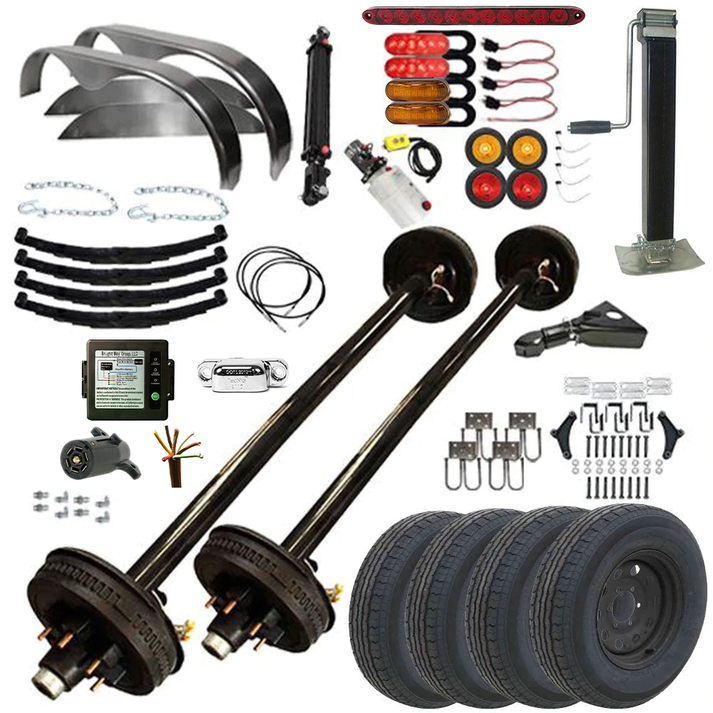

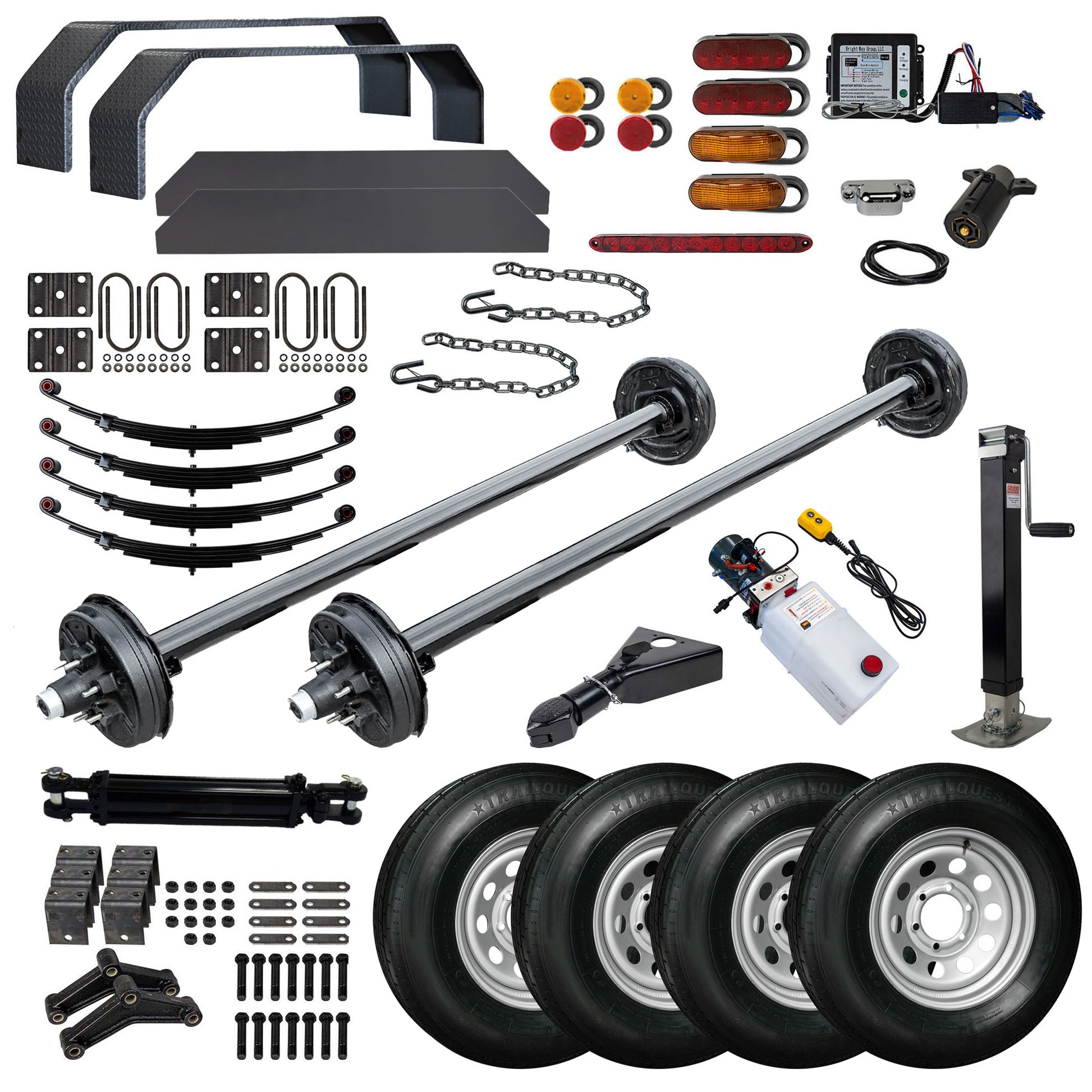

What’s Included in the Trailer Parts Kit
Axle & Suspension
- (2) 5K / 5.2K Trailer Axles – 5000 / 5200 lb Electric Brake, 6 Lug (95/80)
- (2) Trailer U-Bolt Kits for 5200–7000 lb Axles (1/2" Diameter)
- (1) Double Eye Tandem Hanger Kit – Fits 3500–7000 lb Axles
- (4) 5-Leaf Double Eye Springs for 6000 lb Axles
Wheels & Fenders
- (4) 15" 10-Ply Radial TWA – ST225/75R15 6x5.5 Tire Wheel Assemblies – Silver/Gray Finish
- (2) Tandem Axle 10x72 Steel Tread Plate Double Broke Trailer Fenders
- (2) Tandem Trailer Axle Double Broke Fender Backs – Smooth
Lights & Wiring
- (2) Red 6" Oval LED Stop/Turn/Tail Lights
- (2) Amber 6" Oval LED Stop/Turn/Tail Lights
- (4) Flush Mount Grommets for 6" Oval Lights
- (4) 3-Prong LED Light Pigtails – 10"
- (1) Rectangular License Plate Light
- (1) Sealed ID Light Bar – 3 Red Lights
- (2) 2" Round Sealed LED Marker Lights – Red
- (2) 2" Round Sealed LED Marker Lights – Amber
- (4) Flush Mount Grommets for 2" Round Lights
- (4) 2-Pin Pigtails for 2–2.5" Round Lights – 6"
- (1) 7-Way Trailer Plug
- 3.6 Sections of 6-Way 14-Gauge Cable (per 10 ft)
Hydraulic System
- (1) 3.0 x 12 Dump Trailer Hydraulic Cylinder – Tie Rod
- (1) KTI Double Acting Hydraulic Pump – Power Up/Down with Remote
Safety & Hardware
- (2) Silver Safety Chains – 5/16" x 30" Forged (7.6K Capacity)
- (1) 12 Volt Trailer Breakaway Kit
Coupler & Jack
- (1) 12.5K A-Frame Cast Coupler – 2 5/16" Bulldog Style
- (1) Drop Leg Trailer Jack – 8000 / 7000 lb Side Wind
Blueprint
- (1) 18HT Car Hauler Master Plan Blueprint
Common Uses
This hydraulic tilt car hauler trailer build is ideal for:
- Vehicle transport trailers
- Car haulers
- Auto shop transport trailers
- Equipment transport trailers
Copyright Disclaimer
No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without prior written permission of the publisher, except for brief quotations used in reviews or non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.
Fast Shipping & Custom Axle Orders
Each kit is packaged to ensure compatibility and quick installation so you can complete your trailer build faster.
Need a Hydraulic Car Carrier Trailer DIY Master Plan or have questions about fitment? Call our trailer parts experts at (936) 289-3191 for personalized assistance.
