2220 - 6'6" x 20' Tandem Axle 12K Gooseneck Lowboy Trailer DIY Master Plan - 19 How-to Steps w/ Blueprint

  • DIY Trailer Plan - 2220 - Tandem Axle Gooseneck Trailer
  • 6'6" x 20' Tandem Axle 12K Gooseneck Lowboy Trailer Blueprint
  • 2220 - 6'6" x 20' Tandem Axle 12K Gooseneck Lowboy Trailer DIY Complete TK Trailer Kit
1 2

2220 - 6'6" x 20' Tandem Axle 12K Gooseneck Lowboy Trailer DIY Master Plan - 19 How-to Steps w/ Blueprint

2220 - 6'6" x 20' Tandem Axle 12K Gooseneck Lowboy Trailer DIY Master Plan - 19 How-to Steps w/ Blueprint

SKU : MP2220PAPER

Online price only

$124.99

Online price only

SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
53 Reviews
Shipping: Calculated at Checkout
Tax Exempt? Enter info in cart when you're done shopping.
Plan Type:
Kit Option:
OR
View full details
DIY Trailer Plan - 2220 - Tandem Axle Gooseneck Trailer
DIY Trailer Plan - 2220 - Tandem Axle Gooseneck Trailer

2220 - 6'6" x 20' Tandem Axle 12K Gooseneck Lowboy Trailer DIY Master Plan - 19 How-to Steps w/ Blueprint

2220 - 6'6" x 20' Tandem Axle 12K Gooseneck Lowboy Trailer DIY Master Plan - 19 How-to Steps w/ Blueprint

$124.99
SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
53 Reviews
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Difficulty Level: Intermediate

Specs:

  • Box Size: 20'x6'6"
  • Gross Capacity: 12,000 lbs
  • Empty Weight: 3200 lbs
  • Empty Tongue Weight: 840 lbs
  • Frame: Square Tube and Angle Steel
  • Deck: Wood or Steel
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

 Trailer parts kit specifically made for this plan is available in the option above.

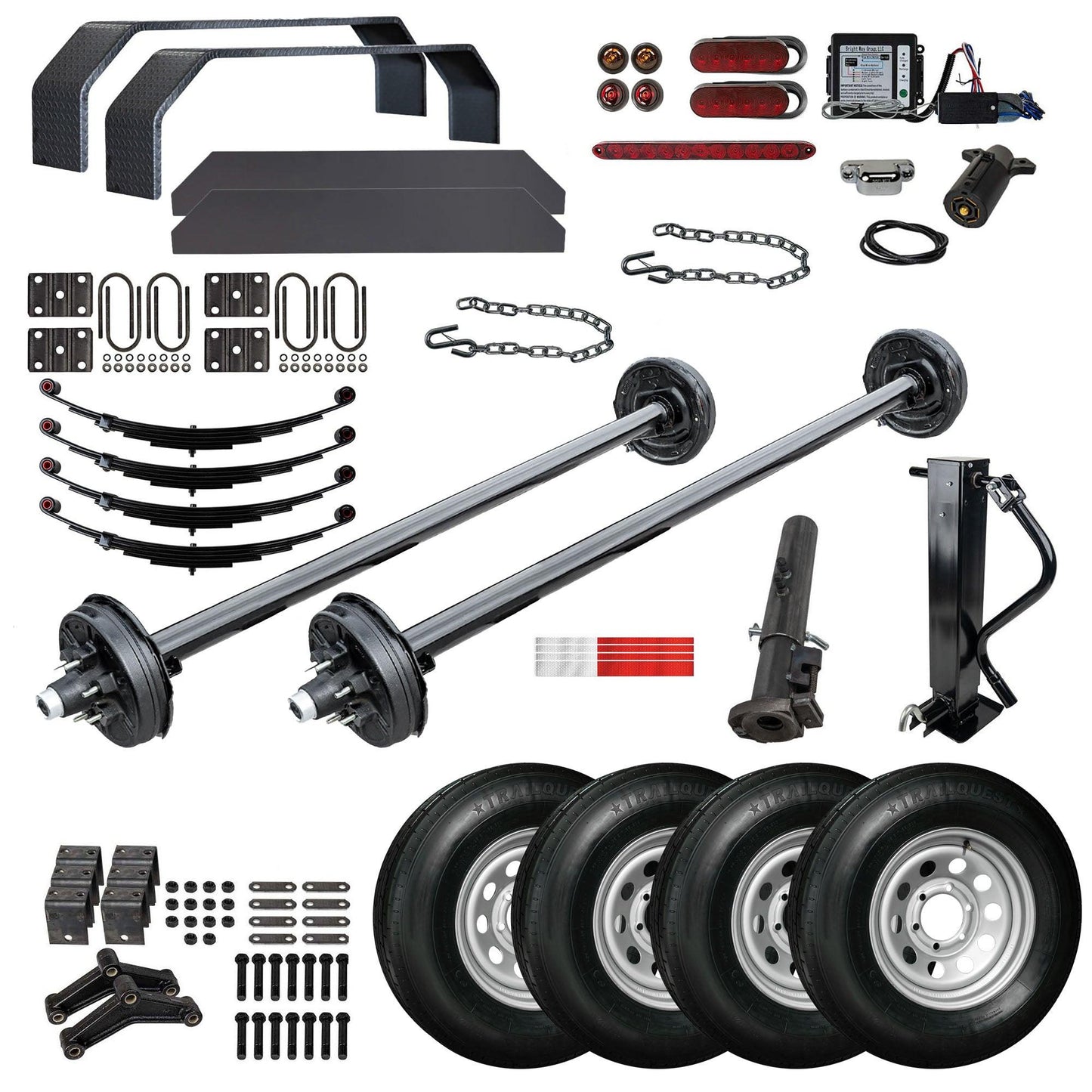

What's Included with Trailer Kit:

  • 2 - 6k Trailer Axle - 6000 lb Electric Brake 6 lug(93/76)
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
  • 4 - 16" 10 ply Radial TWA - ST 235/80 R16 6 lug (SM) TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Tandem Axle 10x72 Smooth Steel Rolled Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
  • 1 - 25k Gooseneck Coupler - 25000 lb Adjustable Round 2 5/16
  • 1 - 12k Drop Leg Side Pin Spring Loaded Jack w/Handle
  • 2 - Red 6in Oval LED S/T/T Light
  • 2 - Flush Mount Grommet For 6in Oval Lights
  • 2 - Pigtail for Led Lights -3 Prong 10"
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - 7 Way Plug
  • 2.4 - 6 way cable 14 gauge (per 10 foot)
  • 1 - License Plate Light-Rectangular
  • 2 - Silver Safety Chain-5/16 x 30"-Forged (7.6k Capacity)
  • 1 - 12 Volt Trailer Breakaway Kit
  • 2 -3/4" Valley Round Red Mini Side Marker Light
  • 2 -3/4" Valley Round Amber Mini Side Marker Light
  • 16 - 18" Strips Reflective DOT Tape
  • 1 - 2220 Gooseneck Lowboy Master Plan Blueprint
