24GT - Master Plan - 24' 10.4K or 14K Gravity Tilt Car Hauler

  • DIY Trailer Plan - 24GT - Gravity Tilt Car Hauler
  • 24' 10.4K or 14K Gravity Tilt Car Hauler Blueprint
1 2

24GT - Master Plan - 24' 10.4K or 14K Gravity Tilt Car Hauler

24GT - Master Plan - 24' 10.4K or 14K Gravity Tilt Car Hauler

SKU : MP24GTPAPER

Online price only

$124.99

Online price only

SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
53 Reviews
Shipping: Calculated at Checkout
Tax Exempt? Enter info in cart when you're done shopping.
Plan Type:
Kit Option:
OR
View full details
DIY Trailer Plan - 24GT - Gravity Tilt Car Hauler
DIY Trailer Plan - 24GT - Gravity Tilt Car Hauler

24GT - Master Plan - 24' 10.4K or 14K Gravity Tilt Car Hauler

24GT - Master Plan - 24' 10.4K or 14K Gravity Tilt Car Hauler

$124.99
SAVE 0% (833) 910-3416
4.2
Rated 4.2 out of 5 stars
53 Reviews
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

  • 24' long
  • Gross Capacity: 10,400 or 14,000 lbs
  • Gravity Tilt
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

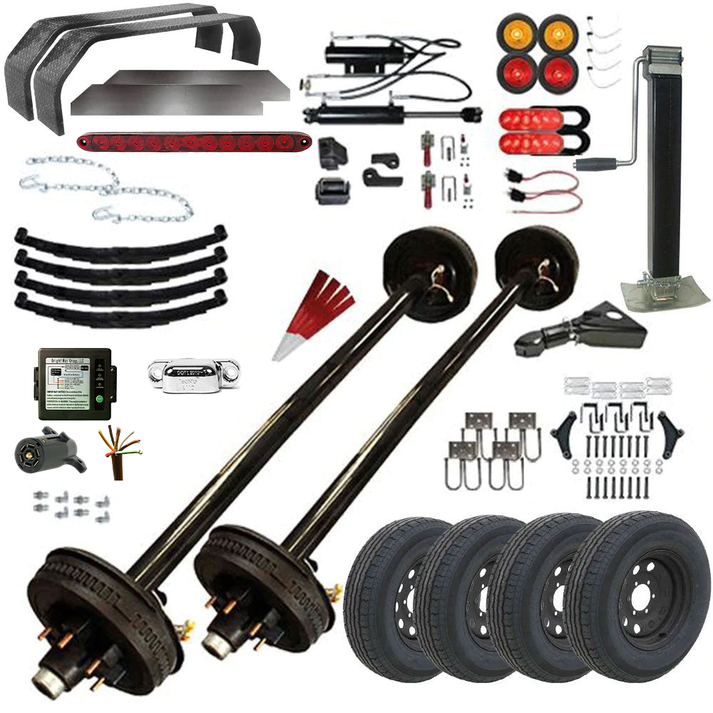

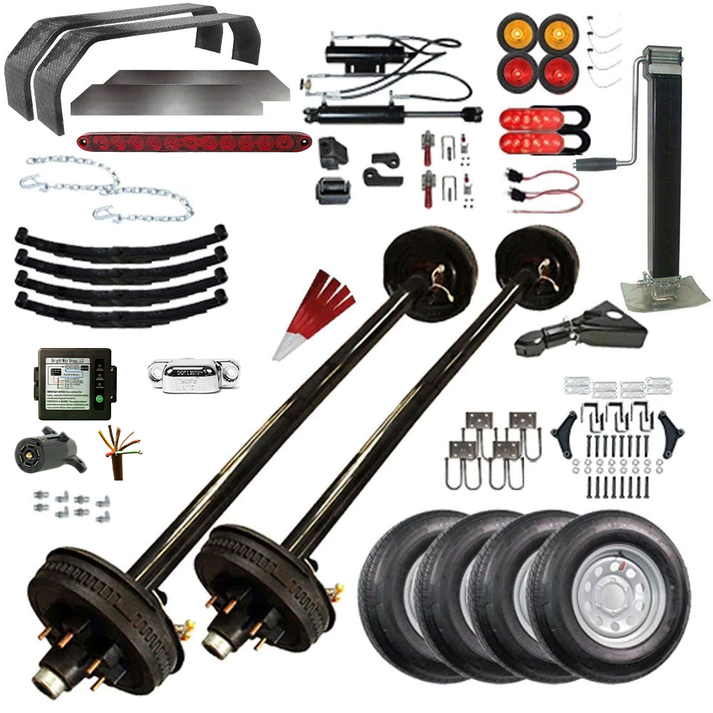

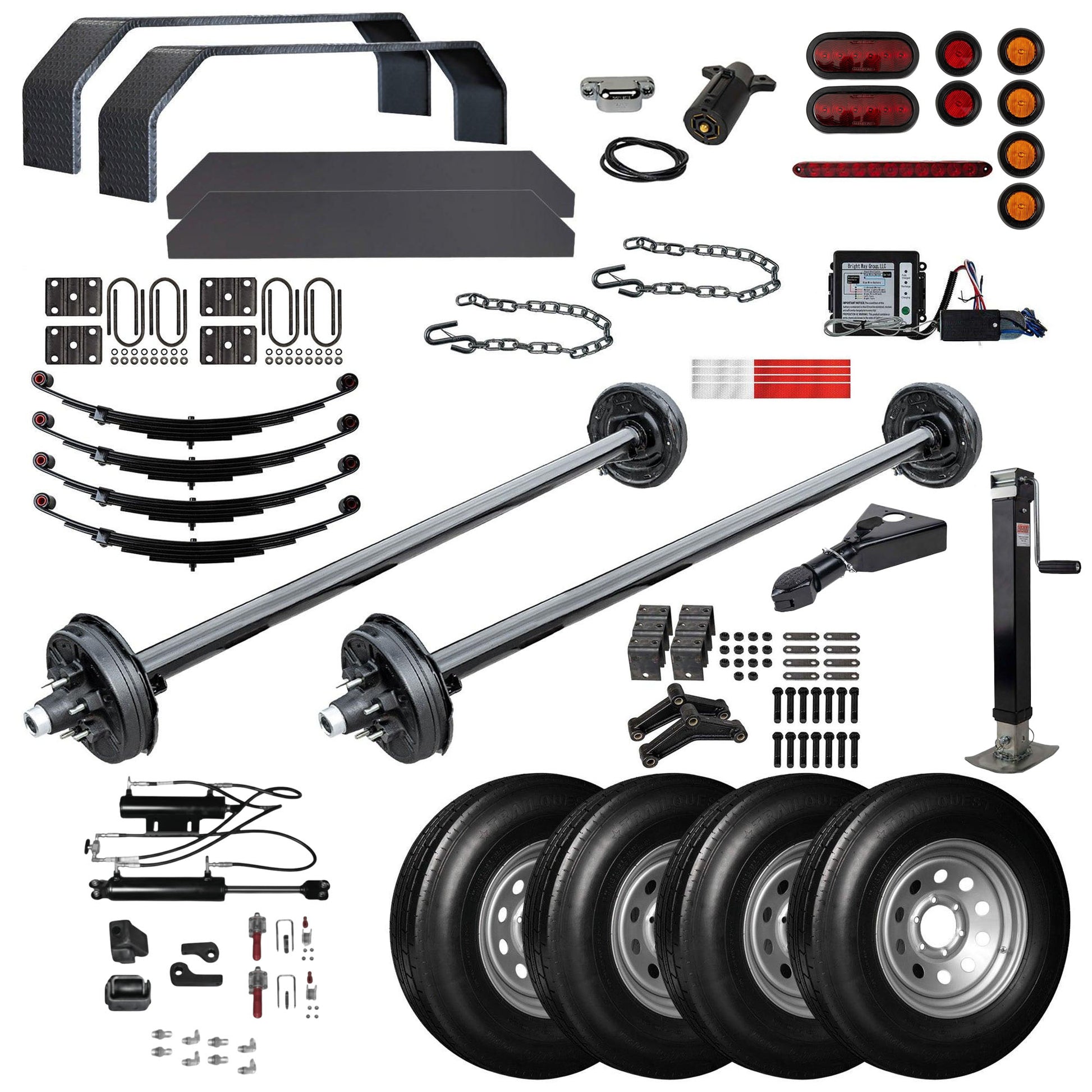

What's Included with 10.4K Trailer Kit:

  • 2 - 5k 5.2k Trailer Axle - 5000 5200 lb Electric Brake 6 lug (95/80)
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2" Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
  • 4 - 15" 10 ply Radial TWA - ST 225/75R15 6x5.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Tandem Axle 9x72 Steel Teardrop Diamond Plate Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
  • 2 - Red 6in Oval LED S/T/T Light
  • 2 - Flush Mount Grommet For 6in Oval Lights
  • 2 - Pigtail for Led Lights -3 Prong 10"
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 2 - 2" Round Sealed LED Marker/Clearance Lights - Red
  • 4 - 2" Round Sealed LED Marker/Clearance Lights - Amber
  • 6 - Flush Mount Grommet For 2in Round Lights
  • 6 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 1 - 7 Way Plug
  • 3.6 - 6 way cable 14 gauge (per 10 foot)
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 14 - Reflective DOT Tape - 18" Strips
  • 1 - Gravity Tilt Deck Kit - 3x10 Cylinder
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - 12.5K A-Frame Cast Coupler-12.5k 2 5/16" Bulldog Style
  • 1 - Drop Leg 8K 7K Trailer Jack - 8000 7000 lb Side Wind
  • 1 - 24GT Gravity Tilt Master Plan Blueprint

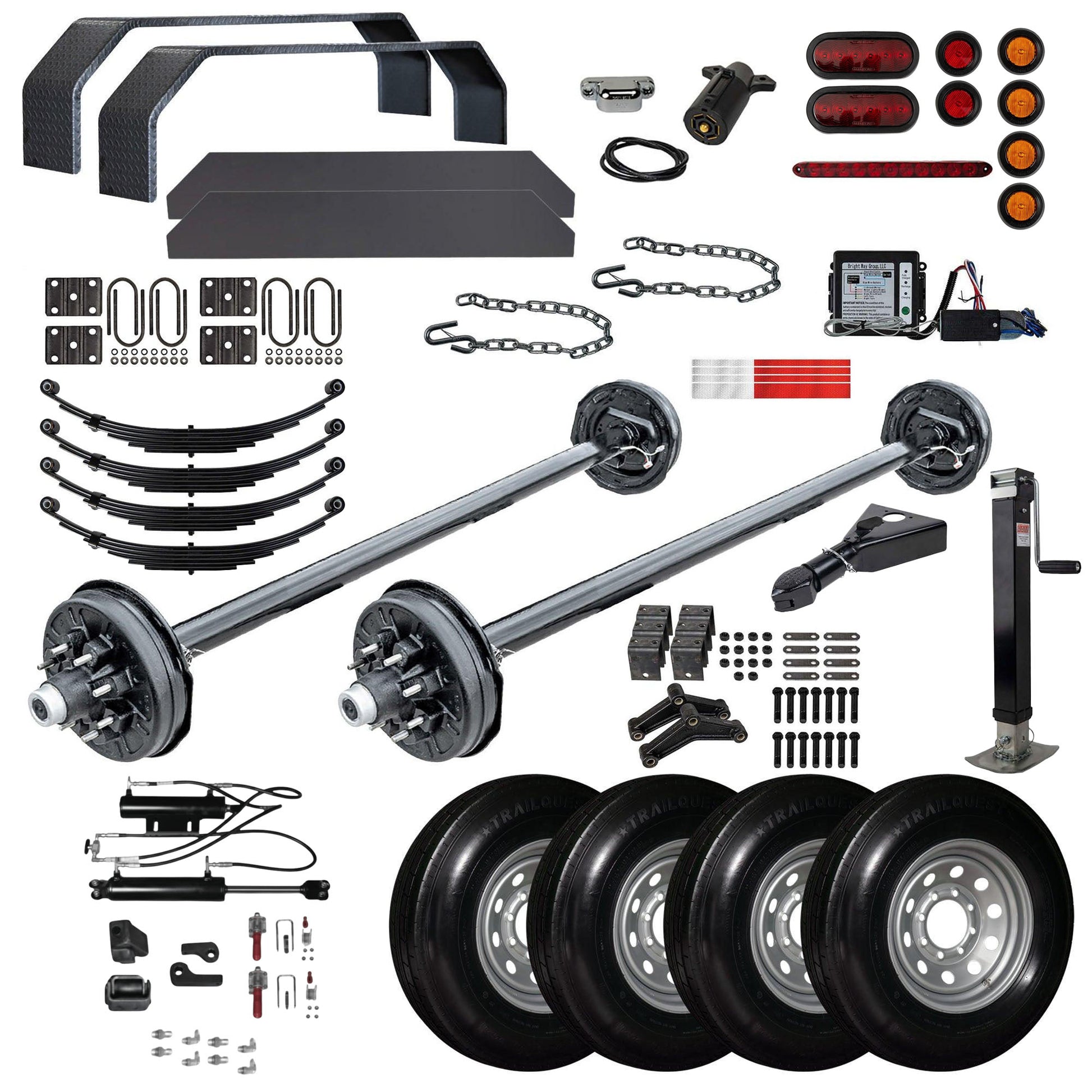

What's Included with 14K Trailer Kit:

  • 2 - 7k Trailer Axle-7000lb Electric Brake 8x6.5 1/2 (95/80)
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 6 Leaf Trailer Double Eye Spring for 7000 lb Axles
  • 4 - 16" 10 ply Radial TWA - ST 235/80R16 - 8 lug TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Tandem Axle 9x72 Steel Teardrop Diamond Plate Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
  • 2 - Red 6in Oval LED S/T/T Light
  • 2 - Flush Mount Grommet For 6in Oval Lights
  • 2 - Pigtail for Led Lights -3 Prong 10"
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 2 - 2" Round Sealed LED Marker/Clearance Lights - Red
  • 4 - 2" Round Sealed LED Marker/Clearance Lights - Amber
  • 6 - Flush Mount Grommet For 2in Round Lights
  • 6 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 1 - 7 Way Plug
  • 3.6 - 6 way cable 14 gauge (per 10 foot)
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 14 - Reflective DOT Tape - 18" Strips
  • 1 - Gravity Tilt Deck Kit - 3x10 Cylinder
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - 12.5K A-Frame Cast Coupler-12.5k 2 5/16" Bulldog Style
  • 1 - Drop Leg 8K 7K Trailer Jack - 8000 7000 lb Side Wind
  • 1 - 24GT Gravity Tilt Master Plan Blueprint
