DIY Trailer Plan - 26XT - Tandem Axle Gooseneck Trailer
DIY Trailer Plan - 26XT - Tandem Axle Gooseneck Trailer

26XT - 26'x102" Tandem Axle Gooseneck Trailer DIY Master Plan ...

26XT - 26'x102" Tandem Axle Gooseneck Trailer DIY Master Plan - 20 How-to Steps

Regular price $99.99
SAVE -100% (833) 910-3416
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Specs:

  • Bed Size: 26'x102"
  • Gross Capacity: 14,000 lbs
  • Empty Weight: 4150 lbs
  • Empty Tongue Weight: 1730 lbs
  • Frame: Rectangular Tube and Channel
  • Deck: Diamond Plate or Wood
  • 82" Clearance between the fenders
  • Deck at 102" in front and rear of the fenders
  • Heavy duty fenders
  • Adjustable coupler
  • Dual side wind jacks
  • Ramps with rear storage pockets
  • Chain pockets with heavy rails along each side
  • **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

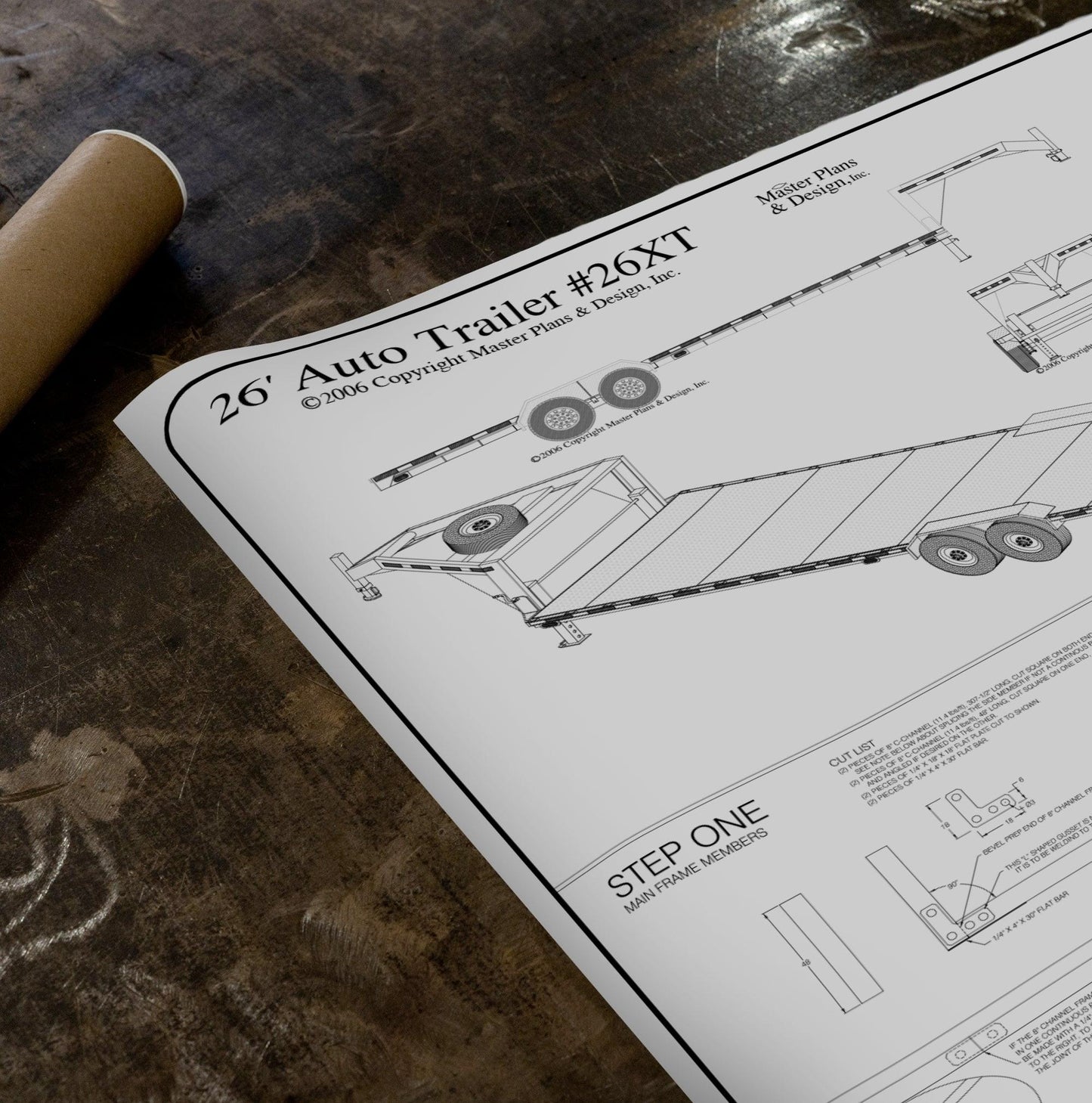

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

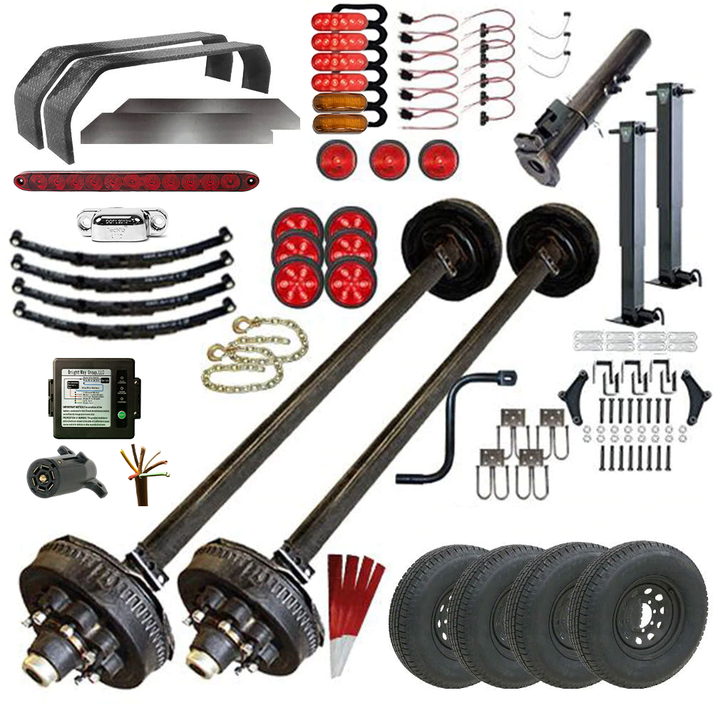

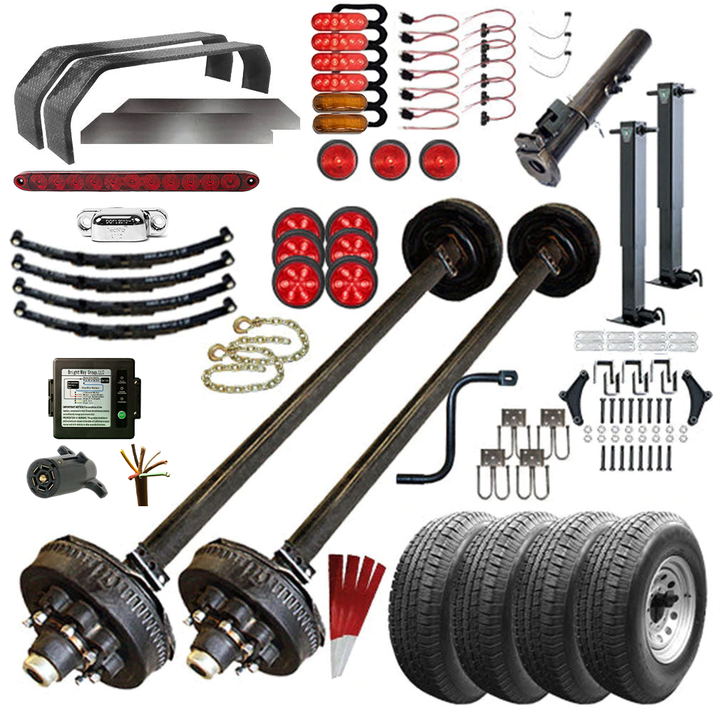

What's Included with Trailer Kit:

  • 2 - 7k Trailer Axle-7000lb Electric Brake 8x6.5 1/2 (95/80)
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 6 Leaf Trailer Double Eye Spring for 7000 lb Axles
  • 4 - 16" 10 ply Radial TWA - ST 235/80R16 - 8 lug (SM) TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 2 - Tandem Axle 9x72 Steel Diamond Plate Double Broke Fender
  • 2 - Tandem Axle 9x72 Smooth Double Broke Fender Back
  • 1 - 25k Gooseneck Coupler - 25000 lb Adjustable Round 2 5/16
  • 2 - 12k Drop Leg Side Pin Spring Loaded Jack w/Handle
  • 6 - 4" Round Sealed LED S/T/T Light-Red-7 Diodes-STL13RKB
  • 6 - Flush Mount Grommet For 4in Round Lights
  • 6 - Pigtail for Led Lights -3 Prong 10" Right Angle
  • 2 - Red 6in Oval LED S/T/T Light
  • 4 - Amber 6" Oval LED S/T/T Light
  • 6 - Flush Mount Grommet For 6in Oval Lights
  • 6 - Pigtail for Led Lights -3 Prong 10"
  • 1 - License Plate Light-Rectangular
  • 3 - 2" Round Sealed LED Marker/Clearance Lights - Red
  • 3 - Flush Mount Grommet For 2in Round Lights
  • 3 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 1 - 7 Way Plug
  • 40' (feet) - 6 way cable 14 gauge
  • 2 - Safety Chain- 3/8 x 39" w/1 Clevis Hook (27.4k Capacity)
  • 16 - Reflective DOT Tape - 18" Strips
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - 26XT Gooseneck Trailer Master Plan Blueprint
