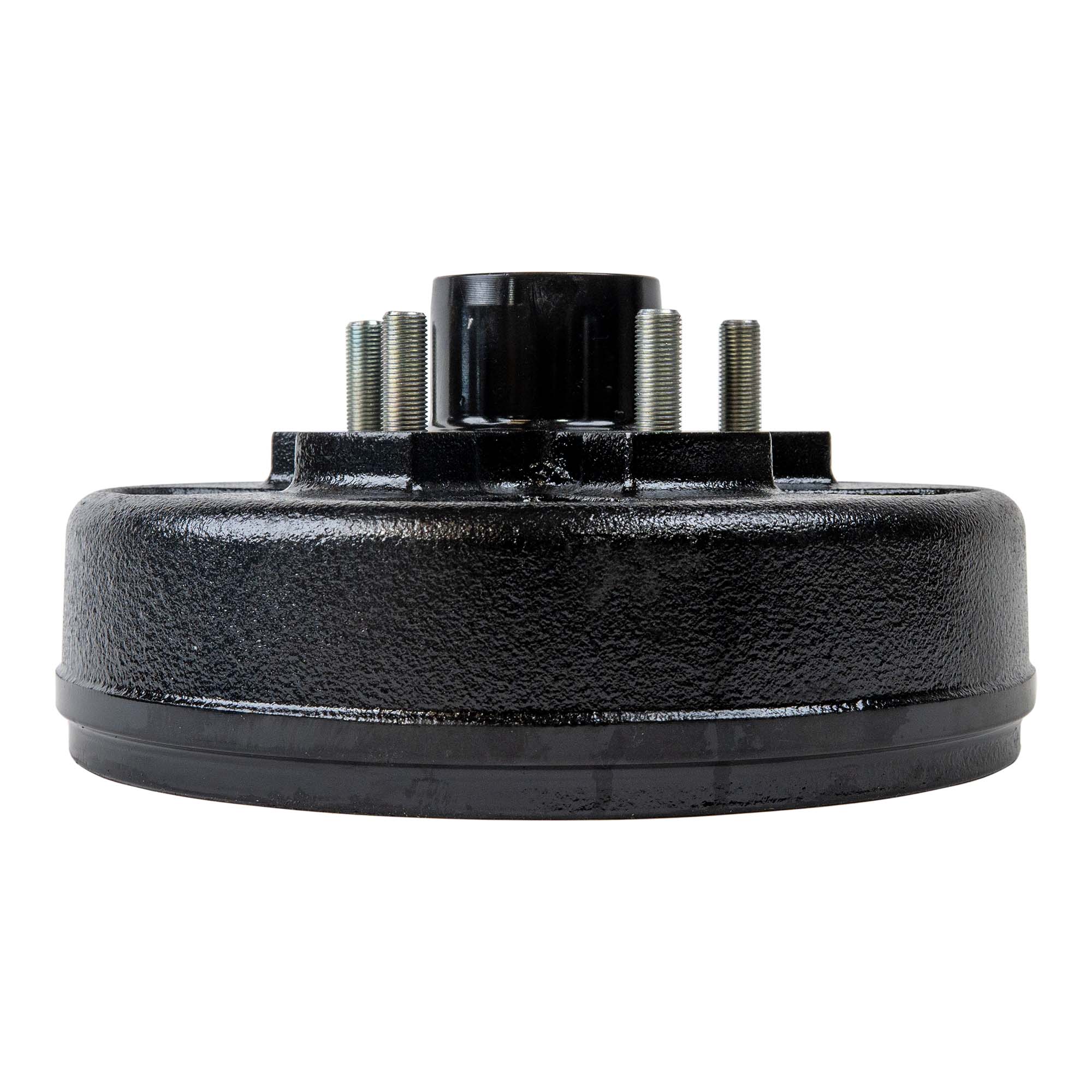

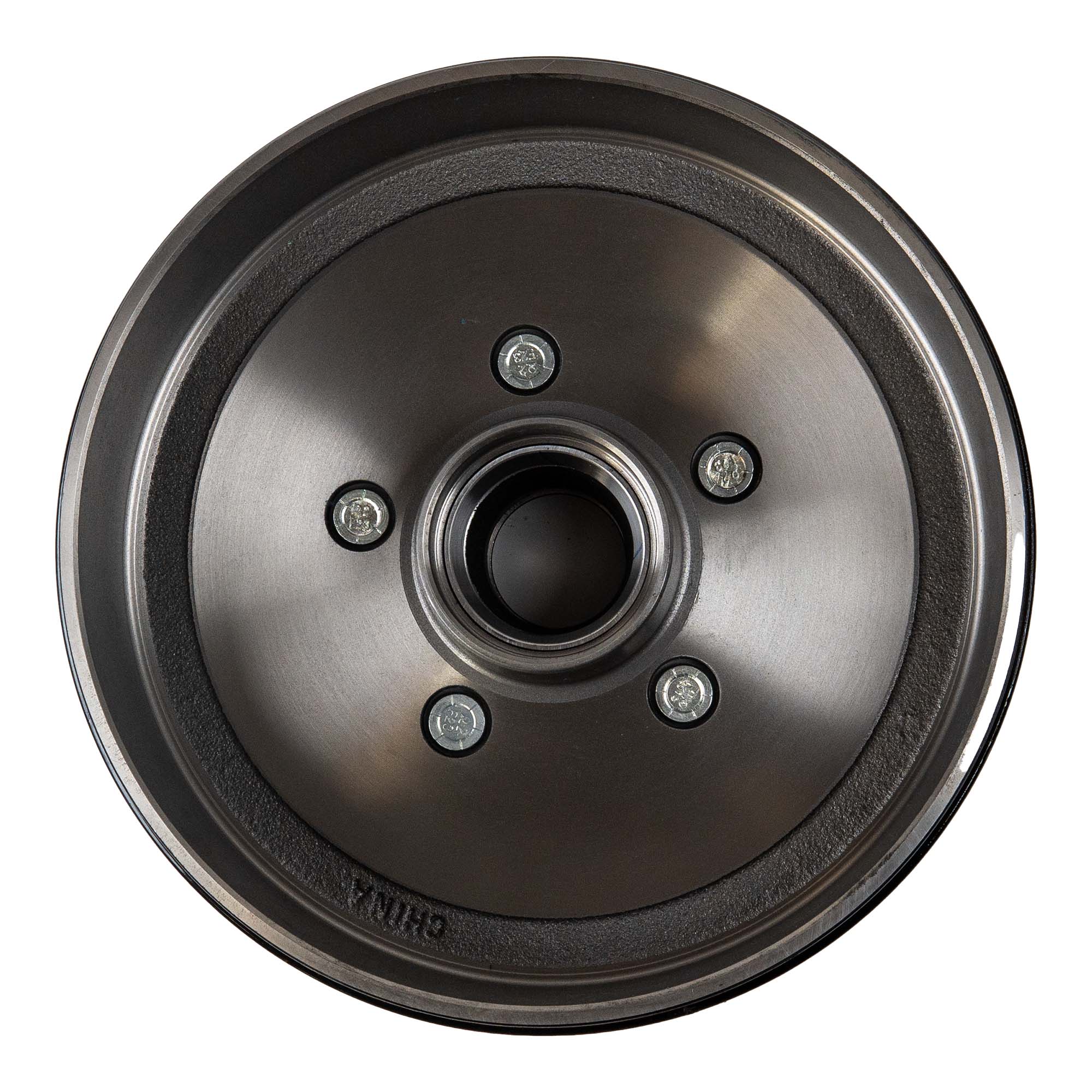

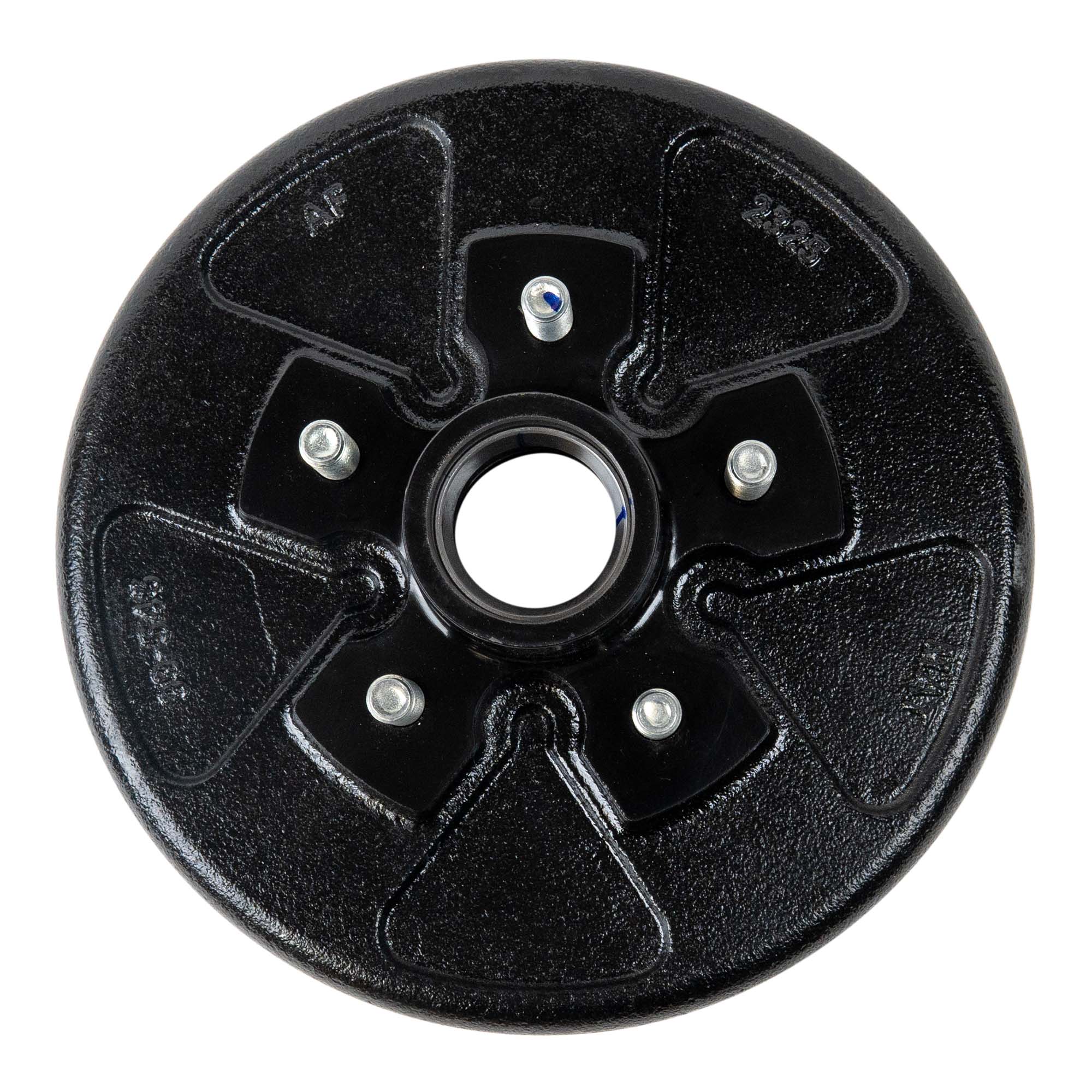

3.5k Trailer Axle Hub and Drum - 5 lug

Name: 3.5k Trailer Axle Hub and Drum - 5 lug
Brand: The Trailer Parts Outlet
Price: 44.99 USD
Availability: InStock
Rating: 4.5 (92 reviews)

1 5

3.5k Trailer Axle Hub and Drum - 5 lug

SKU : 35HUBDRUM545BARETK

Online price only

$44.99

Online price only

SAVE 0% (833) 910-3416

4.5

Rated 4.5 out of 5 stars

92 Reviews

Shipping: Calculated at Checkout

Drum Options: Variant image

Drum

Drum Assembly with Grease

Upgrade to TK Service Kit

Half Crate (40 pc)

Crate (80 pc)

Bolt Pattern: 5x4.5 5x5

Product variants

Quantity

Tax Exempt? Enter info in cart when you're done shopping.

View full details

Product Information
Reviews

This hub/drum is compatible with - 3.5k TK Trailer Axle - 3500 lb Electric Brake 5 lug

Hub/Drum Only Specs:

1 - 3.5k Hub/Drum Only - 5x4.5 or 5x5 Bolt Pattern
1 - L44610 Outer Race (Pre-Pressed In Hub/Drum)
1 - L68111 Inner Race (Pre-Pressed In Hub/Drum)
Uses L68149 & L44649 bearings (sold separately)
1,750 lb Capacity Per Hub
Use with a 10" x 2-1/4" brake

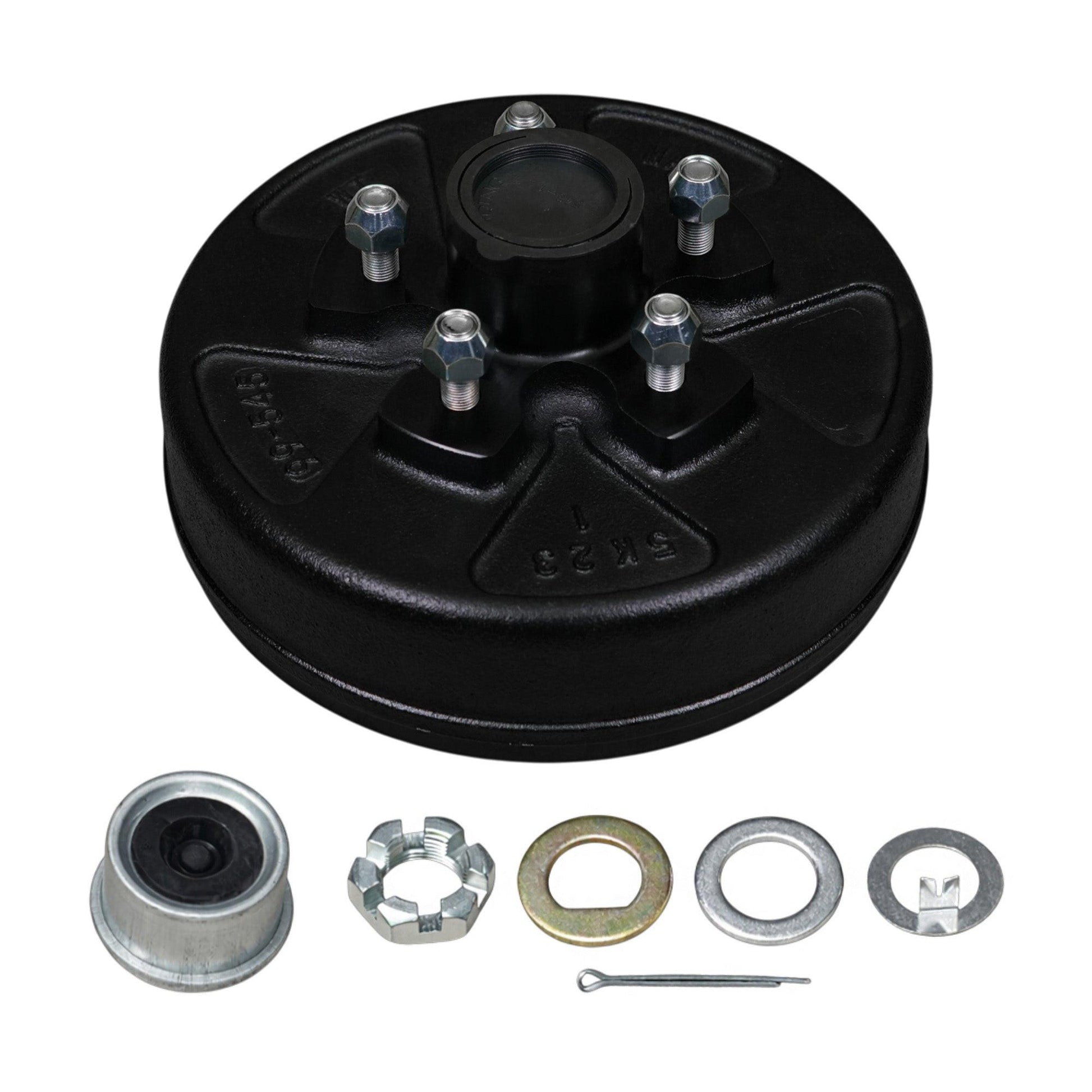

Hub/Drum Assembly Specs:

1 - 3.5k Hub/Drum Only - 5x4.5 or 5x5 Bolt Pattern
1 - 3,500 lb Trailer Axle Bearing Kit
- 1 - L68111 Inner Race 2.362" OD (Pre-Pressed In Hub/Drum)
- 1 - L44610 Outer Race 1.98" OD (Pre-Pressed In Hub/Drum)
- 1 - L44649 Outer Bearing 1.063" ID
- 1 - L68149 Inner Bearing 1.378" ID
- 1 - 10-19 3500 lb Grease Seal 1.719" ID 2.565" OD
- 1 - 3,500 lb Grease Cap with Plug
- 1 - Cotter Pin
- 1 - Spindle Nut Retainer
1 - Grease Tub (1 lb)
5 - Cone Wheel Lug Nuts

TK Service Kit Specs:

2 - 3.5k Hub/Drum Only - 5x4.5 or 5x5 Bolt Pattern
2 - 3,500 lb Trailer Axle Bearing Kit
- 2 - L68111 Inner Race 2.362" OD (Pre-Pressed In Hub)
- 2 - L44610 Outer Race 1.98" OD (Pre-Pressed In Hub)
- 2 - L44649 Outer Bearing 1.063" ID
- 2 - L68149 Inner Bearing 1.378" ID
- 2 - 10-19 3500 lb Grease Seal 1.719" ID 2.565" OD
- 2 - 3,500 lb Grease Cap with Plug
- 2 - Cotter Pin
- 2 - Spindle Nut Retainer
1 - Left Hand (Driver Side) 10"x2.25" Electric Brake Assembly - (Self-Adjusting)
1 - Right Hand (Passenger Side) 10"x2.25" Electric Brake Assembly - (Self-Adjusting)
1 - Grease Tub (1 lb)
8 - Brake Mounting Nuts
10 - Cone Wheel Lug Nuts

Bulk Hub/Drum Specs:

40 - 3.5k Hub/Drum Only - 5x4.5 or 5x5 Bolt Pattern
40 - L68111 Inner Race 2.362" OD (Pre-Pressed In Hub)
40 - L44610 Outer Race 1.98" OD (Pre-Pressed In Hub)

Crate Hub/Drum Specs:

80 - 3.5k Hub/Drum Only - 5x4.5 or 5x5 Bolt Pattern
80 - L68111 Inner Race 2.362" OD (Pre-Pressed In Hub)
80 - L44610 Outer Race 1.98" OD (Pre-Pressed In Hub)

This 3.5K trailer axle hub and drum assembly features a 5-lug configuration and is compatible with a #84 spindle. It's a great choice for a number of light-duty trailer types, so if you're building or repairing a trailer for your business, then consider this assembly as an ideal option. At TK Trailer Parts, it is our mission to make sure every customer can find the parts they need at prices that fit their budget. Contact us today with any questions you may have, and order your new 3.5K axle hub and drum assembly from our online catalog now!

Features:

10" x 2-1/4" Hub & Drum with 5 on 4.5" Bolt Pattern For 3,500lb Axles
Hub & drum comes with races pre-pressed for your convenience
This hub & drum uses #84 spindle (sold separately)
Each hub has a 1,750 lb capacity
The bearings, grease seal, grease cap, wheel nuts, spindle nut, and spindle washer sold separately
Kit with hardware is available

This hub/drum is compatible with - 3.5k TK Trailer Axle - 3500 lb Electric Brake 5 lug
