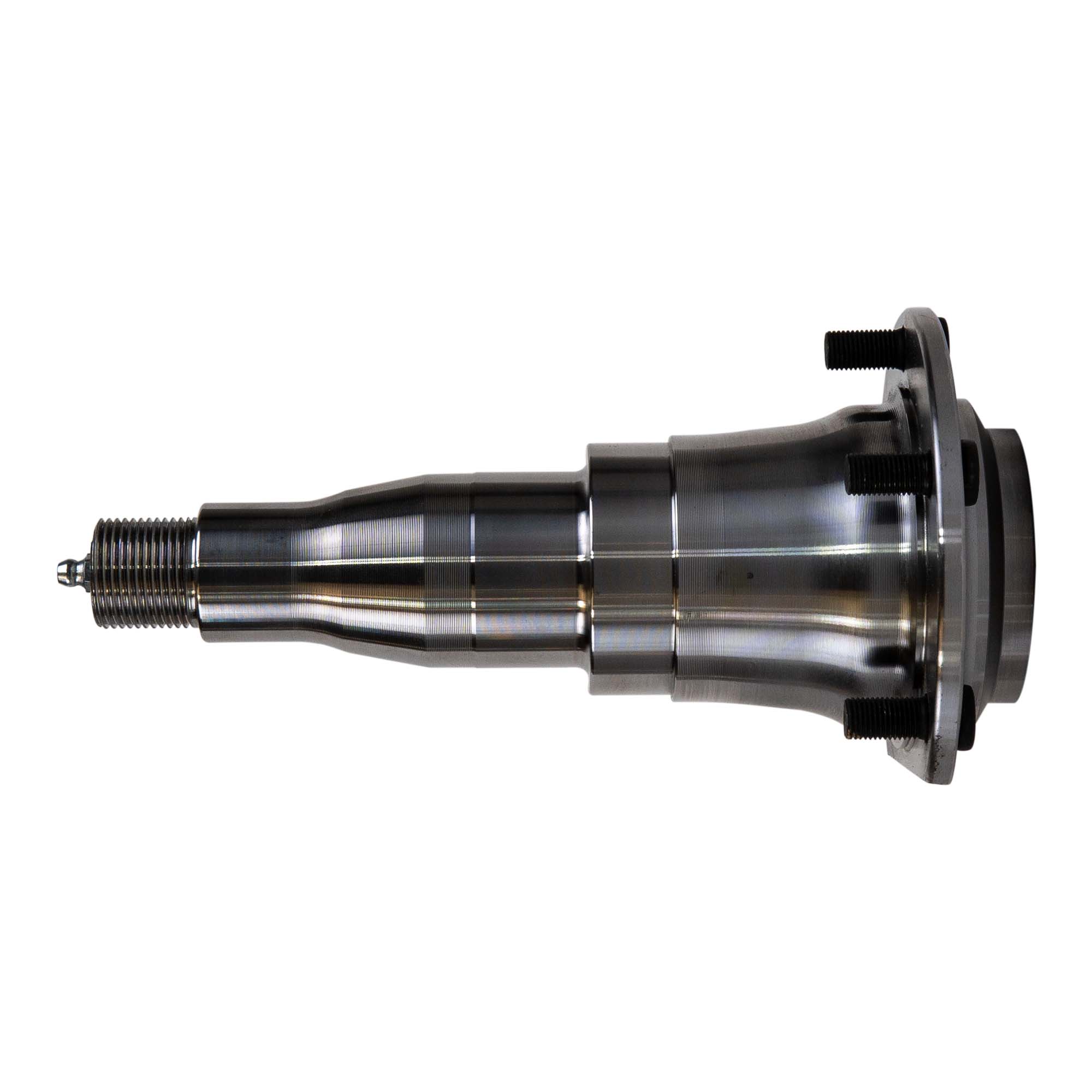

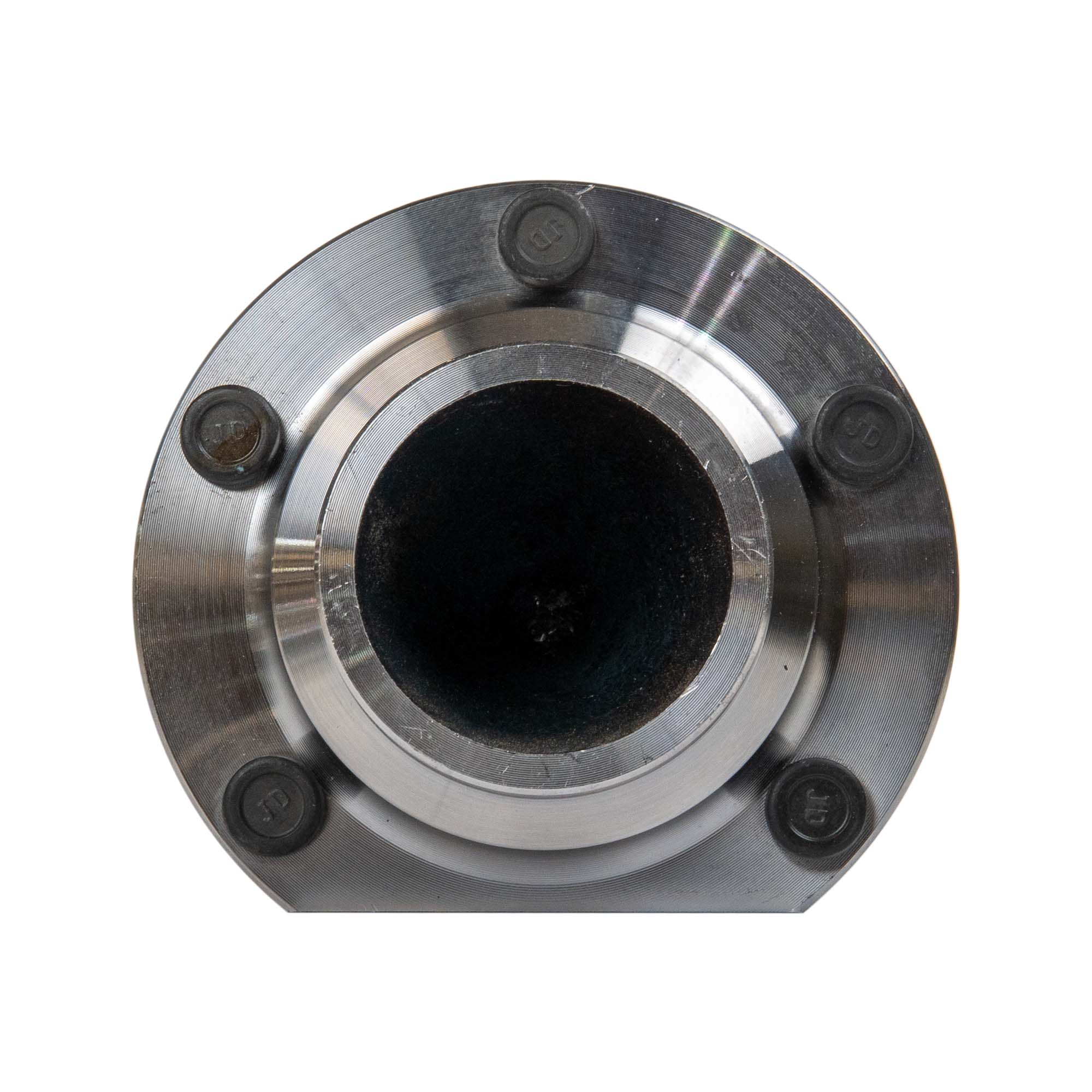

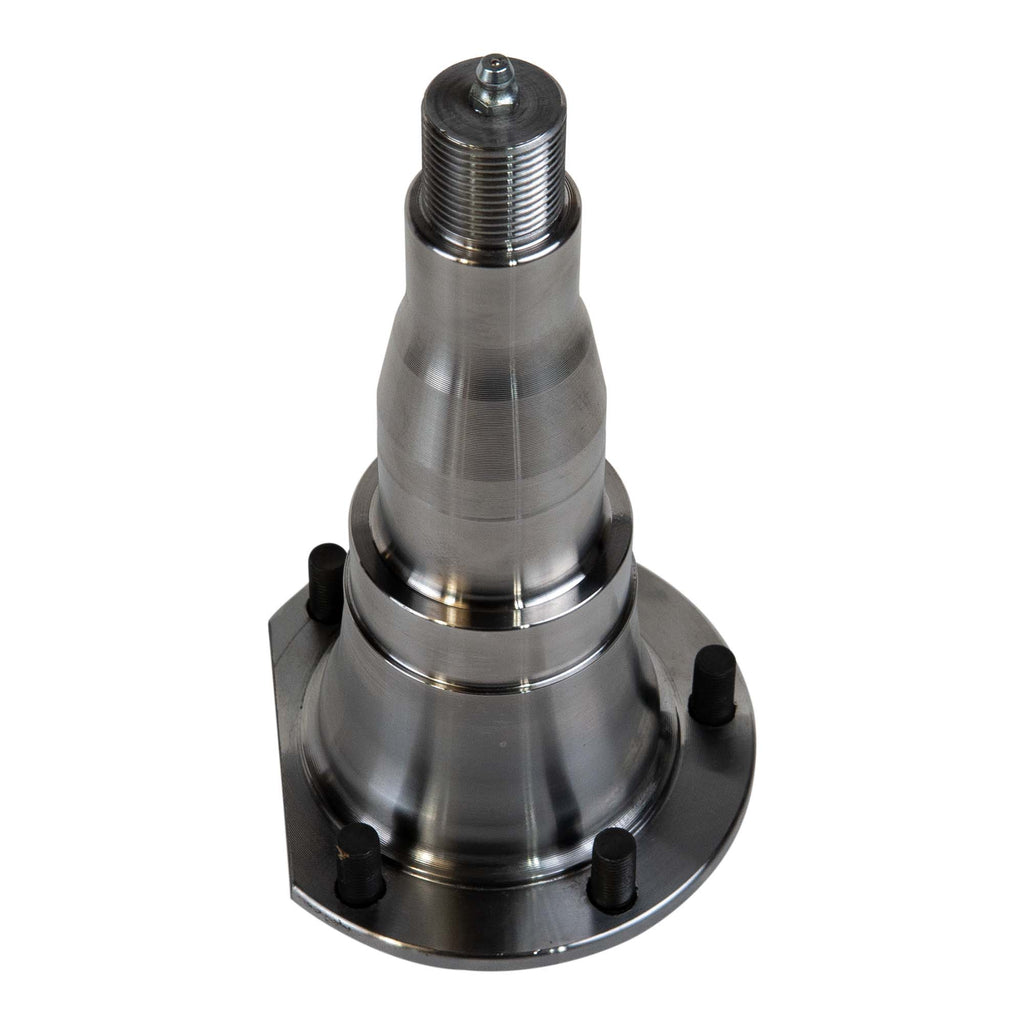

#42 Weld-On Spindle With Flange for 7000 lb Trailer Axles - 2 1/4" Diameter

Skip to product information
1 of 3

#42 Weld-On Spindle With Flange for 7000 lb Trailer Axles - 2 1/4" Diameter

#42 Weld-On Spindle With Flange for 7000 lb Trailer Axles - 2 1/4" Diameter

SKU : 07SPINDLE-42
Regular price $35.99
SAVE 0% (833) 910-3416
2.0
Rated 2.0 out of 5 stars
3 Reviews
Kit Options:
OR
View full details
#42 Weld-On Spindle With Flange for 7000 lb Trailer Axles - 2 1/4" Diameter
#42 Weld-On Spindle With Flange for 7000 lb Trailer Axles - 2 1/4" Diameter

#42 Weld-On Spindle With Flange for 7000 lb Trailer Axles - 2 1/4" Diameter

#42 Weld-On Spindle With Flange for 7000 lb Trailer Axles - 2 1/4" Diameter

  • Product Information
  • Reviews

Spindle Only Specs:

  • 1 - 7,000 lb Weld-On Spindle
  • Application: 7k trailer axles
  • Spindle capacity: 3,500 lb
  • Overall spindle length: 8.5"

Spindle Pair Specs:

  • 2 - 7,000 lb Weld-On Spindle
  • Application: 7k trailer axles
  • Spindle capacity: 3,500 lb
  • Overall spindle length: 8.5"

Spindle Kit Specs:

  • 1 - 7,000 lb Weld-On Spindle
  • 1 - 7K (7000 lb Capacity) Bearing Kit
    • 1 - 14276 Outer Race 2.717" OD
    • 1 - 25520 Inner Race 3.265" OD
    • 1 - 25580 Inner Bearing 1.750" ID
    • 1 - 14125A Outer Bearing 1.25" ID
    • 1 - 10-36 Grease Seal 3.376" OD 2.250" ID
    • 1 - 7,000 lb Grease Cap with Plug
    • 1 - Cotter Pin
  • 1 - Spindle Washer
  • 1 - Spindle Nut

Spindle Kit Pair Specs:

  • 2 - 7,000 lb Weld-On Spindle
  • 2 - 7K (7000 lb Capacity) Bearing Kit
    • 2 - 14276 Outer Race 2.717" OD
    • 2 - 25520 Inner Race 3.265" OD
    • 2 - 25580 Inner Bearing 1.750" ID
    • 2 - 14125A Outer Bearing 1.25" ID
    • 2 - 10-36 Grease Seal 3.376" OD 2.250" ID
    • 2 - 7,000 lb Grease Cap with Plug
    • 2 - Cotter Pin
  • 2 - Spindle Washer
  • 2 - Spindle Nut

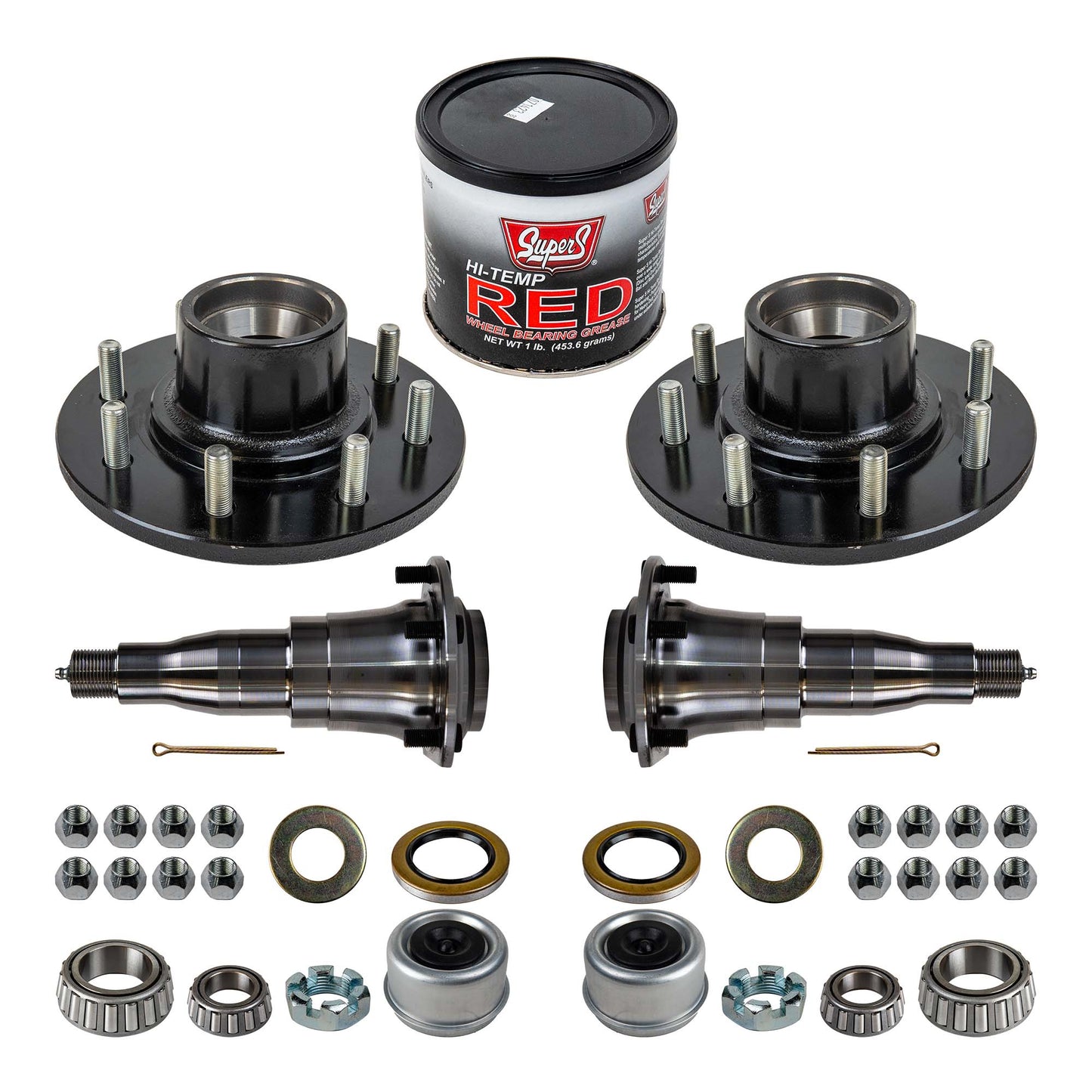

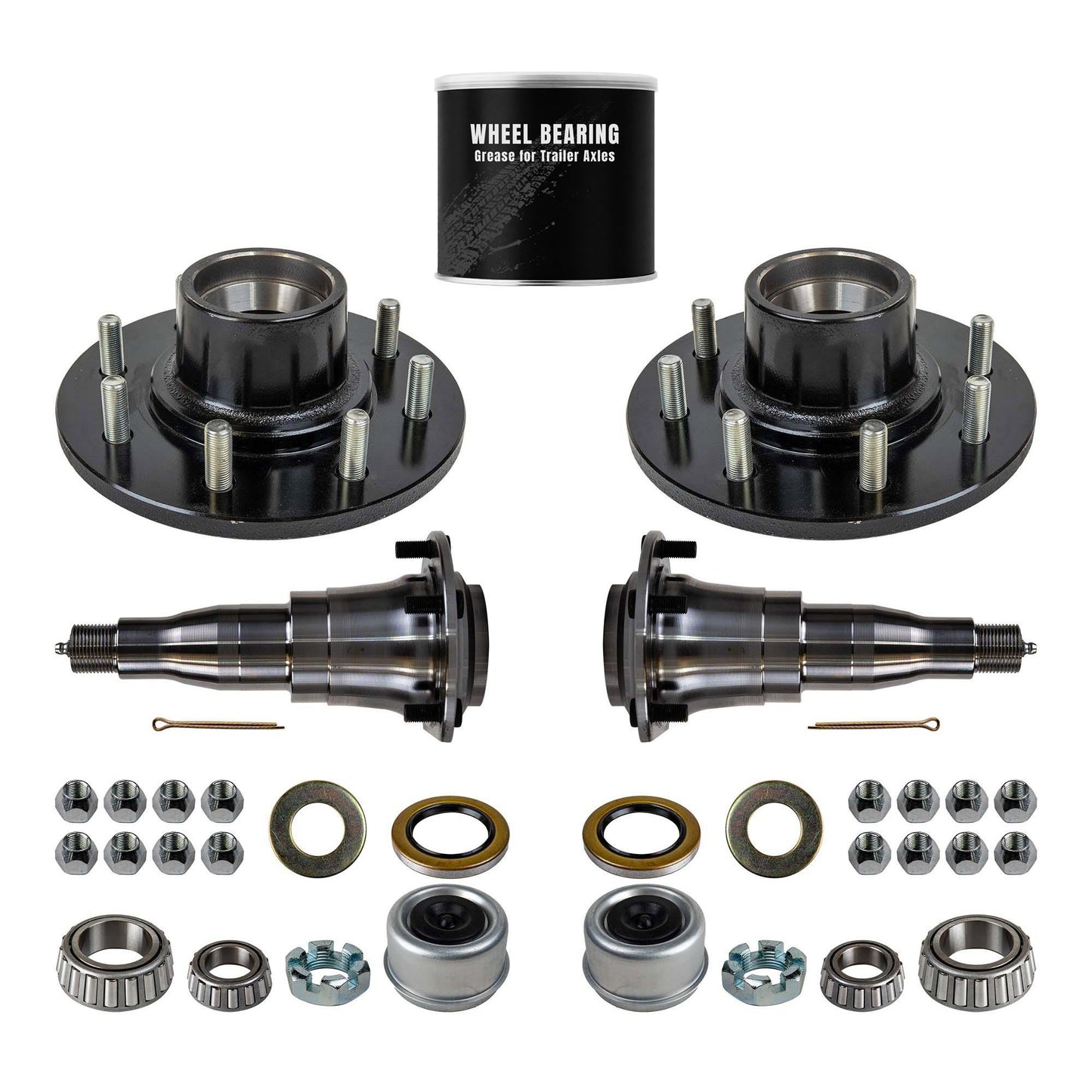

Weld Your Own Idler Axle Kit Specs:

  • 2 - 7,000 lb Weld-On Spindle
  • 2 - 7k Idler Hub 8x6.5 Bolt Pattern
  • 2 - 7K (7000 lb Capacity) Bearing Kit
    • 2 - 14276 Outer Race 2.717" OD (Pre-Pressed In Hub)
    • 2 - 25520 Inner Race 3.265" OD (Pre-Pressed In Hub)
    • 2 - 25580 Inner Bearing 1.750" ID
    • 2 - 14125A Outer Bearing 1.25" ID
    • 2 - 10-36 Grease Seal 3.376" OD 2.250" ID
    • 2 - 7,000 lb Grease Cap with Plug
    • 2 - Cotter Pin
  • 2 - Spindle Washer
  • 2 - Spindle Nut
  • 16 - Cone Wheel Lug Nuts
  • 1 - Grease Tub (1 lb)

Weld Your Own Brake Axle Kit Specs:

This 7K trailer axle spindle is designed for Dexter, TK, and Rockwell American axles. It can provide the fit that you need to get your trailer back on the road. It's high-quality construction helps it stand up to daily wear and tear, so no matter where your next job takes you, you can feel confident that your spindle will keep your trailer rolling.

Features:

2.0
Rated 2.0 out of 5 stars
Based on 3 reviews
Total 5 star reviews: 0 Total 4 star reviews: 0 Total 3 star reviews: 0 Total 2 star reviews: 3 Total 1 star reviews: 0
0%would recommend this product
3 reviews
  • CO
    Chad O.
    Flag of Canada
    Verified Buyer
    3 months ago
    Rated 2 out of 5 stars
    Don't waste your money

    Ordered a spindle and hub assembly. Got the order and found the following issues. The spindle being a grease through style was not made properly. The spindle nut end is supposed to be in a D shape with offset Cotter pin hole and grease nipple in the end. The nipple and Cotter pin hole was correct but it was not cut into a D shape. This also means the nut retainer clip does not fit because of this. The Cotter pin was the wrong size as well. The spindle nut was also missing. While I was able to make this work with a grinder and purchasing new parts it was a pain to do. Calling customer support... Yea that's a lesson in ...we dont believe you so send us pictures of everything. Won't ever purchase from there again.

    The Trailer Parts Outlet
    3 months ago

    Good afternoon Chad,
    PEr our policy we do request pictures of anything damages or incorrect items that you received. One of our customer service reps was trying to help when she requested pictures. We havent received the pictures to make this order right and she has tried to reach out to you. We are more then happy to help make this situation right.

  • N
    Nick
    9 months ago
    Rated 2 out of 5 stars
    2 Stars

    Arrived Damaged. Spindles gauged. Thrown in a box without any protection from rolling around.

  • N
    Nick
    9 months ago
    Rated 2 out of 5 stars
    2 Stars

    Arrived Damaged. Spindles gauged. Thrown in a box without any protection from rolling around.
