Spindle Only Specs:

• 1 - 8,000 lb Weld-On Spindle
• Application: 8k trailer axles
• Spindle capacity: 4,000 lb
• Overall spindle length: 10.9"

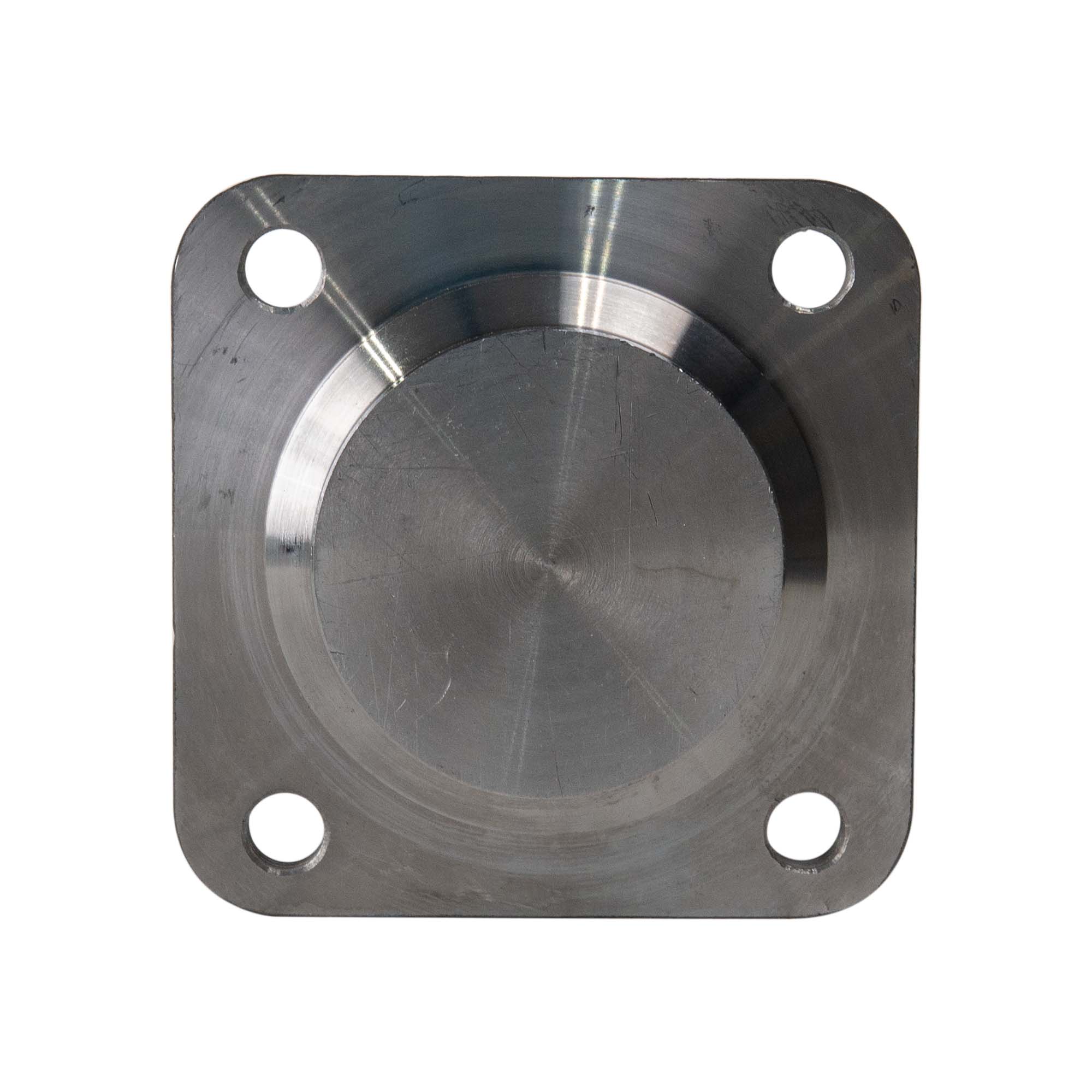

• Integrated 4 Bolt Flange
• Cotter Hole

Spindle Pair Specs:

• 2 - 8,000 lb Weld-On Spindle
• Application: 8k trailer axles
• Spindle capacity: 4,000 lb
• Overall spindle length: 10.9"
• Integrated 4 Bolt Flange
• Cotter Hole


Spindle Kit Specs:

• 1 - 8,000 lb Weld-On Spindle
• 1 - 8K (8000 lb Capacity) Bearing Kit
  • 1 - 02420 Outer Race 2.688" OD
  • 1 - 25520 Inner Race 3.265" OD
  • 1 - 25580 Inner Bearing 1.750" ID
  • 1 - 02475 Outer Bearing 1.250" ID
  • 1 - 10-36 Grease Seal 3.376" OD 2.250" ID
  • 1 - 8,000 lb Grease Cap with Plug

  • 1 - Cotter Pin

• 1 - Spindle Nut

Spindle Kit Pair Specs:

• 2 - 8,000 lb Weld-On Spindle
• 2 - 8K (8000 lb Capacity) Bearing Kit
  • 2 - 02420 Outer Race 2.688" OD
  • 2 - 25520 Inner Race 3.265" OD
  • 2 - 25580 Inner Bearing 1.750" ID
  • 2 - 02475 Outer Bearing 1.250" ID
  • 2 - 10-36 Grease Seal 3.376" OD 2.250" ID
  • 2 - 8,000 lb Grease Cap with Plug

  • 2 - Cotter Pin

• 2 - Spindle Nut

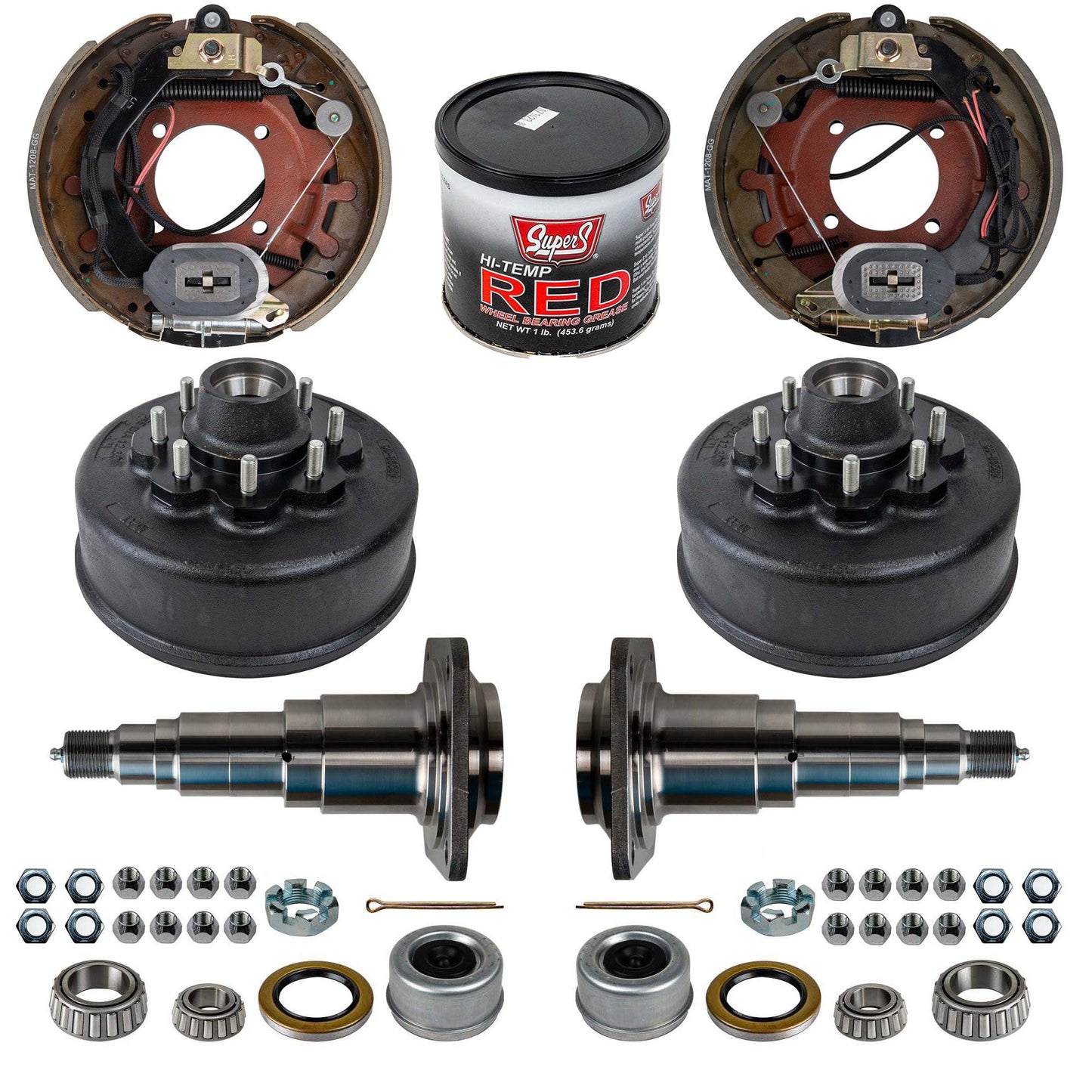

Weld Your Own Brake Axle Kit Specs:

• 2 - 8,000 lb Weld-On Spindle
• 2 - 8k True Brake Drum 8x6.5 Bolt Pattern
• 1 - Left (Driver Side) 12.25"x3.375" Brake Assembly
• 1 - Right (Passenger Side) 12.25"x3.375" Brake Assembly
• 2 - 8K (8000 lb Capacity) Bearing Kit
  • 2 - 02420 Outer Race 2.688" OD (Pre-Pressed In Drum)
  • 2 - 25520 Inner Race 3.265" OD (Pre-Pressed In Drum)
  • 2 - 25580 Inner Bearing 1.750" ID
  • 2 - 02475 Outer Bearing 1.250" ID
  • 2 - 10-36 Grease Seal 3.376" OD 2.250" ID
  • 2 - 8,000 lb Grease Cap with Plug

  • 2 - Cotter Pin

• 2 - Spindle Nut
• 16 - 9/16"Cone Wheel Lug Nuts
• 8 - Brake Mounting Nuts
• 1 - Grease Tub (1 lb)

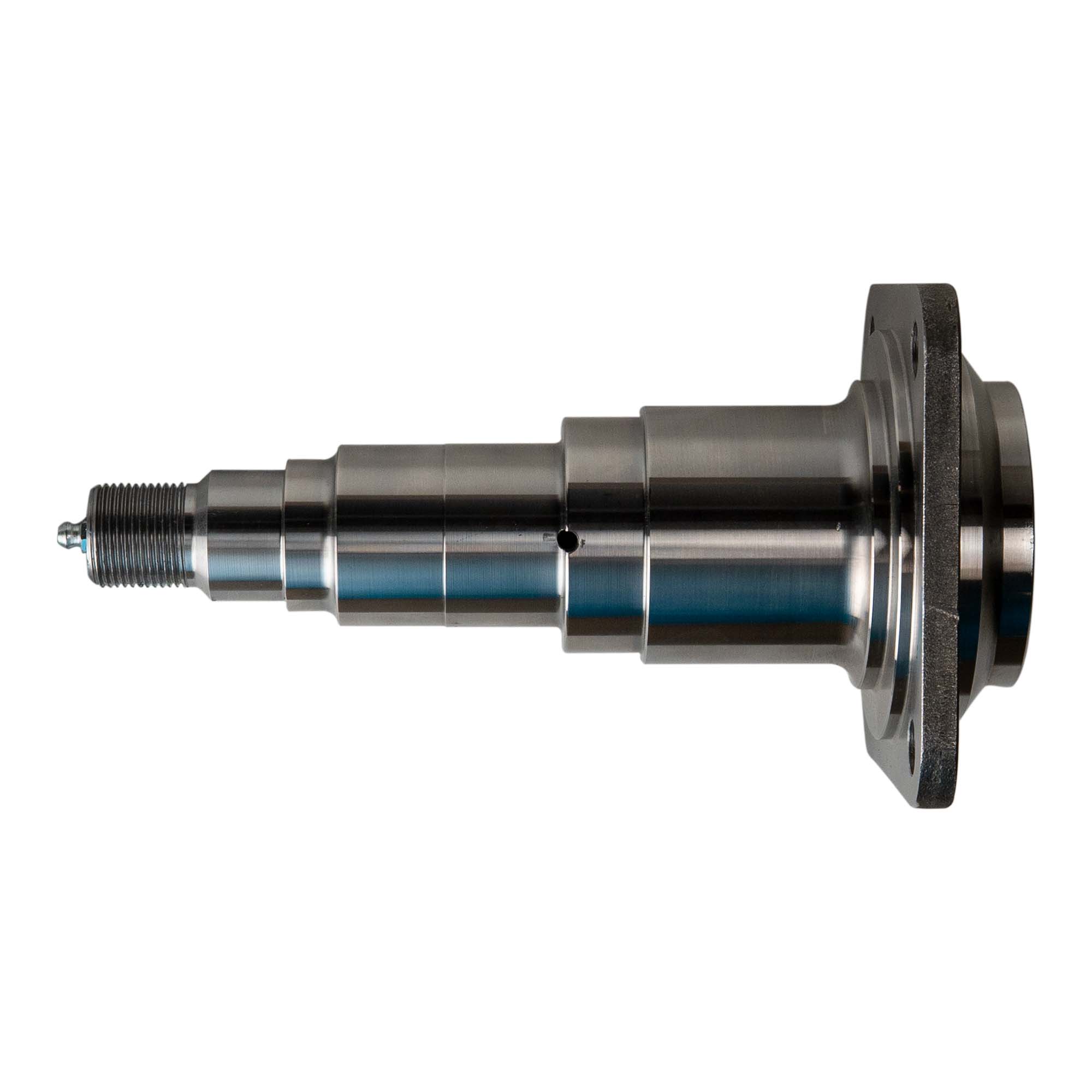

This 8K trailer axle spindle is designed for Dexter, TK, and Rockwell American axles. It can provide the fit that you need to get your trailer back on the road. Its high-quality construction helps it stand up to daily wear and tear, so no matter where your next job takes you, you can feel confident that your spindle will keep your trailer rolling.

Features:

• Weld-on installation
• Sturdy steel construction
• Works with 8K bearing kit (sold separately)
  • 8K (8000 lb Capacity) Bearing Kit
