5200 lb TK Tandem Axle Trailer Parts Kit - 10.4K Capacity LD (Complete Original Series)

Skip to product information
1 of 7

5200 lb TK Tandem Axle Trailer Parts Kit - 10.4K Capacity LD (Complete Original Series)

5200 lb TK Tandem Axle Trailer Parts Kit - 10.4K Capacity LD (Complete Original Series)

SKU : 52DLDSMCKTTK7358655
Regular price $3,849
Regular price $3,874.99 Sale price $3,849
Regular price $3,849
$3,849
SAVE 1%
Regular price
$3,874.99
Sale price
Axle Brand:
Hubface/Spring Center (Frame Width):


Custom Axle Reference Guide

Custom Axle Reference Guide
View full details
5200 lb TK Tandem Axle Trailer Parts Kit - 10.4K Capacity LD (Complete Original Series) - The Trailer Parts Outlet
5200 lb TK Tandem Axle Trailer Parts Kit - 10.4K Capacity LD (Complete Original Series) - The Trailer Parts Outlet

5200 lb TK Tandem Axle Trailer Parts Kit - 10.4K Capacity LD (...

5200 lb TK Tandem Axle Trailer Parts Kit - 10.4K Capacity LD (Complete Original Series)

Regular price $3,849
Regular price $3,874.99 Sale price $3,849
Regular price $3,849
$3,849
SAVE 1%
Regular price
$3,874.99
Sale price
  • Product Information
  • How To
  • Reviews

Custom Axle Disclaimer: All custom axle purchases are non-returnable and non-refundable. If your axle is over 96" it is considered overlength and there will be an additional fee collected before shipping depending on your location.

Instead of making you search for separate parts and pieces for your trailer, the team at The Trailer Parts Outlet did the hard work for you and bundled everything together into these Complete TK Trailer Parts Kits. You can find the perfect bundle and get fast shipping on every order. No need to waste time hunting for individual parts, you can purchase your kit today and get to work on building or repairing your trailer.

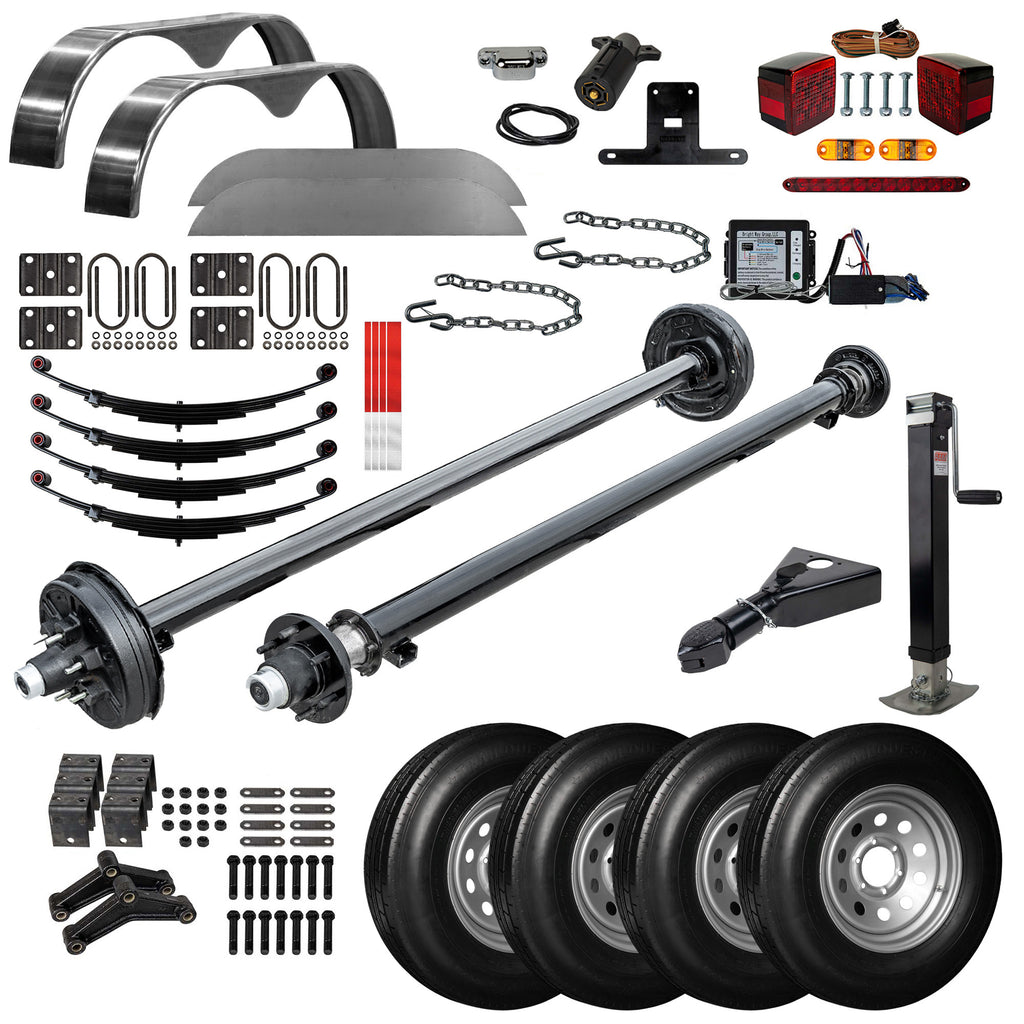

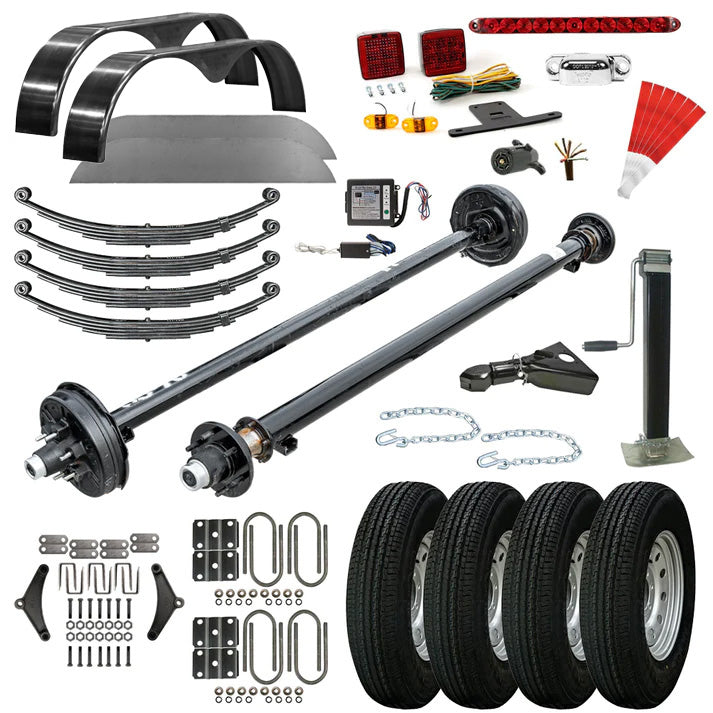

Whats Included:

  • 1 - 5k 5.2k Trailer Axle - 5000 5200 lb Electric Brake 6 lug
  • 1 - 5k 5.2k Trailer Axle - 5000 5200 lb Idler 6 lug
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)

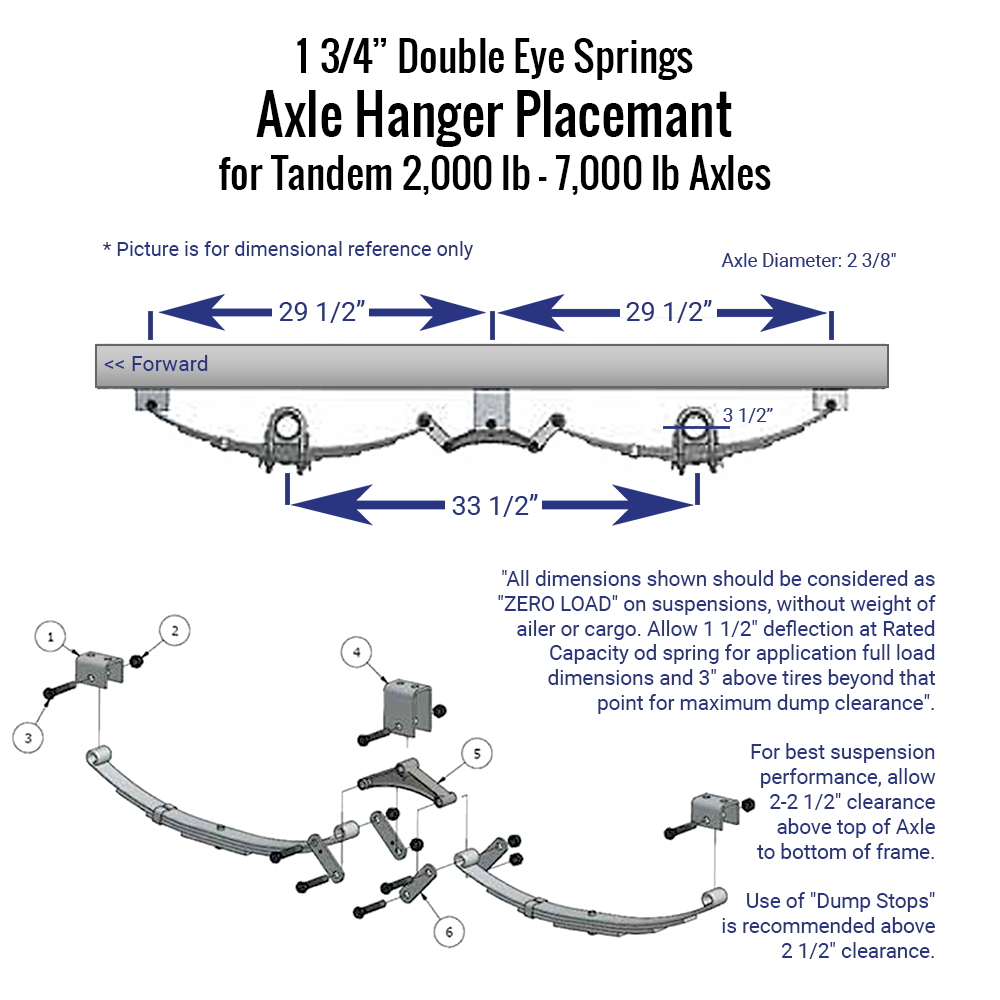

  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 4 - 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
  • 4 - 15" 10 ply Radial TWA - ST 225/75R15 6x5.5 (Silver Mod)
  • 2 - Tandem Axle 9x72 Tread Plate Steel Teardrop Fender
  • 2 - Tandem Axle 9x72 Smooth Fender Back
  • 1 - LED Light Kit with harness
  • 1 - License Plate Bracket
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - 7 Way Plug
  • 30' (feet) - 6 way cable 14 gauge
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 20 - Reflective DOT Tape - 18" Strips
  • 1 - 12 Volt Trailer Breakaway Kit
  • 1 - Breakaway Switch
  • 1 - 12.5K A-Frame Cast Coupler-12.5k 2 5/16" Bulldog Style
  • 1 - Drop Leg 8k 7k Trailer Jack - 8000 7000 lb Side Wind

Bearing kit components assembled in axle:

  • Double Lip Grease Seal-010-036-00 3.376 O.D 2.250 I.D
  • Outer Race-15245 2.441 O.D
  • Outer Bearing-15123 1.250 I.D.
  • Inner Race-25520 3.265 O.D.
  • Cotter Pin
  • Inner Bearing-25580 1.750 I.D.
  • Spindle Retainer
  • Hub/Dust/Grease Cap

        To place a custom axle order, please call (936) 289-3191 and our trailer parts experts will be more than happy to assist you.

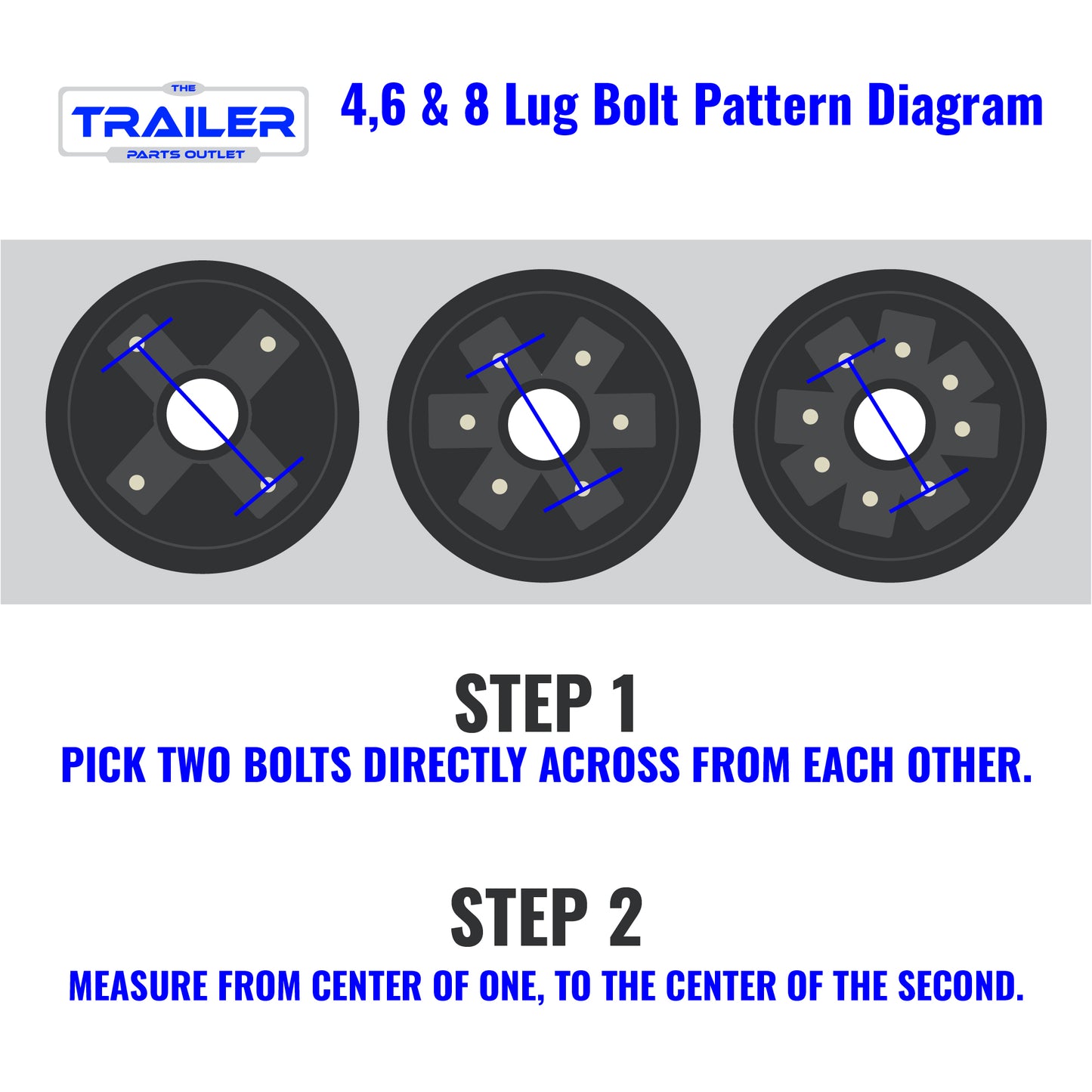

        how to measure your trailer axle - how to measure bolt patter on a trailer Axle. - how to find your hub face and spring center
