DIY Trailer Plan - 5216 - Tandem Axle Flatbed Deckover Trailer
DIY Trailer Plan - 5216 - Tandem Axle Flatbed Deckover Trailer
Regular price $25
Regular price $39.99 Sale price $25
Sale (833) 910-3416
  • Product Information
  • Reviews

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Difficulty Level: Beginner

Specs:

  • Bed Size: 16'x102"
  • Gross Capacity: 7000 lbs or 10,400 lbs
  • Empty Weight: 2500 lbs
  • Empty Tongue Weight: 315 lbs
  • Frame: Square Tube and Channel
  • Deck: Diamond Plate

Features:

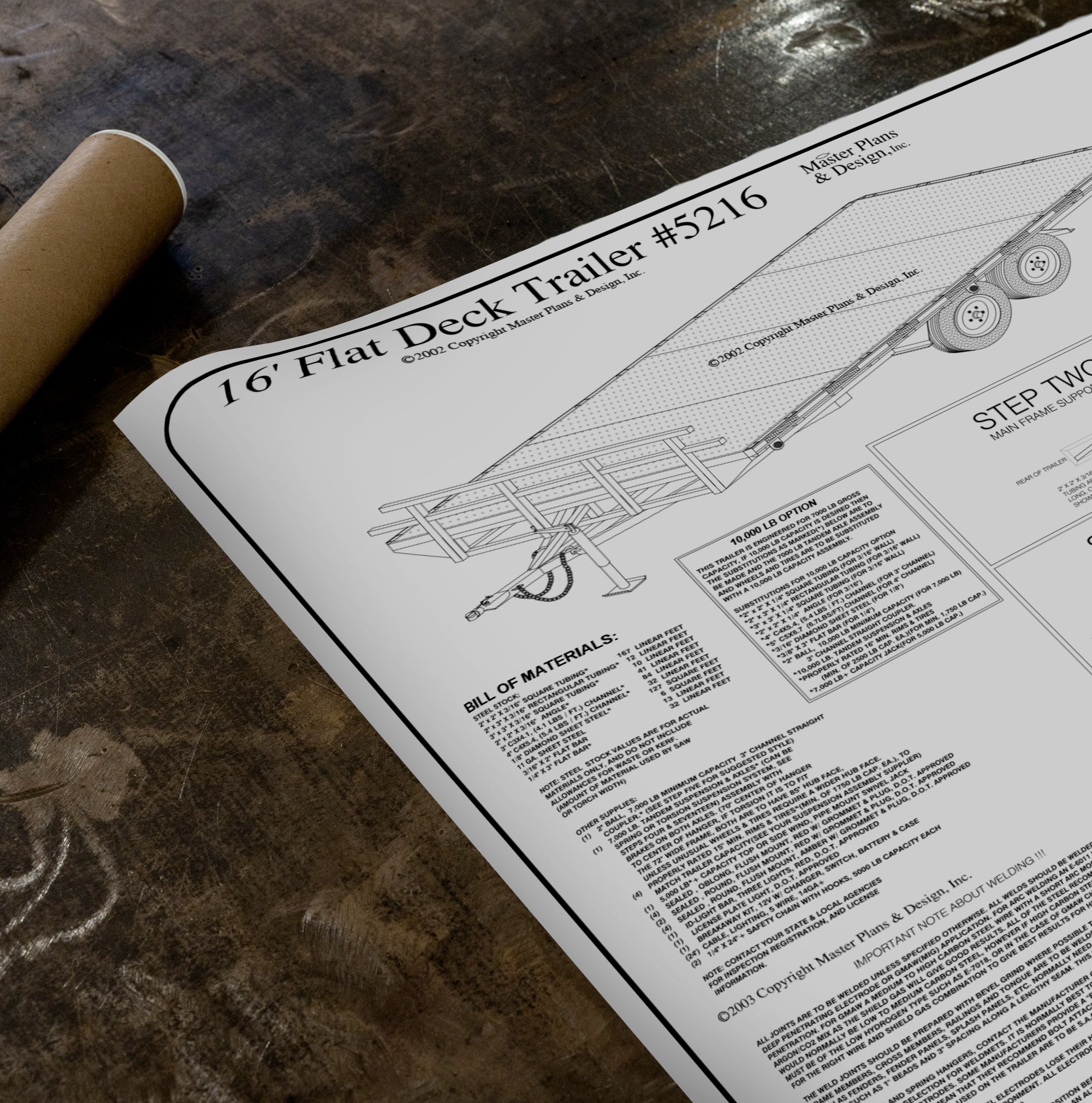

  • Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
  • Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
  • Detailed Cut List w/ Full Bill of Materials & Welding Tips
  • Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Trailer parts kit specifically made for this plan is available in the option above.

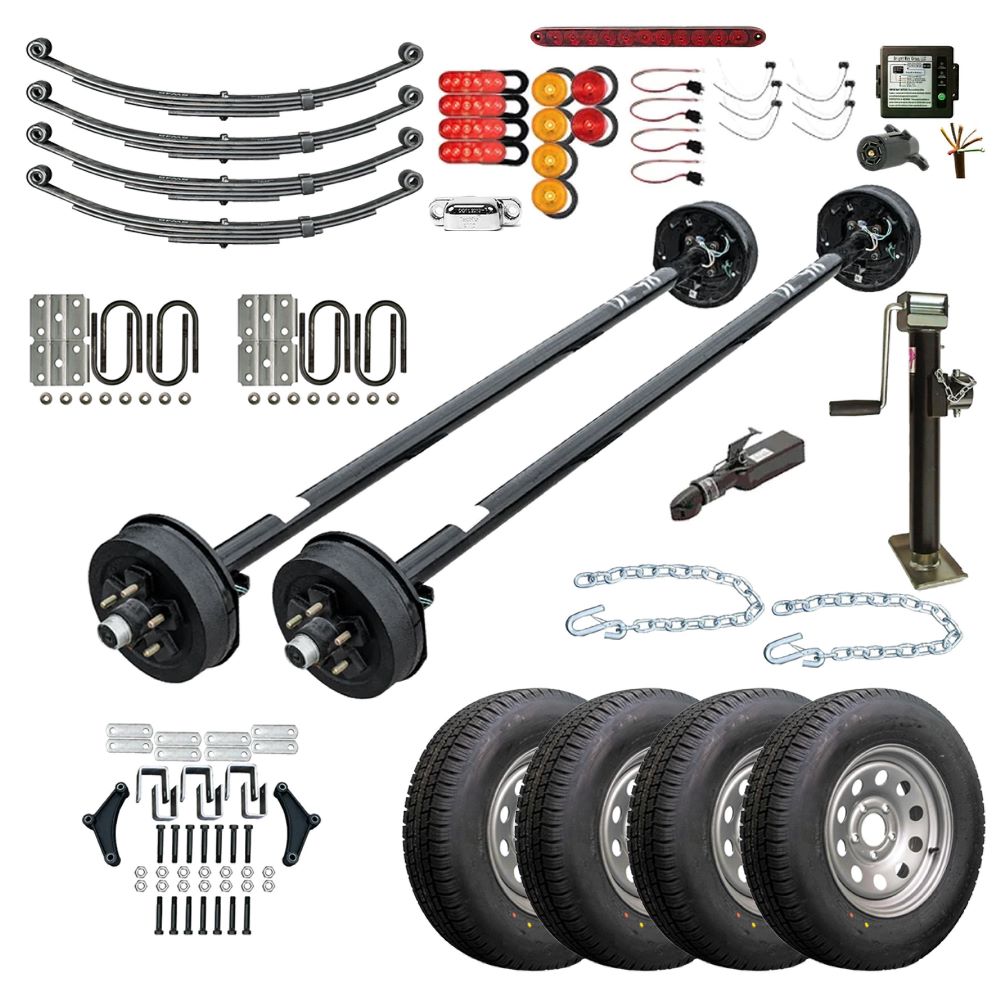

What's Included with 7K Trailer Kit:

  • 2 - 3.5k Trailer Axle - 3500 lb Electric Brake 5x4.5 lug (85/70)
  • 4 - 4 Leaf Trailer Double Eye Spring for 3500 lb Axles
  • 2 - Trailer U-bolt kit for 3500 lb Axles
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 1 - 7K Straight Tongue Trailer Coupler 7000lb 2"x3"
  • 1 - Pipe Mount 5k Trailer Jack - 5000 lb Side Wind
  • 4 - Red 6in Oval LED S/T/T Light
  • 4 - Flush Mount Grommet For 6in Oval Lights
  • 4 - Pigtail for Led Lights -3 Prong 10"
  • 4 - 2" Round Sealed LED Marker/Clearance Lights - Amber
  • 2 - 2" Round Sealed LED Marker/Clearance Lights - Red
  • 6 - Flush Mount Grommet For 2in Round Lights
  • 6 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - 7 Way Plug
  • 2.4 - 6 way cable 14 gauge (per 10 foot)
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - 12 Volt Trailer Breakaway Kit
  • 4 - 15" 8 ply Radial TWA - ST 205/75R15 5x4.5 Lug TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 1 - 5216 Flatbed Deckover Master Plan Blueprint

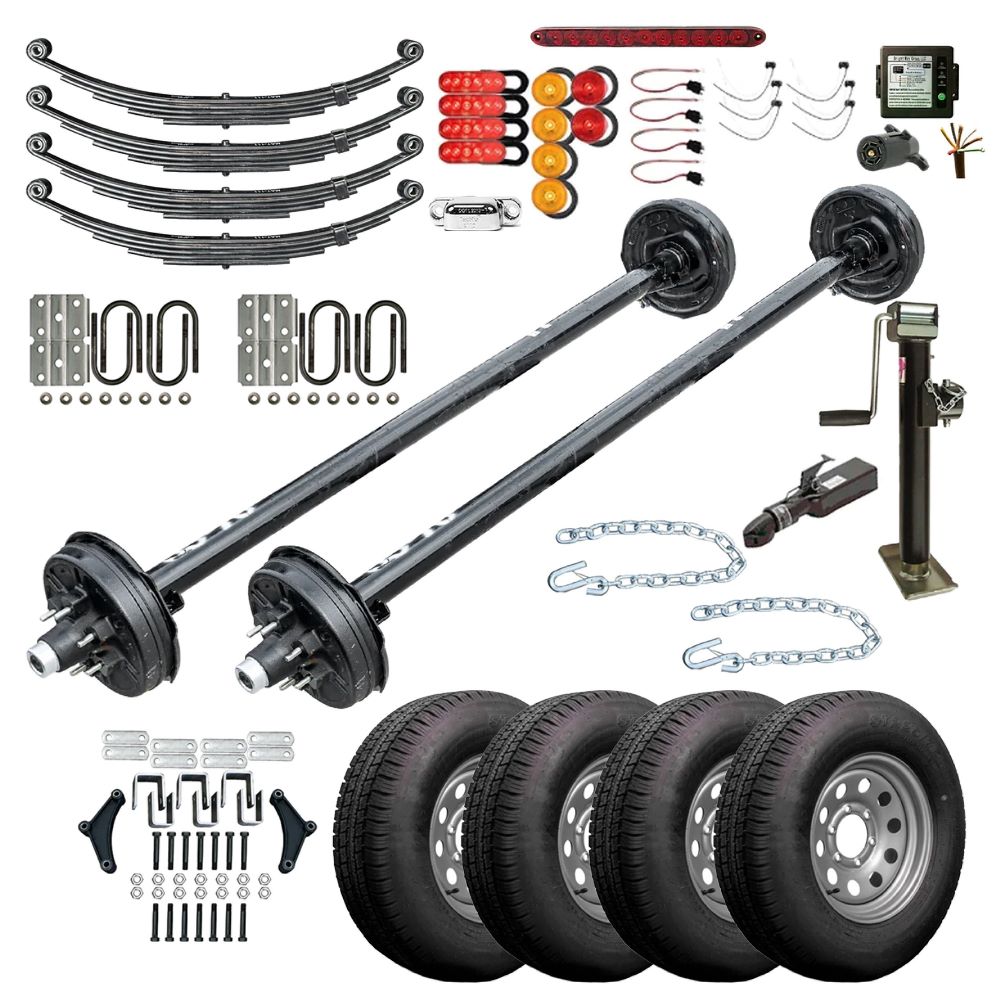

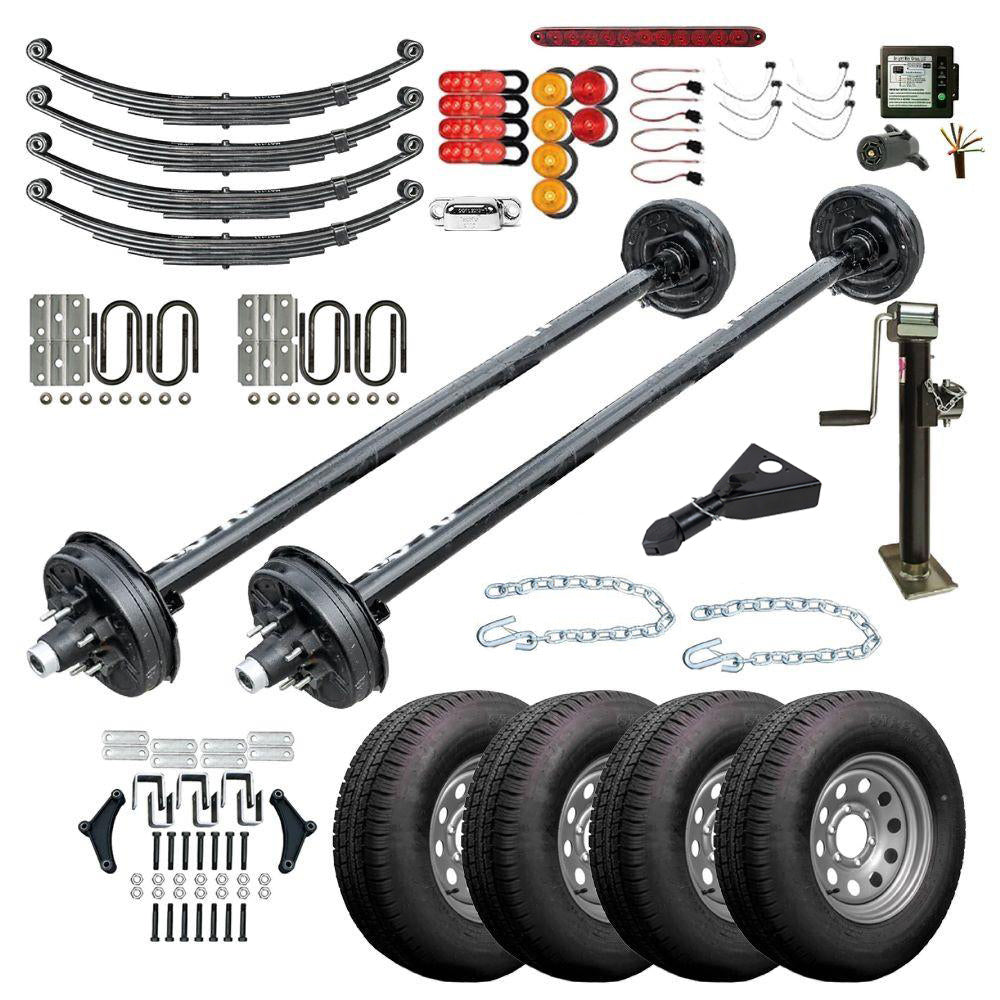

What's Included with 10.4K Trailer Kit:

  • 2 - 5k 5.2k Trailer Axle - 5000 5200 lb Electric Brake 6 lug(85/70)
  • 4 - 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
  • 2 - Trailer U-bolt kit for 5200 - 7000 lb Axles (1/2"Diameter)
  • 1 - Double Eye Tandem Hanger Kit for 3500-7000 lb Axles
  • 1 -12.5K Straight Tongue Trailer Coupler 12,500 lb 2 5/16" ball 2" x 3"
  • 1 - Pipe Mount 5k Trailer Jack - 5000 lb Side Wind
  • 4 - Red 6in Oval LED S/T/T Light
  • 4 - Flush Mount Grommet For 6in Oval Lights
  • 4 - Pigtail for Led Lights -3 Prong 10"
  • 4 - 2" Round Sealed LED Marker/Clearance Lights - Amber
  • 2 - 2" Round Sealed LED Marker/Clearance Lights - Red
  • 6 - Flush Mount Grommet For 2in Round Lights
  • 6 - Pigtail for 2-2.5" Rnd Lights - 2 Pin 6"
  • 1 - License Plate Light-Rectangular
  • 1 - Sealed ID Light Bar - 3 Red Lights
  • 1 - 7 Way Plug
  • 2.4 - 6 way cable 14 gauge (per 10 foot)
  • 2 - Silver Trailer Safety Chain - 1/4x31" (5k Capacity)
  • 1 - 12 Volt Trailer Breakaway Kit
  • 4 - 15" 10 ply Radial TWA - ST 225/75R15 6x5.5 TWA (Tire Wheel Assemblies) - Wheel Color: Silver/Gray Finish
  • 1 - 5216 Flatbed Deckover Master Plan Blueprint
