6K Light Duty Complete Single Axle TK Trailer Parts Kit — 6,000 lb | 6x5.5

The full trailer build in one order: one 6,000 lb idler axle, suspension, two 16 inch radial tires and wheels, fenders, coupler, jack, lighting, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Idler
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 73/58
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — 73"/58" — 6x5.5
• (2) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (1) Trailer U-Bolt Kit for 5200-7000 lb Axles (1/2" Diameter)

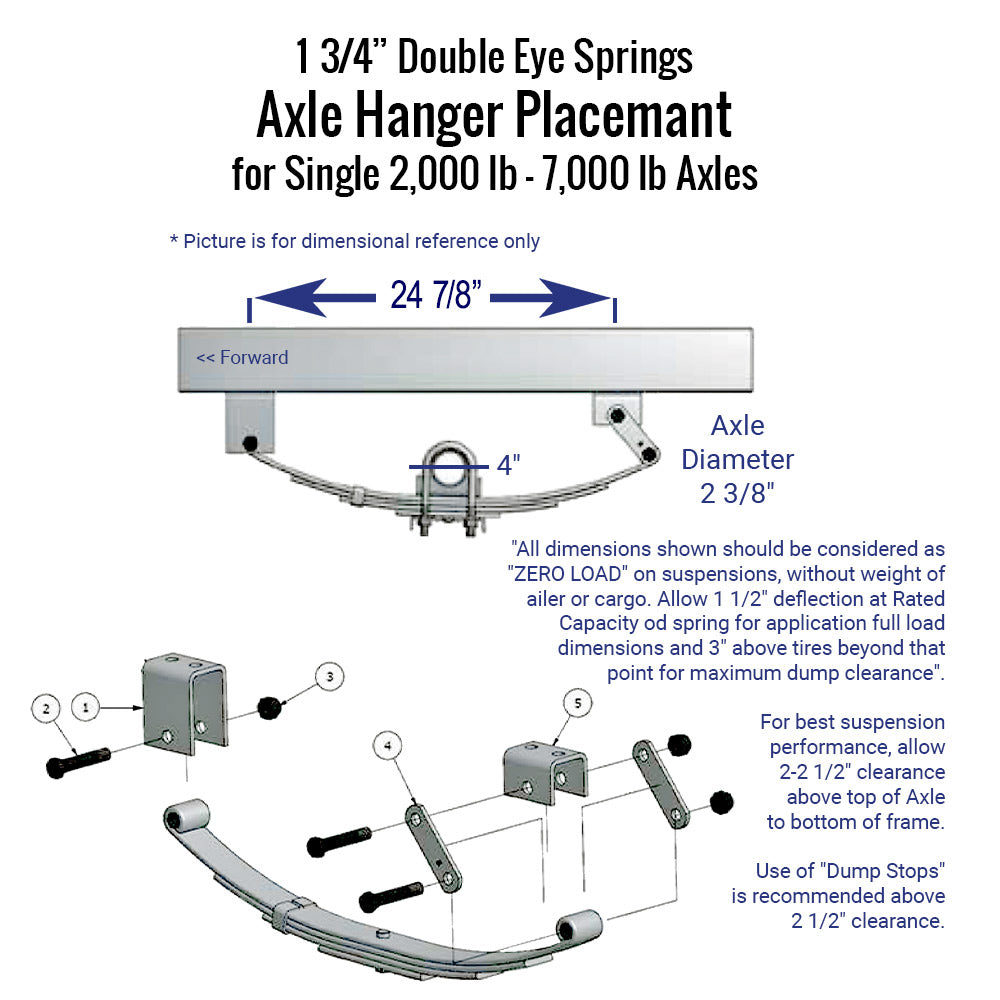

• (1) Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
• (2) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Single Axle 9x32 Smooth Steel Rolled Fender
• (2) Single Axle 9x32 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Single Axle TK Trailer Parts Kit today and get back on the road with confidence!

6K Light Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: one 6,000 lb electric brake axle and one idler axle, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake + Idler
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 73/58
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — 73"/58" — 6x5.5
• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — 73"/58" — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!

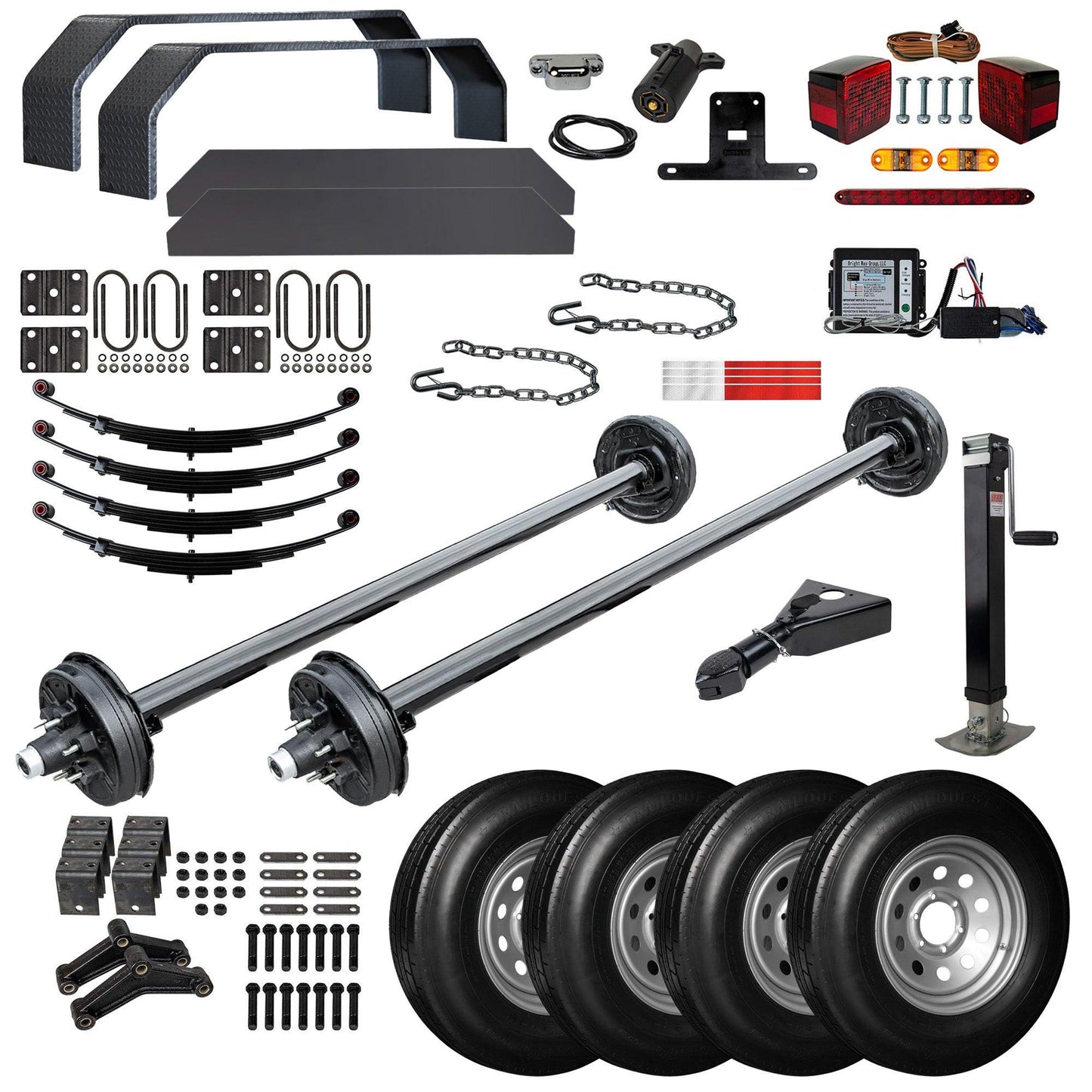

6K Heavy Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: two 6,000 lb electric brake axles, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 73/58
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (2) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — 73"/58" — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!

6K Light Duty Complete Single Axle TK Trailer Parts Kit — 6,000 lb | 6x5.5

The full trailer build in one order: one 6,000 lb idler axle, suspension, two 16 inch radial tires and wheels, fenders, coupler, jack, lighting, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Idler
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 85/70
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — 85"/70" — 6x5.5
• (2) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (1) Trailer U-Bolt Kit for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
• (2) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Single Axle 9x32 Smooth Steel Rolled Fender
• (2) Single Axle 9x32 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Single Axle TK Trailer Parts Kit today and get back on the road with confidence!

6K Light Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: one 6,000 lb electric brake axle and one idler axle, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake + Idler
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 85/70
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — 85"/70" — 6x5.5
• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — 85"/70" — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!

6K Heavy Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: two 6,000 lb electric brake axles, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 85/70

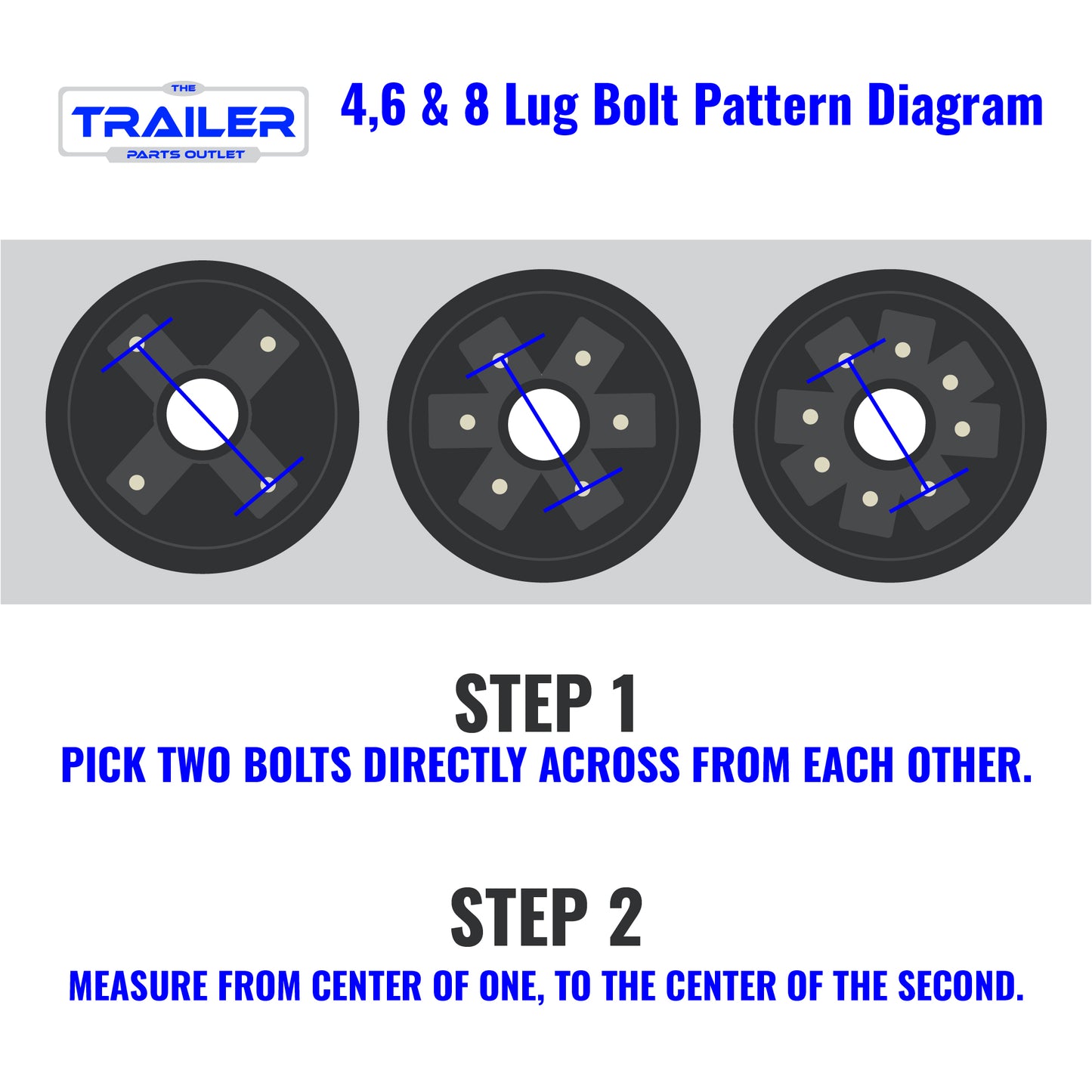

• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (2) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — 85"/70" — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!

6K Light Duty Complete Single Axle TK Trailer Parts Kit — 6,000 lb | 6x5.5

The full trailer build in one order: one 6,000 lb idler axle, suspension, two 16 inch radial tires and wheels, fenders, coupler, jack, lighting, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Idler
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 89/74
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — 89"/74" — 6x5.5
• (2) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (1) Trailer U-Bolt Kit for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
• (2) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Single Axle 9x32 Smooth Steel Rolled Fender
• (2) Single Axle 9x32 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Single Axle TK Trailer Parts Kit today and get back on the road with confidence!

6K Light Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: one 6,000 lb electric brake axle and one idler axle, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake + Idler
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 89/74
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — 89"/74" — 6x5.5
• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — 89"/74" — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!

6K Heavy Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: two 6,000 lb electric brake axles, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 89/74
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (2) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — 89"/74" — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!

6K Light Duty Complete Single Axle TK Trailer Parts Kit — 6,000 lb | 6x5.5

The full trailer build in one order: one 6,000 lb idler axle, suspension, two 16 inch radial tires and wheels, fenders, coupler, jack, lighting, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Idler
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 95/80
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — 95"/80" — 6x5.5
• (2) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (1) Trailer U-Bolt Kit for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
• (2) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Single Axle 9x32 Smooth Steel Rolled Fender
• (2) Single Axle 9x32 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Single Axle TK Trailer Parts Kit today and get back on the road with confidence!

6K Light Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: one 6,000 lb electric brake axle and one idler axle, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake + Idler
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 95/80
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — 95"/80" — 6x5.5
• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — 95"/80" — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!

6K Heavy Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: two 6,000 lb electric brake axles, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: 95/80
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung (lower ride height)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (2) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — 95"/80" — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!

6K Light Duty Complete Single Axle TK Trailer Parts Kit — 6,000 lb | 6x5.5

The full trailer build in one order: one 6,000 lb idler axle, suspension, two 16 inch radial tires and wheels, fenders, coupler, jack, lighting, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Idler
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: Custom spring center, enter your measurements
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung or Overslung, choose your configuration
• Cambered axle tube: Yes or No, choose your configuration
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

Custom Order Notes: Custom axles carry a +3 Day Build Time and are built to the measurements you enter at checkout, in 1/4 inch increments. Custom orders are non-refundable, and any modifications to the order must be requested within 24 hours of purchase.

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — Custom Spring Center — 6x5.5
• (2) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (1) Trailer U-Bolt Kit for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
• (2) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Single Axle 9x32 Smooth Steel Rolled Fender
• (2) Single Axle 9x32 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Single Axle TK Trailer Parts Kit today and get back on the road with confidence!

6K Light Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: one 6,000 lb electric brake axle and one idler axle, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake + Idler
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: Custom spring center, enter your measurements
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung or Overslung, choose your configuration
• Cambered axle tube: Yes or No, choose your configuration
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

Custom Order Notes: Custom axles carry a +3 Day Build Time and are built to the measurements you enter at checkout, in 1/4 inch increments. Custom orders are non-refundable, and any modifications to the order must be requested within 24 hours of purchase.

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — Custom Spring Center — 6x5.5
• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — Custom Spring Center — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!

6K Heavy Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: two 6,000 lb electric brake axles, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: Custom spring center, enter your measurements
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung or Overslung, choose your configuration
• Cambered axle tube: Yes or No, choose your configuration
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

Custom Order Notes: Custom axles carry a +3 Day Build Time and are built to the measurements you enter at checkout, in 1/4 inch increments. Custom orders are non-refundable, and any modifications to the order must be requested within 24 hours of purchase.

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (2) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — Custom Spring Center — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!

6K Light Duty Complete Single Axle TK Trailer Parts Kit — 6,000 lb | 6x5.5

The full trailer build in one order: one 6,000 lb idler axle, suspension, two 16 inch radial tires and wheels, fenders, coupler, jack, lighting, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Idler
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: Custom, enter your measurements
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung or Overslung, choose your configuration
• Cambered axle tube: Yes or No, choose your configuration
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

Custom Order Notes: Custom axles carry a +2 Week Build Time and are built to the measurements you enter at checkout, in 1/4 inch increments. Custom orders are non-refundable, and any modifications to the order must be requested within 24 hours of purchase.

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — Custom (Built to Your Measurements) — 6x5.5
• (2) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (1) Trailer U-Bolt Kit for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Single Axle Hanger Kit for 2000-7000 lb Axles
• (2) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Single Axle 9x32 Smooth Steel Rolled Fender
• (2) Single Axle 9x32 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Single Axle TK Trailer Parts Kit today and get back on the road with confidence!

6K Light Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: one 6,000 lb electric brake axle and one idler axle, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake + Idler
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: Custom, enter your measurements
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung or Overslung, choose your configuration
• Cambered axle tube: Yes or No, choose your configuration
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

Custom Order Notes: Custom axles carry a +2 Week Build Time and are built to the measurements you enter at checkout, in 1/4 inch increments. Custom orders are non-refundable, and any modifications to the order must be requested within 24 hours of purchase.

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (1) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — Custom (Built to Your Measurements) — 6x5.5
• (1) 6k Trailer Axle — 6000 lb Idler, 6 Lug — Custom (Built to Your Measurements) — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!

6K Heavy Duty Complete Tandem TK Trailer Parts Kit — 12K capacity | 6x5.5

The full trailer build in one order: two 6,000 lb electric brake axles, tandem suspension, four 16 inch radial tires and wheels, fenders, coupler, jack, lighting, wiring, and safety components.

Axle Specifications:

• Load rating: 6,000 lbs (6K) per axle
• Axle type: Electric Brake
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Hubface/Spring Center: Custom, enter your measurements
• Bolt pattern: 6x5.5
• Stud size: 1/2″
• Spring mount: Underslung or Overslung, choose your configuration
• Cambered axle tube: Yes or No, choose your configuration
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

Custom Order Notes: Custom axles carry a +2 Week Build Time and are built to the measurements you enter at checkout, in 1/4 inch increments. Custom orders are non-refundable, and any modifications to the order must be requested within 24 hours of purchase.

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (2) 6k Trailer Axle — 6000 lb Electric Drum Brake, 6 Lug — Custom (Built to Your Measurements) — 6x5.5
• (4) 5 Leaf Trailer Double Eye Spring for 6000 lb Axles
• (2) Trailer U-Bolt Kits for 5200-7000 lb Axles (1/2" Diameter)
• (1) Double Eye Tandem Axle Hanger Kit for 2000-7000 lb Axles
• (4) 16" 10 Ply Radial TWA — ST 235/80R16 6x5.5 (Tire Wheel Assemblies) — Silver/Gray Finish
• (2) Tandem Axle 9x72 Smooth Steel Teardrop Fender
• (2) Tandem Axle 9x72 Smooth Steel Fender Back
• (1) 7K A-Frame Cast Trailer Coupler — 7000 lb, 2" Bulldog Style
• (1) A-Frame 5k Trailer Jack — 5000 lb Top Wind
• (1) Trailer Jack Footplate
• (2) Silver Trailer Safety Chain — 1/4x31" (5k Capacity)
• (1) LED Light Kit with Harness
• (1) License Plate Bracket
• (1) Sealed ID Light Bar — 3 Red Lights
• (1) 12 Volt Trailer Breakaway Kit
• (1) Breakaway Switch

Bearing kit components assembled in axle: 010-036-00 double lip grease seal 3.376 O.D 2.250 I.D, 15245 outer race 2.441 O.D, 15123 outer bearing 1.250 I.D, 25520 inner race 3.265 O.D, 25580 inner bearing 1.750 I.D, cotter pin, spindle retainer, hub/dust/grease cap

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Complete Trailer Package — Axle, suspension, tires, fenders, coupler, jack, lights, and safety components in one order
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 6K Complete Tandem TK Trailer Parts Kit today and get back on the road with confidence!
