7000 lb TK Tandem Axle Bumper Pull Trailer Parts Kit - 14K Capacity HD (Complete Original Series)

Skip to product information
1 of 6

7000 lb TK Tandem Axle Bumper Pull Trailer Parts Kit - 14K Capacity HD (Complete Original Series)

7000 lb TK Tandem Axle Bumper Pull Trailer Parts Kit - 14K Capacity HD (Complete Original Series)

SKU : 07DHDSMCKTTKBP755812865

Online price only

Regular price $2,288.99

Online price only

SAVE 0% (833) 910-3416
4.5
Rated 4.5 out of 5 stars
2 Reviews
Shipping: Calculated at Checkout | Product Wt. 775.0 lb
Kit Options:
Hubface/Spring Center:
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • How To
  • Reviews

7K Complete Bumper-Pull Tandem Trailer Kit — 14K capacity | Axles, Suspension, Wheels, Coupler, Jack & Wiring

Everything you need to build a 14,000 lb tandem trailer, in one package: two 7,000 lb electric-brake axles, matched slipper suspension, wheels, fenders, a bumper-pull coupler and jack, and the complete lighting, wiring, breakaway, and DOT-tape package.

Kit Specifications:

  • Load rating: 14,000 lbs combined (two 7K axles)
  • Axle type: Electric Brake
  • Brake size: 12″ × 2″ electric drum
  • Tube diameter: 3″ round axle tube
  • Hubface/Spring Center: 75"/58"
  • Bolt pattern: 8x6.5
  • Stud size: 1/2″
  • ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

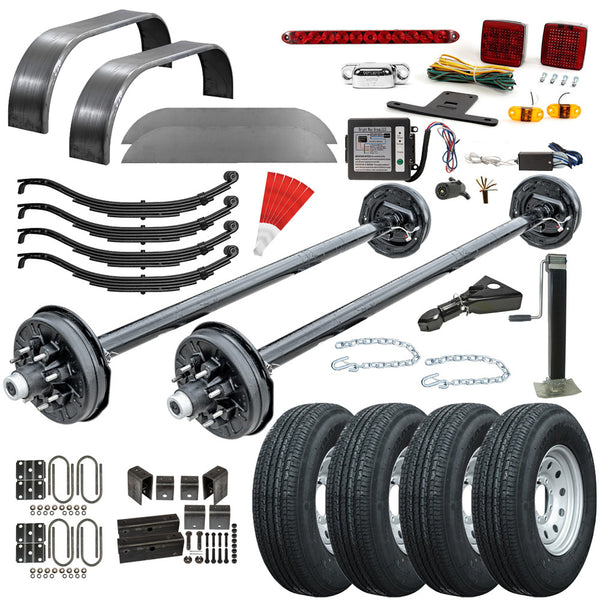

What’s Included:

  • (2) 7K Trailer Axles — 7,000 lb Electric Brake, 8x6.5 (1/2″ studs)
  • (2) U-Bolt Kits for 5,200–7,000 lb Axles (1/2″ diameter)
  • (1) Slipper Tandem Hanger Kit for 7,000 lb Axles
  • (4) 5-Leaf Slipper Springs for 7,000 lb Axles
  • (4) 16″ 10-Ply Radial TWA — ST235/80R16, 8 Lug — Silver/Gray Finish
  • (2) Tandem Axle 10x72 Steel Tread Plate Double-Broke Trailer Fenders
  • (2) Tandem Axle Double-Broke Fender Backs — Smooth
  • (1) 12.5K A-Frame Cast Coupler — 2 5/16″ Bulldog Style
  • (1) RAM Drop-Leg 7K/8K Trailer Jack — Side Wind
  • (1) Sealed ID Light Bar — 3 Red Lights
  • (1) 7-Way Plug, 36 ft — 6-way cable, 14 gauge
  • (1) LED Light Kit with harness
  • (1) License Plate Bracket
  • (1) License Plate Light — Rectangular
  • (1) 12-Volt Trailer Breakaway Kit
  • (1) Breakaway Switch
  • (1) Silver Safety Chain — 5/16 x 30″ Forged (7.6K capacity)
  • (20) Reflective DOT Tape — 18″ Strips

Key Benefits:

  • Complete, ready-to-build package — axles through wiring, no sourcing parts from multiple stores
  • Matched fitment — every component sized to work together
  • U.S.A.-built axles — nationwide parts availability

Ideal For:

  • Utility, flatbed & equipment trailers
  • Car haulers & dump trailers
  • Complete DIY trailer builds
  • Fleet repair & replacement

Why Buy from The Trailer Parts Outlet?

  • This kit is proudly assembled in the U.S.A.
  • Fast shipping — order today, ships tomorrow
  • Bulk & wholesale options available
  • Financing options
  • Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect kit for your trailer build. Order your 7K Complete Bumper-Pull Trailer Kit today and get building with confidence!

4.5
Rated 4.5 out of 5 stars
Based on 2 reviews
Customers Talked About
Slide 1 selected
2 reviews
  • DG
    daniel g.
    Verified Buyer
    11 months ago
    Rated 4 out of 5 stars
    Good Value Solid Parts

    I ordered a 7000# tandem axle kit w electric brakes. I needed to upgrade a sailboat trailer with axles that were undersized and too worn out to safely go over the road. The kit arrived and was complete as advertised. I also ordered a matching spare. Took me several weeks in my pretty well equipped home shop to cut off the old springs and brackets and grind down the trailer frame to accept the new weld on leaf spring brackets. Once the brackets were welded on, reassembly went smoothly. I had custom axles and the measurements proved accurate. I am totally rewiring the trailer and the included wiring and breakaway kit will all be used.

    Two cautions: the seven wire trailer cable included is only 14 gauge. All my research suggests 10 or 12 gauge wire for the electric brake circuit. I will run separate ground and brake wires in 10 gauge. They should update their wiring kit to address this. Also they should include an rv wire junction box to correctly feed all the power wires in and all the output wires out to their intended termini. These boxes are only about $10 online, but clean up the wiring a great deal.

    My only other minor complaint is a complete lack of directions. I had to call or go online for info about trailer lug torque, wiring diagrams, alignment of axles for straight towing, and numerous other smaller concerns.

    Overall I rate the kit a good value, and I am pleased with the results I got. This is not a kit for people without a good shop area, proper tools…

  • SM
    Scott M.
    Flag of United States
    3 years ago
    Rated 5 out of 5 stars
    Trailer kit

    Purchased the 7k tandem bumper pull

    Kit. Everything arrived in excellent condition. Fast shipping. Price that can’t be beat! Thanks!

    The Trailer Parts Outlet
    2 years ago

    We are so happy to hear that you are satisfied with your purchase! Please let us know if you need anything else!
