7K Heavy Duty Triple Axle Kit — 4" Drop — 21K capacity | Axles with Suspension

Complete triple running gear without tires: three electric brake axles. Matched triple suspension included. 21,000 lb combined capacity.

Axle Specifications:

• Load rating: 7,000 lbs (7K)
• Axle type: Electric Brake
• Brake size: 12″ × 2″ electric drum
• Tube diameter: 3″ straight axle tube
• Drop: Standard 4″ drop
• Hubface/Spring Center: 75/00 (Loose Spring Seats)
• Bolt pattern: 8x6.5
• Stud size: 1/2″
• Spring mount: Loose spring seats (ship unwelded)
• Compatibility: Direct replacement for Dexter, AL-KO, Lippert, and Hayes axles
• ABS: Not compatible with ABS systems

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

What’s Included:

• (3) Fully Assembled 7k TK Electric Brake Axles — 4" Drop — 75/00 (Loose Spring Seats) — 8x6.5
• (6) 3.5k 26 5/8" 5-Leaf Slipper Springs
• (3) 7k U-Bolt Kits
• (1) Slipper Triple Hanger Kit

Key Benefits:

• Fully assembled & packed with high-temp axle grease — ready for fast installation
• High-strength steel construction — Ensures durability and a smoother highway towing experience
• EZ-Lube design — grease the axle via zerk fitting without removing the hub
• Pre-Packaged Fitment — Matched components, no cross-referencing parts

Ideal For:

• RV builds or replacements
• Utility trailer conversions
• Boat trailer upgrades
• Cargo & equipment trailers

Why Buy from The Trailer Parts Outlet?

• This Axle is proudly manufactured in the U.S.A.
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale options available
• Financing options
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191 — we’re here to help you find the perfect axle for your trailer build or repair. Order your 7K Triple Axle Kit today and get back on the road with confidence!

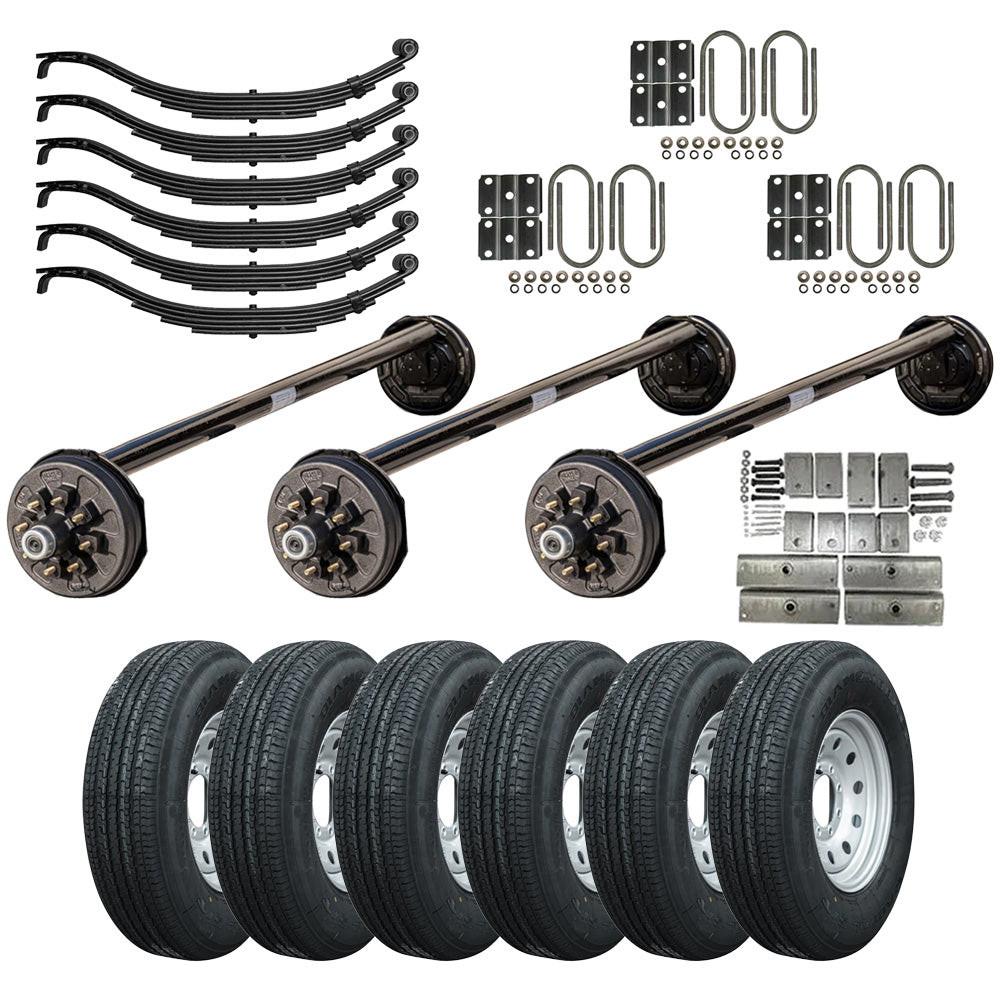

7K Heavy Duty Triple Axle TK Trailer Kit — 4" Drop — 21,000 lb | 75/00 (Loose Spring Seats)

Triple axle running gear in one package: three 7K TK electric brake axles, six springs, three U-bolt kits, two hanger kits, six loose spring seats, plus six tire & wheel assemblies.

Specifications:

• Capacity: 21,000 lb (3 x 7,000 lb axles)
• Axles: 7K TK, electric brake, 4" drop
• Hubface/Spring Center: 75/00 (Loose Spring Seats)
• Bolt pattern: 8x6.5
• Axle tube: 3"
• Springs: 5 leaf 26 5/8" x 2" slipper
• Spring seats: Not welded; (6) spring seats ship loose
• Tires & wheels: (6) 16" 10 ply radial, ST235/80 R16, silver mod
• ABS: Not ABS compatible

What’s Included:

• (3) 7k TK Trailer Axle - 7000 lb Electric Brake 8 lug - (4" Drop) (75/00 STRAIGHT - no spring seat)
• (6) 7k Axle Spring Seat (ships loose)
• (6) 5 Leaf 26 5/8" x 2" Trailer Slipper Spring for 7000 lb Axles
• (3) 1/2" Trailer U-bolt kit for 3" Tube 5200 - 7000 lb Axles
• (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles
• (6) 16" 10 ply Radial Trailer Tire & Wheel - ST235/80 R16 (Silver Mod) - 8x6.5

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled and packed with high-temp axle grease
• Axle comes with loose spring seats that will need to be welded on
• EZ Lube design: removable rubber plug on the hub cap gives access to a grease-able zerk fitting, so you can grease the axle without pulling the hub
• High strength steel axle tube construction

Ideal For:

• Utility, boat, and car hauler trailers
• ATV, lawn & landscape, and motorcycle trailers
• BBQ pit, cargo, and enclosed trailers
• RV trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

7K Heavy Duty Triple Axle Kit — 4" Drop — 21,000 lb | 85/00 (Loose Spring Seats)

Triple axle running gear in one package: three 7K TK electric brake axles, six springs, three U-bolt kits, two hanger kits, six loose spring seats.

Specifications:

• Capacity: 21,000 lb (3 x 7,000 lb axles)
• Axles: 7K TK, electric brake, 4" drop
• Hubface/Spring Center: 85/00 (Loose Spring Seats)
• Axle tube: 3"
• Springs: 5 leaf 26 5/8" x 2" slipper
• Spring seats: Not welded; (6) spring seats ship loose
• ABS: Not ABS compatible

What’s Included:

• (3) 7k TK Trailer Axle - 7000 lb Electric Brake 8 lug - (4" Drop) (85/00 STRAIGHT - no spring seat)
• (6) 7k Axle Spring Seat (ships loose)
• (6) 5 Leaf 26 5/8" x 2" Trailer Slipper Spring for 7000 lb Axles
• (3) 9/16" Trailer U-bolt kit for 3" Tube 5200 - 7000 lb Axles
• (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled and packed with high-temp axle grease
• Axle comes with loose spring seats that will need to be welded on
• EZ Lube design: removable rubber plug on the hub cap gives access to a grease-able zerk fitting, so you can grease the axle without pulling the hub
• High strength steel axle tube construction

Ideal For:

• Utility, boat, and car hauler trailers
• ATV, lawn & landscape, and motorcycle trailers
• BBQ pit, cargo, and enclosed trailers
• RV trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

7K Heavy Duty Triple Axle TK Trailer Kit — 4" Drop — 21,000 lb | 85/00 (Loose Spring Seats)

Triple axle running gear in one package: three 7K TK electric brake axles, six springs, three U-bolt kits, two hanger kits, six loose spring seats, plus six tire & wheel assemblies.

Specifications:

• Capacity: 21,000 lb (3 x 7,000 lb axles)
• Axles: 7K TK, electric brake, 4" drop
• Hubface/Spring Center: 85/00 (Loose Spring Seats)
• Bolt pattern: 8x6.5
• Axle tube: 3"
• Springs: 5 leaf 26 5/8" x 2" slipper
• Spring seats: Not welded; (6) spring seats ship loose
• Tires & wheels: (6) 16" 10 ply radial, ST235/80 R16, silver mod
• ABS: Not ABS compatible

What’s Included:

• (3) 7k TK Trailer Axle - 7000 lb Electric Brake 8 lug - (4" Drop) (85/00 STRAIGHT - no spring seat)
• (6) 7k Axle Spring Seat (ships loose)
• (6) 5 Leaf 26 5/8" x 2" Trailer Slipper Spring for 7000 lb Axles
• (3) 1/2" Trailer U-bolt kit for 3" Tube 5200 - 7000 lb Axles
• (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles
• (6) 16" 10 ply Radial Trailer Tire & Wheel - ST235/80 R16 (Silver Mod) - 8x6.5

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled and packed with high-temp axle grease
• Axle comes with loose spring seats that will need to be welded on
• EZ Lube design: removable rubber plug on the hub cap gives access to a grease-able zerk fitting, so you can grease the axle without pulling the hub
• High strength steel axle tube construction

Ideal For:

• Utility, boat, and car hauler trailers
• ATV, lawn & landscape, and motorcycle trailers
• BBQ pit, cargo, and enclosed trailers
• RV trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

7K Heavy Duty Triple Axle Kit — 4" Drop — 21,000 lb | 89/00 (Loose Spring Seats)

Triple axle running gear in one package: three 7K TK electric brake axles, six springs, three U-bolt kits, two hanger kits, six loose spring seats.

Specifications:

• Capacity: 21,000 lb (3 x 7,000 lb axles)
• Axles: 7K TK, electric brake, 4" drop
• Hubface/Spring Center: 89/00 (Loose Spring Seats)
• Axle tube: 3"
• Springs: 5 leaf 26 5/8" x 2" slipper
• Spring seats: Not welded; (6) spring seats ship loose
• ABS: Not ABS compatible

What’s Included:

• (3) 7k TK Trailer Axle - 7000 lb Electric Brake 8 lug - (4" Drop) (89/00 STRAIGHT - no spring seat)
• (6) 7k Axle Spring Seat (ships loose)
• (6) 5 Leaf 26 5/8" x 2" Trailer Slipper Spring for 7000 lb Axles
• (3) 9/16" Trailer U-bolt kit for 3" Tube 5200 - 7000 lb Axles
• (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled and packed with high-temp axle grease
• Axle comes with loose spring seats that will need to be welded on
• EZ Lube design: removable rubber plug on the hub cap gives access to a grease-able zerk fitting, so you can grease the axle without pulling the hub
• High strength steel axle tube construction

Ideal For:

• Utility, boat, and car hauler trailers
• ATV, lawn & landscape, and motorcycle trailers
• BBQ pit, cargo, and enclosed trailers
• RV trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

7K Heavy Duty Triple Axle TK Trailer Kit — 4" Drop — 21,000 lb | 89/00 (Loose Spring Seats)

Triple axle running gear in one package: three 7K TK electric brake axles, six springs, three U-bolt kits, two hanger kits, six loose spring seats, plus six tire & wheel assemblies.

Specifications:

• Capacity: 21,000 lb (3 x 7,000 lb axles)
• Axles: 7K TK, electric brake, 4" drop
• Hubface/Spring Center: 89/00 (Loose Spring Seats)
• Bolt pattern: 8x6.5
• Axle tube: 3"
• Springs: 5 leaf 26 5/8" x 2" slipper
• Spring seats: Not welded; (6) spring seats ship loose
• Tires & wheels: (6) 16" 10 ply radial, ST235/80 R16, silver mod
• ABS: Not ABS compatible

What’s Included:

• (3) 7k TK Trailer Axle - 7000 lb Electric Brake 8 lug - (4" Drop) (89/00 STRAIGHT - no spring seat)
• (6) 7k Axle Spring Seat (ships loose)
• (6) 5 Leaf 26 5/8" x 2" Trailer Slipper Spring for 7000 lb Axles
• (3) 1/2" Trailer U-bolt kit for 3" Tube 5200 - 7000 lb Axles
• (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles
• (6) 16" 10 ply Radial Trailer Tire & Wheel - ST235/80 R16 (Silver Mod) - 8x6.5

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled and packed with high-temp axle grease
• Axle comes with loose spring seats that will need to be welded on
• EZ Lube design: removable rubber plug on the hub cap gives access to a grease-able zerk fitting, so you can grease the axle without pulling the hub
• High strength steel axle tube construction

Ideal For:

• Utility, boat, and car hauler trailers
• ATV, lawn & landscape, and motorcycle trailers
• BBQ pit, cargo, and enclosed trailers
• RV trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

7K Heavy Duty Triple Axle Kit — 4" Drop — 21,000 lb | 95/00 (Loose Spring Seats)

Triple axle running gear in one package: three 7K TK electric brake axles, six springs, three U-bolt kits, two hanger kits, six loose spring seats.

Specifications:

• Capacity: 21,000 lb (3 x 7,000 lb axles)
• Axles: 7K TK, electric brake, 4" drop
• Hubface/Spring Center: 95/00 (Loose Spring Seats)
• Axle tube: 3"
• Springs: 5 leaf 26 5/8" x 2" slipper
• Spring seats: Not welded; (6) spring seats ship loose
• ABS: Not ABS compatible

What’s Included:

• (3) 7k TK Trailer Axle - 7000 lb Electric Brake 8 lug - (4" Drop) (95/00 STRAIGHT - No spring seat)
• (6) 7k Axle Spring Seat (ships loose)
• (6) 5 Leaf 26 5/8" x 2" Trailer Slipper Spring for 7000 lb Axles
• (3) 9/16" Trailer U-bolt kit for 3" Tube 5200 - 7000 lb Axles
• (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled and packed with high-temp axle grease
• Axle comes with loose spring seats that will need to be welded on
• EZ Lube design: removable rubber plug on the hub cap gives access to a grease-able zerk fitting, so you can grease the axle without pulling the hub
• High strength steel axle tube construction

Ideal For:

• Utility, boat, and car hauler trailers
• ATV, lawn & landscape, and motorcycle trailers
• BBQ pit, cargo, and enclosed trailers
• RV trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

7K Heavy Duty Triple Axle TK Trailer Kit — 4" Drop — 21,000 lb | 95/00 (Loose Spring Seats)

Triple axle running gear in one package: three 7K TK electric brake axles, six springs, three U-bolt kits, two hanger kits, six loose spring seats, plus six tire & wheel assemblies.

Specifications:

• Capacity: 21,000 lb (3 x 7,000 lb axles)
• Axles: 7K TK, electric brake, 4" drop
• Hubface/Spring Center: 95/00 (Loose Spring Seats)
• Bolt pattern: 8x6.5
• Axle tube: 3"
• Springs: 5 leaf 26 5/8" x 2" slipper
• Spring seats: Not welded; (6) spring seats ship loose
• Tires & wheels: (6) 16" 10 ply radial, ST235/80 R16, silver mod
• ABS: Not ABS compatible

What’s Included:

• (3) 7k TK Trailer Axle - 7000 lb Electric Brake 8 lug - (4" Drop) (95/00 STRAIGHT - No spring seat)
• (6) 7k Axle Spring Seat (ships loose)
• (6) 5 Leaf 26 5/8" x 2" Trailer Slipper Spring for 7000 lb Axles
• (3) 1/2" Trailer U-bolt kit for 3" Tube 5200 - 7000 lb Axles
• (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles
• (6) 16" 10 ply Radial Trailer Tire & Wheel - ST235/80 R16 (Silver Mod) - 8x6.5

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled and packed with high-temp axle grease
• Axle comes with loose spring seats that will need to be welded on
• EZ Lube design: removable rubber plug on the hub cap gives access to a grease-able zerk fitting, so you can grease the axle without pulling the hub
• High strength steel axle tube construction

Ideal For:

• Utility, boat, and car hauler trailers
• ATV, lawn & landscape, and motorcycle trailers
• BBQ pit, cargo, and enclosed trailers
• RV trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Fast shipping — order today, ships tomorrow
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

7K Heavy Duty Triple Axle Kit — 4" Drop — 21,000 lb | Custom spring center (+3 day build time)

Triple axle running gear in one package: three 7K TK electric brake axles, six springs, three U-bolt kits, two hanger kits, six loose spring seats.

Specifications:

• Capacity: 21,000 lb (3 x 7,000 lb axles)
• Axles: 7K TK, electric brake, 4" drop
• Hubface/Spring Center: Custom spring center (+3 day build time)
• Axle tube: 3"
• Springs: 5 leaf 26 5/8" x 2" slipper
• Spring seats: Not welded; (6) spring seats ship loose
• ABS: Not ABS compatible

What’s Included:

• (3) 7k TK Trailer Axle - 7000 lb Electric Brake 8 lug - (4" Drop) Customer Spring Center Placement - No Spring Seats
• (6) 7k Axle Spring Seat (ships loose)
• (6) 5 Leaf 26 5/8" x 2" Trailer Slipper Spring for 7000 lb Axles
• (3) 9/16" Trailer U-bolt kit for 3" Tube 5200 - 7000 lb Axles
• (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled and packed with high-temp axle grease
• Spring seats ship loose so you can set your own spring center
• EZ Lube design: removable rubber plug on the hub cap gives access to a grease-able zerk fitting, so you can grease the axle without pulling the hub
• High strength steel axle tube construction

Ideal For:

• Utility, boat, and car hauler trailers
• ATV, lawn & landscape, and motorcycle trailers
• BBQ pit, cargo, and enclosed trailers
• RV trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Custom builds to your exact measurements
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

7K Heavy Duty Triple Axle TK Trailer Kit — 4" Drop — 21,000 lb | Custom spring center (+3 day build time)

Triple axle running gear in one package: three 7K TK electric brake axles, six springs, three U-bolt kits, two hanger kits, six loose spring seats, plus six tire & wheel assemblies.

Specifications:

• Capacity: 21,000 lb (3 x 7,000 lb axles)
• Axles: 7K TK, electric brake, 4" drop
• Hubface/Spring Center: Custom spring center (+3 day build time)
• Bolt pattern: 8x6.5
• Axle tube: 3"
• Springs: 5 leaf 26 5/8" x 2" slipper
• Spring seats: Not welded; (6) spring seats ship loose
• Tires & wheels: (6) 16" 10 ply radial, ST235/80 R16, silver mod
• ABS: Not ABS compatible

What’s Included:

• (3) 7k TK Trailer Axle - 7000 lb Electric Brake 8 lug - (4" Drop) Customer Spring Center Placement - No Spring Seats
• (6) 7k Axle Spring Seat (ships loose)
• (6) 5 Leaf 26 5/8" x 2" Trailer Slipper Spring for 7000 lb Axles
• (3) 1/2" Trailer U-bolt kit for 3" Tube 5200 - 7000 lb Axles
• (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles
• (6) 16" 10 ply Radial Trailer Tire & Wheel - ST235/80 R16 (Silver Mod) - 8x6.5

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled and packed with high-temp axle grease
• Spring seats ship loose so you can set your own spring center
• EZ Lube design: removable rubber plug on the hub cap gives access to a grease-able zerk fitting, so you can grease the axle without pulling the hub
• High strength steel axle tube construction

Ideal For:

• Utility, boat, and car hauler trailers
• ATV, lawn & landscape, and motorcycle trailers
• BBQ pit, cargo, and enclosed trailers
• RV trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Custom builds to your exact measurements
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

7K Heavy Duty Triple Axle Kit — 4" Drop — 21,000 lb | Custom, built to your measurements (+2 week build time)

Triple axle running gear in one package: three 7K TK electric brake axles, six springs, three U-bolt kits, two hanger kits.

Specifications:

• Capacity: 21,000 lb (3 x 7,000 lb axles)
• Axles: 7K TK, electric brake, 4" drop
• Hubface/Spring Center: Custom, built to your measurements (+2 week build time)
• Bolt pattern: 8x6.5
• Studs: 1/2"
• Axle tube: 3"
• Springs: 5 leaf 26 5/8" x 2" slipper
• ABS: Not ABS compatible

What’s Included:

• (3) 7k TK Trailer Axle - 7000 lb Electric Brake - (4" Drop) - Custom - 8x6.5 - 1/2"
• (6) 5 Leaf 26 5/8" x 2" Trailer Slipper Spring for 7000 lb Axles
• (3) 9/16" Trailer U-bolt kit for 3" Tube 5200 - 7000 lb Axles
• (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled and packed with high-temp axle grease
• EZ Lube design: removable rubber plug on the hub cap gives access to a grease-able zerk fitting, so you can grease the axle without pulling the hub
• High strength steel axle tube construction

Ideal For:

• Utility, boat, and car hauler trailers
• ATV, lawn & landscape, and motorcycle trailers
• BBQ pit, cargo, and enclosed trailers
• RV trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Custom builds to your exact measurements
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.

7K Heavy Duty Triple Axle TK Trailer Kit — 4" Drop — 21,000 lb | Custom, built to your measurements (+2 week build time)

Triple axle running gear in one package: three 7K TK electric brake axles, six springs, three U-bolt kits, two hanger kits, plus six tire & wheel assemblies.

Specifications:

• Capacity: 21,000 lb (3 x 7,000 lb axles)
• Axles: 7K TK, electric brake, 4" drop
• Hubface/Spring Center: Custom, built to your measurements (+2 week build time)
• Bolt pattern: 8x6.5
• Studs: 1/2"
• Axle tube: 3"
• Springs: 5 leaf 26 5/8" x 2" slipper
• Tires & wheels: (6) 16" 10 ply radial, ST235/80 R16, silver mod
• ABS: Not ABS compatible

What’s Included:

• (3) 7k TK Trailer Axle - 7000 lb Electric Brake - (4" Drop) - Custom - 8x6.5 - 1/2"
• (6) 5 Leaf 26 5/8" x 2" Trailer Slipper Spring for 7000 lb Axles
• (3) 1/2" Trailer U-bolt kit for 3" Tube 5200 - 7000 lb Axles
• (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles
• (6) 16" 10 ply Radial Trailer Tire & Wheel - ST235/80 R16 (Silver Mod) - 8x6.5

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

• Axles come fully assembled and packed with high-temp axle grease
• EZ Lube design: removable rubber plug on the hub cap gives access to a grease-able zerk fitting, so you can grease the axle without pulling the hub
• High strength steel axle tube construction

Ideal For:

• Utility, boat, and car hauler trailers
• ATV, lawn & landscape, and motorcycle trailers
• BBQ pit, cargo, and enclosed trailers
• RV trailers

Why Buy from The Trailer Parts Outlet?

• Quality trailer parts at affordable prices
• Custom builds to your exact measurements
• Bulk & wholesale pricing available
• Dedicated expert support

Have questions? Call or message us at (936) 289-3191.
