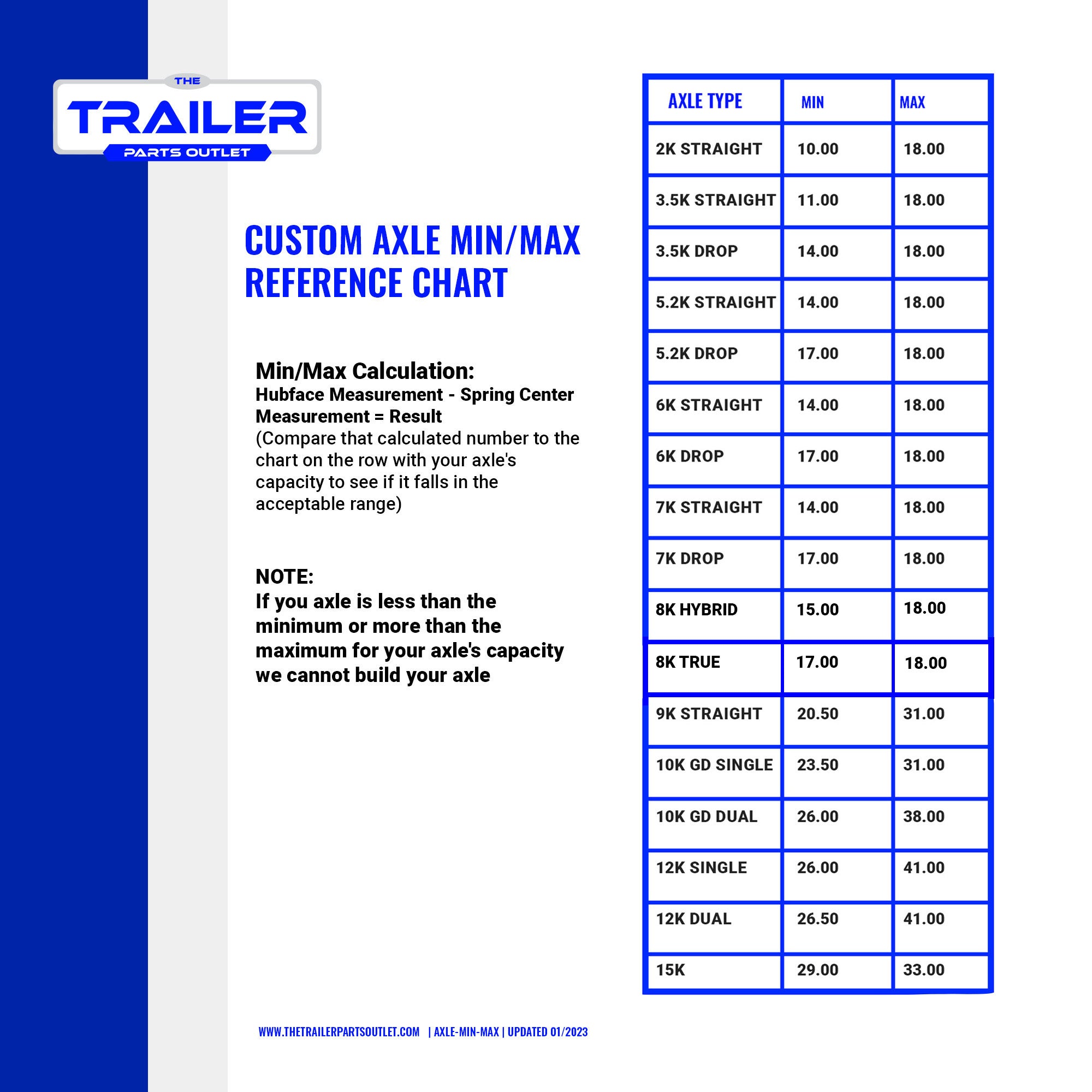

  • Custom axle min/max reference chart
  • 12K-16K Trailer Axle Hydraulic Drum Brake Assembly - 12.25"x5" - 12000-16000 lb Capacity - Right Hand (Passenger Side).
  • What's Included: 1 - 3.5k Electric Drum Brake Axle (5x4.5) - 4" Drop 2 - 1.75k 25.25" 4 leaf Double Eye Springs 1 - 3.5K U-Bolt Kits 1 - Double Eye Hanger Kit This 3.5k TK Heavy Duty
  • 8000 lb TK Hybrid Triple Axle Kit - 24K Capacity (Axle Series)
  • 8000 lb TK Hybrid Triple Axle Kit - 24K Capacity (Axle Series) 9/16" Studs - Measurement Guide
  • 8000 lb TK Hybrid Triple Axle Kit - 24K Capacity (Axle Series) 9/16" Studs - Warranty Information
  • 8000 lb TK Hybrid Triple Axle Kit - 24K Capacity (Axle Series) 9/16" Studs - Detail 10
1 5

8000 lb TK Hybrid Triple Axle Kit - 24K Capacity (Axle Series) 9/16" Studs

8000 lb TK Hybrid Triple Axle Kit - 24K Capacity (Axle Series) 9/16" Studs

SKU : 08THDAKTTK7558865-HYBRID

Online price only

$2,603.99

Online price only

SAVE 0% (833) 910-3416
Shipping: Calculated at Checkout | Product Wt. 800.0 lb
Kit Options:
Hubface/Spring Center (Frame Width):
Tax Exempt? Enter info in cart when you're done shopping.
View full details
  • Product Information
  • How To
  • Reviews

8K TK Hybrid Triple Axle Kit — 24,000 lb | 75/58

Complete 24,000 lb triple axle setup: three 8K electric brake axles and the suspension hardware for a proper triple-axle configuration.

Specifications:

  • Capacity: 24,000 lb (3 x 8,000 lb axles)
  • Axle: 8K TK Hybrid electric drum brake, 12" x 2" brakes, 3.5" tube
  • Hubface/Spring Center: 75/58

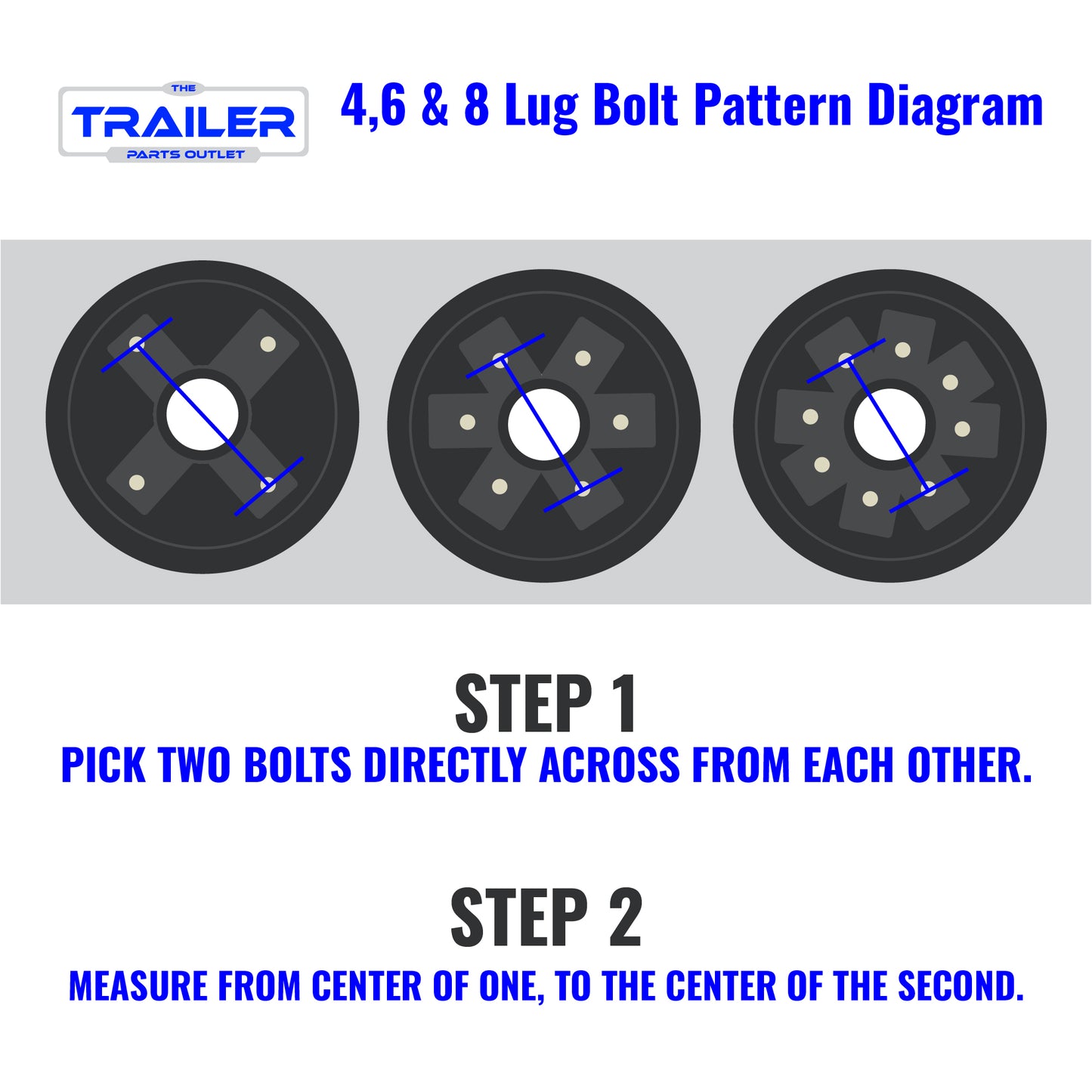

  • Bolt pattern: 8x6.5
  • Studs: 9/16"
  • ABS: Not ABS compatible

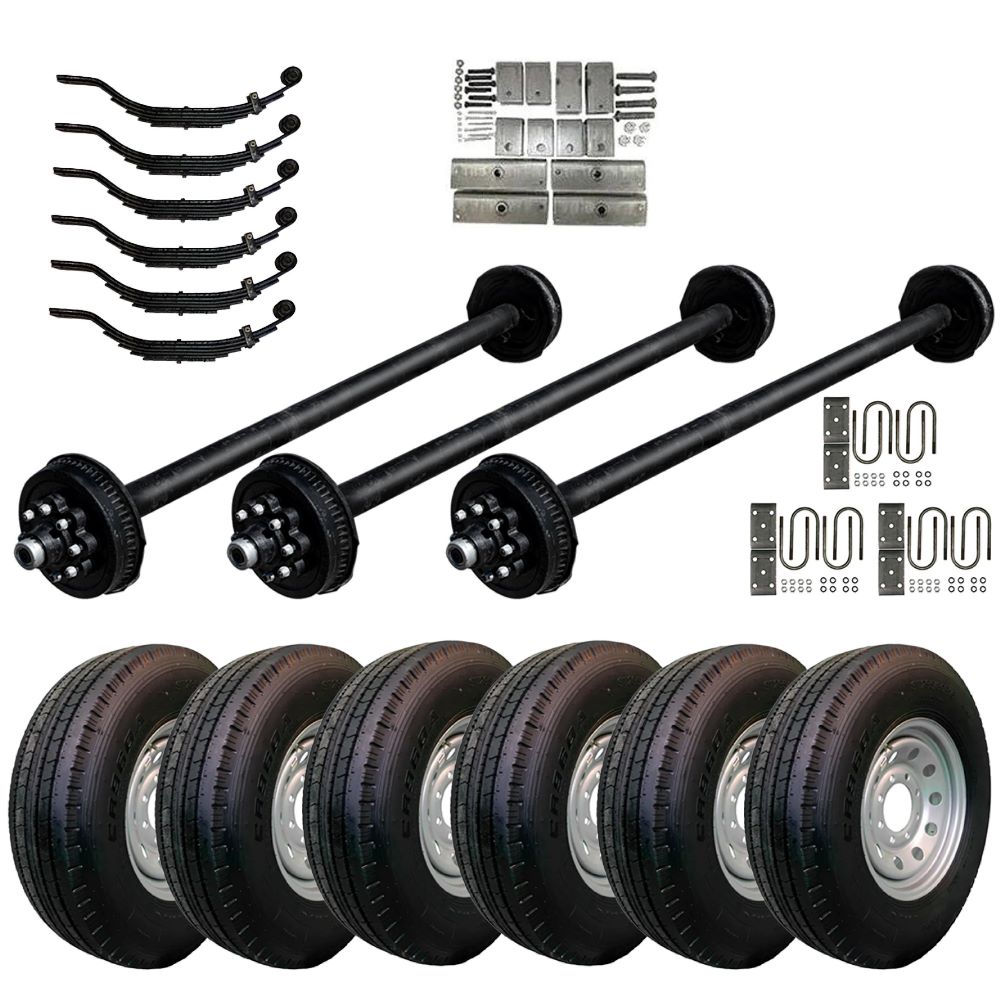

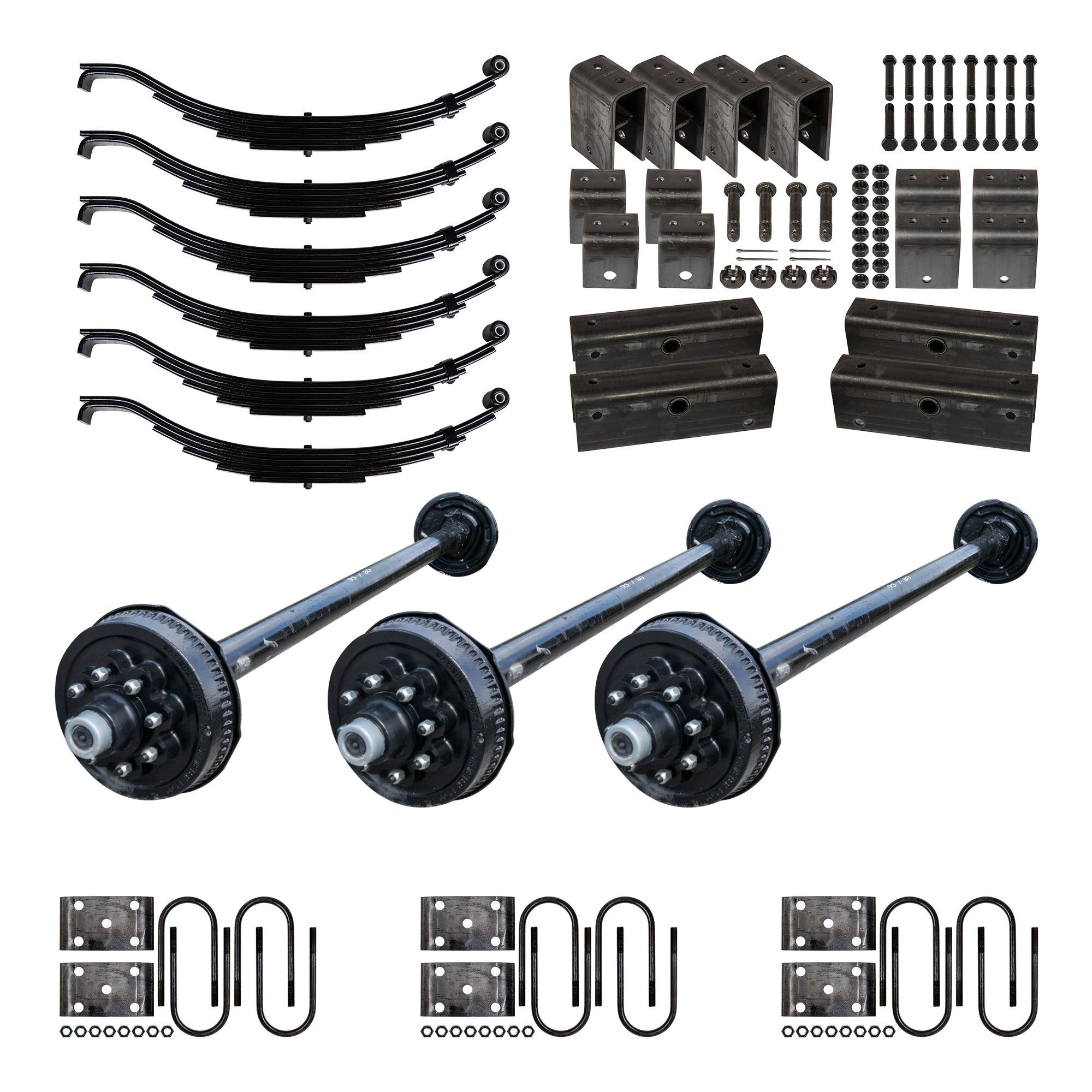

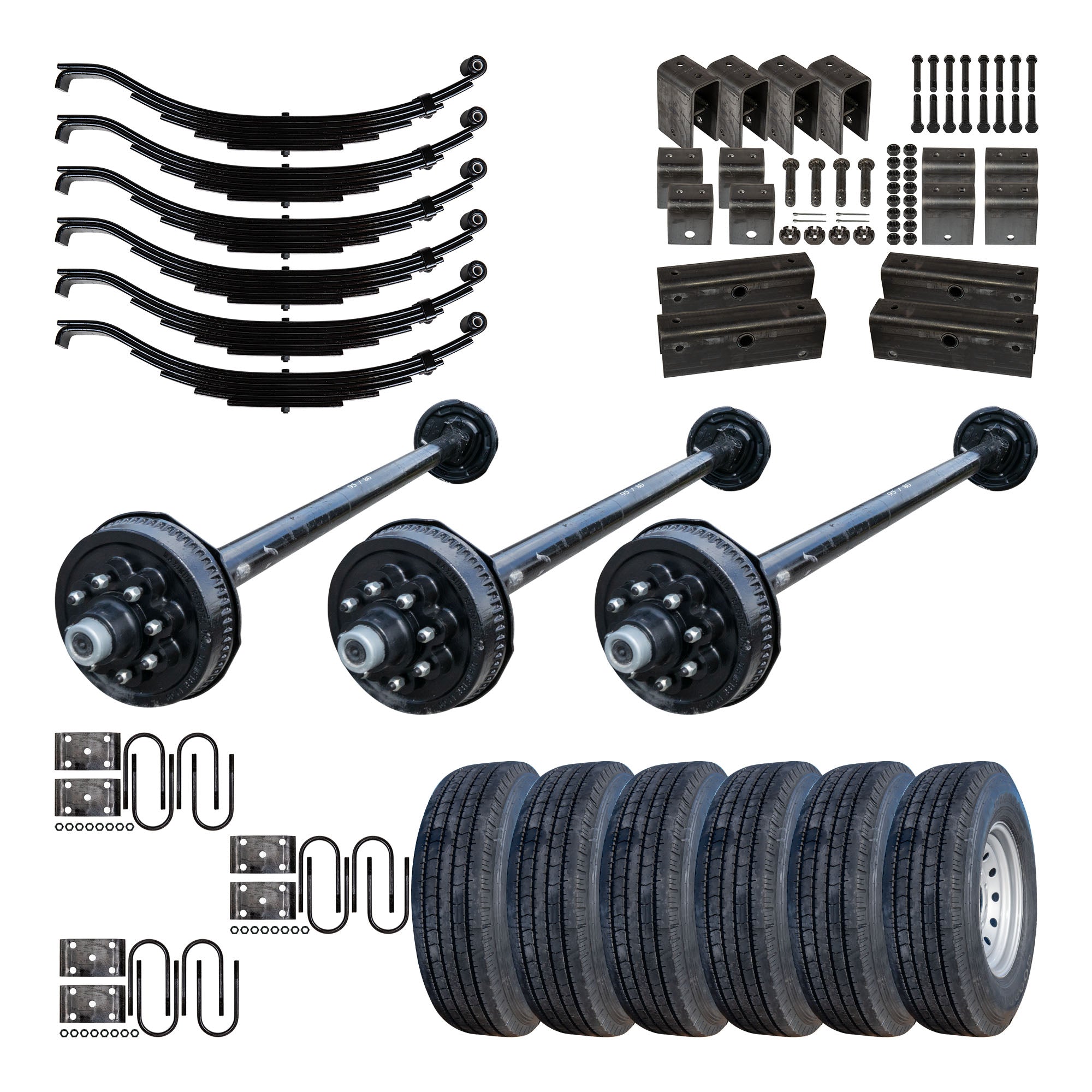

What’s Included:

  • (3) 8k TK Hybrid Electric Brake Trailer Axle - (12" Brake - 3.5" Tube) - 75/58 - 8x6.5 - 9/16"
  • (6) 6 Leaf 29 1/2" x 2" Wide Trailer Heavy Duty Slipper Spring for 8000 lb Axles
  • (3) 9/16" Trailer U-bolt kit for 3.5" Tube 8000 lb Axles
  • (2) Trailer Tandem Slipper Hanger Kit for 5200 - 8000 lb axles

How to Measure: Hubface is measured from one hub face (where the studs come out) to the hub face on the opposite side. Spring Center is measured from the center of one spring seat to the center of the opposite spring seat.

Key Benefits:

  • Axles arrive pre-packed with high-temp axle grease and assembled for faster installation
  • Underslung with spring seats welded on the bottom for a lower ride height
  • EZ Lube design with removable rubber plug on the hub cap for easy access to the grease zerk

Ideal For:

  • ATV trailers
  • Lawn and landscape trailers
  • Flatbeds
  • Equipment trailers
  • Car haulers
